Flutter校园热水卡记录应用开发教程

项目概述

本教程将带你开发一个功能完整的Flutter校园热水卡记录应用。这款应用专为校园学生设计，提供热水卡余额查询、使用记录追踪、充值记录管理、统计分析等功能，帮助学生更好地管理热水卡的使用情况。

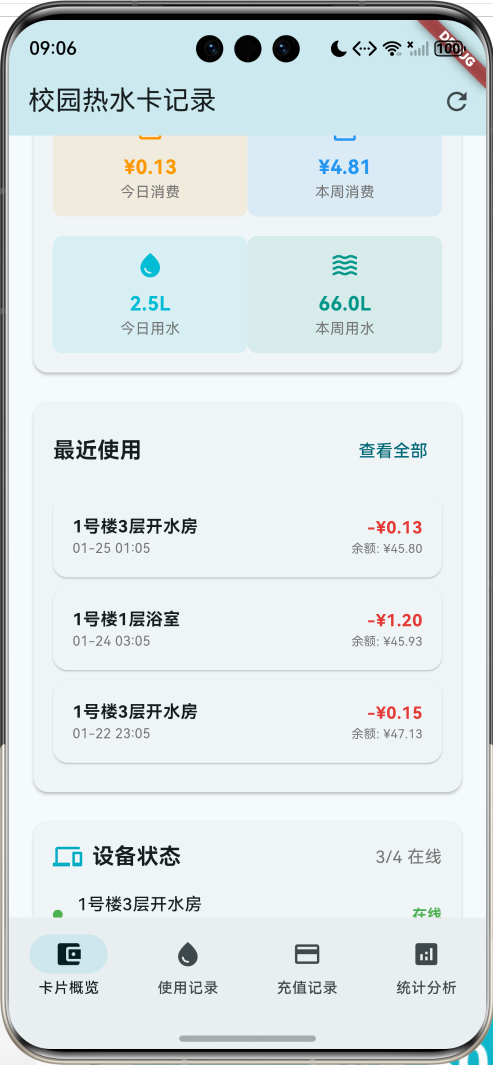

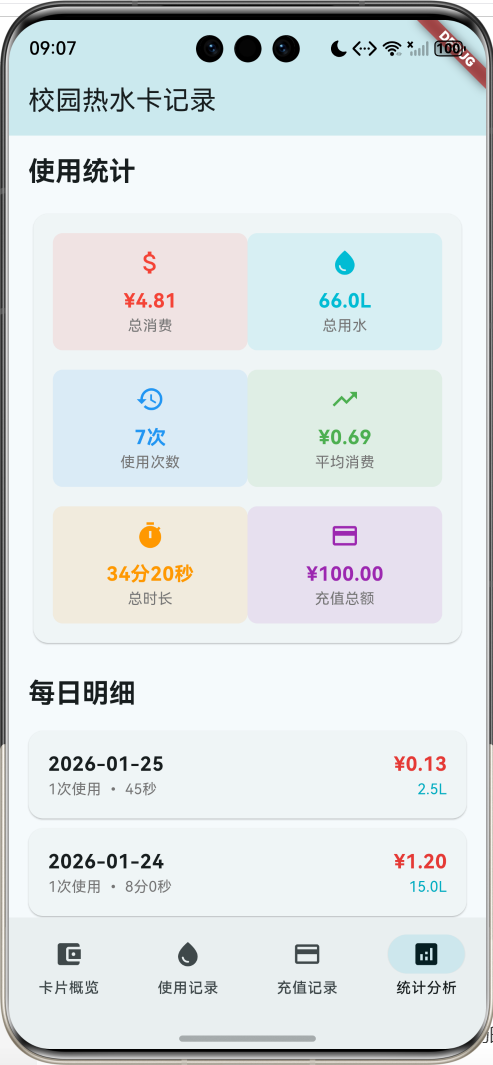

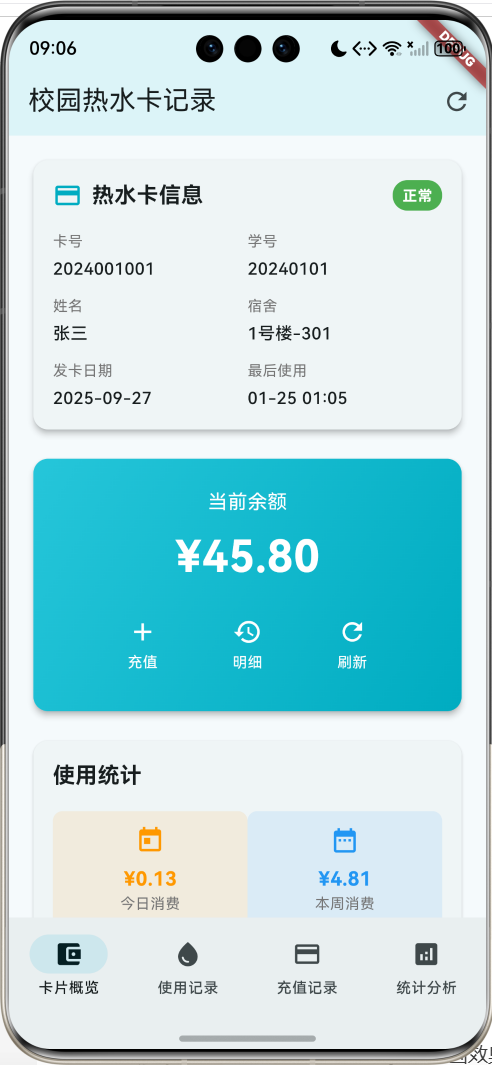

运行效果图

应用特色

• 卡片信息管理：显示热水卡基本信息，包括卡号、学号、姓名、宿舍等
• 余额实时显示：动画效果展示当前余额，支持刷新功能
• 使用记录追踪：详细记录每次用水的时间、地点、用量、费用等信息
• 充值记录管理：记录充值历史，支持多种支付方式
• 智能统计分析：提供日统计、周统计、地点分布等多维度分析
• 设备状态监控：显示校园内热水设备的在线状态和价格信息
• 多维度筛选：支持按时间、地点、设备等条件筛选记录
• 动画效果：余额显示和页面切换都有流畅的动画效果

技术栈

• 框架：Flutter 3.x
• 语言：Dart
• UI组件：Material Design 3
• 状态管理：StatefulWidget
• 动画：AnimationController + 多种动画效果
• 数据存储：内存存储（可扩展为本地数据库）
• 导航：NavigationBar

项目结构设计

核心数据模型

1. 热水卡信息模型（HotWaterCard）

class HotWaterCard {
  final String id;              // 唯一标识
  final String cardNumber;      // 卡号
  final String studentId;       // 学号
  final String studentName;     // 学生姓名
  final String dormitory;       // 宿舍信息
  final DateTime issueDate;     // 发卡日期
  double balance;              // 当前余额
  bool isActive;               // 卡片状态
  DateTime lastUsedDate;       // 最后使用时间
}

2. 使用记录模型（UsageRecord）

class UsageRecord {
  final String id;              // 唯一标识
  final String cardId;          // 关联的卡片ID
  final DateTime usageDate;     // 使用日期
  final String location;        // 使用地点：宿舍楼、浴室等
  final double waterAmount;     // 用水量（升）
  final double cost;            // 消费金额
  final double balanceBefore;   // 使用前余额
  final double balanceAfter;    // 使用后余额
  final String deviceId;        // 设备编号
  final int duration;           // 使用时长（秒）
}

3. 充值记录模型（RechargeRecord）

class RechargeRecord {
  final String id;              // 唯一标识
  final String cardId;          // 关联的卡片ID
  final DateTime rechargeDate;  // 充值日期
  final double amount;          // 充值金额
  final String paymentMethod;   // 支付方式：现金、支付宝、微信等
  final String location;        // 充值地点
  final String operatorId;      // 操作员ID
  final double balanceBefore;   // 充值前余额
  final double balanceAfter;    // 充值后余额
}

4. 统计数据模型（UsageStatistics）

class UsageStatistics {
  final DateTime date;          // 日期
  final double totalCost;       // 总消费
  final double totalWaterAmount; // 总用水量
  final int usageCount;         // 使用次数
  final int totalDuration;      // 总时长
}

5. 设备信息模型（WaterDevice）

class WaterDevice {
  final String id;              // 唯一标识
  final String deviceNumber;    // 设备编号
  final String location;        // 设备位置
  final String building;        // 所在楼栋
  final String floor;           // 所在楼层
  final bool isOnline;          // 是否在线
  final double pricePerLiter;   // 每升价格
  final DateTime lastMaintenanceDate; // 最后维护日期
}

页面架构

应用采用底部导航栏设计，包含四个主要页面：

1. 卡片概览页面：显示卡片信息、余额、快速统计和设备状态
2. 使用记录页面：展示详细的用水记录，支持搜索和筛选
3. 充值记录页面：显示充值历史记录
4. 统计分析页面：提供多维度的数据统计和分析

详细实现步骤

第一步：项目初始化

创建新的Flutter项目：

flutter create hot_water_card_app
cd hot_water_card_app

第二步：主应用结构

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '校园热水卡记录',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.cyan),
        useMaterial3: true,
      ),
      home: const HotWaterCardHomePage(),
    );
  }
}

第三步：数据初始化

创建示例热水卡和使用记录数据：

void _initializeData() {
  // 初始化热水卡信息
  _currentCard = HotWaterCard(
    id: '1',
    cardNumber: '2024001001',
    studentId: '20240101',
    studentName: '张三',
    dormitory: '1号楼-301',
    issueDate: DateTime.now().subtract(const Duration(days: 120)),
    balance: 45.80,
    isActive: true,
    lastUsedDate: DateTime.now().subtract(const Duration(hours: 8)),
  );

  // 初始化设备信息
  _devices = [
    WaterDevice(
      id: '1',
      deviceNumber: 'HW001',
      location: '1号楼3层开水房',
      building: '1号楼',
      floor: '3层',
      isOnline: true,
      pricePerLiter: 0.05,
      lastMaintenanceDate: DateTime.now().subtract(const Duration(days: 7)),
    ),
    // 更多设备数据...
  ];
}

第四步：卡片概览页面

卡片信息展示

Widget _buildCardInfoCard() {
  return Card(
    elevation: 4,
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          // 标题行
          Row(
            children: [
              Icon(
                Icons.credit_card,
                color: Colors.cyan.shade600,
                size: 24,
              ),
              const SizedBox(width: 8),
              const Text(
                '热水卡信息',
                style: TextStyle(
                  fontSize: 18,
                  fontWeight: FontWeight.bold,
                ),
              ),
              const Spacer(),
              // 卡片状态标签
              Container(
                padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
                decoration: BoxDecoration(
                  color: _currentCard!.isActive ? Colors.green : Colors.red,
                  borderRadius: BorderRadius.circular(12),
                ),
                child: Text(
                  _currentCard!.isActive ? '正常' : '停用',
                  style: const TextStyle(
                    color: Colors.white,
                    fontSize: 12,
                    fontWeight: FontWeight.bold,
                  ),
                ),
              ),
            ],
          ),

          // 详细信息展示
          Row(
            children: [
              Expanded(
                child: _buildInfoRow('卡号', _currentCard!.cardNumber),
              ),
              Expanded(
                child: _buildInfoRow('学号', _currentCard!.studentId),
              ),
            ],
          ),
          // 更多信息行...
        ],
      ),
    ),
  );
}

余额卡片（带动画效果）

Widget _buildBalanceCard() {
  return Card(
    elevation: 4,
    child: Container(
      width: double.infinity,
      padding: const EdgeInsets.all(24),
      decoration: BoxDecoration(
        borderRadius: BorderRadius.circular(12),
        gradient: LinearGradient(
          colors: [Colors.cyan.shade400, Colors.cyan.shade600],
          begin: Alignment.topLeft,
          end: Alignment.bottomRight,
        ),
      ),
      child: Column(
        children: [
          const Text(
            '当前余额',
            style: TextStyle(
              color: Colors.white,
              fontSize: 16,
            ),
          ),
          const SizedBox(height: 8),
          // 动画余额显示
          AnimatedBuilder(
            animation: _balanceAnimation,
            builder: (context, child) {
              return Text(
                '¥${(_currentCard!.balance * _balanceAnimation.value).toStringAsFixed(2)}',
                style: const TextStyle(
                  color: Colors.white,
                  fontSize: 36,
                  fontWeight: FontWeight.bold,
                ),
              );
            },
          ),
          const SizedBox(height: 16),
          // 操作按钮
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            children: [
              _buildBalanceAction(Icons.add, '充值', () => _showRechargeDialog()),
              _buildBalanceAction(Icons.history, '明细', () => setState(() => _selectedIndex = 1)),
              _buildBalanceAction(Icons.refresh, '刷新', () => _refreshBalance()),
            ],
          ),
        ],
      ),
    ),
  );
}

快速统计卡片

Widget _buildQuickStatsCard() {
  final todayUsage = _usageRecords.where((record) {
    final today = DateTime.now();
    return record.usageDate.year == today.year &&
        record.usageDate.month == today.month &&
        record.usageDate.day == today.day;
  }).toList();

  final weekUsage = _usageRecords.where((record) {
    final weekAgo = DateTime.now().subtract(const Duration(days: 7));
    return record.usageDate.isAfter(weekAgo);
  }).toList();

  final todayCost = todayUsage.fold(0.0, (sum, record) => sum + record.cost);
  final weekCost = weekUsage.fold(0.0, (sum, record) => sum + record.cost);

  return Card(
    elevation: 2,
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          const Text(
            '使用统计',
            style: TextStyle(
              fontSize: 18,
              fontWeight: FontWeight.bold,
            ),
          ),
          const SizedBox(height: 16),
          Row(
            children: [
              Expanded(
                child: _buildStatItem(
                  '今日消费',
                  '¥${todayCost.toStringAsFixed(2)}',
                  Icons.today,
                  Colors.orange,
                ),
              ),
              Expanded(
                child: _buildStatItem(
                  '本周消费',
                  '¥${weekCost.toStringAsFixed(2)}',
                  Icons.date_range,
                  Colors.blue,
                ),
              ),
            ],
          ),
        ],
      ),
    ),
  );
}

第五步：使用记录页面

使用记录卡片

Widget _buildUsageRecordItem(UsageRecord record, {bool isCompact = false}) {
  return Card(
    elevation: isCompact ? 1 : 2,
    margin: EdgeInsets.only(bottom: isCompact ? 8 : 12),
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          // 标题行
          Row(
            children: [
              Expanded(
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(
                      record.location,
                      style: TextStyle(
                        fontSize: isCompact ? 14 : 16,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                    Text(
                      _formatDateTime(record.usageDate),
                      style: TextStyle(
                        color: Colors.grey.shade600,
                        fontSize: isCompact ? 11 : 12,
                      ),
                    ),
                  ],
                ),
              ),
              // 消费金额和余额
              Column(
                crossAxisAlignment: CrossAxisAlignment.end,
                children: [
                  Text(
                    '-¥${record.cost.toStringAsFixed(2)}',
                    style: TextStyle(
                      fontSize: isCompact ? 14 : 16,
                      fontWeight: FontWeight.bold,
                      color: Colors.red.shade600,
                    ),
                  ),
                  Text(
                    '余额: ¥${record.balanceAfter.toStringAsFixed(2)}',
                    style: TextStyle(
                      fontSize: isCompact ? 10 : 11,
                      color: Colors.grey.shade600,
                    ),
                  ),
                ],
              ),
            ],
          ),

          if (!isCompact) ...[
            const SizedBox(height: 12),
            // 详细信息
            Row(
              children: [
                Expanded(
                  child: _buildUsageInfoItem(
                    Icons.water_drop,
                    '用水量',
                    '${record.waterAmount.toStringAsFixed(1)}L',
                    Colors.cyan,
                  ),
                ),
                Expanded(
                  child: _buildUsageInfoItem(
                    Icons.timer,
                    '时长',
                    _formatDuration(record.duration),
                    Colors.orange,
                  ),
                ),
                Expanded(
                  child: _buildUsageInfoItem(
                    Icons.devices,
                    '设备',
                    record.deviceId,
                    Colors.blue,
                  ),
                ),
              ],
            ),
          ],
        ],
      ),
    ),
  );
}

筛选功能

List<UsageRecord> _getFilteredUsageRecords() {
  return _usageRecords.where((record) {
    // 搜索过滤
    if (_searchQuery.isNotEmpty) {
      final query = _searchQuery.toLowerCase();
      if (!record.location.toLowerCase().contains(query) &&
          !record.deviceId.toLowerCase().contains(query)) {
        return false;
      }
    }

    // 日期范围过滤
    if (_startDate != null && record.usageDate.isBefore(_startDate!)) {
      return false;
    }
    if (_endDate != null && record.usageDate.isAfter(_endDate!.add(const Duration(days: 1)))) {
      return false;
    }

    // 地点过滤
    if (_selectedLocation != null && record.location != _selectedLocation) {
      return false;
    }

    // 本周过滤
    if (_showThisWeekOnly) {
      final weekAgo = DateTime.now().subtract(const Duration(days: 7));
      if (record.usageDate.isBefore(weekAgo)) {
        return false;
      }
    }

    return true;
  }).toList();
}

第六步：充值记录页面

充值记录卡片

Widget _buildRechargeRecordItem(RechargeRecord record) {
  return Card(
    elevation: 2,
    margin: const EdgeInsets.only(bottom: 12),
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          // 标题行
          Row(
            children: [
              Expanded(
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(
                      record.location,
                      style: const TextStyle(
                        fontSize: 16,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                    Text(
                      _formatDateTime(record.rechargeDate),
                      style: TextStyle(
                        color: Colors.grey.shade600,
                        fontSize: 12,
                      ),
                    ),
                  ],
                ),
              ),
              // 充值金额和支付方式
              Column(
                crossAxisAlignment: CrossAxisAlignment.end,
                children: [
                  Text(
                    '+¥${record.amount.toStringAsFixed(2)}',
                    style: TextStyle(
                      fontSize: 18,
                      fontWeight: FontWeight.bold,
                      color: Colors.green.shade600,
                    ),
                  ),
                  Container(
                    padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
                    decoration: BoxDecoration(
                      color: _getPaymentMethodColor(record.paymentMethod),
                      borderRadius: BorderRadius.circular(8),
                    ),
                    child: Text(
                      record.paymentMethod,
                      style: const TextStyle(
                        color: Colors.white,
                        fontSize: 12,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ),
                ],
              ),
            ],
          ),

          const SizedBox(height: 12),

          // 余额变化显示
          Container(
            padding: const EdgeInsets.all(12),
            decoration: BoxDecoration(
              color: Colors.grey.shade100,
              borderRadius: BorderRadius.circular(8),
            ),
            child: Row(
              children: [
                Text(
                  '¥${record.balanceBefore.toStringAsFixed(2)}',
                  style: TextStyle(
                    fontSize: 14,
                    color: Colors.grey.shade600,
                  ),
                ),
                const SizedBox(width: 8),
                Icon(
                  Icons.arrow_forward,
                  size: 16,
                  color: Colors.grey.shade600,
                ),
                const SizedBox(width: 8),
                Text(
                  '¥${record.balanceAfter.toStringAsFixed(2)}',
                  style: TextStyle(
                    fontSize: 14,
                    fontWeight: FontWeight.bold,
                    color: Colors.green.shade600,
                  ),
                ),
                const Spacer(),
                Text(
                  '操作员: ${record.operatorId}',
                  style: TextStyle(
                    fontSize: 12,
                    color: Colors.grey.shade600,
                  ),
                ),
              ],
            ),
          ),
        ],
      ),
    ),
  );
}

支付方式颜色映射

Color _getPaymentMethodColor(String method) {
  switch (method) {
    case '支付宝':
      return Colors.blue;
    case '微信':
      return Colors.green;
    case '现金':
      return Colors.orange;
    case '银行卡':
      return Colors.purple;
    case '校园卡':
      return Colors.cyan;
    default:
      return Colors.grey;
  }
}

第七步：统计分析页面

总体统计卡片

Widget _buildOverallStatsCard() {
  final totalCost = _usageRecords.fold(0.0, (sum, record) => sum + record.cost);
  final totalWater = _usageRecords.fold(0.0, (sum, record) => sum + record.waterAmount);
  final totalDuration = _usageRecords.fold(0, (sum, record) => sum + record.duration);
  final avgCostPerUse = _usageRecords.isNotEmpty ? totalCost / _usageRecords.length : 0.0;

  return Card(
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        children: [
          Row(
            children: [
              Expanded(
                child: _buildStatItem(
                  '总消费',
                  '¥${totalCost.toStringAsFixed(2)}',
                  Icons.attach_money,
                  Colors.red,
                ),
              ),
              Expanded(
                child: _buildStatItem(
                  '总用水',
                  '${totalWater.toStringAsFixed(1)}L',
                  Icons.water_drop,
                  Colors.cyan,
                ),
              ),
            ],
          ),
          const SizedBox(height: 16),
          Row(
            children: [
              Expanded(
                child: _buildStatItem(
                  '使用次数',
                  '${_usageRecords.length}次',
                  Icons.history,
                  Colors.blue,
                ),
              ),
              Expanded(
                child: _buildStatItem(
                  '平均消费',
                  '¥${avgCostPerUse.toStringAsFixed(2)}',
                  Icons.trending_up,
                  Colors.green,
                ),
              ),
            ],
          ),
        ],
      ),
    ),
  );
}

地点使用分布

Widget _buildLocationStatsCard() {
  final locationStats = <String, Map<String, double>>{};

  for (final record in _usageRecords) {
    if (!locationStats.containsKey(record.location)) {
      locationStats[record.location] = {
        'cost': 0.0,
        'water': 0.0,
        'count': 0.0,
      };
    }
    locationStats[record.location]!['cost'] =
        locationStats[record.location]!['cost']! + record.cost;
    locationStats[record.location]!['water'] =
        locationStats[record.location]!['water']! + record.waterAmount;
    locationStats[record.location]!['count'] =
        locationStats[record.location]!['count']! + 1;
  }

  return Card(
    child: Padding(
      padding: const EdgeInsets.all(16),
      child: Column(
        children: locationStats.entries.map((entry) {
          final location = entry.key;
          final stats = entry.value;
          final percentage = stats['cost']! / _usageRecords.fold(0.0, (sum, r) => sum + r.cost);

          return Padding(
            padding: const EdgeInsets.only(bottom: 12),
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceBetween,
                  children: [
                    Text(
                      location,
                      style: const TextStyle(fontWeight: FontWeight.w500),
                    ),
                    Text(
                      '¥${stats['cost']!.toStringAsFixed(2)} (${(percentage * 100).toStringAsFixed(1)}%)',
                      style: TextStyle(
                        color: Colors.red.shade600,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                  ],
                ),
                const SizedBox(height: 4),
                LinearProgressIndicator(
                  value: percentage,
                  backgroundColor: Colors.grey.shade300,
                  valueColor: AlwaysStoppedAnimation<Color>(Colors.cyan.shade600),
                ),
                const SizedBox(height: 4),
                Text(
                  '${stats['count']!.toInt()}次使用 • ${stats['water']!.toStringAsFixed(1)}L',
                  style: TextStyle(
                    fontSize: 12,
                    color: Colors.grey.shade600,
                  ),
                ),
              ],
            ),
          );
        }).toList(),
      ),
    ),
  );
}

第八步：动画效果实现

多种动画控制器

void _setupAnimations() {
  // 页面淡入动画
  _fadeAnimationController = AnimationController(
    duration: const Duration(milliseconds: 800),
    vsync: this,
  );

  _fadeAnimation = Tween<double>(
    begin: 0.0,
    end: 1.0,
  ).animate(CurvedAnimation(
    parent: _fadeAnimationController,
    curve: Curves.easeInOut,
  ));

  // 余额弹性动画
  _balanceAnimationController = AnimationController(
    duration: const Duration(milliseconds: 1200),
    vsync: this,
  );

  _balanceAnimation = Tween<double>(
    begin: 0.0,
    end: 1.0,
  ).animate(CurvedAnimation(
    parent: _balanceAnimationController,
    curve: Curves.elasticOut,
  ));

  _fadeAnimationController.forward();
  _balanceAnimationController.forward();
}

余额刷新动画

void _refreshBalance() {
  _balanceAnimationController.reset();
  _balanceAnimationController.forward();

  ScaffoldMessenger.of(context).showSnackBar(
    const SnackBar(content: Text('余额已刷新')),
  );
}

核心功能详解

1. 数据统计算法

// 生成每日统计数据
void _generateStatistics() {
  final Map<String, UsageStatistics> dailyStats = {};

  for (final record in _usageRecords) {
    final dateKey = _formatDate(record.usageDate);

    if (dailyStats.containsKey(dateKey)) {
      final existing = dailyStats[dateKey]!;
      dailyStats[dateKey] = UsageStatistics(
        date: existing.date,
        totalCost: existing.totalCost + record.cost,
        totalWaterAmount: existing.totalWaterAmount + record.waterAmount,
        usageCount: existing.usageCount + 1,
        totalDuration: existing.totalDuration + record.duration,
      );
    } else {
      dailyStats[dateKey] = UsageStatistics(
        date: record.usageDate,
        totalCost: record.cost,
        totalWaterAmount: record.waterAmount,
        usageCount: 1,
        totalDuration: record.duration,
      );
    }
  }

  _statistics = dailyStats.values.toList()
    ..sort((a, b) => b.date.compareTo(a.date));
}

2. 时间格式化工具

// 格式化日期时间
String _formatDateTime(DateTime dateTime) {
  return '${dateTime.month.toString().padLeft(2, '0')}-${dateTime.day.toString().padLeft(2, '0')} ${dateTime.hour.toString().padLeft(2, '0')}:${dateTime.minute.toString().padLeft(2, '0')}';
}

// 格式化日期
String _formatDate(DateTime dateTime) {
  return '${dateTime.year}-${dateTime.month.toString().padLeft(2, '0')}-${dateTime.day.toString().padLeft(2, '0')}';
}

// 格式化时长
String _formatDuration(int seconds) {
  final minutes = seconds ~/ 60;
  final remainingSeconds = seconds % 60;
  if (minutes > 0) {
    return '${minutes}分${remainingSeconds}秒';
  } else {
    return '${remainingSeconds}秒';
  }
}

3. 设备状态监控

// 设备状态显示
Widget _buildDeviceItem(WaterDevice device) {
  return Padding(
    padding: const EdgeInsets.only(bottom: 8),
    child: Row(
      children: [
        // 在线状态指示器
        Container(
          width: 8,
          height: 8,
          decoration: BoxDecoration(
            color: device.isOnline ? Colors.green : Colors.red,
            shape: BoxShape.circle,
          ),
        ),
        const SizedBox(width: 12),
        Expanded(
          child: Column(
            crossAxisAlignment: CrossAxisAlignment.start,
            children: [
              Text(
                device.location,
                style: const TextStyle(
                  fontSize: 14,
                  fontWeight: FontWeight.w500,
                ),
              ),
              Text(
                '${device.deviceNumber} • ¥${device.pricePerLiter}/L',
                style: TextStyle(
                  fontSize: 12,
                  color: Colors.grey.shade600,
                ),
              ),
            ],
          ),
        ),
        Text(
          device.isOnline ? '在线' : '离线',
          style: TextStyle(
            fontSize: 12,
            color: device.isOnline ? Colors.green : Colors.red,
            fontWeight: FontWeight.bold,
          ),
        ),
      ],
    ),
  );
}

性能优化

1. 列表优化

使用ListView.builder实现虚拟滚动：

ListView.builder(
  padding: const EdgeInsets.all(16),
  itemCount: filteredRecords.length,
  itemBuilder: (context, index) {
    final record = filteredRecords[index];
    return _buildUsageRecordItem(record);
  },
)

2. 状态管理优化

合理使用setState，避免不必要的重建：

void _updateBalance(double newBalance) {
  setState(() {
    _currentCard!.balance = newBalance;
  });
  _refreshBalance();
}

3. 内存管理

及时释放动画控制器：

@override
void dispose() {
  _fadeAnimationController.dispose();
  _balanceAnimationController.dispose();
  super.dispose();
}

4. 数据缓存

// 缓存筛选结果
List<UsageRecord>? _cachedFilteredRecords;
String? _lastSearchQuery;

List<UsageRecord> _getFilteredUsageRecords() {
  // 检查缓存是否有效
  if (_cachedFilteredRecords != null && _lastSearchQuery == _searchQuery) {
    return _cachedFilteredRecords!;
  }

  // 重新计算筛选结果
  _cachedFilteredRecords = _usageRecords.where((record) {
    // 筛选逻辑...
  }).toList();

  _lastSearchQuery = _searchQuery;
  return _cachedFilteredRecords!;
}

扩展功能

1. 数据持久化

使用sqflite数据库保存数据：

dependencies:
  sqflite: ^2.3.0

class DatabaseHelper {
  static final DatabaseHelper _instance = DatabaseHelper._internal();
  factory DatabaseHelper() => _instance;
  DatabaseHelper._internal();

  static Database? _database;

  Future<Database> get database async {
    if (_database != null) return _database!;
    _database = await _initDatabase();
    return _database!;
  }

  Future<Database> _initDatabase() async {
    String path = join(await getDatabasesPath(), 'hot_water_card.db');
    return await openDatabase(
      path,
      version: 1,
      onCreate: _onCreate,
    );
  }

  Future<void> _onCreate(Database db, int version) async {
    // 创建热水卡表
    await db.execute('''
      CREATE TABLE hot_water_cards(
        id TEXT PRIMARY KEY,
        card_number TEXT NOT NULL,
        student_id TEXT NOT NULL,
        student_name TEXT NOT NULL,
        dormitory TEXT NOT NULL,
        issue_date TEXT NOT NULL,
        balance REAL NOT NULL,
        is_active INTEGER NOT NULL,
        last_used_date TEXT NOT NULL
      )
    ''');

    // 创建使用记录表
    await db.execute('''
      CREATE TABLE usage_records(
        id TEXT PRIMARY KEY,
        card_id TEXT NOT NULL,
        usage_date TEXT NOT NULL,
        location TEXT NOT NULL,
        water_amount REAL NOT NULL,
        cost REAL NOT NULL,
        balance_before REAL NOT NULL,
        balance_after REAL NOT NULL,
        device_id TEXT NOT NULL,
        duration INTEGER NOT NULL,
        FOREIGN KEY (card_id) REFERENCES hot_water_cards (id)
      )
    ''');

    // 创建充值记录表
    await db.execute('''
      CREATE TABLE recharge_records(
        id TEXT PRIMARY KEY,
        card_id TEXT NOT NULL,
        recharge_date TEXT NOT NULL,
        amount REAL NOT NULL,
        payment_method TEXT NOT NULL,
        location TEXT NOT NULL,
        operator_id TEXT NOT NULL,
        balance_before REAL NOT NULL,
        balance_after REAL NOT NULL,
        FOREIGN KEY (card_id) REFERENCES hot_water_cards (id)
      )
    ''');
  }

  // 插入使用记录
  Future<int> insertUsageRecord(UsageRecord record) async {
    final db = await database;
    return await db.insert('usage_records', {
      'id': record.id,
      'card_id': record.cardId,
      'usage_date': record.usageDate.toIso8601String(),
      'location': record.location,
      'water_amount': record.waterAmount,
      'cost': record.cost,
      'balance_before': record.balanceBefore,
      'balance_after': record.balanceAfter,
      'device_id': record.deviceId,
      'duration': record.duration,
    });
  }

  // 获取所有使用记录
  Future<List<UsageRecord>> getAllUsageRecords() async {
    final db = await database;
    final List<Map<String, dynamic>> maps = await db.query('usage_records');
    return List.generate(maps.length, (i) => UsageRecord.fromMap(maps[i]));
  }
}

2. 推送通知功能

使用flutter_local_notifications设置余额提醒：

dependencies:
  flutter_local_notifications: ^16.1.0

class NotificationService {
  final FlutterLocalNotificationsPlugin _notifications = FlutterLocalNotificationsPlugin();

  Future<void> initialize() async {
    const androidSettings = AndroidInitializationSettings('@mipmap/ic_launcher');
    const iosSettings = DarwinInitializationSettings();
    const settings = InitializationSettings(
      android: androidSettings,
      iOS: iosSettings,
    );

    await _notifications.initialize(settings);
  }

  Future<void> scheduleLowBalanceReminder(double balance) async {
    if (balance < 10.0) {
      await _notifications.show(
        0,
        '余额不足提醒',
        '您的热水卡余额仅剩¥${balance.toStringAsFixed(2)}，请及时充值',
        const NotificationDetails(
          android: AndroidNotificationDetails(
            'balance_channel',
            '余额提醒',
            channelDescription: '热水卡余额不足提醒',
            importance: Importance.high,
          ),
        ),
      );
    }
  }

  Future<void> scheduleUsageReminder() async {
    await _notifications.zonedSchedule(
      1,
      '用水提醒',
      '记得关注用水量，节约用水从我做起',
      _nextInstanceOfTime(20, 0), // 每天晚上8点
      const NotificationDetails(
        android: AndroidNotificationDetails(
          'usage_channel',
          '用水提醒',
          channelDescription: '节约用水提醒',
          importance: Importance.default,
        ),
      ),
      uiLocalNotificationDateInterpretation: UILocalNotificationDateInterpretation.absoluteTime,
      matchDateTimeComponents: DateTimeComponents.time,
    );
  }
}

3. 数据导出功能

导出使用记录为CSV或PDF：

dependencies:
  csv: ^5.0.2
  pdf: ^3.10.4

class DataExporter {
  Future<void> exportUsageRecordsToCSV(List<UsageRecord> records) async {
    List<List<dynamic>> rows = [];

    // 添加表头
    rows.add([
      '使用日期',
      '使用地点',
      '用水量(L)',
      '消费金额',
      '使用前余额',
      '使用后余额',
      '设备编号',
      '使用时长(秒)'
    ]);

    // 添加数据行
    for (final record in records) {
      rows.add([
        record.usageDate.toString(),
        record.location,
        record.waterAmount,
        record.cost,
        record.balanceBefore,
        record.balanceAfter,
        record.deviceId,
        record.duration,
      ]);
    }

    String csv = const ListToCsvConverter().convert(rows);

    final Directory directory = await getApplicationDocumentsDirectory();
    final String path = '${directory.path}/usage_records_export.csv';
    final File file = File(path);
    await file.writeAsString(csv);

    await Share.shareFiles([path], text: '热水卡使用记录导出');
  }

  Future<void> exportMonthlyReportToPDF(List<UsageRecord> records, DateTime month) async {
    final pdf = pw.Document();

    pdf.addPage(
      pw.Page(
        pageFormat: PdfPageFormat.a4,
        build: (pw.Context context) {
          return pw.Column(
            crossAxisAlignment: pw.CrossAxisAlignment.start,
            children: [
              pw.Text(
                '热水卡月度使用报告',
                style: pw.TextStyle(
                  fontSize: 24,
                  fontWeight: pw.FontWeight.bold,
                ),
              ),
              pw.SizedBox(height: 20),
              pw.Text('报告月份: ${month.year}年${month.month}月'),
              pw.Text('总使用次数: ${records.length}次'),
              pw.Text('总消费金额: ¥${records.fold(0.0, (sum, r) => sum + r.cost).toStringAsFixed(2)}'),
              pw.Text('总用水量: ${records.fold(0.0, (sum, r) => sum + r.waterAmount).toStringAsFixed(1)}L'),
              pw.SizedBox(height: 20),
              pw.Text('详细记录：'),
              pw.Table.fromTextArray(
                headers: ['日期', '地点', '用水量', '消费'],
                data: records.map((r) => [
                  r.usageDate.toString().substring(0, 10),
                  r.location,
                  '${r.waterAmount.toStringAsFixed(1)}L',
                  '¥${r.cost.toStringAsFixed(2)}',
                ]).toList(),
              ),
            ],
          );
        },
      ),
    );

    final output = await getTemporaryDirectory();
    final file = File('${output.path}/monthly_report.pdf');
    await file.writeAsBytes(await pdf.save());

    await Share.shareFiles([file.path], text: '热水卡月度报告');
  }
}

4. 云同步功能

集成Firebase进行数据同步：

dependencies:
  firebase_core: ^2.24.2
  cloud_firestore: ^4.13.6

class FirebaseService {
  final FirebaseFirestore _firestore = FirebaseFirestore.instance;

  Future<void> syncUsageRecords(List<UsageRecord> records) async {
    final batch = _firestore.batch();

    for (final record in records) {
      final docRef = _firestore
          .collection('users')
          .doc(_getCurrentUserId())
          .collection('usage_records')
          .doc(record.id);
      batch.set(docRef, record.toMap());
    }

    await batch.commit();
  }

  Stream<List<UsageRecord>> getUsageRecordsStream() {
    return _firestore
        .collection('users')
        .doc(_getCurrentUserId())
        .collection('usage_records')
        .orderBy('usage_date', descending: true)
        .snapshots()
        .map((snapshot) => snapshot.docs
            .map((doc) => UsageRecord.fromMap(doc.data()))
            .toList());
  }

  Future<void> syncCardInfo(HotWaterCard card) async {
    await _firestore
        .collection('users')
        .doc(_getCurrentUserId())
        .collection('cards')
        .doc(card.id)
        .set(card.toMap());
  }

  String _getCurrentUserId() {
    return 'user_id'; // 实际应用中获取当前用户ID
  }
}

5. 智能分析功能

class UsageAnalyzer {
  // 分析用水习惯
  static Map<String, dynamic> analyzeUsagePattern(List<UsageRecord> records) {
    final hourlyUsage = <int, int>{};
    final dailyUsage = <int, double>{};
    final locationPreference = <String, int>{};

    for (final record in records) {
      // 按小时统计
      final hour = record.usageDate.hour;
      hourlyUsage[hour] = (hourlyUsage[hour] ?? 0) + 1;

      // 按星期统计
      final weekday = record.usageDate.weekday;
      dailyUsage[weekday] = (dailyUsage[weekday] ?? 0.0) + record.cost;

      // 地点偏好
      locationPreference[record.location] = (locationPreference[record.location] ?? 0) + 1;
    }

    // 找出使用高峰时段
    final peakHour = hourlyUsage.entries
        .reduce((a, b) => a.value > b.value ? a : b)
        .key;

    // 找出最常用地点
    final favoriteLocation = locationPreference.entries
        .reduce((a, b) => a.value > b.value ? a : b)
        .key;

    return {
      'peakHour': peakHour,
      'favoriteLocation': favoriteLocation,
      'hourlyUsage': hourlyUsage,
      'dailyUsage': dailyUsage,
      'locationPreference': locationPreference,
    };
  }

  // 预测余额耗尽时间
  static DateTime? predictBalanceDepletion(double currentBalance, List<UsageRecord> recentRecords) {
    if (recentRecords.isEmpty) return null;

    // 计算最近7天的平均日消费
    final recentWeek = recentRecords.where((r) =>
        DateTime.now().difference(r.usageDate).inDays <= 7).toList();

    if (recentWeek.isEmpty) return null;

    final totalCost = recentWeek.fold(0.0, (sum, r) => sum + r.cost);
    final avgDailyCost = totalCost / 7;

    if (avgDailyCost <= 0) return null;

    final daysRemaining = currentBalance / avgDailyCost;
    return DateTime.now().add(Duration(days: daysRemaining.ceil()));
  }

  // 生成节水建议
  static List<String> generateWaterSavingTips(List<UsageRecord> records) {
    final tips = <String>[];

    final avgWaterPerUse = records.fold(0.0, (sum, r) => sum + r.waterAmount) / records.length;
    final avgDurationPerUse = records.fold(0, (sum, r) => sum + r.duration) / records.length;

    if (avgWaterPerUse > 20) {
      tips.add('您的平均用水量较高，建议控制用水时间');
    }

    if (avgDurationPerUse > 600) {
      tips.add('建议缩短用水时间，每次使用不超过10分钟');
    }

    final bathUsage = records.where((r) => r.location.contains('浴室')).length;
    final totalUsage = records.length;

    if (bathUsage / totalUsage > 0.8) {
      tips.add('可以考虑错峰洗澡，避免用水高峰期');
    }

    return tips;
  }
}

测试策略

1. 单元测试

测试核心业务逻辑：

// test/usage_analyzer_test.dart
import 'package:flutter_test/flutter_test.dart';
import 'package:hot_water_card_app/models/usage_record.dart';
import 'package:hot_water_card_app/services/usage_analyzer.dart';

void main() {
  group('UsageAnalyzer Tests', () {
    test('should analyze usage pattern correctly', () {
      final records = [
        UsageRecord(
          id: '1',
          cardId: '1',
          usageDate: DateTime(2024, 1, 1, 8, 0),
          location: '1号楼浴室',
          waterAmount: 15.0,
          cost: 1.2,
          balanceBefore: 50.0,
          balanceAfter: 48.8,
          deviceId: 'HW001',
          duration: 480,
        ),
        UsageRecord(
          id: '2',
          cardId: '1',
          usageDate: DateTime(2024, 1, 1, 8, 30),
          location: '1号楼浴室',
          waterAmount: 18.0,
          cost: 1.44,
          balanceBefore: 48.8,
          balanceAfter: 47.36,
          deviceId: 'HW001',
          duration: 540,
        ),
      ];

      final analysis = UsageAnalyzer.analyzeUsagePattern(records);

      expect(analysis['peakHour'], equals(8));
      expect(analysis['favoriteLocation'], equals('1号楼浴室'));
    });

    test('should predict balance depletion correctly', () {
      final records = [
        UsageRecord(
          id: '1',
          cardId: '1',
          usageDate: DateTime.now().subtract(const Duration(days: 1)),
          location: '1号楼浴室',
          waterAmount: 15.0,
          cost: 2.0,
          balanceBefore: 50.0,
          balanceAfter: 48.0,
          deviceId: 'HW001',
          duration: 480,
        ),
      ];

      final prediction = UsageAnalyzer.predictBalanceDepletion(20.0, records);

      expect(prediction, isNotNull);
      expect(prediction!.isAfter(DateTime.now()), isTrue);
    });
  });
}

2. Widget测试

测试UI组件：

// test/widget_test.dart
import 'package:flutter/material.dart';
import 'package:flutter_test/flutter_test.dart';
import 'package:hot_water_card_app/main.dart';

void main() {
  testWidgets('App should display navigation bar', (WidgetTester tester) async {
    await tester.pumpWidget(const MyApp());

    expect(find.byType(NavigationBar), findsOneWidget);
    expect(find.text('卡片概览'), findsOneWidget);
    expect(find.text('使用记录'), findsOneWidget);
    expect(find.text('充值记录'), findsOneWidget);
    expect(find.text('统计分析'), findsOneWidget);
  });

  testWidgets('Should show card information', (WidgetTester tester) async {
    await tester.pumpWidget(const MyApp());

    await tester.pumpAndSettle();

    expect(find.text('热水卡信息'), findsOneWidget);
    expect(find.text('当前余额'), findsOneWidget);
    expect(find.byType(Card), findsWidgets);
  });

  testWidgets('Should navigate between pages', (WidgetTester tester) async {
    await tester.pumpWidget(const MyApp());

    await tester.pumpAndSettle();

    // 点击使用记录页面
    await tester.tap(find.text('使用记录'));
    await tester.pumpAndSettle();

    expect(find.byType(ListView), findsOneWidget);

    // 点击统计分析页面
    await tester.tap(find.text('统计分析'));
    await tester.pumpAndSettle();

    expect(find.text('使用统计'), findsOneWidget);
  });
}

3. 集成测试

测试完整用户流程：

// integration_test/app_test.dart
import 'package:flutter/material.dart';
import 'package:flutter_test/flutter_test.dart';
import 'package:integration_test/integration_test.dart';
import 'package:hot_water_card_app/main.dart' as app;

void main() {
  IntegrationTestWidgetsFlutterBinding.ensureInitialized();

  group('App Integration Tests', () {
    testWidgets('Complete user flow test', (WidgetTester tester) async {
      app.main();
      await tester.pumpAndSettle();

      // 测试余额刷新
      await tester.tap(find.byIcon(Icons.refresh));
      await tester.pumpAndSettle();

      expect(find.text('余额已刷新'), findsOneWidget);

      // 测试搜索功能
      await tester.tap(find.text('使用记录'));
      await tester.pumpAndSettle();

      await tester.tap(find.byIcon(Icons.search));
      await tester.pumpAndSettle();

      await tester.enterText(find.byType(TextField), '浴室');
      await tester.tap(find.text('搜索'));
      await tester.pumpAndSettle();

      expect(find.text('浴室'), findsWidgets);

      // 测试筛选功能
      await tester.tap(find.byIcon(Icons.filter_list));
      await tester.pumpAndSettle();

      await tester.tap(find.text('仅显示本周'));
      await tester.tap(find.text('应用'));
      await tester.pumpAndSettle();

      expect(find.text('本周'), findsOneWidget);

      // 测试统计页面
      await tester.tap(find.text('统计分析'));
      await tester.pumpAndSettle();

      expect(find.text('总消费'), findsOneWidget);
      expect(find.text('总用水'), findsOneWidget);
    });
  });
}

部署和发布

1. Android发布

# 生成签名密钥
keytool -genkey -v -keystore ~/key.jks -keyalg RSA -keysize 2048 -validity 10000 -alias key

# 配置android/app/build.gradle
android {
    signingConfigs {
        release {
            keyAlias keystoreProperties['keyAlias']
            keyPassword keystoreProperties['keyPassword']
            storeFile keystoreProperties['storeFile'] ? file(keystoreProperties['storeFile']) : null
            storePassword keystoreProperties['storePassword']
        }
    }
    buildTypes {
        release {
            signingConfig signingConfigs.release
        }
    }
}

# 构建APK
flutter build apk --release

2. iOS发布

# 构建iOS应用
flutter build ios --release

# 使用Xcode进行代码签名和发布
open ios/Runner.xcworkspace

3. Web发布

# 构建Web应用
flutter build web --release

# 部署到服务器
# 将build/web目录内容上传到Web服务器

总结

本教程详细介绍了如何使用Flutter开发一个功能完整的校园热水卡记录应用。应用包含了卡片管理、使用记录、充值记录、统计分析等核心功能，采用了Material Design 3设计规范，提供了良好的用户体验。

通过本项目的学习，你将掌握：

• Flutter应用架构设计
• 复杂数据模型的设计和管理
• 多页面导航和状态管理
• 动画效果的实现和优化
• 搜索和筛选功能的实现
• 数据统计和可视化展示
• 性能优化技巧
• 测试策略和部署流程

这个应用不仅适合校园学生使用，也为其他校园服务类应用的开发提供了很好的参考模板。你可以根据自己的需求进行功能扩展和定制，比如添加NFC读卡、二维码支付、社交分享等高级功能。

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net
