Flutter 框架跨平台鸿蒙开发 - 校园饮水机打卡应用开发教程
Flutter校园饮水机打卡应用是一个功能完整、设计精美的健康管理工具。应用通过Material Design 3设计语言,提供了直观友好的用户界面;通过完善的数据模型设计,实现了全面的饮水记录管理;通过智能统计分析,帮助用户养成良好的饮水习惯。健康管理:科学记录和分析饮水数据,促进健康生活方式便民服务:提供校园饮水机信息查询,方便日常使用智能提醒:个性化提醒系统,帮助用户保持良好饮水习惯数据可视
Flutter校园饮水机打卡应用开发教程
项目简介
校园饮水机打卡应用是一款专为校园环境设计的健康管理工具,帮助学生和教职工记录日常饮水情况,养成良好的饮水习惯。应用集成了饮水记录管理、饮水机信息查询、健康统计分析和智能提醒等功能,为用户提供全方位的饮水健康管理服务。

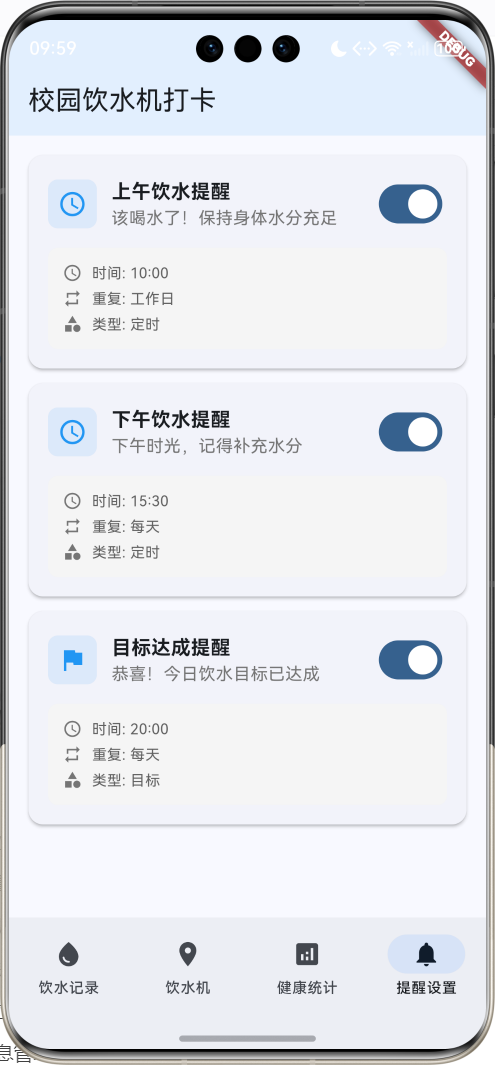

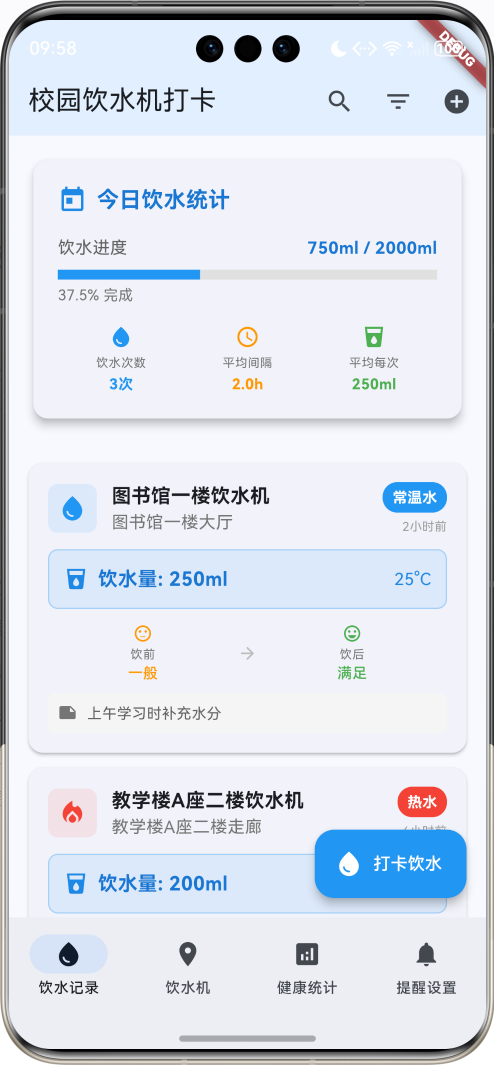

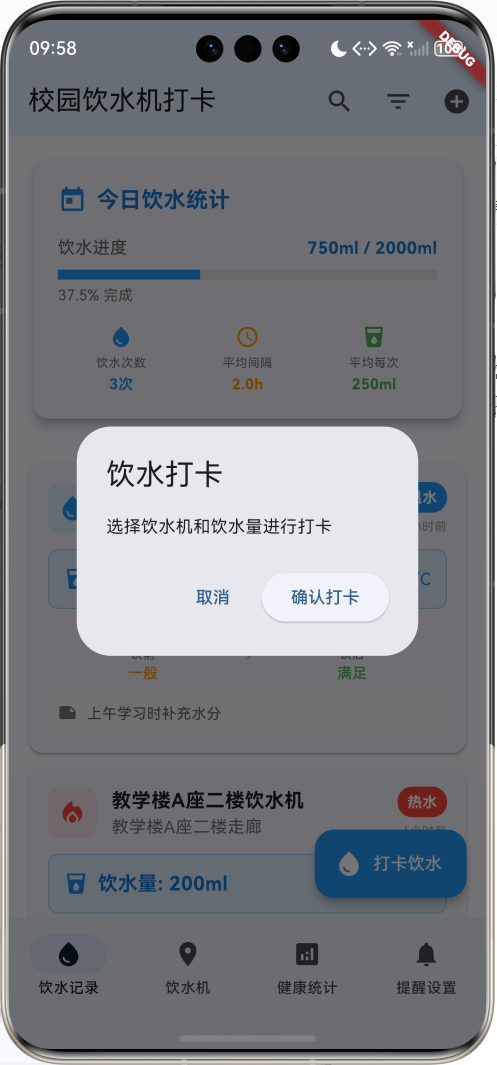

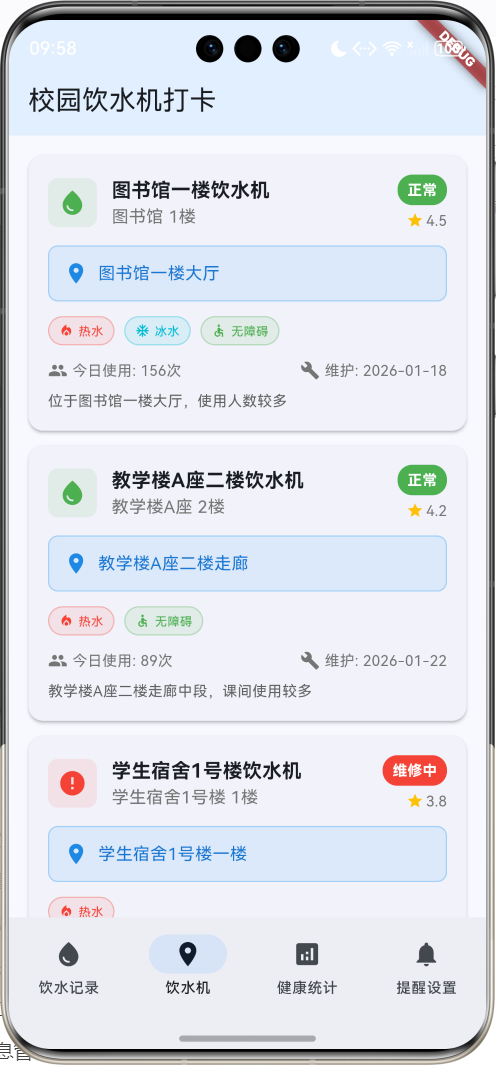

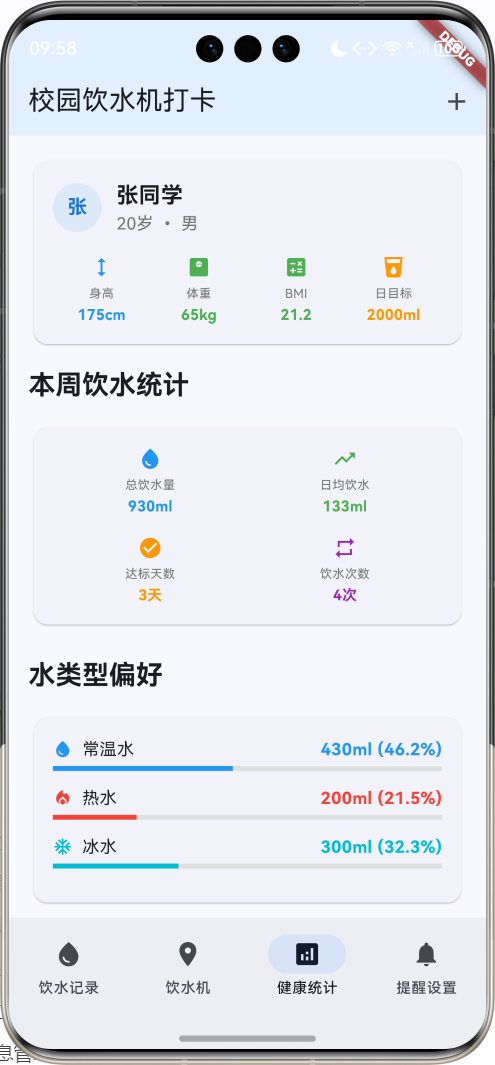

运行效果图




核心功能特性
- 智能打卡记录:支持快速饮水打卡,记录饮水量、水温、心情状态等详细信息
- 饮水机地图:校园饮水机位置查询,包含设备状态、功能特性和用户评价
- 健康统计分析:个人饮水数据统计,包含日、周、月度分析和趋势图表
- 智能提醒系统:个性化饮水提醒,支持定时、智能和目标导向的提醒方式
- 多维度筛选:支持按时间、位置、水类型等条件筛选饮水记录
- 用户健康档案:个人健康信息管理,BMI计算和饮水目标设定
技术架构
开发环境
- 框架:Flutter 3.x
- 开发语言:Dart
- UI组件:Material Design 3
- 状态管理:StatefulWidget + setState
- 动画效果:AnimationController + Tween
项目结构
lib/
├── main.dart # 应用入口和主要逻辑
├── models/ # 数据模型
│ ├── drinking_record.dart # 饮水记录模型
│ ├── water_station.dart # 饮水机信息模型
│ ├── health_profile.dart # 用户健康档案模型
│ ├── daily_stats.dart # 每日统计模型
│ └── reminder.dart # 提醒设置模型
├── pages/ # 页面组件
│ ├── records_page.dart # 饮水记录页面
│ ├── stations_page.dart # 饮水机页面
│ ├── stats_page.dart # 健康统计页面
│ └── reminders_page.dart # 提醒设置页面
└── widgets/ # 自定义组件
├── record_card.dart # 记录卡片组件
├── station_card.dart # 饮水机卡片组件
└── stats_chart.dart # 统计图表组件
数据模型设计
饮水记录模型(DrinkingRecord)
饮水记录是应用的核心数据结构,记录用户每次饮水的详细信息:
class DrinkingRecord {
final String id; // 记录唯一标识
final DateTime timestamp; // 打卡时间
final String stationId; // 饮水机ID
final String stationName; // 饮水机名称
final String location; // 位置信息
final int volume; // 饮水量(毫升)
final String waterType; // 水类型:常温、热水、冰水
final double temperature; // 水温度
final String notes; // 用户备注
final String userId; // 用户ID
final bool isHealthy; // 是否健康饮水
final String moodBefore; // 饮水前状态
final String moodAfter; // 饮水后状态
}
饮水机信息模型(WaterStation)
饮水机信息模型存储校园内各个饮水机的详细信息:
class WaterStation {
final String id; // 饮水机唯一标识
final String name; // 饮水机名称
final String location; // 具体位置
final String building; // 所在建筑
final String floor; // 楼层信息
final List<String> waterTypes; // 支持的水类型
final bool isWorking; // 工作状态
final DateTime lastMaintenance; // 上次维护时间
final int dailyUsageCount; // 今日使用次数
final double rating; // 用户评分
final String description; // 设备描述
final List<String> photos; // 设备照片
final bool hasHotWater; // 是否支持热水
final bool hasColdWater; // 是否支持冰水
final bool isAccessible; // 是否无障碍设计
}
用户健康档案模型(HealthProfile)
用户健康档案记录个人基本信息和健康数据:
class HealthProfile {
final String userId; // 用户ID
final String name; // 用户姓名
final int age; // 年龄
final String gender; // 性别
final double weight; // 体重(kg)
final double height; // 身高(cm)
final int dailyWaterGoal; // 每日饮水目标(毫升)
final List<String> healthConditions; // 健康状况
final List<String> preferences; // 饮水偏好
final DateTime createdDate; // 创建日期
final DateTime lastUpdated; // 最后更新时间
}
每日饮水统计模型(DailyWaterStats)
每日统计模型用于分析用户的饮水习惯和健康状况:
class DailyWaterStats {
final String userId; // 用户ID
final DateTime date; // 统计日期
final int totalVolume; // 总饮水量
final int goalVolume; // 目标饮水量
final int drinkingCount; // 饮水次数
final Map<String, int> waterTypeStats; // 各类型水的饮用量
final Map<String, int> locationStats; // 各位置的饮水次数
final List<DateTime> drinkingTimes; // 饮水时间点
final double averageInterval; // 平均饮水间隔(小时)
final bool goalAchieved; // 是否达成目标
}
饮水提醒模型(DrinkingReminder)
提醒系统模型支持多种提醒方式和个性化设置:
class DrinkingReminder {
final String id; // 提醒唯一标识
final String userId; // 用户ID
final String title; // 提醒标题
final String message; // 提醒内容
final DateTime scheduledTime; // 预定时间
final bool isRepeating; // 是否重复
final List<int> repeatDays; // 重复的星期几(1-7)
final bool isEnabled; // 是否启用
final String reminderType; // 提醒类型:定时、智能、目标
final DateTime createdDate; // 创建日期
}
应用主界面设计
主页面结构
应用采用底部导航栏设计,包含四个主要功能模块:
class WaterStationHomePage extends StatefulWidget {
const WaterStationHomePage({super.key});
State<WaterStationHomePage> createState() => _WaterStationHomePageState();
}
class _WaterStationHomePageState extends State<WaterStationHomePage>
with TickerProviderStateMixin {
int _selectedIndex = 0;
// 数据存储
List<DrinkingRecord> _drinkingRecords = [];
List<WaterStation> _waterStations = [];
List<DrinkingReminder> _reminders = [];
HealthProfile? _userProfile;
DailyWaterStats? _todayStats;
// 筛选和搜索
String _searchQuery = '';
DateTime _selectedDate = DateTime.now();
String? _selectedLocation;
String? _selectedWaterType;
// 动画控制器
late AnimationController _fadeAnimationController;
late Animation<double> _fadeAnimation;
late AnimationController _bounceAnimationController;
late Animation<double> _bounceAnimation;
}
底部导航栏设计
底部导航栏提供四个主要功能入口:
bottomNavigationBar: NavigationBar(
selectedIndex: _selectedIndex,
onDestinationSelected: (index) {
setState(() => _selectedIndex = index);
},
destinations: const [
NavigationDestination(
icon: Icon(Icons.water_drop),
label: '饮水记录',
),
NavigationDestination(
icon: Icon(Icons.location_on),
label: '饮水机',
),
NavigationDestination(
icon: Icon(Icons.analytics),
label: '健康统计',
),
NavigationDestination(
icon: Icon(Icons.notifications),
label: '提醒设置',
),
],
)
动画效果实现
应用使用多种动画效果提升用户体验:
void _setupAnimations() {
_fadeAnimationController = AnimationController(
duration: const Duration(milliseconds: 800),
vsync: this,
);
_fadeAnimation = Tween<double>(
begin: 0.0,
end: 1.0,
).animate(CurvedAnimation(
parent: _fadeAnimationController,
curve: Curves.easeInOut,
));
_bounceAnimationController = AnimationController(
duration: const Duration(milliseconds: 1200),
vsync: this,
);
_bounceAnimation = Tween<double>(
begin: 0.0,
end: 1.0,
).animate(CurvedAnimation(
parent: _bounceAnimationController,
curve: Curves.elasticOut,
));
_fadeAnimationController.forward();
_bounceAnimationController.forward();
}
饮水记录功能实现
记录列表页面
饮水记录页面是应用的核心功能,展示用户的所有饮水记录:
Widget _buildDrinkingRecordsPage() {
final filteredRecords = _getFilteredDrinkingRecords();
return Column(
children: [
// 今日统计卡片
if (_todayStats != null) _buildTodayStatsCard(),
// 筛选标签显示
if (_searchQuery.isNotEmpty ||
_selectedLocation != null ||
_selectedWaterType != null)
Container(
padding: const EdgeInsets.all(16),
child: Wrap(
spacing: 8,
runSpacing: 8,
children: [
if (_searchQuery.isNotEmpty)
Chip(
label: Text('搜索: $_searchQuery'),
onDeleted: () {
setState(() => _searchQuery = '');
},
),
// 其他筛选标签...
],
),
),
// 饮水记录列表
Expanded(
child: filteredRecords.isEmpty
? _buildEmptyState()
: ListView.builder(
padding: const EdgeInsets.all(16),
itemCount: filteredRecords.length,
itemBuilder: (context, index) {
final record = filteredRecords[index];
return _buildDrinkingRecordCard(record);
},
),
),
],
);
}
今日统计卡片
今日统计卡片显示用户当天的饮水进度和关键指标:
Widget _buildTodayStatsCard() {
final stats = _todayStats!;
final progress = stats.goalVolume > 0 ? stats.totalVolume / stats.goalVolume : 0.0;
return Container(
margin: const EdgeInsets.all(16),
child: Card(
elevation: 6,
child: Padding(
padding: const EdgeInsets.all(20),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 标题行
Row(
children: [
Icon(Icons.today, color: Colors.blue.shade600, size: 24),
const SizedBox(width: 8),
Text(
'今日饮水统计',
style: TextStyle(
fontSize: 18,
fontWeight: FontWeight.bold,
color: Colors.blue.shade700,
),
),
const Spacer(),
if (stats.goalAchieved)
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: Colors.green,
borderRadius: BorderRadius.circular(12),
),
child: const Text(
'目标达成',
style: TextStyle(
color: Colors.white,
fontSize: 12,
fontWeight: FontWeight.bold,
),
),
),
],
),
const SizedBox(height: 16),
// 进度条
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text('饮水进度', style: TextStyle(fontSize: 14, color: Colors.grey.shade700)),
Text(
'${stats.totalVolume}ml / ${stats.goalVolume}ml',
style: TextStyle(
fontSize: 14,
fontWeight: FontWeight.bold,
color: Colors.blue.shade700,
),
),
],
),
const SizedBox(height: 8),
LinearProgressIndicator(
value: progress > 1.0 ? 1.0 : progress,
backgroundColor: Colors.grey.shade300,
valueColor: AlwaysStoppedAnimation<Color>(
progress >= 1.0 ? Colors.green : Colors.blue,
),
minHeight: 8,
),
const SizedBox(height: 4),
Text(
'${(progress * 100).toStringAsFixed(1)}% 完成',
style: TextStyle(fontSize: 12, color: Colors.grey.shade600),
),
],
),
const SizedBox(height: 16),
// 统计信息
Row(
children: [
Expanded(
child: _buildStatItem(
Icons.water_drop, '饮水次数', '${stats.drinkingCount}次', Colors.blue,
),
),
Expanded(
child: _buildStatItem(
Icons.schedule, '平均间隔',
stats.averageInterval > 0
? '${stats.averageInterval.toStringAsFixed(1)}h'
: '暂无',
Colors.orange,
),
),
Expanded(
child: _buildStatItem(
Icons.local_drink, '平均每次',
stats.drinkingCount > 0
? '${(stats.totalVolume / stats.drinkingCount).toStringAsFixed(0)}ml'
: '0ml',
Colors.green,
),
),
],
),
],
),
),
),
);
}
饮水记录卡片
每条饮水记录以卡片形式展示,包含详细的饮水信息:
Widget _buildDrinkingRecordCard(DrinkingRecord record) {
final timeAgo = _getTimeAgo(record.timestamp);
return Card(
elevation: 2,
margin: const EdgeInsets.only(bottom: 12),
child: InkWell(
onTap: () => _showRecordDetail(record),
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 标题行
Row(
children: [
Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
color: _getWaterTypeColor(record.waterType).withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(8),
),
child: Icon(
_getWaterTypeIcon(record.waterType),
color: _getWaterTypeColor(record.waterType),
size: 24,
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
record.stationName,
style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
),
Text(
record.location,
style: TextStyle(color: Colors.grey.shade600, fontSize: 14),
),
],
),
),
Column(
crossAxisAlignment: CrossAxisAlignment.end,
children: [
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: _getWaterTypeColor(record.waterType),
borderRadius: BorderRadius.circular(12),
),
child: Text(
record.waterType,
style: const TextStyle(
color: Colors.white,
fontSize: 12,
fontWeight: FontWeight.bold,
),
),
),
const SizedBox(height: 4),
Text(timeAgo, style: TextStyle(color: Colors.grey.shade500, fontSize: 10)),
],
),
],
),
const SizedBox(height: 12),
// 饮水信息
Container(
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: Colors.blue.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(8),
border: Border.all(color: Colors.blue.withValues(alpha: 0.3)),
),
child: Row(
children: [
Icon(Icons.local_drink, color: Colors.blue.shade600, size: 20),
const SizedBox(width: 8),
Text(
'饮水量: ${record.volume}ml',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.bold,
color: Colors.blue.shade700,
),
),
const Spacer(),
Text(
'${record.temperature.toStringAsFixed(0)}°C',
style: TextStyle(fontSize: 14, color: Colors.blue.shade600),
),
],
),
),
const SizedBox(height: 12),
// 心情状态
Row(
children: [
Expanded(
child: _buildMoodItem(
'饮前', record.moodBefore,
_getMoodIcon(record.moodBefore),
_getMoodColor(record.moodBefore),
),
),
Icon(Icons.arrow_forward, color: Colors.grey.shade400, size: 16),
Expanded(
child: _buildMoodItem(
'饮后', record.moodAfter,
_getMoodIcon(record.moodAfter),
_getMoodColor(record.moodAfter),
),
),
],
),
// 备注
if (record.notes.isNotEmpty) ...[
const SizedBox(height: 8),
Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
color: Colors.grey.shade100,
borderRadius: BorderRadius.circular(6),
),
child: Row(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Icon(Icons.note, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 8),
Expanded(
child: Text(
record.notes,
style: TextStyle(color: Colors.grey.shade700, fontSize: 12),
),
),
],
),
),
],
],
),
),
),
);
}
筛选和搜索功能
应用提供多维度的筛选和搜索功能,帮助用户快速找到目标记录:
List<DrinkingRecord> _getFilteredDrinkingRecords() {
return _drinkingRecords.where((record) {
// 搜索过滤
if (_searchQuery.isNotEmpty) {
final query = _searchQuery.toLowerCase();
if (!record.stationName.toLowerCase().contains(query) &&
!record.location.toLowerCase().contains(query) &&
!record.notes.toLowerCase().contains(query)) {
return false;
}
}
// 位置过滤
if (_selectedLocation != null && record.location != _selectedLocation) {
return false;
}
// 水类型过滤
if (_selectedWaterType != null && record.waterType != _selectedWaterType) {
return false;
}
// 日期过滤
if (record.timestamp.year != _selectedDate.year ||
record.timestamp.month != _selectedDate.month ||
record.timestamp.day != _selectedDate.day) {
return false;
}
return true;
}).toList()
..sort((a, b) => b.timestamp.compareTo(a.timestamp));
}
搜索对话框
搜索功能通过对话框实现,支持实时搜索:
void _showSearchDialog() {
showDialog(
context: context,
builder: (context) => AlertDialog(
title: const Text('搜索记录'),
content: TextField(
autofocus: true,
decoration: const InputDecoration(
hintText: '输入饮水机名称、位置或备注',
prefixIcon: Icon(Icons.search),
),
onChanged: (value) {
_searchQuery = value;
},
onSubmitted: (value) {
Navigator.of(context).pop();
setState(() {});
},
),
actions: [
TextButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text('取消'),
),
ElevatedButton(
onPressed: () {
Navigator.of(context).pop();
setState(() {});
},
child: const Text('搜索'),
),
],
),
);
}
筛选对话框
筛选对话框提供位置和水类型的多选筛选:
void _showFilterDialog() {
showDialog(
context: context,
builder: (context) => AlertDialog(
title: const Text('筛选记录'),
content: SingleChildScrollView(
child: Column(
mainAxisSize: MainAxisSize.min,
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text('位置:'),
const SizedBox(height: 8),
Wrap(
spacing: 8,
children: [
FilterChip(
label: const Text('全部'),
selected: _selectedLocation == null,
onSelected: (selected) {
setState(() {
_selectedLocation = selected ? null : _selectedLocation;
});
},
),
...['图书馆一楼大厅', '教学楼A座二楼走廊', '学生宿舍1号楼一楼']
.map((location) => FilterChip(
label: Text(location.length > 8
? '${location.substring(0, 8)}...'
: location),
selected: _selectedLocation == location,
onSelected: (selected) {
setState(() {
_selectedLocation = selected ? location : null;
});
},
)),
],
),
const SizedBox(height: 16),
const Text('水类型:'),
const SizedBox(height: 8),
Wrap(
spacing: 8,
children: [
FilterChip(
label: const Text('全部'),
selected: _selectedWaterType == null,
onSelected: (selected) {
setState(() {
_selectedWaterType = selected ? null : _selectedWaterType;
});
},
),
...['常温水', '热水', '冰水', '过滤水'].map((type) => FilterChip(
label: Text(type),
selected: _selectedWaterType == type,
onSelected: (selected) {
setState(() {
_selectedWaterType = selected ? type : null;
});
},
)),
],
),
],
),
),
actions: [
TextButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text('取消'),
),
ElevatedButton(
onPressed: () {
Navigator.of(context).pop();
setState(() {});
},
child: const Text('应用'),
),
],
),
);
}
饮水机信息管理
饮水机列表页面
饮水机页面展示校园内所有饮水机的信息和状态:
Widget _buildWaterStationsPage() {
return ListView.builder(
padding: const EdgeInsets.all(16),
itemCount: _waterStations.length,
itemBuilder: (context, index) {
final station = _waterStations[index];
return _buildWaterStationCard(station);
},
);
}
饮水机信息卡片
每个饮水机以卡片形式展示详细信息:
Widget _buildWaterStationCard(WaterStation station) {
return Card(
elevation: 2,
margin: const EdgeInsets.only(bottom: 12),
child: InkWell(
onTap: () => _showStationDetail(station),
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 标题行
Row(
children: [
Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
color: station.isWorking
? Colors.green.withValues(alpha: 0.1)
: Colors.red.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(8),
),
child: Icon(
station.isWorking ? Icons.water_drop : Icons.error,
color: station.isWorking ? Colors.green : Colors.red,
size: 24,
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
station.name,
style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
),
Text(
'${station.building} ${station.floor}',
style: TextStyle(color: Colors.grey.shade600, fontSize: 14),
),
],
),
),
Column(
crossAxisAlignment: CrossAxisAlignment.end,
children: [
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: station.isWorking ? Colors.green : Colors.red,
borderRadius: BorderRadius.circular(12),
),
child: Text(
station.isWorking ? '正常' : '维修中',
style: const TextStyle(
color: Colors.white,
fontSize: 12,
fontWeight: FontWeight.bold,
),
),
),
const SizedBox(height: 4),
Row(
mainAxisSize: MainAxisSize.min,
children: [
Icon(Icons.star, color: Colors.amber, size: 14),
const SizedBox(width: 2),
Text(
station.rating.toStringAsFixed(1),
style: TextStyle(color: Colors.grey.shade600, fontSize: 12),
),
],
),
],
),
],
),
const SizedBox(height: 12),
// 位置信息
Container(
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: Colors.blue.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(8),
border: Border.all(color: Colors.blue.withValues(alpha: 0.3)),
),
child: Row(
children: [
Icon(Icons.location_on, color: Colors.blue.shade600, size: 20),
const SizedBox(width: 8),
Expanded(
child: Text(
station.location,
style: TextStyle(fontSize: 14, color: Colors.blue.shade700),
),
),
],
),
),
const SizedBox(height: 12),
// 功能特性
Row(
children: [
if (station.hasHotWater)
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
margin: const EdgeInsets.only(right: 8),
decoration: BoxDecoration(
color: Colors.red.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(12),
border: Border.all(color: Colors.red.withValues(alpha: 0.3)),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Icon(Icons.local_fire_department, color: Colors.red, size: 12),
const SizedBox(width: 4),
Text('热水', style: TextStyle(color: Colors.red, fontSize: 10)),
],
),
),
if (station.hasColdWater)
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
margin: const EdgeInsets.only(right: 8),
decoration: BoxDecoration(
color: Colors.cyan.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(12),
border: Border.all(color: Colors.cyan.withValues(alpha: 0.3)),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Icon(Icons.ac_unit, color: Colors.cyan, size: 12),
const SizedBox(width: 4),
Text('冰水', style: TextStyle(color: Colors.cyan, fontSize: 10)),
],
),
),
if (station.isAccessible)
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: Colors.green.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(12),
border: Border.all(color: Colors.green.withValues(alpha: 0.3)),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Icon(Icons.accessible, color: Colors.green, size: 12),
const SizedBox(width: 4),
Text('无障碍', style: TextStyle(color: Colors.green, fontSize: 10)),
],
),
),
],
),
const SizedBox(height: 12),
// 使用统计
Row(
children: [
Expanded(
child: Row(
children: [
Icon(Icons.people, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 4),
Text(
'今日使用: ${station.dailyUsageCount}次',
style: TextStyle(color: Colors.grey.shade600, fontSize: 12),
),
],
),
),
Row(
children: [
Icon(Icons.build, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 4),
Text(
'维护: ${_formatDate(station.lastMaintenance)}',
style: TextStyle(color: Colors.grey.shade600, fontSize: 12),
),
],
),
],
),
// 描述
if (station.description.isNotEmpty) ...[
const SizedBox(height: 8),
Text(
station.description,
style: TextStyle(color: Colors.grey.shade700, fontSize: 12),
),
],
],
),
),
),
);
}
健康统计分析
统计页面结构
健康统计页面提供全面的饮水数据分析:
Widget _buildHealthStatsPage() {
return SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 用户信息卡片
if (_userProfile != null) _buildUserProfileCard(),
const SizedBox(height: 16),
// 本周统计
Text(
'本周饮水统计',
style: Theme.of(context).textTheme.titleLarge?.copyWith(
fontWeight: FontWeight.bold,
),
),
const SizedBox(height: 16),
_buildWeeklyStatsCard(),
const SizedBox(height: 24),
// 水类型分布
Text(
'水类型偏好',
style: Theme.of(context).textTheme.titleLarge?.copyWith(
fontWeight: FontWeight.bold,
),
),
const SizedBox(height: 16),
_buildWaterTypeDistributionCard(),
const SizedBox(height: 24),
// 位置使用统计
Text(
'常用饮水机',
style: Theme.of(context).textTheme.titleLarge?.copyWith(
fontWeight: FontWeight.bold,
),
),
const SizedBox(height: 16),
_buildLocationUsageCard(),
],
),
);
}
用户健康档案卡片
用户档案卡片展示个人基本信息和健康指标:
Widget _buildUserProfileCard() {
final profile = _userProfile!;
final bmi = profile.weight / ((profile.height / 100) * (profile.height / 100));
return Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
CircleAvatar(
backgroundColor: Colors.blue.withValues(alpha: 0.1),
child: Text(
profile.name.isNotEmpty ? profile.name[0] : '?',
style: TextStyle(
color: Colors.blue.shade700,
fontWeight: FontWeight.bold,
),
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
profile.name,
style: const TextStyle(fontSize: 18, fontWeight: FontWeight.bold),
),
Text(
'${profile.age}岁 • ${profile.gender}',
style: TextStyle(color: Colors.grey.shade600, fontSize: 14),
),
],
),
),
],
),
const SizedBox(height: 16),
Row(
children: [
Expanded(
child: _buildStatItem(
Icons.height, '身高', '${profile.height.toStringAsFixed(0)}cm', Colors.blue,
),
),
Expanded(
child: _buildStatItem(
Icons.monitor_weight, '体重', '${profile.weight.toStringAsFixed(0)}kg', Colors.green,
),
),
Expanded(
child: _buildStatItem(
Icons.calculate, 'BMI', bmi.toStringAsFixed(1), _getBMIColor(bmi),
),
),
Expanded(
child: _buildStatItem(
Icons.local_drink, '日目标', '${profile.dailyWaterGoal}ml', Colors.orange,
),
),
],
),
],
),
),
);
}
本周统计卡片
本周统计展示用户一周内的饮水数据汇总:
Widget _buildWeeklyStatsCard() {
// 计算本周统计(简化版)
final now = DateTime.now();
final weekStart = now.subtract(Duration(days: now.weekday - 1));
final weeklyRecords = _drinkingRecords
.where((record) =>
record.timestamp.isAfter(weekStart) &&
record.timestamp.isBefore(now.add(const Duration(days: 1))))
.toList();
final totalVolume = weeklyRecords.fold(0, (sum, record) => sum + record.volume);
final avgDaily = totalVolume / 7;
final goalAchievedDays = 3; // 简化计算
return Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
children: [
Row(
children: [
Expanded(
child: _buildStatItem(
Icons.water_drop, '总饮水量', '${totalVolume}ml', Colors.blue,
),
),
Expanded(
child: _buildStatItem(
Icons.trending_up, '日均饮水', '${avgDaily.toStringAsFixed(0)}ml', Colors.green,
),
),
],
),
const SizedBox(height: 16),
Row(
children: [
Expanded(
child: _buildStatItem(
Icons.check_circle, '达标天数', '$goalAchievedDays天', Colors.orange,
),
),
Expanded(
child: _buildStatItem(
Icons.repeat, '饮水次数', '${weeklyRecords.length}次', Colors.purple,
),
),
],
),
],
),
),
);
}
水类型分布统计
水类型分布卡片以进度条形式展示各类型水的饮用比例:
Widget _buildWaterTypeDistributionCard() {
final waterTypeStats = <String, int>{};
for (final record in _drinkingRecords) {
waterTypeStats[record.waterType] =
(waterTypeStats[record.waterType] ?? 0) + record.volume;
}
return Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
children: waterTypeStats.entries.map((entry) {
final total = waterTypeStats.values.fold(0, (sum, value) => sum + value);
final percentage = total > 0 ? entry.value / total : 0.0;
return Padding(
padding: const EdgeInsets.only(bottom: 12),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Row(
children: [
Icon(
_getWaterTypeIcon(entry.key),
color: _getWaterTypeColor(entry.key),
size: 16,
),
const SizedBox(width: 8),
Text(entry.key),
],
),
Text(
'${entry.value}ml (${(percentage * 100).toStringAsFixed(1)}%)',
style: TextStyle(
color: _getWaterTypeColor(entry.key),
fontWeight: FontWeight.bold,
),
),
],
),
const SizedBox(height: 4),
LinearProgressIndicator(
value: percentage,
backgroundColor: Colors.grey.shade300,
valueColor: AlwaysStoppedAnimation<Color>(
_getWaterTypeColor(entry.key),
),
),
],
),
);
}).toList(),
),
),
);
}
位置使用统计
位置使用统计展示用户最常使用的饮水机位置:
Widget _buildLocationUsageCard() {
final locationStats = <String, int>{};
for (final record in _drinkingRecords) {
locationStats[record.location] = (locationStats[record.location] ?? 0) + 1;
}
return Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
children: locationStats.entries.take(5).map((entry) {
final total = locationStats.values.fold(0, (sum, value) => sum + value);
final percentage = total > 0 ? entry.value / total : 0.0;
return Padding(
padding: const EdgeInsets.only(bottom: 12),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Expanded(
child: Text(
entry.key,
style: const TextStyle(fontWeight: FontWeight.w500),
),
),
Text(
'${entry.value}次 (${(percentage * 100).toStringAsFixed(1)}%)',
style: TextStyle(
color: Colors.blue.shade600,
fontWeight: FontWeight.bold,
),
),
],
),
const SizedBox(height: 4),
LinearProgressIndicator(
value: percentage,
backgroundColor: Colors.grey.shade300,
valueColor: AlwaysStoppedAnimation<Color>(
Colors.blue.shade600,
),
),
],
),
);
}).toList(),
),
),
);
}
提醒系统实现
提醒列表页面
提醒页面展示用户设置的所有饮水提醒:
Widget _buildRemindersPage() {
return ListView.builder(
padding: const EdgeInsets.all(16),
itemCount: _reminders.length,
itemBuilder: (context, index) {
final reminder = _reminders[index];
return _buildReminderCard(reminder);
},
);
}
提醒卡片设计
每个提醒以卡片形式展示,包含开关控制:
Widget _buildReminderCard(DrinkingReminder reminder) {
return Card(
elevation: 2,
margin: const EdgeInsets.only(bottom: 12),
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
color: reminder.isEnabled
? Colors.blue.withValues(alpha: 0.1)
: Colors.grey.withValues(alpha: 0.1),
borderRadius: BorderRadius.circular(8),
),
child: Icon(
_getReminderTypeIcon(reminder.reminderType),
color: reminder.isEnabled ? Colors.blue : Colors.grey,
size: 24,
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
reminder.title,
style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
),
Text(
reminder.message,
style: TextStyle(color: Colors.grey.shade600, fontSize: 14),
),
],
),
),
Switch(
value: reminder.isEnabled,
onChanged: (value) {
// TODO: 更新提醒状态
setState(() {
// 这里应该更新reminder的isEnabled状态
});
},
),
],
),
const SizedBox(height: 12),
Container(
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: Colors.grey.shade100,
borderRadius: BorderRadius.circular(8),
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Icon(Icons.schedule, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 8),
Text(
'时间: ${_formatTime(reminder.scheduledTime)}',
style: TextStyle(color: Colors.grey.shade700, fontSize: 12),
),
],
),
if (reminder.isRepeating) ...[
const SizedBox(height: 4),
Row(
children: [
Icon(Icons.repeat, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 8),
Text(
'重复: ${_getRepeatDaysText(reminder.repeatDays)}',
style: TextStyle(color: Colors.grey.shade700, fontSize: 12),
),
],
),
],
const SizedBox(height: 4),
Row(
children: [
Icon(Icons.category, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 8),
Text(
'类型: ${reminder.reminderType}',
style: TextStyle(color: Colors.grey.shade700, fontSize: 12),
),
],
),
],
),
),
],
),
),
);
}
工具函数和辅助方法
颜色和图标映射
应用使用多种颜色和图标来区分不同的水类型和状态:
Color _getWaterTypeColor(String waterType) {
switch (waterType) {
case '常温水':
return Colors.blue;
case '热水':
return Colors.red;
case '冰水':
return Colors.cyan;
case '过滤水':
return Colors.green;
default:
return Colors.grey;
}
}
IconData _getWaterTypeIcon(String waterType) {
switch (waterType) {
case '常温水':
return Icons.water_drop;
case '热水':
return Icons.local_fire_department;
case '冰水':
return Icons.ac_unit;
case '过滤水':
return Icons.filter_alt;
default:
return Icons.water;
}
}
IconData _getMoodIcon(String mood) {
switch (mood) {
case '很渴':
case '渴':
return Icons.sentiment_very_dissatisfied;
case '一般':
return Icons.sentiment_neutral;
case '不渴':
return Icons.sentiment_satisfied;
case '满足':
return Icons.sentiment_very_satisfied;
case '还想喝':
return Icons.sentiment_satisfied_alt;
default:
return Icons.sentiment_neutral;
}
}
Color _getMoodColor(String mood) {
switch (mood) {
case '很渴':
case '渴':
return Colors.red;
case '一般':
return Colors.orange;
case '不渴':
return Colors.blue;
case '满足':
return Colors.green;
case '还想喝':
return Colors.purple;
default:
return Colors.grey;
}
}
BMI计算和颜色判断
健康指标计算和状态判断:
Color _getBMIColor(double bmi) {
if (bmi < 18.5) return Colors.blue; // 偏瘦
if (bmi < 25) return Colors.green; // 正常
if (bmi < 30) return Colors.orange; // 超重
return Colors.red; // 肥胖
}
提醒类型图标
不同提醒类型对应不同图标:
IconData _getReminderTypeIcon(String type) {
switch (type) {
case '定时':
return Icons.schedule;
case '智能':
return Icons.psychology;
case '目标':
return Icons.flag;
default:
return Icons.notifications;
}
}
时间格式化
时间显示格式化函数:
String _getTimeAgo(DateTime dateTime) {
final now = DateTime.now();
final difference = now.difference(dateTime);
if (difference.inMinutes < 1) {
return '刚刚';
} else if (difference.inMinutes < 60) {
return '${difference.inMinutes}分钟前';
} else if (difference.inHours < 24) {
return '${difference.inHours}小时前';
} else if (difference.inDays < 7) {
return '${difference.inDays}天前';
} else {
return _formatDate(dateTime);
}
}
String _formatDate(DateTime dateTime) {
return '${dateTime.year}-${dateTime.month.toString().padLeft(2, '0')}-${dateTime.day.toString().padLeft(2, '0')}';
}
String _formatTime(DateTime dateTime) {
return '${dateTime.hour.toString().padLeft(2, '0')}:${dateTime.minute.toString().padLeft(2, '0')}';
}
重复日期文本转换
将重复日期数组转换为可读文本:
String _getRepeatDaysText(List<int> days) {
if (days.length == 7) return '每天';
if (days.length == 5 && !days.contains(6) && !days.contains(7)) return '工作日';
if (days.length == 2 && days.contains(6) && days.contains(7)) return '周末';
final dayNames = ['', '周一', '周二', '周三', '周四', '周五', '周六', '周日'];
return days.map((day) => dayNames[day]).join('、');
}
数据初始化和统计计算
数据初始化
应用启动时初始化示例数据:
void _initializeData() {
// 初始化用户健康档案
_userProfile = HealthProfile(
userId: 'user001',
name: '张同学',
age: 20,
gender: '男',
weight: 65.0,
height: 175.0,
dailyWaterGoal: 2000, // 2升
healthConditions: [],
preferences: ['常温水', '热水'],
createdDate: DateTime.now().subtract(const Duration(days: 30)),
lastUpdated: DateTime.now(),
);
// 初始化饮水机信息
_waterStations = [
WaterStation(
id: 'ws001',
name: '图书馆一楼饮水机',
location: '图书馆一楼大厅',
building: '图书馆',
floor: '1楼',
waterTypes: ['常温水', '热水', '冰水'],
isWorking: true,
lastMaintenance: DateTime.now().subtract(const Duration(days: 7)),
dailyUsageCount: 156,
rating: 4.5,
description: '位于图书馆一楼大厅,使用人数较多',
photos: ['lib_1f_1.jpg', 'lib_1f_2.jpg'],
hasHotWater: true,
hasColdWater: true,
isAccessible: true,
),
// 更多饮水机数据...
];
// 初始化饮水记录
_drinkingRecords = [
DrinkingRecord(
id: 'dr001',
timestamp: DateTime.now().subtract(const Duration(hours: 2)),
stationId: 'ws001',
stationName: '图书馆一楼饮水机',
location: '图书馆一楼大厅',
volume: 250,
waterType: '常温水',
temperature: 25.0,
notes: '上午学习时补充水分',
userId: 'user001',
isHealthy: true,
moodBefore: '一般',
moodAfter: '满足',
),
// 更多饮水记录...
];
// 初始化提醒设置
_reminders = [
DrinkingReminder(
id: 'rm001',
userId: 'user001',
title: '上午饮水提醒',
message: '该喝水了!保持身体水分充足',
scheduledTime: DateTime(2024, 1, 1, 10, 0),
isRepeating: true,
repeatDays: [1, 2, 3, 4, 5], // 工作日
isEnabled: true,
reminderType: '定时',
createdDate: DateTime.now().subtract(const Duration(days: 7)),
),
// 更多提醒设置...
];
}
今日统计计算
实时计算当日饮水统计数据:
void _calculateTodayStats() {
final today = DateTime.now();
final todayRecords = _drinkingRecords
.where((record) =>
record.timestamp.year == today.year &&
record.timestamp.month == today.month &&
record.timestamp.day == today.day)
.toList();
final totalVolume = todayRecords.fold(0, (sum, record) => sum + record.volume);
final goalVolume = _userProfile?.dailyWaterGoal ?? 2000;
final waterTypeStats = <String, int>{};
final locationStats = <String, int>{};
final drinkingTimes = <DateTime>[];
for (final record in todayRecords) {
waterTypeStats[record.waterType] =
(waterTypeStats[record.waterType] ?? 0) + record.volume;
locationStats[record.location] =
(locationStats[record.location] ?? 0) + 1;
drinkingTimes.add(record.timestamp);
}
// 计算平均饮水间隔
double averageInterval = 0.0;
if (drinkingTimes.length > 1) {
drinkingTimes.sort();
double totalInterval = 0.0;
for (int i = 1; i < drinkingTimes.length; i++) {
totalInterval += drinkingTimes[i].difference(drinkingTimes[i - 1]).inMinutes;
}
averageInterval = totalInterval / (drinkingTimes.length - 1) / 60; // 转换为小时
}
_todayStats = DailyWaterStats(
userId: 'user001',
date: today,
totalVolume: totalVolume,
goalVolume: goalVolume,
drinkingCount: todayRecords.length,
waterTypeStats: waterTypeStats,
locationStats: locationStats,
drinkingTimes: drinkingTimes,
averageInterval: averageInterval,
goalAchieved: totalVolume >= goalVolume,
);
}
交互功能实现
饮水打卡功能
快速饮水打卡对话框和记录添加:
void _showDrinkingDialog() {
showDialog(
context: context,
builder: (context) => AlertDialog(
title: const Text('饮水打卡'),
content: const Text('选择饮水机和饮水量进行打卡'),
actions: [
TextButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text('取消'),
),
ElevatedButton(
onPressed: () {
Navigator.of(context).pop();
_addDrinkingRecord();
},
child: const Text('确认打卡'),
),
],
),
);
}
void _addDrinkingRecord() {
// 简单的添加记录示例
final newRecord = DrinkingRecord(
id: 'dr${DateTime.now().millisecondsSinceEpoch}',
timestamp: DateTime.now(),
stationId: 'ws001',
stationName: '图书馆一楼饮水机',
location: '图书馆一楼大厅',
volume: 200,
waterType: '常温水',
temperature: 25.0,
notes: '刚刚打卡的饮水记录',
userId: 'user001',
isHealthy: true,
moodBefore: '一般',
moodAfter: '满足',
);
setState(() {
_drinkingRecords.insert(0, newRecord);
_calculateTodayStats();
});
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(
content: Text('饮水打卡成功!'),
backgroundColor: Colors.green,
),
);
}
详情页面跳转
记录和饮水机详情页面跳转(待实现):
void _showRecordDetail(DrinkingRecord record) {
// TODO: 实现饮水记录详情页面
ScaffoldMessenger.of(context).showSnackBar(
SnackBar(content: Text('查看饮水记录详情: ${record.stationName}')),
);
}
void _showStationDetail(WaterStation station) {
// TODO: 实现饮水机详情页面
ScaffoldMessenger.of(context).showSnackBar(
SnackBar(content: Text('查看饮水机详情: ${station.name}')),
);
}
快速操作功能
快速饮水和添加提醒功能:
void _showQuickDrinkDialog() {
// TODO: 实现快速饮水打卡
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('快速打卡功能开发中')),
);
}
void _showAddReminderDialog() {
// TODO: 实现添加提醒对话框
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('添加提醒功能开发中')),
);
}
应用特色功能
智能状态监控
应用具备多种智能监控功能:
- 实时进度追踪:动态计算饮水进度,实时更新目标完成度
- 健康状态评估:基于BMI、年龄、性别等因素智能推荐饮水量
- 饮水习惯分析:分析用户饮水时间规律,提供个性化建议
- 设备状态监控:实时显示饮水机工作状态和维护信息
多维度数据分析
应用提供全面的数据分析功能:
- 时间维度分析:日、周、月度饮水趋势分析
- 位置偏好分析:统计最常使用的饮水机位置
- 水类型偏好:分析用户对不同水类型的偏好
- 健康指标关联:将饮水数据与健康指标关联分析
个性化体验
应用注重个性化用户体验:
- 自定义目标设定:根据个人情况设定饮水目标
- 智能提醒系统:多种提醒方式和个性化提醒内容
- 主题色彩适配:根据水类型和状态动态调整界面色彩
- 动画效果优化:流畅的页面切换和交互动画
技术优化建议
性能优化
- 数据缓存机制:实现本地数据缓存,减少重复计算
- 懒加载实现:大数据列表采用懒加载方式提升性能
- 图片优化:饮水机照片采用缩略图和原图分离策略
- 内存管理:及时释放不必要的资源和监听器
用户体验优化
- 离线功能:支持离线记录饮水,网络恢复后同步
- 快捷操作:提供更多快捷打卡和操作方式
- 数据导出:支持饮水数据导出和备份功能
- 多语言支持:国际化支持,适配不同语言环境
功能扩展建议
- 社交功能:添加好友系统,支持饮水打卡分享
- 积分系统:建立饮水积分和成就系统
- 健康建议:基于饮水数据提供个性化健康建议
- 设备集成:支持智能手环等设备数据同步
总结
Flutter校园饮水机打卡应用是一个功能完整、设计精美的健康管理工具。应用通过Material Design 3设计语言,提供了直观友好的用户界面;通过完善的数据模型设计,实现了全面的饮水记录管理;通过智能统计分析,帮助用户养成良好的饮水习惯。
应用的核心价值在于:
- 健康管理:科学记录和分析饮水数据,促进健康生活方式
- 便民服务:提供校园饮水机信息查询,方便日常使用
- 智能提醒:个性化提醒系统,帮助用户保持良好饮水习惯
- 数据可视化:直观的统计图表,让健康数据一目了然
通过本教程的学习,开发者可以掌握Flutter应用开发的核心技术,包括状态管理、UI设计、数据处理、动画效果等。同时,也能了解如何设计和实现一个完整的移动应用,为后续的项目开发奠定坚实基础。
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
更多推荐

所有评论(0)
