一、前置思考

多端协同是鸿蒙"1+8+N"战略的核心——手机编辑，平板预览，PC完成复杂操作，智慧屏展示最终成果。但"协同"≠"投影"，真正的多端协同要求：各端拥有自己的UI（适配屏幕大小），但共享同一份业务逻辑和数据状态。

本文聚焦：

• 跨设备UI状态同步的架构选择（集中式 vs 对等式 vs 混合）
• 分布式事件总线实现跨设备UI事件传递
• 分布式ViewModel：一套业务逻辑，多端UI共享
• 协同编辑的锁机制与操作队列

真实痛点场景：

1. 状态不同步：手机端修改了数据，平板端屏幕显示的还是旧数据
2. 协同冲突：两端同时修改，导致数据被覆盖
3. UI不匹配：手机和平板的UI完全不同，但业务逻辑共享
4. 操作乱序：手机端先操作但网络延迟，平板收消息顺序错误

二、核心原理

2.1 多端协同架构对比

┌──────────────────────────────────────────────────────┐
│        方案A: 集中式 (Star Topology)                   │
│                                                      │
│              ┌─────────┐                            │
│              │ Host设备 │ ← 中心节点，持有ViewModel    │
│              └────┬────┘                            │
│          ┌────────┼────────┐                        │
│    ┌─────┴────┐ ┌─┴──────┐ ┌─────┴────┐            │
│    │ 手机UI   │ │平板UI  │ │ PC UI    │            │
│    └──────────┘ └────────┘ └──────────┘            │
│                                                      │
│  优点: 一致性强  缺点: Host离线全挂                      │
├──────────────────────────────────────────────────────┤
│        方案B: 对等式 (P2P)                             │
│                                                      │
│   ┌──────────┐    ┌──────────┐    ┌──────────┐      │
│   │ 手机VM   │◄──►│ 平板VM   │◄──►│ PC VM    │      │
│   │ + UI     │    │ + UI     │    │ + UI     │      │
│   └──────────┘    └──────────┘    └──────────┘      │
│                                                      │
│  优点: 无单点故障  缺点: 一致性冲突多                    │
├──────────────────────────────────────────────────────┤
│        方案C: 混合式 (Hybrid) ◄── 鸿蒙推荐              │
│                                                      │
│   本地优先 + CRDT同步 + 版本向量冲突解决                │
│   distributedKVStore (数据) + EventBus (事件)          │
└──────────────────────────────────────────────────────┘

2.2 分布式ViewModel设计

// 分布式 ViewModel 基类
abstract class DistributedViewModel {
  protected kvStore: distributedKVStore.SingleKVStore | null = null;
  protected isPrimary: boolean = false;
  protected deviceId: string = '';

  // 初始化分布式状态
  async init(deviceId: string, storeName: string): Promise<void> {
    this.deviceId = deviceId;
    const kvManager: distributedKVStore.KVManager =
      distributedKVStore.createKVManager({ bundleName: 'com.example.app' });

    this.kvStore = await kvManager.getKVStore(storeName, {
      createIfMissing: true,
      encrypt: true,
      kvStoreType: distributedKVStore.KVStoreType.DEVICE_COLLABORATION,
      securityLevel: distributedKVStore.SecurityLevel.S2
    });

    // 监听远端状态变化
    this.kvStore.on('dataChange',
      distributedKVStore.SubscribeType.SUBSCRIBE_TYPE_ALL,
      (data: distributedKVStore.ChangeNotification) => {
        this.onRemoteStateChanged(data);
      }
    );
  }

  // 子类实现：远端状态变化时的UI更新逻辑
  abstract onRemoteStateChanged(data: distributedKVStore.ChangeNotification): void;

  // 更新状态并同步
  async updateAndSync(key: string, value: string): Promise<void> {
    if (this.kvStore === null) return;

    // 本地原子更新
    await this.kvStore.put(key, value);

    // 触发增量同步
    await this.kvStore.sync([], distributedKVStore.SyncMode.PUSH_PULL);
  }
}

// 具体ViewModel示例：协同文档编辑器
class CollaborativeDocViewModel extends DistributedViewModel {
  private content: string = '';
  private cursorPosition: number = 0;
  private collaborators: Map<string, CursorInfo> = new Map();

  // 本地修改文档
  async editContent(newContent: string, cursorPos: number): Promise<void> {
    this.content = newContent;
    this.cursorPosition = cursorPos;

    // 将变更同步到其他设备
    await this.updateAndSync('doc:content', newContent);
    await this.updateAndSync('doc:cursor:' + this.deviceId,
      this.serializeCursor(cursorPos));
  }

  // 远端状态变化回调
  onRemoteStateChanged(data: distributedKVStore.ChangeNotification): void {
    const updateEntries: distributedKVStore.Entry[] =
      data.updateEntries as distributedKVStore.Entry[];

    for (let i: number = 0; i < updateEntries.length; i++) {
      const entry: distributedKVStore.Entry = updateEntries[i];
      if (entry.key === 'doc:content') {
        this.content = entry.value.value as string;
        this.triggerUICallback('onContentChanged', this.content);
      } else if ((entry.key as string).startsWith('doc:cursor:')) {
        const deviceId: string = (entry.key as string).slice('doc:cursor:'.length);
        const cursorInfo: CursorInfo = this.deserializeCursor(entry.value.value as string);
        this.collaborators.set(deviceId, cursorInfo);
        this.triggerUICallback('onRemoteCursorMoved', deviceId, cursorInfo);
      }
    }
  }

  private serializeCursor(pos: number): string {
    return JSON.stringify({ position: pos, timestamp: Date.now() });
  }

  private deserializeCursor(json: string): CursorInfo {
    const obj: Record<string, number> = JSON.parse(json) as Record<string, number>;
    return { position: obj['position'], timestamp: obj['timestamp'] };
  }
}

interface CursorInfo {
  position: number;
  timestamp: number;
}

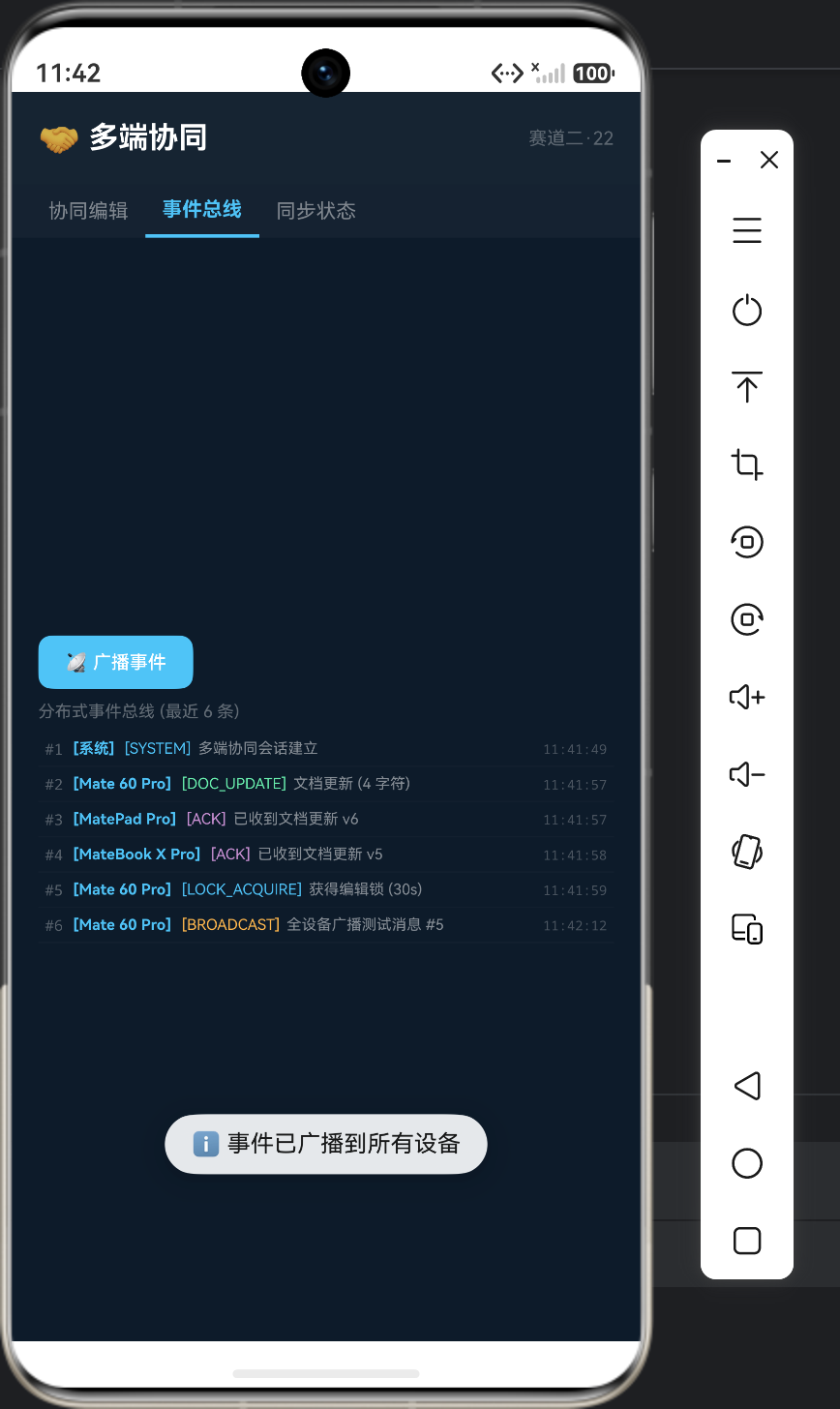

2.3 分布式事件总线

// 跨设备事件总线
class DistributedEventBus {
  private static instance: DistributedEventBus;
  private listeners: Map<string, EventCallback[]> = new Map();
  private kvStore: distributedKVStore.SingleKVStore | null = null;

  static getInstance(): DistributedEventBus {
    if (DistributedEventBus.instance === undefined) {
      DistributedEventBus.instance = new DistributedEventBus();
    }
    return DistributedEventBus.instance;
  }

  async init(kvStore: distributedKVStore.SingleKVStore): Promise<void> {
    this.kvStore = kvStore;
    // 监听事件通道
    this.kvStore.on('dataChange',
      distributedKVStore.SubscribeType.SUBSCRIBE_TYPE_REMOTE,
      (data: distributedKVStore.ChangeNotification) => {
        const insertEntries: distributedKVStore.Entry[] =
          data.insertEntries as distributedKVStore.Entry[];
        for (let i: number = 0; i < insertEntries.length; i++) {
          const entry: distributedKVStore.Entry = insertEntries[i];
          if ((entry.key as string).startsWith('event:')) {
            this.dispatchEvent(entry.key as string, entry.value.value as string);
          }
        }
      }
    );
  }

  // 发送跨设备事件
  async emit(eventName: string, payload: string): Promise<void> {
    if (this.kvStore === null) return;

    const eventKey: string = 'event:' + eventName + ':' + Date.now();
    await this.kvStore.put(eventKey, payload);
    await this.kvStore.sync([], distributedKVStore.SyncMode.PUSH_PULL);

    // 清理事件（5秒后自动删除）
    setTimeout(async () => {
      if (this.kvStore !== null) {
        await this.kvStore.delete(eventKey);
      }
    }, 5000);
  }

  // 订阅事件
  on(eventName: string, callback: EventCallback): void {
    let callbacks: EventCallback[] | undefined =
      this.listeners.get(eventName);
    if (callbacks === undefined) {
      callbacks = [];
      this.listeners.set(eventName, callbacks);
    }
    callbacks.push(callback);
  }

  private dispatchEvent(key: string, payload: string): void {
    // 解析事件名: "event:click:timestamp"
    const parts: string[] = key.split(':');
    const eventName: string = parts[1];

    const callbacks: EventCallback[] | undefined =
      this.listeners.get(eventName);
    if (callbacks !== undefined) {
      for (let i: number = 0; i < callbacks.length; i++) {
        callbacks[i](eventName, payload);
      }
    }
  }
}

type EventCallback = (eventName: string, payload: string) => void;

三、协同编辑锁机制

class CollaborativeLockManager {
  private readonly LOCK_TIMEOUT_MS: number = 30000; // 锁过期30秒
  private currentLock: LockInfo | null = null;
  private lockQueue: LockRequest[] = [];

  // 请求编辑锁
  async acquireLock(sectionId: string, deviceId: string): Promise<boolean> {
    // 检查是否有人持有锁
    const lockKey: string = 'lock:' + sectionId;
    const existingLock: LockInfo | null =
      await this.getExistingLock(lockKey);

    if (existingLock !== null) {
      // 锁过期
      if (Date.now() - existingLock.timestamp > this.LOCK_TIMEOUT_MS) {
        await this.releaseForce(lockKey);
      } else {
        // 排队等待
        return new Promise<boolean>((resolve) => {
          this.lockQueue.push({
            sectionId: sectionId,
            deviceId: deviceId,
            resolve: resolve
          });
        });
      }
    }

    // 获取锁
    this.currentLock = {
      sectionId: sectionId,
      deviceId: deviceId,
      timestamp: Date.now()
    };
    await this.setLock(lockKey, this.currentLock);
    return true;
  }

  // 释放锁
  async releaseLock(sectionId: string): Promise<void> {
    const lockKey: string = 'lock:' + sectionId;
    await this.deleteLock(lockKey);
    this.currentLock = null;

    // 通知队列中的下一个等待者
    if (this.lockQueue.length > 0) {
      const next: LockRequest | undefined = this.lockQueue.shift();
      if (next !== undefined) {
        next.resolve(true);
      }
    }
  }
}

interface LockInfo {
  sectionId: string;
  deviceId: string;
  timestamp: number;
}

interface LockRequest {
  sectionId: string;
  deviceId: string;
  resolve: (value: boolean) => void;
}

四、避坑速查

五、总结

多端协同的架构核心是**“数据统一、UI独立”**：

1. 分布式ViewModel：状态用KVStore同步，各端独立UI渲染
2. 事件总线：KVStore的event:前缀做通道，5秒TTL防泄漏
3. 协同锁：30秒过期+心跳续期，防止死锁
