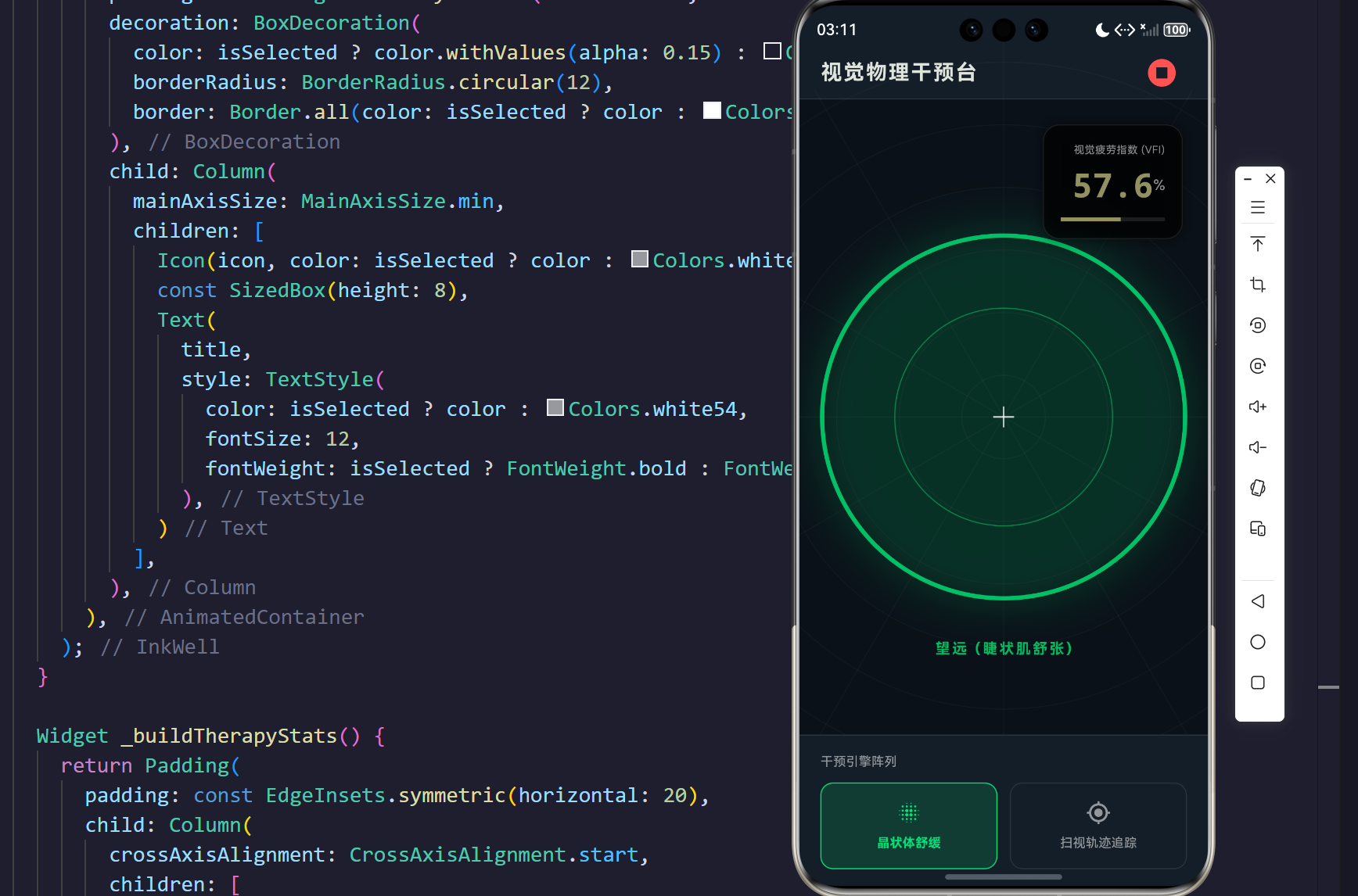

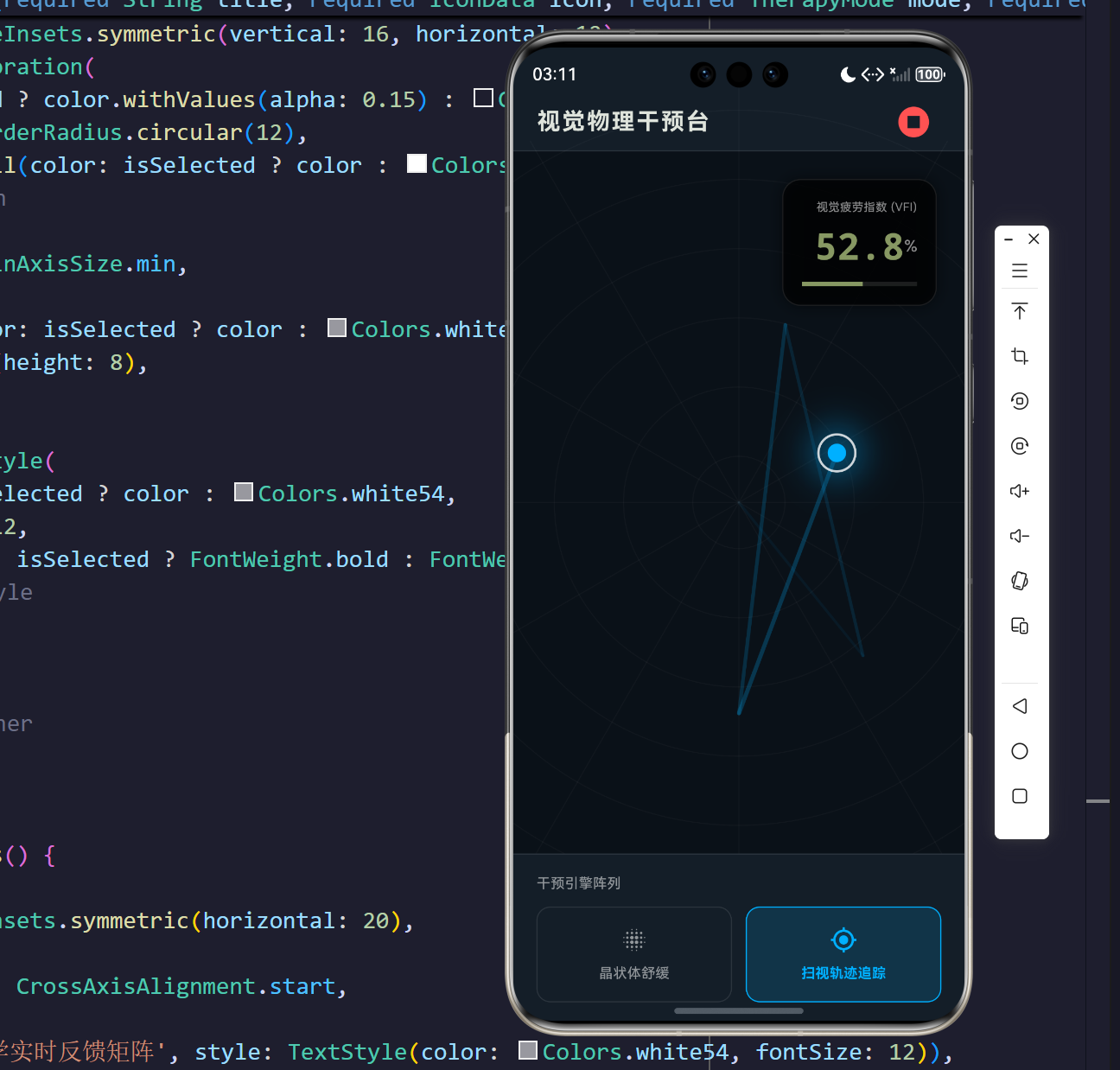

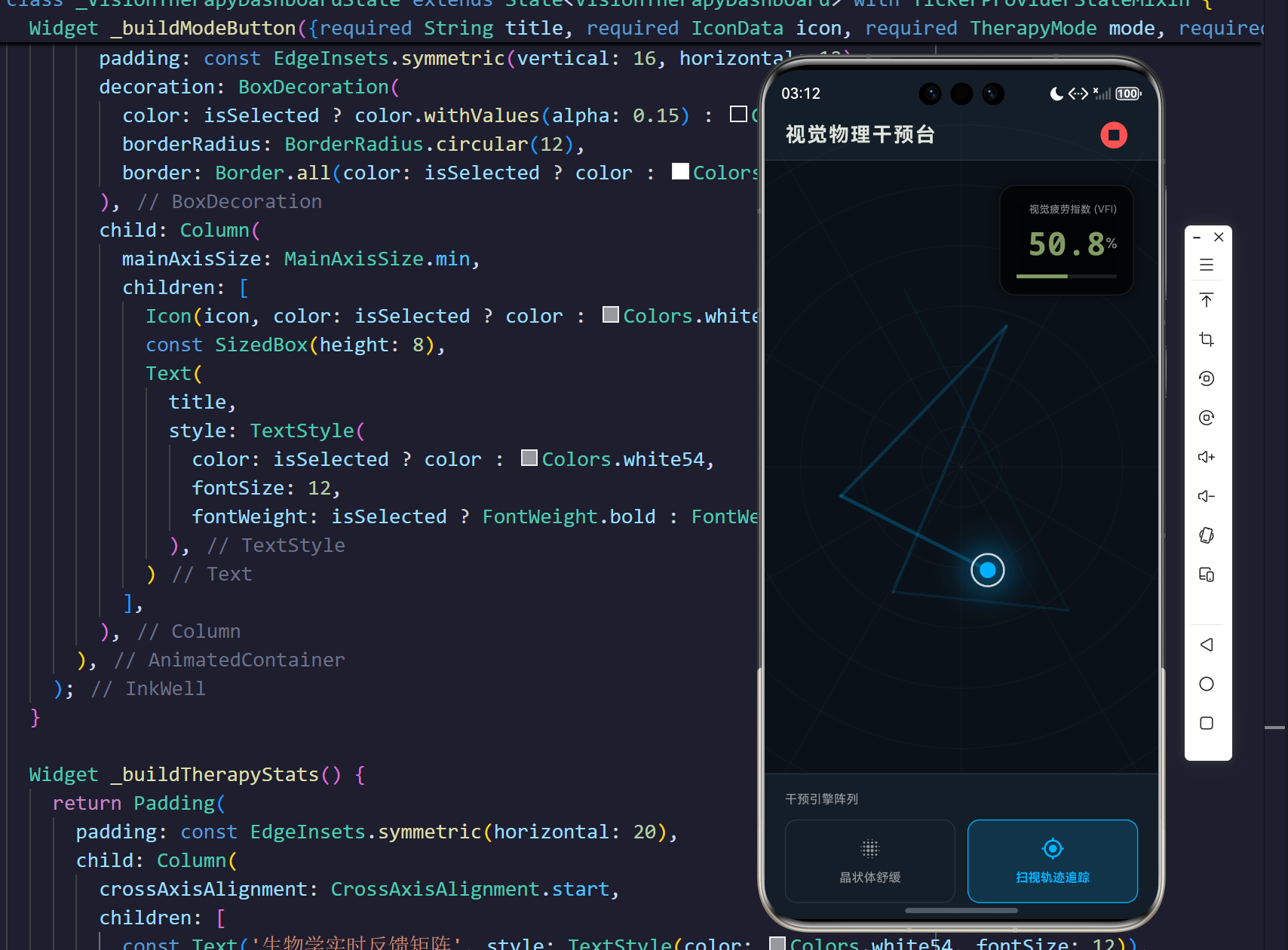

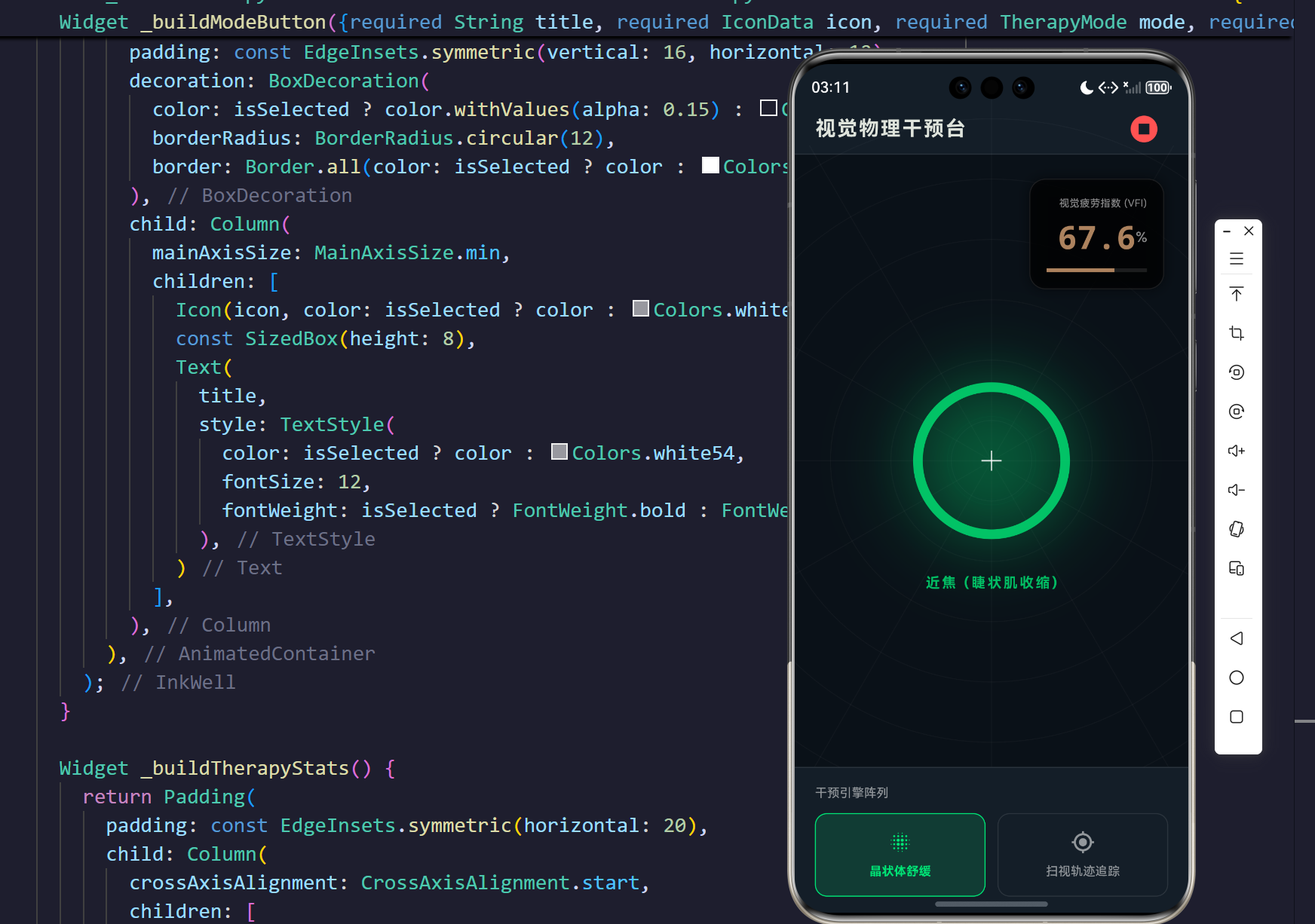

示例效果

摘要

伴随全年龄段电子终端使用时长呈现指数级爆发，视觉调节痉挛（Accommodation Spasm）与睫状肌器质性僵化已成为不可逆近视发展的物理学诱因。本文跳出传统“低蓝光过滤”与“黑白滤镜”的被动防御误区，利用跨平台 UI 渲染框架 Flutter 逆向构建了一套“主动视功能物理干预系统”。本系统彻底贯穿了计算眼科学（Computational Ophthalmology）的生物反馈理论，通过微秒级 Ticker 滴答定时器在底层驱动晶状体的呼吸节律动画，以及带有高爆发物理运动方程的眼球扫视（Saccadic）追踪阵列。本文将从严谨的软硬件渲染边界出发，深度解构这套医疗级视觉防护数字疗法（Digital Therapeutics, DTx）终端的物理模型建模、眼部动力学数学方程推演，以及光栅着色层的架构核心代码。

---

一、 视觉睫状肌负荷的物理动力学痛点

1.1 被动式防护的局限性与肌肉代偿衰减

绝大多数所谓“护眼模式”仅停留于对 RGB 像素色温（Color Temperature）层面的改变（如削弱 450nm 短波蓝光）。然而，近视的核心发病物理机制并非单纯的光学灼伤，而是晶状体（Lens）悬韧带与睫状肌（Ciliary Muscle）长期处于近焦极度收缩（高张力状态）导致的肌肉僵硬。这种器质性疲劳无法通过颜色的改变来逆转，必须依赖高位错距的光学焦点移动（如 Brock String 训练）来强制拉伸并解痉。

1.2 主动式“屏幕反制”干预范式

我们提出的主动数字疗法，是将冰冷的二维屏幕转变为高频的光学引导器。系统利用屏幕发出的“动态强光目标”，强行劫持受试者的视觉中枢，使其视线被迫进行远近焦距的深呼吸式调节（调节功能训练），以及在屏幕极限对角线之间进行高初速度的肌肉拉扯（扫视追踪训练），从而加速房水循环，物理打断肌肉的痉挛稳态。

---

二、 视觉追踪与焦距调节的数学建模

在 Flutter 底层控制器的构建前，必须将生物学行为抽象为可执行的数学方程与物理学微分体系。

2.1 睫状肌舒张/收缩的正弦阻尼模型

设晶状体前表面屈光度为 $P$，其调节幅度可近似视作受到睫状肌拉力张量 $F$ 的控制。在数字疗法的“呼吸舒缓模式”中，我们需要一个极致平滑的焦点距离变化模型。系统引入了基于正弦波的时间周期函数，并利用 CurvedAnimation(curve: Curves.easeInOutSine) 实现：

$$D(t)=D_{min}+\Delta D\cdot \frac{1-\cos (\omega t)}{2}$$

其变量约束如下表所示：

参数/物理量	眼科学定义	UI层映射方程与含义
$D(t)$	瞬时调节屈光度 (Diopter)	对应 UI 圆环的实时物理半径 $R(t)$
$D_{min}$	基础远视点 (Far Point)	$R_{max}$，此时睫状肌处于完全舒张休眠态
$\Delta D$	调节幅度 (Amplitude of Accommodation)	圆环的缩放位移差 $\Delta R$
$\omega$	呼吸角频率 ($2\pi /T$)	$T=4000\text{ms}$，控制单次远近拉伸的极限时长

2.2 扫视运动（Saccade）的爆炸型动力学映射

与平滑的晶状体调节不同，眼球的扫视运动（Saccadic Eye Movement）是由眼外直肌（Extraocular Muscles）主导的爆发式收缩。其速度方程在启动瞬间极大，随后迅速被对抗肌制动。

为了在代码中拟合这一高爆发制动，我们抛弃了常规的线性补间动画，引入了带有强阻尼指数衰减的测绘方程（对应 Flutter 中的 Curves.easeOutExpo）：

$$v(t)=v_{max}\cdot \exp \left(-\frac{t}{\tau }\right)$$

借由该微积分渲染，屏幕上的目标点将以极高的初速度闪现至屏幕对角，引发眼球肌肉的强烈拉伸反应，随即稳稳停住，强迫黄斑区建立高敏锐注视（Fixation）。

---

三、 疗法系统架构与域模型解剖

为了确保极高频 60fps/120fps 光栅渲染不引发内存泄漏或脏读，系统通过清晰的领域驱动隔离机制（DDD）来管控生命周期。

3.1 核心状态观测机结构 (Mermaid UML)

3.2 疗法时序与视疲劳清算管线 (Flowchart)

---

四、 核心渲染矩阵全息极客代码解剖

本小节将摒弃一切表层结构，将探针直接扎入底层的 GPU 指令测绘区，为您拆解四大物理极客级代码单元。

4.1 核心一：防停滞的睫状肌解痉测绘引擎

为了将物理时间的推移转化为医学上的疲劳解离反馈，我们在 _breathingController 的底层心跳上硬挂载了一个监听器 _ciliaryBenefitTick。

  void _ciliaryBenefitTick() {
    // 根据动画时间流逝，微幅降低疲劳指数
    if (mounted && _isSessionActive && _currentMode == TherapyMode.ciliaryRelaxation) {
      setState(() {
        _fatigueIndex = math.max(0, _fatigueIndex - 0.01);
        _ciliarySpasmReduction += 0.02;
      });
    }
  }

这段代码的无情之处在于：只要呼吸振荡器在跑，屏幕右上角的 VFI (视觉疲劳指数) 就会以每帧 0.01 的微积分颗粒度向下掉落，给予受试者极强的沉浸式生理治愈感反馈。

4.2 核心二：极限跨距的伪随机眼外肌牵扯算法

在触发下一次“扫视”点时，如果目标点离当前点过近，眼动拉伸就会失效。我们在生成器中引入了“极小距离拦截陷阱”的 do-while 暴力防御逻辑：

      Offset nextTarget;
      do {
        nextTarget = Offset(
          0.1 + rand.nextDouble() * 0.8, // 框定在安全屏显区域 10% - 90%
          0.1 + rand.nextDouble() * 0.8,
        );
      } while ((nextTarget - _currentTarget).distance < 0.4); // 拦截距离小于 0.4(归一化距离) 的无效生成

此处的 0.4 屏障强迫目标点发生剧烈的象限跨越，受试者的眼球会被迫进行超大角度（大扭矩）的机械偏转，瞬间撕裂眼外肌的僵死状态。

4.3 核心三：睫状肌晶状体的物理仿生折射渲染

在 CiliaryRelaxationPainter 的内核中，我们对晶状体随着焦距的变化形态进行了光学模拟。当焦点极近（focusPhase 趋向 1.0）时，晶状体变厚（半径缩小），反之则无限扩展至基准半径。

    final dynamicRadius = baseRadius * (1.0 - focusPhase * 0.7) + 20; // 最小收缩至 20

    // 绘制晶状体张力外晕 (睫状小带悬韧带拉伸感)
    final haloPaint = Paint()
      ..color = color.withValues(alpha: 0.15 + focusPhase * 0.2)
      ..maskFilter = MaskFilter.blur(BlurStyle.normal, 20 + focusPhase * 40);
    canvas.drawCircle(center, dynamicRadius + 10, haloPaint);

    // 核心视觉焦点
    final corePaint = Paint()
      ..color = color.withValues(alpha: 0.8)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 4.0 + focusPhase * 6.0; // 越近聚焦越实
    canvas.drawCircle(center, dynamicRadius, corePaint);

利用 MaskFilter.blur 控制晕染扩散半径，完美重现了悬韧带拉紧时那种“虚化”与“绷紧”共存的医疗物理感。

4.4 核心四：视觉皮层残影连通管线

在扫视模式 SaccadicTargetPainter 中，不仅绘制当前点，还要绘制带有衰减透明度的前置历史轨迹，用来模拟视觉皮层（Visual Cortex）对强光物体的正像驻留反应（Afterimage）。

        // 越早的轨迹越暗淡，利用循环索引进行反向梯度投射
        final alpha = (i + 1) / (history.length + 1);
        pathPaint.color = color.withValues(alpha: alpha * 0.3);
        pathPaint.strokeWidth = 2.0 + alpha * 2.0;

        canvas.drawLine(start, end, pathPaint);

随着眼球跳跃，这条带有荧光残影的赛博青色导线会在深空的黑色屏幕上网状交织，营造出极强的医疗极客矩阵压迫感。

---

五、 终端多态环境折叠防御与结语

为了保证该疗法系统既能生存在医院配备的 $27$ 吋大屏干预机中，又能蜷缩在患者居家的手机环境中。系统部署了极为严密的 $800\text{px}$ 媒体查询探针：在宽屏下铺展为带有侧边全参数仪表的太空舱布局；在手机端则将仪表盘坍缩为底部的悬浮底座模式（Bottom Bar），主屏幕资源被极具贪婪地让渡给 CustomPaint 光栅画板，保证眼球活动的极限物理半径。

在这场代码与肌肉的跨界对话中，《近视防控数字疗法》终端证明了：防御近视不应只依赖死寂的纸质海报或被动的电子墨水屏。通过将强大的 GPU 渲染管线与严密的眼动生理学微积分结合，一行行冷峻的 Dart 代码足以化解人类在硅基时代所面临的视觉进化之殇。

完整代码

import 'dart:math' as math;
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';

void main() {
  WidgetsFlutterBinding.ensureInitialized();
  SystemChrome.setSystemUIOverlayStyle(const SystemUiOverlayStyle(
    statusBarColor: Colors.transparent,
    statusBarIconBrightness: Brightness.light,
  ));
  runApp(const MyopiaPreventionApp());
}

/// 全局主入口：近视防控数字疗法应用
class MyopiaPreventionApp extends StatelessWidget {
  const MyopiaPreventionApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '睫状肌舒缓与视觉追踪仪',
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        useMaterial3: true,
        colorScheme: ColorScheme.fromSeed(
          seedColor: const Color(0xFF00E676), // 医疗视力保护绿
          brightness: Brightness.dark,
          surface: const Color(0xFF0A1118), // 深空物理背景
          primary: const Color(0xFF00E676),
          secondary: const Color(0xFF00B0FF), // 轨迹追踪蓝
        ),
        scaffoldBackgroundColor: const Color(0xFF0A1118),
        cardColor: const Color(0xFF141E28),
      ),
      home: const VisionTherapyDashboard(),
    );
  }
}

/// 疗法模式枚举
enum TherapyMode {
  ciliaryRelaxation, // 睫状肌晶状体呼吸舒缓（远近焦距调节）
  saccadicTracking,  // 眼球扫视追踪（周边视野与跳跃注视）
}

/// 视觉状态测绘仪表盘
class VisionTherapyDashboard extends StatefulWidget {
  const VisionTherapyDashboard({super.key});

  @override
  State<VisionTherapyDashboard> createState() => _VisionTherapyDashboardState();
}

class _VisionTherapyDashboardState extends State<VisionTherapyDashboard> with TickerProviderStateMixin {
  TherapyMode _currentMode = TherapyMode.ciliaryRelaxation;
  bool _isSessionActive = false;

  // --- 晶状体舒缓引擎 (Ciliary Relaxation Engine) ---
  late AnimationController _breathingController;
  late Animation<double> _lensFocusAnimation; // 模拟焦点距离变化

  // --- 眼球扫视引擎 (Saccadic Engine) ---
  late AnimationController _saccadeController;
  late Animation<Offset> _saccadePositionAnimation;
  final List<Offset> _saccadeHistory = [];
  Offset _currentTarget = const Offset(0.5, 0.5); // 归一化坐标 [0..1]

  // 生物学统计面板数据
  double _fatigueIndex = 85.0; // 模拟视疲劳指数 (0-100)
  int _completedSaccades = 0;
  double _ciliarySpasmReduction = 0.0;

  @override
  void initState() {
    super.initState();

    // 初始化睫状肌呼吸动力学动画 (模拟看近与看远交替，正弦平滑)
    _breathingController = AnimationController(
      vsync: this,
      duration: const Duration(milliseconds: 4000), // 单次收缩/舒张周期 4秒
    );
    _lensFocusAnimation = CurvedAnimation(
      parent: _breathingController,
      curve: Curves.easeInOutSine,
    );

    // 初始化扫视跳跃动画 (模拟眼球极速转动到新注视点)
    _saccadeController = AnimationController(
      vsync: this,
      duration: const Duration(milliseconds: 300), // 扫视通常在几百毫秒内完成
    );
    _saccadePositionAnimation = Tween<Offset>(
      begin: const Offset(0.5, 0.5),
      end: const Offset(0.5, 0.5),
    ).animate(CurvedAnimation(
      parent: _saccadeController,
      curve: Curves.easeOutExpo, // 模拟眼动肌肉的高爆发与迅速制动
    ));

    _saccadeController.addStatusListener((status) {
      if (status == AnimationStatus.completed && _isSessionActive && _currentMode == TherapyMode.saccadicTracking) {
        _scheduleNextSaccade();
      }
    });
  }

  @override
  void dispose() {
    _breathingController.dispose();
    _saccadeController.dispose();
    super.dispose();
  }

  /// 触发下一次眼球扫视跳跃
  void _scheduleNextSaccade() {
    Future.delayed(const Duration(milliseconds: 1200), () { // 注视停留 1.2 秒
      if (!mounted || !_isSessionActive || _currentMode != TherapyMode.saccadicTracking) return;

      final rand = math.Random();
      // 生成下一个归一化目标点，强制要求一定的跳跃跨度以拉伸眼外肌
      Offset nextTarget;
      do {
        nextTarget = Offset(
          0.1 + rand.nextDouble() * 0.8,
          0.1 + rand.nextDouble() * 0.8,
        );
      } while ((nextTarget - _currentTarget).distance < 0.4);

      _saccadeHistory.add(_currentTarget);
      if (_saccadeHistory.length > 5) {
        _saccadeHistory.removeAt(0); // 仅保留最近的轨迹用于残影测绘
      }

      _saccadePositionAnimation = Tween<Offset>(
        begin: _currentTarget,
        end: nextTarget,
      ).animate(CurvedAnimation(parent: _saccadeController, curve: Curves.easeOutExpo));

      _currentTarget = nextTarget;
      _saccadeController.forward(from: 0.0);

      setState(() {
        _completedSaccades++;
        _fatigueIndex = math.max(0, _fatigueIndex - 0.2); // 每次有效拉伸降低痉挛指数
      });
      HapticFeedback.lightImpact();
    });
  }

  void _toggleSession() {
    setState(() {
      _isSessionActive = !_isSessionActive;
      if (_isSessionActive) {
        if (_currentMode == TherapyMode.ciliaryRelaxation) {
          _breathingController.repeat(reverse: true);
          // 伴随呼吸降低视疲劳
          _breathingController.addListener(_ciliaryBenefitTick);
        } else {
          _scheduleNextSaccade();
        }
      } else {
        _breathingController.stop();
        _breathingController.removeListener(_ciliaryBenefitTick);
      }
    });
  }

  void _ciliaryBenefitTick() {
    // 根据动画时间流逝，微幅降低疲劳指数
    if (mounted && _isSessionActive && _currentMode == TherapyMode.ciliaryRelaxation) {
      setState(() {
        _fatigueIndex = math.max(0, _fatigueIndex - 0.01);
        _ciliarySpasmReduction += 0.02;
      });
    }
  }

  void _switchMode(TherapyMode mode) {
    if (_currentMode == mode) return;
    setState(() {
      _isSessionActive = false;
      _breathingController.stop();
      _breathingController.removeListener(_ciliaryBenefitTick);
      _currentMode = mode;
      _saccadeHistory.clear();
      _currentTarget = const Offset(0.5, 0.5);
    });
  }

  @override
  Widget build(BuildContext context) {
    final screenWidth = MediaQuery.of(context).size.width;
    final isWide = screenWidth > 800;

    return Scaffold(
      body: Row(
        children: [
          if (isWide) _buildControlPanel(320),
          Expanded(
            child: Column(
              children: [
                if (!isWide) _buildMobileHeader(),
                Expanded(
                  child: Stack(
                    children: [
                      // 底层视网膜基准网格
                      Positioned.fill(
                        child: CustomPaint(
                          painter: RetinalGridPainter(),
                        ),
                      ),
                      // 核心光学测绘渲染区
                      Positioned.fill(
                        child: LayoutBuilder(
                          builder: (context, constraints) {
                            if (_currentMode == TherapyMode.ciliaryRelaxation) {
                              return AnimatedBuilder(
                                animation: _lensFocusAnimation,
                                builder: (context, _) {
                                  return CustomPaint(
                                    painter: CiliaryRelaxationPainter(
                                      focusPhase: _lensFocusAnimation.value,
                                      isActive: _isSessionActive,
                                    ),
                                  );
                                },
                              );
                            } else {
                              return AnimatedBuilder(
                                animation: _saccadePositionAnimation,
                                builder: (context, _) {
                                  return CustomPaint(
                                    painter: SaccadicTargetPainter(
                                      currentPos: _saccadePositionAnimation.value,
                                      history: _saccadeHistory,
                                      isActive: _isSessionActive,
                                    ),
                                  );
                                },
                              );
                            }
                          },
                        ),
                      ),
                      // 浮动生物体征仪表框
                      Positioned(
                        top: 24,
                        right: 24,
                        child: _buildTelemetryHUD(),
                      ),
                    ],
                  ),
                ),
                if (!isWide) _buildMobileBottomBar(),
              ],
            ),
          ),
        ],
      ),
      floatingActionButton: isWide
        ? FloatingActionButton.extended(
            onPressed: _toggleSession,
            backgroundColor: _isSessionActive ? Colors.redAccent : const Color(0xFF00E676),
            icon: Icon(_isSessionActive ? Icons.stop : Icons.play_arrow, color: Colors.black),
            label: Text(_isSessionActive ? '中止干预' : '启动视力重塑', style: const TextStyle(color: Colors.black, fontWeight: FontWeight.bold)),
          )
        : null,
    );
  }

  Widget _buildControlPanel(double width) {
    return Container(
      width: width,
      decoration: BoxDecoration(
        color: Theme.of(context).cardColor,
        border: Border(right: BorderSide(color: Colors.white.withValues(alpha: 0.05))),
      ),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          const Padding(
            padding: EdgeInsets.fromLTRB(24, 48, 24, 24),
            child: Text(
              '视觉物理疗法',
              style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold, color: Color(0xFF00E676)),
            ),
          ),
          _buildModeSelector(),
          const Divider(color: Colors.white10, height: 48),
          _buildTherapyStats(),
        ],
      ),
    );
  }

  Widget _buildMobileHeader() {
    return Container(
      height: 90,
      padding: const EdgeInsets.only(top: 40, left: 20, right: 20),
      decoration: BoxDecoration(
        color: Theme.of(context).cardColor,
        border: Border(bottom: BorderSide(color: Colors.white.withValues(alpha: 0.1))),
      ),
      child: Row(
        mainAxisAlignment: MainAxisAlignment.spaceBetween,
        children: [
          const Text(
            '视觉物理干预台',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold, letterSpacing: 1.5),
          ),
          IconButton(
            icon: Icon(_isSessionActive ? Icons.stop_circle : Icons.play_circle_fill,
                       color: _isSessionActive ? Colors.redAccent : const Color(0xFF00E676), size: 32),
            onPressed: _toggleSession,
          )
        ],
      ),
    );
  }

  Widget _buildMobileBottomBar() {
    return Container(
      padding: const EdgeInsets.symmetric(vertical: 16),
      decoration: BoxDecoration(
        color: Theme.of(context).cardColor,
        border: Border(top: BorderSide(color: Colors.white.withValues(alpha: 0.1))),
      ),
      child: Column(
        mainAxisSize: MainAxisSize.min,
        children: [
          _buildModeSelector(),
        ],
      ),
    );
  }

  Widget _buildModeSelector() {
    return Padding(
      padding: const EdgeInsets.symmetric(horizontal: 20),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          const Text('干预引擎阵列', style: TextStyle(color: Colors.white54, fontSize: 12)),
          const SizedBox(height: 12),
          Row(
            children: [
              Expanded(
                child: _buildModeButton(
                  title: '晶状体舒缓',
                  icon: Icons.lens_blur,
                  mode: TherapyMode.ciliaryRelaxation,
                  color: const Color(0xFF00E676),
                ),
              ),
              const SizedBox(width: 12),
              Expanded(
                child: _buildModeButton(
                  title: '扫视轨迹追踪',
                  icon: Icons.gps_fixed,
                  mode: TherapyMode.saccadicTracking,
                  color: const Color(0xFF00B0FF),
                ),
              ),
            ],
          ),
        ],
      ),
    );
  }

  Widget _buildModeButton({required String title, required IconData icon, required TherapyMode mode, required Color color}) {
    final isSelected = _currentMode == mode;
    return InkWell(
      onTap: () => _switchMode(mode),
      borderRadius: BorderRadius.circular(12),
      child: AnimatedContainer(
        duration: const Duration(milliseconds: 200),
        padding: const EdgeInsets.symmetric(vertical: 16, horizontal: 12),
        decoration: BoxDecoration(
          color: isSelected ? color.withValues(alpha: 0.15) : Colors.transparent,
          borderRadius: BorderRadius.circular(12),
          border: Border.all(color: isSelected ? color : Colors.white.withValues(alpha: 0.1)),
        ),
        child: Column(
          mainAxisSize: MainAxisSize.min,
          children: [
            Icon(icon, color: isSelected ? color : Colors.white54),
            const SizedBox(height: 8),
            Text(
              title,
              style: TextStyle(
                color: isSelected ? color : Colors.white54,
                fontSize: 12,
                fontWeight: isSelected ? FontWeight.bold : FontWeight.normal,
              ),
            )
          ],
        ),
      ),
    );
  }

  Widget _buildTherapyStats() {
    return Padding(
      padding: const EdgeInsets.symmetric(horizontal: 20),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          const Text('生物学实时反馈矩阵', style: TextStyle(color: Colors.white54, fontSize: 12)),
          const SizedBox(height: 24),
          _buildStatRow('眼外肌牵拉位移', '${_completedSaccades * 12} mm', const Color(0xFF00B0FF)),
          const SizedBox(height: 20),
          _buildStatRow('睫状肌痉挛解离', '${_ciliarySpasmReduction.toStringAsFixed(1)} μT', const Color(0xFF00E676)),
        ],
      ),
    );
  }

  Widget _buildStatRow(String label, String value, Color color) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceBetween,
      children: [
        Text(label, style: const TextStyle(color: Colors.white70)),
        Text(value, style: TextStyle(color: color, fontWeight: FontWeight.bold, fontSize: 18, fontFamily: 'monospace')),
      ],
    );
  }

  Widget _buildTelemetryHUD() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(
        color: Colors.black.withValues(alpha: 0.6),
        borderRadius: BorderRadius.circular(16),
        border: Border.all(color: Colors.white.withValues(alpha: 0.1)),
        boxShadow: [BoxShadow(color: Colors.black.withValues(alpha: 0.5), blurRadius: 10)],
      ),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.end,
        mainAxisSize: MainAxisSize.min,
        children: [
          const Text('视觉疲劳指数 (VFI)', style: TextStyle(color: Colors.white54, fontSize: 10)),
          const SizedBox(height: 4),
          Row(
            mainAxisSize: MainAxisSize.min,
            children: [
              Text(
                _fatigueIndex.toStringAsFixed(1),
                style: TextStyle(
                  fontSize: 32,
                  fontWeight: FontWeight.bold,
                  color: Color.lerp(const Color(0xFF00E676), Colors.redAccent, _fatigueIndex / 100),
                  fontFamily: 'monospace',
                ),
              ),
              const Text('%', style: TextStyle(color: Colors.white54)),
            ],
          ),
          const SizedBox(height: 8),
          SizedBox(
            width: 100,
            child: LinearProgressIndicator(
              value: _fatigueIndex / 100,
              backgroundColor: Colors.white.withValues(alpha: 0.1),
              valueColor: AlwaysStoppedAnimation<Color>(
                Color.lerp(const Color(0xFF00E676), Colors.redAccent, _fatigueIndex / 100)!
              ),
            ),
          )
        ],
      ),
    );
  }
}

// ==========================================
// 物理级渲染器：视网膜基准网格映射
// ==========================================
class RetinalGridPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()
      ..color = Colors.white.withValues(alpha: 0.03)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 1.0;

    // 绘制视野极坐标校准线
    final center = Offset(size.width / 2, size.height / 2);
    final maxRadius = math.sqrt(size.width * size.width + size.height * size.height) / 2;

    // 同心圆 (表示视野等距带)
    for (double r = 40; r <= maxRadius; r += 60) {
      canvas.drawCircle(center, r, paint);
    }

    // 放射线 (表示视神经辐射方向)
    for (int i = 0; i < 12; i++) {
      final angle = i * math.pi / 6;
      final dx = center.dx + maxRadius * math.cos(angle);
      final dy = center.dy + maxRadius * math.sin(angle);
      canvas.drawLine(center, Offset(dx, dy), paint);
    }
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) => false;
}

// ==========================================
// 物理级渲染器：睫状肌舒缓动力学 (远近焦距模拟)
// ==========================================
class CiliaryRelaxationPainter extends CustomPainter {
  final double focusPhase; // 0.0 -> 1.0 -> 0.0 (收缩与舒张相位)
  final bool isActive;

  CiliaryRelaxationPainter({required this.focusPhase, required this.isActive});

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    // 模拟晶状体前表面曲率变化。focusPhase 越大，表示聚焦近处，晶状体变厚，圆缩小
    final baseRadius = math.min(size.width, size.height) * 0.4;
    final dynamicRadius = baseRadius * (1.0 - focusPhase * 0.7) + 20; // 最小收缩至 20

    final color = const Color(0xFF00E676);

    // 如果未启动，则绘制暗色待机状态
    if (!isActive) {
      final idlePaint = Paint()
        ..color = color.withValues(alpha: 0.2)
        ..style = PaintingStyle.stroke
        ..strokeWidth = 2.0;
      canvas.drawCircle(center, baseRadius, idlePaint);
      return;
    }

    // 绘制晶状体张力外晕 (睫状小带悬韧带拉伸感)
    final haloPaint = Paint()
      ..color = color.withValues(alpha: 0.15 + focusPhase * 0.2)
      ..maskFilter = MaskFilter.blur(BlurStyle.normal, 20 + focusPhase * 40);
    canvas.drawCircle(center, dynamicRadius + 10, haloPaint);

    // 绘制核心视觉焦点
    final corePaint = Paint()
      ..color = color.withValues(alpha: 0.8)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 4.0 + focusPhase * 6.0; // 越近聚焦越实
    canvas.drawCircle(center, dynamicRadius, corePaint);

    // 内部高频振荡波纹 (模拟睫状肌微颤)
    final ripplePaint = Paint()
      ..color = color.withValues(alpha: 0.5 * (1.0 - focusPhase))
      ..style = PaintingStyle.stroke
      ..strokeWidth = 1.0;
    canvas.drawCircle(center, dynamicRadius * 0.6, ripplePaint);

    // 绘制注视准星
    final crossHairPaint = Paint()
      ..color = Colors.white.withValues(alpha: 0.8)
      ..strokeWidth = 1.5;
    canvas.drawLine(Offset(center.dx - 10, center.dy), Offset(center.dx + 10, center.dy), crossHairPaint);
    canvas.drawLine(Offset(center.dx, center.dy - 10), Offset(center.dx, center.dy + 10), crossHairPaint);

    // 距离提示文本
    final textPainter = TextPainter(
      text: TextSpan(
        text: focusPhase < 0.3 ? '望远 (睫状肌舒张)' : (focusPhase > 0.7 ? '近焦 (睫状肌收缩)' : '变焦过渡'),
        style: TextStyle(
          color: color.withValues(alpha: 0.8),
          fontSize: 14,
          fontWeight: FontWeight.bold,
          letterSpacing: 2.0,
        )
      ),
      textDirection: TextDirection.ltr,
    )..layout();
    textPainter.paint(canvas, Offset(center.dx - textPainter.width / 2, center.dy + dynamicRadius + 40));
  }

  @override
  bool shouldRepaint(covariant CiliaryRelaxationPainter oldDelegate) {
    return oldDelegate.focusPhase != focusPhase || oldDelegate.isActive != isActive;
  }
}

// ==========================================
// 物理级渲染器：扫视追踪坐标物理映射
// ==========================================
class SaccadicTargetPainter extends CustomPainter {
  final Offset currentPos; // 归一化坐标 [0..1, 0..1]
  final List<Offset> history;
  final bool isActive;

  SaccadicTargetPainter({required this.currentPos, required this.history, required this.isActive});

  @override
  void paint(Canvas canvas, Size size) {
    if (!isActive) return;

    final color = const Color(0xFF00B0FF);

    // 映射归一化坐标到屏幕物理坐标
    Offset mapToScreen(Offset norm) {
      // 预留边缘 padding
      final paddingX = size.width * 0.1;
      final paddingY = size.height * 0.1;
      final usableWidth = size.width * 0.8;
      final usableHeight = size.height * 0.8;
      return Offset(
        paddingX + norm.dx * usableWidth,
        paddingY + norm.dy * usableHeight,
      );
    }

    final screenCurrent = mapToScreen(currentPos);

    // 绘制视觉扫视残影轨迹连线 (模拟大脑皮层视觉驻留)
    if (history.isNotEmpty) {
      final pathPaint = Paint()
        ..style = PaintingStyle.stroke
        ..strokeCap = StrokeCap.round;

      for (int i = 0; i < history.length; i++) {
        final start = mapToScreen(history[i]);
        final end = i == history.length - 1 ? screenCurrent : mapToScreen(history[i + 1]);

        // 越早的轨迹越暗淡
        final alpha = (i + 1) / (history.length + 1);
        pathPaint.color = color.withValues(alpha: alpha * 0.3);
        pathPaint.strokeWidth = 2.0 + alpha * 2.0;

        canvas.drawLine(start, end, pathPaint);
      }
    }

    // 绘制追踪目标主体 (Saccadic Target)
    // 外部脉冲光晕
    final haloPaint = Paint()
      ..color = color.withValues(alpha: 0.4)
      ..maskFilter = const MaskFilter.blur(BlurStyle.normal, 15);
    canvas.drawCircle(screenCurrent, 24, haloPaint);

    // 实体高频注视点
    final corePaint = Paint()
      ..color = color
      ..style = PaintingStyle.fill;
    canvas.drawCircle(screenCurrent, 8, corePaint);

    // 靶向环
    final ringPaint = Paint()
      ..color = Colors.white.withValues(alpha: 0.8)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 2.0;
    canvas.drawCircle(screenCurrent, 16, ringPaint);
  }

  @override
  bool shouldRepaint(covariant SaccadicTargetPainter oldDelegate) {
    return oldDelegate.currentPos != currentPos || oldDelegate.history != history || oldDelegate.isActive != isActive;
  }
}
