Flutter框架开发鸿蒙项目——Container变换效果

Container组件的transform属性提供了强大的变换能力，可以实现旋转、缩放、平移、倾斜等多种视觉效果。本文将深入探讨Container的变换效果，包括基础变换、复合变换、3D变换以及实际应用场景。

bug处理机

43人浏览 · 2026-01-24 23:16:13

bug处理机 · 2026-01-24 23:16:13 发布

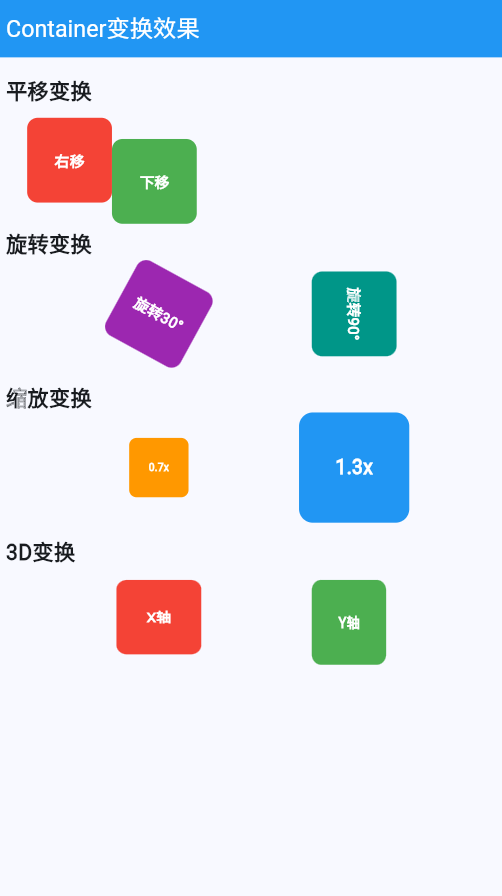

在这里插入图片描述

一、变换基础

Container的transform属性使用Matrix4矩阵实现变换，可以创建各种视觉效果。

1.1 变换类型

1.2 变换方法对比

变换方法	语法	效果	应用场景
translation	Matrix4.translationValues(x, y, z)	平移	位置调整
rotationZ	Matrix4.rotationZ(angle)	2D旋转	角度变化
rotationX	Matrix4.rotationX(angle)	3D X轴旋转	3D效果
rotationY	Matrix4.rotationY(angle)	3D Y轴旋转	3D翻转
scaled	Matrix4.diagonal3(sx, sy, sz)	缩放	大小调整
compose	Matrix4.compose()	复合变换	组合效果

二、平移变换

2.1 基础平移

class TranslateContainer extends StatelessWidget {
  const TranslateContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // 原始Container
        Container(
          width: 100,
          height: 100,
          color: Colors.blue,
          child: const Center(
            child: Text('原始', style: TextStyle(color: Colors.white)),
          ),
        ),
        const SizedBox(height: 20),

        // 向右平移
        Transform(
          transform: Matrix4.translationValues(50, 0, 0),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.green,
            child: const Center(
              child: Text('向右平移', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
        const SizedBox(height: 20),

        // 向下平移
        Transform(
          transform: Matrix4.translationValues(0, 50, 0),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.orange,
            child: const Center(
              child: Text('向下平移', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

2.2 对角平移

class DiagonalTranslateContainer extends StatelessWidget {
  const DiagonalTranslateContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 200,
      height: 200,
      color: Colors.grey.shade200,
      child: Stack(
        children: [
          Positioned(
            top: 50,
            left: 50,
            child: Transform(
              transform: Matrix4.translationValues(30, 30, 0),
              child: Container(
                width: 100,
                height: 100,
                color: Colors.blue,
                child: const Center(
                  child: Text('对角平移', style: TextStyle(color: Colors.white)),
                ),
              ),
            ),
          ),
        ],
      ),
    );
  }
}

三、旋转变换

3.1 2D旋转

class RotationContainer extends StatelessWidget {
  const RotationContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 旋转45度
        Transform(
          transform: Matrix4.rotationZ(0.78), // 45度 = π/4
          child: Container(
            width: 80,
            height: 80,
            color: Colors.red,
            child: const Center(
              child: Text('45°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // 旋转90度
        Transform(
          transform: Matrix4.rotationZ(1.57), // 90度 = π/2
          child: Container(
            width: 80,
            height: 80,
            color: Colors.green,
            child: const Center(
              child: Text('90°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // 旋转180度
        Transform(
          transform: Matrix4.rotationZ(3.14), // 180度 = π
          child: Container(
            width: 80,
            height: 80,
            color: Colors.blue,
            child: const Center(
              child: Text('180°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

3.2 中心旋转

class CenterRotationContainer extends StatelessWidget {
  const CenterRotationContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return SizedBox(
      width: 200,
      height: 200,
      child: Stack(
        children: [
          // 中心点
          Positioned(
            left: 100 - 5,
            top: 100 - 5,
            child: Container(
              width: 10,
              height: 10,
              decoration: BoxDecoration(
                color: Colors.black,
                shape: BoxShape.circle,
              ),
            ),
          ),

          // 围绕中心旋转
          Transform(
            transform: Matrix4.rotationZ(0.5),
            alignment: Alignment.center,
            child: const Positioned(
              left: 100,
              top: 20,
              child: Container(
                width: 60,
                height: 60,
                color: Colors.purple,
                child: Center(
                  child: Text('旋转', style: TextStyle(color: Colors.white)),
                ),
              ),
            ),
          ),
        ],
      ),
    );
  }
}

3.3 动画旋转

class AnimatedRotationContainer extends StatefulWidget {
  const AnimatedRotationContainer({super.key});

  @override
  State<AnimatedRotationContainer> createState() => _AnimatedRotationContainerState();
}

class _AnimatedRotationContainerState extends State<AnimatedRotationContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 3),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0, end: 2 * 3.14159).animate(_controller);
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Transform(
          transform: Matrix4.rotationZ(_animation.value),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.orange,
            child: const Center(
              child: Text('持续旋转', style: TextStyle(color: Colors.white)),
            ),
          ),
        );
      },
    );
  }
}

四、缩放变换

4.1 等比缩放

class ScaleContainer extends StatelessWidget {
  const ScaleContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // 缩小到0.5倍
        Transform.scale(
          scale: 0.5,
          child: Container(
            width: 100,
            height: 100,
            color: Colors.red,
            child: const Center(
              child: Text('0.5x', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // 原始大小
        Container(
          width: 100,
          height: 100,
          color: Colors.green,
          child: const Center(
            child: Text('1.0x', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 放大到1.5倍
        Transform.scale(
          scale: 1.5,
          child: Container(
            width: 100,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text('1.5x', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

4.2 非等比缩放

class NonUniformScaleContainer extends StatelessWidget {
  const NonUniformScaleContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // 水平拉伸
        Transform(
          transform: Matrix4.diagonal3Values(2.0, 1.0, 1.0),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.purple,
            child: const Center(
              child: Text('水平拉伸', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
        const SizedBox(height: 20),

        // 垂直拉伸
        Transform(
          transform: Matrix4.diagonal3Values(1.0, 2.0, 1.0),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.teal,
            child: const Center(
              child: Text('垂直拉伸', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

4.3 动画缩放

class AnimatedScaleContainer extends StatefulWidget {
  const AnimatedScaleContainer({super.key});

  @override
  State<AnimatedScaleContainer> createState() => _AnimatedScaleContainerState();
}

class _AnimatedScaleContainerState extends State<AnimatedScaleContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
    )..repeat(reverse: true);

    _animation = Tween<double>(begin: 0.8, end: 1.2).animate(
      CurvedAnimation(
        parent: _controller,
        curve: Curves.easeInOut,
      ),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Transform.scale(
          scale: _animation.value,
          child: Container(
            width: 100,
            height: 100,
            decoration: BoxDecoration(
              gradient: LinearGradient(
                colors: [Colors.blue, Colors.purple],
              ),
              borderRadius: BorderRadius.circular(20),
            ),
            child: const Center(
              child: Text(
                '呼吸效果',
                style: TextStyle(
                  color: Colors.white,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        );
      },
    );
  }
}

五、3D变换

5.1 X轴旋转（上下翻转）

class RotationXContainer extends StatelessWidget {
  const RotationXContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // X轴旋转30度
        Transform(
          transform: Matrix4.rotationX(0.52), // 30度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text('X轴旋转30°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // X轴旋转60度
        Transform(
          transform: Matrix4.rotationX(1.05), // 60度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.green,
            child: const Center(
              child: Text('X轴旋转60°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // X轴旋转90度
        Transform(
          transform: Matrix4.rotationX(1.57), // 90度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.orange,
            child: const Center(
              child: Text('X轴旋转90°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

5.2 Y轴旋转（左右翻转）

class RotationYContainer extends StatelessWidget {
  const RotationYContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      children: [
        // Y轴旋转30度
        Transform(
          transform: Matrix4.rotationY(0.52), // 30度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.purple,
            child: const Center(
              child: Text('Y轴旋转30°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // Y轴旋转60度
        Transform(
          transform: Matrix4.rotationY(1.05), // 60度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.teal,
            child: const Center(
              child: Text('Y轴旋转60°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),

        // Y轴旋转90度
        Transform(
          transform: Matrix4.rotationY(1.57), // 90度
          child: Container(
            width: 100,
            height: 100,
            color: Colors.red,
            child: const Center(
              child: Text('Y轴旋转90°', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

5.3 透视效果

class PerspectiveContainer extends StatelessWidget {
  const PerspectiveContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // 无透视
        Transform(
          transform: Matrix4.rotationY(0.5),
          child: Container(
            width: 150,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text('无透视', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
        const SizedBox(height: 20),

        // 添加透视
        Transform(
          transform: Matrix4.identity()
            ..setEntry(3, 2, 0.002) // 透视系数
            ..rotateY(0.5),
          child: Container(
            width: 150,
            height: 100,
            color: Colors.green,
            child: const Center(
              child: Text('有透视', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ],
    );
  }
}

六、复合变换

6.1 平移+旋转

class CompositeTransformContainer extends StatelessWidget {
  const CompositeTransformContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 300,
      height: 300,
      color: Colors.grey.shade200,
      child: Center(
        child: Transform(
          // 复合变换：先平移后旋转
          transform: Matrix4.identity()
            ..translate(50, 50, 0)
            ..rotateZ(0.5),
          child: Container(
            width: 100,
            height: 100,
            color: Colors.blue,
            child: const Center(
              child: Text('复合变换', style: TextStyle(color: Colors.white)),
            ),
          ),
        ),
      ),
    );
  }
}

6.2 缩放+旋转

class ScaleRotationContainer extends StatelessWidget {
  const ScaleRotationContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Center(
      child: Transform(
        // 先缩放后旋转
        transform: Matrix4.identity()
          ..scale(1.5)
          ..rotateZ(0.3),
        child: Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            gradient: LinearGradient(
              colors: [Colors.orange, Colors.red],
            ),
            borderRadius: BorderRadius.circular(10),
          ),
          child: const Center(
            child: Text('缩放旋转', style: TextStyle(color: Colors.white)),
          ),
        ),
      ),
    );
  }
}

6.3 完整3D变换

class Full3DTransformContainer extends StatelessWidget {
  const Full3DTransformContainer({super.key});

  @override
  Widget build(BuildContext context) {
    return Center(
      child: Transform(
        // 添加透视
        transform: Matrix4.identity()
          ..setEntry(3, 2, 0.003) // 透视系数
          ..rotateX(0.3) // X轴旋转
          ..rotateY(0.5) // Y轴旋转
          ..scale(1.2), // 缩放
        alignment: Alignment.center,
        child: Container(
          width: 150,
          height: 150,
          decoration: BoxDecoration(
            gradient: const LinearGradient(
              begin: Alignment.topLeft,
              end: Alignment.bottomRight,
              colors: [Colors.purple, Colors.blue],
            ),
            borderRadius: BorderRadius.circular(20),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.3),
                blurRadius: 10,
                offset: const Offset(5, 5),
              ),
            ],
          ),
          child: const Center(
            child: Text(
              '完整3D',
              style: TextStyle(
                color: Colors.white,
                fontSize: 20,
                fontWeight: FontWeight.bold,
              ),
            ),
          ),
        ),
      ),
    );
  }
}

七、动画变换示例

7.1 3D翻转动画

class FlippingContainer extends StatefulWidget {
  const FlippingContainer({super.key});

  @override
  State<FlippingContainer> createState() => _FlippingContainerState();
}

class _FlippingContainerState extends State<FlippingContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0, end: 2 * 3.14159).animate(_controller);
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Transform(
          transform: Matrix4.identity()
            ..setEntry(3, 2, 0.003)
            ..rotateY(_animation.value),
          alignment: Alignment.center,
          child: Container(
            width: 150,
            height: 150,
            decoration: BoxDecoration(
              gradient: LinearGradient(
                colors: [
                  Colors.blue.shade400,
                  Colors.purple.shade400,
                ],
              ),
              borderRadius: BorderRadius.circular(20),
            ),
            child: const Center(
              child: Text(
                '3D翻转',
                style: TextStyle(
                  color: Colors.white,
                  fontSize: 18,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        );
      },
    );
  }
}

7.2 呼吸缩放动画

class BreathingContainer extends StatefulWidget {
  const BreathingContainer({super.key});

  @override
  State<BreathingContainer> createState() => _BreathingContainerState();
}

class _BreathingContainerState extends State<BreathingContainer>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 3),
      vsync: this,
    )..repeat(reverse: true);

    _animation = Tween<double>(begin: 1.0, end: 1.3).animate(
      CurvedAnimation(
        parent: _controller,
        curve: Curves.easeInOut,
      ),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Transform(
          transform: Matrix4.diagonal3Values(
            _animation.value,
            _animation.value,
            1.0,
          ),
          child: Container(
            width: 120,
            height: 120,
            decoration: BoxDecoration(
              gradient: RadialGradient(
                colors: [
                  Colors.orange.shade200,
                  Colors.orange.shade600,
                ],
              ),
              shape: BoxShape.circle,
            ),
            child: const Center(
              child: Text(
                '呼吸',
                style: TextStyle(
                  color: Colors.white,
                  fontSize: 20,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        );
      },
    );
  }
}

八、完整变换示例

class ContainerTransformExample extends StatelessWidget {
  const ContainerTransformExample({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('Container变换效果'),
        backgroundColor: Colors.blue,
        foregroundColor: Colors.white,
      ),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          const Text(
            '平移变换',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          Row(
            children: [
              Transform.translate(
                offset: const Offset(20, 0),
                child: _buildColorBox('右移', Colors.red),
              ),
              const SizedBox(width: 20),
              Transform.translate(
                offset: const Offset(0, 20),
                child: _buildColorBox('下移', Colors.green),
              ),
            ],
          ),
          const SizedBox(height: 24),

          const Text(
            '旋转变换',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            children: [
              Transform.rotate(
                angle: 0.5,
                child: _buildColorBox('旋转30°', Colors.purple),
              ),
              Transform.rotate(
                angle: 1.57,
                child: _buildColorBox('旋转90°', Colors.teal),
              ),
            ],
          ),
          const SizedBox(height: 24),

          const Text(
            '缩放变换',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            children: [
              Transform.scale(
                scale: 0.7,
                child: _buildColorBox('0.7x', Colors.orange),
              ),
              Transform.scale(
                scale: 1.3,
                child: _buildColorBox('1.3x', Colors.blue),
              ),
            ],
          ),
          const SizedBox(height: 24),

          const Text(
            '3D变换',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            children: [
              Transform(
                transform: Matrix4.rotationX(0.5),
                child: _buildColorBox('X轴', Colors.red),
              ),
              Transform(
                transform: Matrix4.rotationY(0.5),
                child: _buildColorBox('Y轴', Colors.green),
              ),
            ],
          ),
          const SizedBox(height: 24),

          const Text(
            '动画效果',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const AnimatedRotationContainer(),
          const SizedBox(height: 24),
          const AnimatedScaleContainer(),
          const SizedBox(height: 24),
          const FlippingContainer(),
          const SizedBox(height: 24),
          const BreathingContainer(),
          const SizedBox(height: 24),

          const Text(
            '复合变换',
            style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 12),
          const Full3DTransformContainer(),
        ],
      ),
    );
  }

  Widget _buildColorBox(String label, Color color) {
    return Container(
      width: 80,
      height: 80,
      decoration: BoxDecoration(
        color: color,
        borderRadius: BorderRadius.circular(10),
      ),
      child: Center(
        child: Text(
          label,
          style: const TextStyle(color: Colors.white, fontWeight: FontWeight.bold),
        ),
      ),
    );
  }
}

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

人工智能6S服务平台

作为“人工智能6S店”的官方数字引擎，为AI开发者与企业提供一个覆盖软硬件全栈、一站式门户。

更多推荐

Flutter 框架跨平台鸿蒙开发——Button综合应用

人工智能6S服务平台

Flutter 框架跨平台鸿蒙开发——Container高级应用

人工智能6S服务平台

HarmonyOS 6.0+分布式APP开发：技术升级与跨端实战指南

摘要：HarmonyOS 6.0.0及以上版本实现了分布式技术的重大升级，从设备互联迈向智能协同。本文以跨设备文档协同编辑APP为例，详细解析了鸿蒙智能体框架、标准化分布式数据管理和星闪通信三大核心技术升级。通过Stage模型和ArkTS语言，完整展示了开发环境搭建、核心功能实现、多设备调试及性能优化的全流程，为开发者提供了可直接落地的全场景应用开发方案。文章还包含关键性能优化策略和常见问题解决方
