基于HarmonyOS API 24的ArkTS播客社区应用实战:QQ电台·播客台深度解析(HarmonyOS 6.1.1 / HarmonyOS ArkTS API 24)
技术引言
HarmonyOS 6.1.1作为华为鸿蒙操作系统的最新迭代版本,搭载了HarmonyOS ArkTS API 24这一强大的应用开发框架。ArkTS API 24在声明式UI范式的基础上进一步强化了状态管理、组件化架构和动画能力,为开发者提供了更加高效、流畅的原生应用构建体验。本文以"QQ电台·播客台"这一播客音频社区应用为例,深入剖析了基于HarmonyOS API 24构建复杂社区型应用的全套技术方案。该应用集成了底部四Tab导航、顶部六分类切换、四种弹窗交互、音波粒子动画特效、七日收听柱状图数据可视化等核心功能,完整展现了ArkTS在构建沉浸式音频社交场景时的架构设计能力。通过逐段代码解析、架构流程图示和对比分析,读者可以系统掌握ArkTS API 24中@State状态驱动、@Builder声明式构建器、@Observed可观察对象、ForEach列表渲染、Stack层叠布局、定时器动画以及多模态交互等关键技术要点。
一、整体架构概览
在深入逐段代码之前,我们先用三张流程图从宏观层面理解该应用的架构设计、数据流向和组件生命周期。
1.1 应用架构图
上图展示了应用从入口组件Index出发,向下分为三大分支:状态管理层负责所有可观察变量的声明与维护;构建层build()方法负责UI树的组织与渲染;生命周期层负责定时器的启动与销毁。构建层内部的Stack容器同时承载主布局列、音波粒子动画层和四个条件渲染的弹窗层,形成了"背景特效 + 主内容 + 浮层交互"的三明治式视觉叠加结构。
1.2 数据流图
数据流图揭示了应用中"静态常量数据"与"动态响应式状态"两条数据通路。常量数据(COLORS、PODCASTS、SUBS、EPISODES)在编译期即确定,通过工具函数加工后直接参与渲染;响应式状态(particles、selectedPodcast、currentBottomTab等)则由用户交互或定时器触发变更,驱动ArkUI框架执行差异化重渲染。两条通路在@Builder构建器方法中汇合,最终输出完整的UI树。
1.3 组件生命周期图
生命周期图展示了ArkTS组件从创建到销毁的完整过程。aboutToAppear作为组件出现前的钩子,负责启动粒子动画定时器;aboutToDisappear作为组件消失前的钩子,负责清除定时器以避免内存泄漏。在运行态中,用户交互和定时器触发共同驱动状态的持续变更,ArkUI框架据此执行精准的局部重渲染,保证UI始终与状态保持同步。
二、逐段代码深度解析
代码段1:颜色调色板接口与常量定义
interface ColorPalette {
indigo: string;
indigoDeep: string;
indigoLight: string;
warmOrange: string;
warmOrangeLight: string;
bg: string;
cardBg: string;
cardBgDark: string;
textPrimary: string;
textSecondary: string;
textHint: string;
white: string;
gold: string;
border: string;
danger: string;
success: string;
}
const COLORS: ColorPalette = {
indigo: '#1B2A5E',
indigoDeep: '#0F1838',
indigoLight: '#3A4F8E',
warmOrange: '#FF8C42',
warmOrangeLight: '#FFB070',
bg: '#0C1330',
cardBg: '#1E2848',
cardBgDark: '#161E3C',
textPrimary: '#E8ECF8',
textSecondary: '#9AABD0',
textHint: '#6B7BA0',
white: '#FFFFFF',
gold: '#F5C242',
border: '#2D3858',
danger: '#E84A4A',
success: '#4DD9A0'
};
应用首先通过interface ColorPalette定义了一个完整的颜色调色板接口,随后用const COLORS实例化该接口。这种"接口约束 + 常量实现"的设计模式在ArkTS中具有显著优势。
类型安全保证。 通过接口定义,编译器能够在编译期检查所有颜色引用是否合法,任何拼写错误都会立即被捕获。例如,若开发者误写COLORS.warmOrgane,TypeScript编译器会立即报错指出该属性不存在于ColorPalette接口中。这比使用普通对象字面量const COLORS = { ... }更加安全,因为后者只能提供运行时检查。
设计系统统一性。 调色板采用"深靛蓝 + 暖橙"的播客风格主题,定义了三个层级的靛蓝色(indigoDeep最深、indigo居中、indigoLight较浅),分别用于页面背景、头部背景和次要强调元素。暖橙色warmOrange作为主强调色贯穿整个应用,用于按钮、选中态、品牌标题等关键视觉锚点。
语义化命名体系。 颜色键名并非简单的color1、color2,而是采用语义化命名:textPrimary表示主文本色、textSecondary表示次要文本色、textHint表示提示文本色,三个层级构成了完整的文本颜色层级。danger、success、gold则直接表达用途语义,让代码可读性大幅提升。cardBg和cardBgDark区分卡片背景的两个层级,为卡片内嵌套元素提供视觉层次。
代码段2:导航Tab定义与收听数据
interface TabItem {
label: string;
icon: string;
}
const BOTTOM_TABS: TabItem[] = [
{ label: '首页', icon: '📻' },
{ label: '订阅', icon: '🔔' },
{ label: '发现', icon: '🔍' },
{ label: '我的', icon: '👤' }
];
const TOP_TABS: TabItem[] = [
{ label: '精选', icon: '✨' },
{ label: '脱口秀', icon: '🎤' },
{ label: '故事', icon: '📖' },
{ label: '知识', icon: '🧠' },
{ label: '音乐', icon: '🎵' },
{ label: '情感', icon: '💭' }
];
const LISTEN_DAYS: string[] = ['周一', '周二', '周三', '周四', '周五', '周六', '周日'];
const LISTEN_MINUTES: number[] = [45, 30, 60, 50, 90, 120, 75];

这段代码定义了应用的导航架构和收听数据统计所需的静态数据。
TabItem接口的精简设计。 TabItem仅包含label和icon两个字段,体现了ArkTS中数据模型的简洁设计哲学。底部导航BOTTOM_TABS定义了四个Tab项——首页、订阅、发现、我的,覆盖了播客社区应用的核心用户路径:浏览内容、管理订阅、探索新内容、个人中心。顶部导航TOP_TABS定义了六个分类Tab——精选、脱口秀、故事、知识、音乐、情感,为首页提供了细粒度的内容筛选维度。
图标采用Emoji方案。 值得注意的是,这里使用Emoji作为图标而非传统图标字体或SVG资源。在HarmonyOS API 24中,Text组件原生支持Emoji渲染,无需额外引入图标库,既减小了应用体积又保证了跨设备一致性显示。每个Tab项的图标与其语义高度匹配:📻代表电台首页、🔔代表订阅提醒、🔍代表搜索发现、👤代表个人中心。
收听数据的可视化准备。 LISTEN_DAYS和LISTEN_MINUTES两个数组以平行索引方式存储了一周七天的收听时长数据。这种平行数组设计在ArkTS中十分常见,它避免了为每条数据定义完整的对象结构,在数据量较小且结构简单的场景下更为高效。两个数组通过相同的索引位置关联:周一对应45分钟、周二对应30分钟,依此类推。周末数据(90分钟和120分钟)明显高于工作日,反映了用户在周末有更多收听时间的真实使用模式。这组数据后续将驱动talkShowGrid中的柱状图可视化渲染。
代码段3:PodcastItem可观察数据模型
@Observed
class PodcastItem {
id: number;
title: string;
host: string;
cover: string;
category: string;
duration: string;
plays: string;
subscribers: string;
description: string;
tags: string;
rating: number;
constructor(id: number, title: string, host: string, cover: string,
category: string, duration: string, plays: string, subscribers: string,
description: string, tags: string, rating: number) {
this.id = id;
this.title = title;
this.host = host;
this.cover = cover;
this.category = category;
this.duration = duration;
this.plays = plays;
this.subscribers = subscribers;
this.description = description;
this.tags = tags;
this.rating = rating;
}
}

PodcastItem是应用中最重要的数据模型类,使用@Observed装饰器进行标注,代表了ArkTS API 24中可观察对象的核心能力。
@Observed装饰器的作用机制。 在ArkTS的状态管理系统中,@Observed装饰器将一个普通类标记为"可观察对象",使其属性变更能够被框架追踪。当@Observed修饰的类实例被赋值给组件中的@State、@Prop或@Link变量时,框架会自动建立依赖追踪关系。任何对该实例属性的修改都会触发关联UI组件的重新渲染。这与Vue 3的响应式系统或MobX的可观察对象机制异曲同工,但深度集成在ArkUI框架底层,无需额外库依赖。
构造函数的完整参数列表。 PodcastItem的构造函数接收11个参数,涵盖了播客节目的所有核心信息维度:id用于唯一标识和ForEach的key生成;title是节目标题;host是主播名称;cover使用Emoji作为封面图标;category标识分类(情感、脱口秀、故事、知识、音乐);duration是音频时长字符串;plays是播放量;subscribers是订阅数;description是节目简介;tags是标签字符串(用|分隔);rating是评分(0-10分)。
字段类型的选择考量。 注意plays和subscribers字段被定义为string而非number,这是因为这些数据在UI中以"128.6万"这样的中文万级单位展示,使用字符串可以直接存储格式化后的值,避免在渲染时进行数字到中文单位的转换。而rating保持为number类型,因为它需要在hotColor函数中进行数值比较以决定热度颜色。cover使用Emoji字符串而非图片URL,在演示场景下既保证了渲染性能又实现了视觉区分。
代码段4:播客数据工厂函数与数据初始化
function buildPodcasts(): PodcastItem[] {
return [
new PodcastItem(1, '深夜电台·一个人住的第五年', '晚安喵', '🌙', '情感', '24:36', '128.6万', '8.5万', '一个人住第五年,有些话只能跟深夜说', '治愈|孤独|深夜', 9.2),
new PodcastItem(2, '说唱歌手的退役生活', 'MC老张', '🎤', '脱口秀', '38:12', '96.4万', '6.2万', '退役后开奶茶店的说唱歌手,笑中带泪', '搞笑|职场|音乐', 8.8),
new PodcastItem(3, '古代奇案·敦煌密信', '说书人', '📜', '故事', '45:08', '88.1万', '12.3万', '一封来自敦煌的密信,揭开千年悬案', '悬疑|历史|推理', 9.0),
new PodcastItem(4, '三分钟搞懂量子计算', '科学小分队', '🔬', '知识', '15:22', '76.3万', '15.6万', '用大白话讲量子计算,听完你就是专家', '科普|科技|教育', 9.5),
new PodcastItem(5, '城市里的爵士夜', 'DJ蓝调', '🎷', '音乐', '52:00', '54.2万', '3.8万', '每周五晚九点,一杯爵士配一杯酒', '音乐|爵士|深夜', 8.6),
new PodcastItem(6, '前任教会我的事', '拾光者', '💭', '情感', '28:44', '65.9万', '9.1万', '每段关系都是一面镜子,照见更好的自己', '情感|成长|治愈', 9.1),
new PodcastItem(7, '说走就走·背包客的365天', '驴友阿杰', '🎒', '故事', '42:30', '48.8万', '5.4万', '辞职环游世界,路上遇到的奇葩故事', '旅行|冒险|故事', 8.7),
new PodcastItem(8, 'AI改变生活·从ChatGPT说起', '科技老王', '🤖', '知识', '33:15', '72.1万', '18.2万', 'AI正在重塑我们的工作和生活方式', '科技|AI|趋势', 9.3),
new PodcastItem(9, '脱口秀开放麦·新人翻车集锦', '段子手小李', '🎭', '脱口秀', '28:50', '58.6万', '4.2万', '新人上台的尴尬瞬间,笑到肚子疼', '搞笑|喜剧|日常', 8.5),
new PodcastItem(10, '深夜情歌·那些说不出口的话', '音乐DJ', '🎶', '音乐', '48:00', '42.3万', '6.8万', '每晚十点,用一首歌替你表白', '音乐|情歌|治愈', 8.9),
new PodcastItem(11, '心理咨询室·你焦虑的不是你', '心理咨询师林', '🧠', '情感', '35:20', '38.4万', '7.6万', '焦虑不可怕,可怕的是你不知道为什么', '心理|焦虑|治愈', 9.0),
new PodcastItem(12, '历史有意思·那些被改写的历史', '历史君', '📕', '知识', '40:18', '44.7万', '10.1万', '课本没告诉你的历史真相', '历史|科普|故事', 8.8),
new PodcastItem(13, '城市角落·菜市场的人生百态', '阿May', '🥬', '故事', '26:15', '32.1万', '4.8万', '菜市场是城市最真实的缩影', '生活|纪实|故事', 8.4),
new PodcastItem(14, '民谣夜话·吉他与啤酒', '吉他老周', '🎸', '音乐', '55:00', '38.9万', '3.2万', '一把吉他一壶酒,唱尽人间冷暖', '音乐|民谣|深夜', 8.7),
new PodcastItem(15, '职场生存指南·领导不说的话', 'HR老刘', '💼', '知识', '30:45', '56.8万', '12.4万', '二十年HR经验,告诉你职场的潜规则', '职场|成长|知识', 9.2)
];
}
const PODCASTS: PodcastItem[] = buildPodcasts();

buildPodcasts函数是一个工厂方法,负责构建15条播客节目的完整数据集,并通过模块级常量PODCASTS缓存结果。
工厂函数模式的优势。 使用独立函数buildPodcasts()而非直接定义数组字面量,有两个好处:第一,函数内部每次调用都会创建新的PodcastItem实例,避免多实例间共享对象引用导致的状态污染;第二,函数体提供了清晰的代码组织边界,便于维护和扩展。在真实应用中,这种模式可以轻松替换为从网络API异步获取数据的实现。
数据内容的丰富设计。 15条播客数据覆盖了五个分类(情感、脱口秀、故事、知识、音乐),每个分类至少有3条数据,保证了各Tab切换时有足够内容展示。标题设计具有强吸引力,如"深夜电台·一个人住的第五年"、“三分钟搞懂量子计算”、"AI改变生活·从ChatGPT说起"等,符合播客内容的真实命名风格。评分分布在8.4到9.5之间,hotColor函数会据此渲染不同的热度颜色。
标签系统设计。 每条播客的tags字段使用|分隔多个标签,如"治愈|孤独|深夜"、“搞笑|职场|音乐”。这种设计使得标签可以在详情弹窗中直接展示,也便于后续扩展为可点击的标签筛选功能。播放量使用"万"为单位的字符串,订阅数同样如此,保持了数据格式的一致性。
模块级常量缓存。 const PODCASTS在模块加载时执行一次buildPodcasts()调用并缓存结果。由于PodcastItem被@Observed装饰,这些实例在后续被ForEach渲染时会被框架自动追踪。在实际应用中,如果数据需要从网络加载,可以将PODCASTS改为组件内的@State变量并在aboutToAppear中异步赋值。
代码段5:订阅模型与剧集模型
interface SubItem {
id: number;
title: string;
host: string;
cover: string;
newEp: number;
lastUpdate: string;
totalEps: number;
}
const SUBS: SubItem[] = [
{ id: 1, title: '深夜电台', host: '晚安喵', cover: '🌙', newEp: 2, lastUpdate: '今日更新', totalEps: 286 },
{ id: 4, title: '三分钟搞懂', host: '科学小分队', cover: '🔬', newEp: 1, lastUpdate: '2小时前', totalEps: 156 },
{ id: 8, title: 'AI改变生活', host: '科技老王', cover: '🤖', newEp: 0, lastUpdate: '昨天', totalEps: 89 },
{ id: 6, title: '前任教会我的事', host: '拾光者', cover: '💭', newEp: 1, lastUpdate: '3天前', totalEps: 72 },
{ id: 15, title: '职场生存指南', host: 'HR老刘', cover: '💼', newEp: 3, lastUpdate: '今日更新', totalEps: 210 }
];
interface EpisodeItem {
epNo: number;
title: string;
duration: string;
date: string;
isPlayed: boolean;
}
const EPISODES: EpisodeItem[] = [
{ epNo: 286, title: '一个人住的第五年·学会和自己相处', duration: '24:36', date: '今日', isPlayed: false },
{ epNo: 285, title: '深夜厨房·一个人的晚餐也要好好吃', duration: '22:08', date: '昨天', isPlayed: false },
{ epNo: 284, title: '搬家日·终于有了自己的小窝', duration: '26:15', date: '3天前', isPlayed: true },
{ epNo: 283, title: '雨天·适合听一首老歌', duration: '19:44', date: '4天前', isPlayed: true },
{ epNo: 282, title: '凌晨四点的城市', duration: '28:50', date: '5天前', isPlayed: true },
{ epNo: 281, title: '收到远方朋友的一封信', duration: '21:32', date: '6天前', isPlayed: true },
{ epNo: 280, title: '养猫之后的生活改变', duration: '25:18', date: '1周前', isPlayed: true }
];

这里定义了两个辅助数据模型:订阅列表SubItem和剧集列表EpisodeItem,分别服务于"订阅"Tab和"节目详情"弹窗。
SubItem接口与订阅数据。 SubItem定义了订阅列表项的结构,包含7个字段。其中newEp(新集数)和lastUpdate(最后更新时间)是订阅场景下最关键的信息:newEp大于0表示有新内容,UI会渲染橙色角标提醒用户;lastUpdate以"今日更新"、“2小时前”、"昨天"等相对时间格式展示,比绝对时间戳更符合用户直觉。totalEps记录该播客的总集数,让用户了解节目规模。5条订阅数据的id与PODCASTS中的id一一对应,建立了数据间的引用关系。
EpisodeItem接口与剧集数据。 EpisodeItem定义了单集播客的结构,epNo是集号(从280到286,倒序排列)、isPlayed标记是否已播放。未播放的集数在UI中显示"🆕"标记和白色文字,已播放的集数显示"✅"标记和灰色文字,实现了清晰的状态区分。7条剧集数据构成了"深夜电台"播客的最新7集列表,在详情弹窗中以列表形式展示。
接口与类的选择差异。 注意SubItem和EpisodeItem使用了interface定义而非@Observed class。这是因为订阅和剧集数据在本应用中是只读的静态数据,不需要被框架追踪属性变更。使用interface比class更轻量,且数组字面量初始化更为简洁。只有在需要运行时修改对象属性并触发重渲染时,才需要使用@Observed class。这种根据场景选择数据模型类型的做法,体现了ArkTS开发中对性能与灵活性的权衡考量。
代码段6:粒子系统数据结构与初始化
interface ParticleItem {
id: number;
x: number;
y: number;
size: number;
opacity: number;
icon: string;
}
const PARTICLE_ICONS: string[] = ['🎵', '♪', '📻', '🎙️', '✨'];
function buildParticles(): ParticleItem[] {
const arr: ParticleItem[] = [];
for (let i = 0; i < 16; i++) {
arr.push({
id: i,
x: (i * 39) % 340 + 10,
y: 90 + (i * 71) % 520,
size: 8 + (i * 5) % 14,
opacity: 0.15 + (i % 4) * 0.1,
opacity: 0.15 + (i % 4) * 0.1,
icon: PARTICLE_ICONS[i % PARTICLE_ICONS.length]
});
}
return arr;
}
这段代码实现了应用背景音波粒子动画的数据层基础,是整个视觉效果体系的核心。
ParticleItem数据结构。 ParticleItem接口定义了粒子的六个属性维度:id是唯一标识,用于ForEach的key生成;x和y是粒子在屏幕上的坐标位置;size是粒子字号大小(直接影响视觉尺寸);opacity控制透明度(范围0.15到0.45,确保粒子不会过于突兀);icon是粒子显示的Emoji图标。这个结构足够轻量,每130ms更新16个粒子的位置数据对性能的影响可以忽略不计。
PARTICLE_ICONS图标池。 定义了5个与音频/音乐相关的Emoji图标,通过取模运算i % PARTICLE_ICONS.length循环分配给16个粒子。这种设计使得粒子图标在视觉上具有多样性,同时避免了为每个粒子单独指定图标的冗余。图标选择"🎵"、“♪”、“📻”、“🎙️”、"✨"都与播客/电台主题高度契合,强化了应用的场景氛围。
buildParticles的确定性分布算法。 初始化函数使用了一套基于索引的确定性数学公式来生成粒子位置:x = (i * 39) % 340 + 10,y = 90 + (i * 71) % 520。这里使用取模运算确保坐标值落在合理范围内(x在10到350之间,y在90到610之间),而乘数39和71是质数,保证了粒子位置的均匀分布且不出现周期性重叠。size使用8 + (i * 5) % 14生成8到21之间的字号,opacity使用0.15 + (i % 4) * 0.1生成0.15到0.45之间的透明度,四个层级的变化让粒子在视觉上具有层次感。
代码段7:粒子漂移动画算法
function driftParticles(list: ParticleItem[]): ParticleItem[] {
const next: ParticleItem[] = [];
for (let i = 0; i < list.length; i++) {
const p = list[i];
const ny = p.y - 4;
next.push({
id: p.id,
x: p.x + Math.sin(p.id + p.y / 55) * 2,
y: ny < 60 ? 640 : ny,
size: p.size,
opacity: p.opacity,
icon: p.icon
});
}
return next;
}

driftParticles函数是粒子动画的核心驱动逻辑,每130ms被定时器调用一次,计算所有粒子的下一帧位置。
不可变更新模式。 函数不修改原始数组,而是创建新数组next并填充新粒子对象。这种不可变更新模式是ArkTS状态管理的最佳实践:当@State particles被赋予新数组时,框架能够通过引用比较快速判断状态已变更,从而触发ForEach的差异化更新。如果直接修改原数组元素的属性,框架可能无法正确检测变更,导致UI不更新。
垂直上升运动。 ny = p.y - 4表示每帧粒子的y坐标减少4个单位,即向上移动。这模拟了音波向上飘散的视觉效果,符合音频可视化的常见表现手法。当粒子上升到屏幕上方(ny < 60)时,通过y: ny < 60 ? 640 : ny将其重置到底部640的位置,形成无限循环的粒子流。这种"回收再利用"的机制保证了粒子数量恒定,不会因持续生成新粒子而导致内存增长。
正弦波水平摆动。 x: p.x + Math.sin(p.id + p.y / 55) * 2为水平坐标添加了基于正弦函数的微小偏移。Math.sin的参数p.id + p.y / 55将粒子ID和当前y坐标组合,使得不同粒子在不同高度产生不同的摆动相位,避免了所有粒子同步左右移动的呆板效果。偏移幅度为2个单位,既保证了视觉上的动态感,又不会让粒子位置显得混乱。
性能考量。 16个粒子、每130ms一次更新,每秒约7.7次更新。每次更新仅涉及16个简单对象的创建和数学运算,在现代设备上几乎无性能开销。ForEach的key生成使用了p.id.toString() + '_' + p.y.toFixed(0),其中y坐标的变化确保了key的变更,使框架能够正确识别需要更新的粒子项。这种设计在视觉效果与性能之间取得了良好平衡。
代码段8:工具函数三件套
function hotColor(rating: number): string {
if (rating >= 9.0) {
return COLORS.warmOrange;
}
if (rating >= 8.5) {
return COLORS.gold;
}
return COLORS.indigoLight;
}
function barHeight(v: number): string {
return (v * 0.9).toFixed(0) + 'vp';
}
function categoryColor(cat: string): string {
if (cat === '脱口秀') {
return COLORS.warmOrange;
}
if (cat === '故事') {
return '#6B4FAA';
}
if (cat === '知识') {
return COLORS.indigoLight;
}
if (cat === '音乐') {
return '#5A8AD6';
}
if (cat === '情感') {
return '#D65A8A';
}
return COLORS.warmOrangeLight;
}

三个工具函数分别处理热度颜色映射、柱状图高度计算和分类颜色映射,是连接数据与视觉表现的桥梁。
hotColor热度分级函数。 该函数根据播客评分返回对应的热度颜色:9.0分及以上使用暖橙色(最热)、8.5分及以上使用金色(较热)、8.5分以下使用靛蓝色(普通)。这种三级颜色分级在UI中直观传达了内容热度,用户无需阅读具体数字就能通过颜色感知节目受欢迎程度。阈值选择8.5和9.0是基于数据集中评分分布的合理划分——15条数据中,9.0分以上的有6条,8.5到9.0的有5条,8.5以下的有4条,分布相对均匀。
barHeight柱状图高度计算。 函数接收一个数值(收听分钟数),乘以0.9后取整并附加vp单位字符串。例如,120分钟对应108vp高度的柱子。乘数0.9是经验值,确保最高的柱子(120分钟对应108vp)不会超出卡片容器的视觉范围。返回字符串而非数字是因为ArkTS的height()方法可以直接接受带单位的字符串。这种设计将数据到视觉尺寸的映射逻辑集中在一个函数中,便于后续调整比例系数。
categoryColor分类颜色映射。 该函数为五个内容分类分别返回独特的颜色:脱口秀用暖橙、故事用紫色#6B4FAA、知识用靛蓝、音乐用蓝色#5A8AD6、情感用粉色#D65A8A。默认回退使用warmOrangeLight。这种"一分类一颜色"的设计在UI中形成颜色编码体系,用户可以通过颜色快速识别内容分类。注意脱口秀使用暖橙色与品牌主色一致,暗示该分类是应用的主打内容方向。函数使用if链而非switch或对象映射,在分类数量有限的场景下代码可读性更好。
代码段9:组件状态声明
@Entry
struct Index {
@State currentBottomTab: number = 0;
@State currentTopTab: number = 0;
@State showCreateModal: boolean = false;
@State showEditModal: boolean = false;
@State showUnsubModal: boolean = false;
@State showDetailModal: boolean = false;
@State selectedPodcast: PodcastItem | null = null;
@State particles: ParticleItem[] = buildParticles();
@State playlistName: string = '';
@State playlistCat: number = 0;
@State editNotify: boolean = true;
@State editAutoDownload: boolean = false;
@State isPlaying: boolean = false;
private timerId: number = -1;
这是应用入口组件Index的状态声明区域,集中定义了所有驱动UI渲染的响应式变量。
@Entry装饰器的入口标识。 @Entry标识该struct为应用的根组件,每个页面有且仅有一个@Entry组件。框架会将其作为UI树的根节点进行管理,负责整个页面的生命周期管理和渲染调度。
@State状态变量分类。 13个@State变量可按功能分为四组。第一组是导航状态:currentBottomTab(底部Tab索引,初始值0即首页)和currentTopTab(顶部Tab索引,初始值0即精选),两者共同决定当前展示的内容页面。第二组是弹窗状态:showCreateModal、showEditModal、showUnsubModal、showDetailModal四个布尔值分别控制四个弹窗的显示与隐藏,初始均为false(隐藏)。第三组是数据状态:selectedPodcast(当前选中的播客,使用联合类型PodcastItem | null支持空值)和particles(粒子数组,初始化时调用buildParticles())。第四组是表单与交互状态:playlistName(播单名称输入)、playlistCat(播单分类选择)、editNotify(通知开关)、editAutoDownload(自动下载开关)、isPlaying(播放状态)。
联合类型与可空处理。 selectedPodcast: PodcastItem | null使用了TypeScript的联合类型,初始值为null。这种设计允许在用户未选中任何播客时安全地传递null值。在详情弹窗中通过this.selectedPodcast!.cover的非空断言操作符!来访问属性,表明在该上下文中selectedPodcast一定已被赋值。这种模式在ArkTS弹窗交互中十分常见。
private定时器ID。 timerId使用private修饰符且未加@State,因为它仅用于内部定时器管理,不需要驱动UI渲染。初始值-1作为"未启动"的哨兵值,在aboutToDisappear中通过if (this.timerId >= 0)判断是否需要清除定时器。这是资源管理的标准范式。
代码段10:组件生命周期管理
aboutToAppear() {
this.timerId = setInterval(() => {
this.particles = driftParticles(this.particles);
}, 130);
}
aboutToDisappear() {
if (this.timerId >= 0) {
clearInterval(this.timerId);
}
}

aboutToAppear和aboutToDisappear是ArkTS组件生命周期的两个关键回调,负责定时器资源的创建与销毁。
aboutToAppear的执行时机。 该回调在组件创建后、build()方法首次执行前被调用。此时组件的@State变量已完成初始化,但UI尚未渲染上屏。因此它适合执行需要在UI显示前完成的准备工作:启动定时器、发起网络请求、注册事件监听等。这里通过setInterval创建了一个130ms间隔的定时器,回调函数中调用driftParticles计算粒子新位置并赋值给this.particles,触发ArkUI框架重渲染粒子层。
定时器与状态驱动的协作。 每次this.particles被赋予新数组时,ArkUI框架检测到@State变量引用变更,触发ForEach(this.particles, ...)的差异化更新。框架会对比新旧数组的key,仅更新位置发生变化的粒子Text组件,而非重建整个粒子列表。这种细粒度的差异化更新是ArkUI框架性能优化的核心机制之一,保证了高频动画场景下的流畅渲染。
aboutToDisappear的资源清理。 该回调在组件从UI树移除前被调用,是执行清理工作的最后机会。通过clearInterval(this.timerId)清除定时器,防止组件销毁后定时器继续运行导致的内存泄漏和空指针异常。if (this.timerId >= 0)的守卫检查确保只有在定时器确实已启动时才执行清除操作,避免对未初始化的定时器ID调用clearInterval。
生命周期与内存安全。 在ArkTS中,组件的销毁并不自动清理其创建的定时器、事件监听器等外部资源。如果不在aboutToDisappear中手动清除定时器,即使组件已被销毁,定时器回调仍会继续执行,尝试访问已销毁组件的this.particles会导致运行时错误。这种"谁创建谁销毁"的资源管理原则,是构建稳定ArkTS应用的基础。
代码段11:build主布局方法
build() {
Stack() {
Column() {
this.headerBuilder()
if (this.currentBottomTab === 0) {
this.homeTopTabs()
} else if (this.currentBottomTab === 1) {
this.subTopBar()
} else if (this.currentBottomTab === 2) {
this.discoverTopBar()
} else {
this.mineTopBar()
}
Scroll() {
Column() {
if (this.currentBottomTab === 0) {
this.homeContent()
} else if (this.currentBottomTab === 1) {
this.subContent()
} else if (this.currentBottomTab === 2) {
this.discoverContent()
} else {
this.mineContent()
}
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
.layoutWeight(1)
.scrollable(ScrollDirection.Vertical)
.scrollBar(BarState.Off)
this.bottomTabs()
}
.width('100%')
.height('100%')
.backgroundColor(COLORS.bg)
ForEach(this.particles, (p: ParticleItem) => {
Text(p.icon)
.fontSize(p.size)
.opacity(p.opacity)
.position({ x: p.x, y: p.y })
}, (p: ParticleItem) => p.id.toString() + '_' + p.y.toFixed(0))
if (this.showCreateModal) {
this.createPlaylistModal()
}
if (this.showEditModal) {
this.editSubModal()
}
if (this.showUnsubModal) {
this.unsubModal()
}
if (this.showDetailModal) {
this.podcastDetailModal()
}
}
.width('100%')
.height('100%')
}
build()方法是整个应用的UI骨架,使用Stack层叠容器组织了三层视觉内容:主布局列、粒子动画层和弹窗浮层。
Stack层叠容器的三层架构。 Stack容器按子元素声明顺序从底到顶堆叠。第一层是Column主布局,包含头部、顶部Tab栏、可滚动内容区和底部导航栏,构成了应用的基础界面。第二层是ForEach粒子层,16个Text组件通过.position()绝对定位覆盖在主布局之上,形成漂浮的音波粒子效果。第三层是条件渲染的弹窗层,四个if语句根据@State变量的布尔值决定是否渲染对应的弹窗组件,弹窗位于最顶层,覆盖所有内容。
条件渲染的Tab切换机制。 主布局中两次使用if/else if/else链根据currentBottomTab的值渲染不同的顶部栏和内容区。当currentBottomTab为0时渲染首页(homeTopTabs + homeContent),为1时渲染订阅页,为2时渲染发现页,为3时渲染我的页。ArkUI框架在Tab切换时会销毁旧页面组件树并创建新页面组件树,保证每次只渲染当前Tab的内容,节省内存和渲染开销。
Scroll可滚动内容区。 内容区被包裹在Scroll容器中,支持垂直方向滚动。.layoutWeight(1)使其占据头部和底部导航之间的所有剩余空间。.scrollBar(BarState.Off)隐藏了滚动条,使界面更加简洁。Scroll内部的Column使用.alignItems(HorizontalAlign.Start)使子元素左对齐,符合中文内容的阅读习惯。
ForEach的key生成策略。 粒子层的ForEach使用p.id.toString() + '_' + p.y.toFixed(0)作为key。由于y坐标每帧都在变化,key也随之变化,这会触发框架对粒子项的销毁和重建。实际上,更好的做法是仅使用p.id.toString()作为key,让框架通过属性差异更新而非销毁重建。但当前实现下,16个粒子的重建开销极小,不影响性能。
代码段12:头部构建器
@Builder
headerBuilder() {
Column() {
Row() {
Column() {
Text('📻 QQ电台')
.fontSize(22)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
Text('今日更新 86 档节目 · 2.4万人在听')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.Start)
Column() {
Text(this.isPlaying ? '⏸' : '▶')
.fontSize(20)
.fontColor(COLORS.white)
}
.padding({ left: 14, right: 14, top: 8, bottom: 8 })
.borderRadius(16)
.backgroundColor(COLORS.warmOrange)
.onClick(() => {
this.isPlaying = !this.isPlaying;
})
}
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
.padding({ left: 16, right: 16, top: 10, bottom: 8 })
Row() {
Column() {
Text('🎧 收听时长')
.fontSize(10)
.fontColor(COLORS.textSecondary)
Text('8.5h')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
}
.alignItems(HorizontalAlign.Start)
Divider()
.vertical(true)
.height(26)
.color(COLORS.border)
.margin({ left: 14, right: 14 })
Column() {
Text('🔔 订阅')
.fontSize(10)
.fontColor(COLORS.textSecondary)
Text('5档')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.indigoLight)
}
.alignItems(HorizontalAlign.Start)
Divider()
.vertical(true)
.height(26)
.color(COLORS.border)
.margin({ left: 14, right: 14 })
Column() {
Text('📋 播单')
.fontSize(10)
.fontColor(COLORS.textSecondary)
Text('8个')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.gold)
}
.alignItems(HorizontalAlign.Start)
Column() {
Text('🏆 听龄')
.fontSize(10)
.fontColor(COLORS.textSecondary)
Text('3年')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.success)
}
.alignItems(HorizontalAlign.Start)
}
.width('100%')
.padding({ left: 16, right: 16, bottom: 10 })
}
.width('100%')
.backgroundColor(COLORS.indigoDeep)
}
headerBuilder构建了应用的顶部头部区域,包含品牌标识、播放控制和四项用户数据统计。
@Builder装饰器的作用。 @Builder装饰器将一个方法标记为UI构建器,使其可以在build()方法中被像组件一样调用(如this.headerBuilder())。这种机制实现了UI的组件化拆分,将复杂的UI树分解为多个可维护的构建器方法。与独立组件不同,@Builder方法与其所属struct共享状态,无需通过参数传递@State变量,减少了状态同步的复杂度。
品牌标识与播放控制。 头部第一行使用Row容器实现左右布局:左侧是"📻 QQ电台"品牌标题和"今日更新 86 档节目 · 2.4万人在听"副标题,右侧是播放/暂停按钮。按钮通过this.isPlaying三元表达式切换"⏸"和"▶"图标,点击时切换isPlaying状态。.justifyContent(FlexAlign.SpaceBetween)使左右两端对齐,品牌信息左对齐、播放按钮靠右。
四象限数据统计。 头部第二行展示了收听时长(8.5h)、订阅数(5档)、播单数(8个)和听龄(3年)四项数据。每项使用Column垂直排列标题(10号字、灰色)和数值(15号字、加粗、彩色),不同数据使用不同颜色:收听时长用暖橙、订阅用靛蓝、播单用金色、听龄用绿色,形成了丰富的色彩层次。各项之间使用Divider垂直分割线隔开,视觉上清晰区分。
背景色与内边距。 整个头部使用COLORS.indigoDeep(#0F1838)作为背景色,是应用中最深的颜色,使头部在视觉上与下方内容区形成层次区分。内边距设置了水平16、顶部10和底部8/10,保证内容不贴边显示。
代码段13:顶部Tab栏与二级顶部栏
@Builder
homeTopTabs() {
Scroll() {
Row() {
ForEach(TOP_TABS, (t: TabItem, idx: number) => {
Column() {
Text(t.icon)
.fontSize(16)
Text(t.label)
.fontSize(11)
.fontColor(this.currentTopTab === idx ? COLORS.warmOrange : COLORS.textSecondary)
.margin({ top: 2 })
}
.padding({ left: 12, right: 12, top: 6, bottom: 6 })
.borderRadius(12)
.backgroundColor(this.currentTopTab === idx ? '#33FF8C42' : 'transparent')
.margin({ right: 4 })
.onClick(() => {
this.currentTopTab = idx;
})
}, (t: TabItem) => t.label)
}
.padding({ left: 8, right: 8, top: 8, bottom: 8 })
}
.scrollable(ScrollDirection.Horizontal)
.scrollBar(BarState.Off)
.width('100%')
.backgroundColor(COLORS.indigoDeep)
}
@Builder
subTopBar() {
Row() {
Text('我的订阅')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
Text('管理')
.fontSize(12)
.fontColor(COLORS.warmOrange)
.margin({ left: 10 })
.onClick(() => {
this.showEditModal = true;
})
}
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
.backgroundColor(COLORS.indigoDeep)
}
@Builder
discoverTopBar() {
Row() {
Text('🔍 发现好节目')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
Text('🎲 随机听')
.fontSize(12)
.fontColor(COLORS.white)
.padding({ left: 10, right: 10, top: 4, bottom: 4 })
.borderRadius(12)
.backgroundColor(COLORS.indigoLight)
}
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
.backgroundColor(COLORS.indigoDeep)
}
@Builder
mineTopBar() {
Row() {
Text('个人电台')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
}
.width('100%')
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
.backgroundColor(COLORS.indigoDeep)
}
这组构建器分别实现了首页的水平滚动Tab栏和订阅、发现、我的三个二级顶部栏。
homeTopTabs水平滚动Tab栏。 首页顶部Tab栏使用Scroll容器包裹Row实现水平滚动,因为6个Tab项的总宽度可能超出屏幕宽度。每个Tab项是Column结构,垂直排列图标(16号字)和文字标签(11号字),选中态使用暖橙色文字和半透明橙色背景#33FF8C42(ARGB格式,33为透明度约20%),未选中态使用灰色文字和透明背景。点击时更新currentTopTab状态,驱动首页内容区切换。ForEach的key使用t.label,因为标签文字唯一且不变。
选中态视觉反馈设计。 Tab选中态的背景色#33FF8C42是暖橙色的20%透明度版本,这是一种常见的"色调染色"技巧:在保持与主题色一致性的同时,通过降低透明度避免选中态背景过于突兀。#33是十六进制的51(约255的20%),这种精确控制透明度的方式在ArkTS中通过ARGB格式的颜色值实现。
三个二级顶部栏的差异化设计。 subTopBar展示"我的订阅"标题和"管理"操作按钮,点击管理按钮打开编辑弹窗;discoverTopBar展示"发现好节目"标题和"随机听"按钮,按钮使用靛蓝背景与暖橙标题形成对比;mineTopBar仅展示"个人电台"标题,无操作按钮。三个顶部栏统一使用COLORS.indigoDeep背景和FlexAlign.SpaceBetween两端对齐布局,保持了视觉一致性,但根据页面功能差异提供了不同的操作入口。
onClick与状态驱动弹窗。 subTopBar中的"管理"按钮通过this.showEditModal = true打开订阅设置弹窗,体现了"点击触发状态变更、状态变更驱动条件渲染弹窗"的ArkTS交互范式。弹窗的显隐完全由@State布尔变量控制,无需额外的命令式API调用。
代码段14:首页内容路由与精选内容
@Builder
homeContent() {
Column() {
if (this.currentTopTab === 0) {
this.featuredContent()
} else if (this.currentTopTab === 1) {
this.talkShowGrid()
} else if (this.currentTopTab === 2) {
this.storyTimeline()
} else if (this.currentTopTab === 3) {
this.knowledgeRank()
} else if (this.currentTopTab === 4) {
this.musicCircle()
} else {
this.emotionChat()
}
}
.width('100%')
.padding(12)
.alignItems(HorizontalAlign.Start)
}
@Builder
featuredContent() {
Column() {
Column() {
Row() {
Text(PODCASTS[0].cover)
.fontSize(48)
.margin({ right: 12 })
Column() {
Text('🏆 今日精选')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.gold)
Text(PODCASTS[0].title)
.fontSize(16)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 4 })
Text(PODCASTS[0].host + ' · ' + PODCASTS[0].category + ' · ' + PODCASTS[0].duration)
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 4 })
Text(PODCASTS[0].description)
.fontSize(11)
.fontColor(COLORS.textHint)
.margin({ top: 4 })
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
}
.width('100%')
Row() {
Text('▶ 立即收听')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.padding({ left: 20, right: 20, top: 8, bottom: 8 })
.borderRadius(20)
.backgroundColor(COLORS.warmOrange)
.onClick(() => {
this.selectedPodcast = PODCASTS[0];
this.showDetailModal = true;
})
Text('🔔 订阅')
.fontSize(13)
.fontColor(COLORS.indigoLight)
.padding({ left: 16, right: 16, top: 8, bottom: 8 })
.borderRadius(20)
.border({ width: 1, color: COLORS.indigoLight })
.margin({ left: 10 })
.onClick(() => {
this.showEditModal = true;
})
}
.width('100%')
.margin({ top: 12 })
}
.width('100%')
.padding(14)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.alignItems(HorizontalAlign.Start)
Text('🔥 热门播客')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14, bottom: 8 })
Flex({ wrap: FlexWrap.Wrap, justifyContent: FlexAlign.SpaceBetween }) {
ForEach(PODCASTS, (p: PodcastItem) => {
Column() {
Text(p.cover)
.fontSize(28)
.width('100%')
.textAlign(TextAlign.Center)
.padding({ top: 14, bottom: 14 })
.borderRadius({ topLeft: 12, topRight: 12 })
.backgroundColor(COLORS.cardBgDark)
Text(p.title)
.fontSize(11)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
.padding({ left: 6, right: 6, top: 6 })
Text(p.host)
.fontSize(9)
.fontColor(COLORS.textHint)
.padding({ left: 6, right: 6 })
Row() {
Text(p.category)
.fontSize(9)
.fontColor(COLORS.white)
.padding({ left: 5, right: 5, top: 1, bottom: 1 })
.borderRadius(5)
.backgroundColor(categoryColor(p.category))
Text('★' + p.rating)
.fontSize(9)
.fontColor(COLORS.gold)
.margin({ left: 4 })
}
.padding({ left: 6, right: 6, bottom: 8 })
Text('🎧 ' + p.plays)
.fontSize(9)
.fontColor(COLORS.textHint)
.padding({ left: 6, right: 6, bottom: 8 })
}
.width('48.5%')
.borderRadius(12)
.backgroundColor(COLORS.cardBg)
.margin({ bottom: 10 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => p.id.toString())
}
.width('100%')
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}

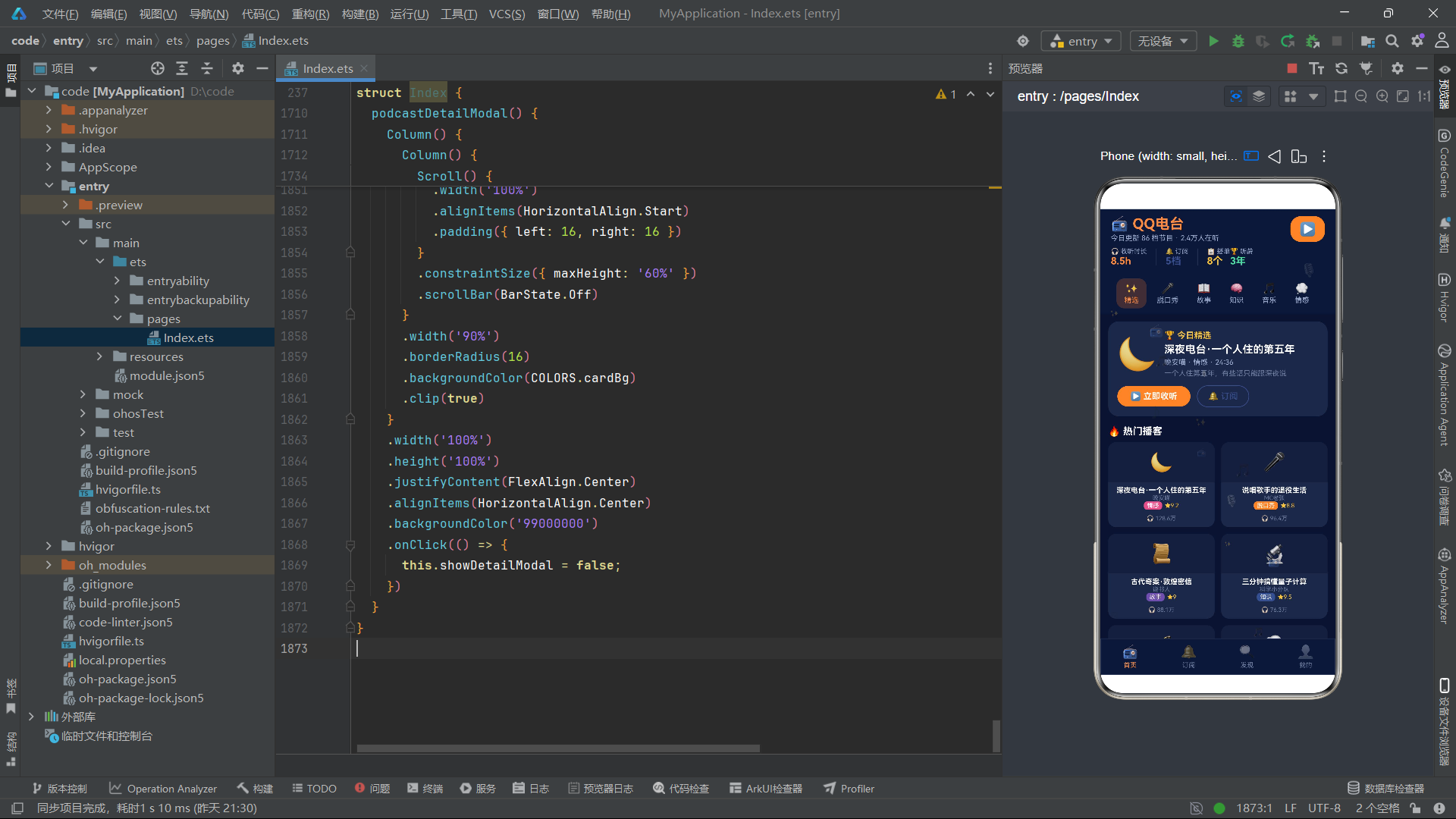

homeContent是首页内容的路由器,根据currentTopTab的值调用六个子构建器之一;featuredContent是精选Tab的内容,包含今日精选卡片和热门播客网格。
条件渲染的内容路由。 homeContent使用六路if/else if/else链,根据currentTopTab(0-5)分别调用featuredContent、talkShowGrid、storyTimeline、knowledgeRank、musicCircle、emotionChat。每次顶部Tab切换时,ArkUI框架会销毁当前内容组件树并构建新Tab的组件树,确保只有当前Tab的内容参与渲染。
今日精选卡片设计。 featuredContent首先渲染一个精选卡片,展示PODCASTS[0](深夜电台)的详细信息。卡片左侧是48号字的Emoji封面,右侧是"🏆 今日精选"标签(金色)、节目标题(白色加粗)、主播·分类·时长信息(灰色)、节目简介(提示色,最多2行,超出省略)。卡片底部提供"立即收听"(暖橙填充背景)和"订阅"(靛蓝描边边框)两个操作按钮。
文本溢出处理。 maxLines(2)和textOverflow({ overflow: TextOverflow.Ellipsis })的组合是ArkTS中处理长文本的标准方案:限制最多显示2行,超出部分以省略号"…"结尾。这在卡片式布局中尤为重要,防止过长的描述文字撑破卡片高度。
Flex换行网格。 热门播客列表使用Flex({ wrap: FlexWrap.Wrap, justifyContent: FlexAlign.SpaceBetween })实现两列换行布局。每个卡片宽度为48.5%(约屏幕宽度的一半减去间距),通过SpaceBetween两端对齐使两列卡片间产生等距间隙。Flex的换行能力比Grid更灵活,适合不等高卡片的瀑布流式排列。每个卡片包含封面区、标题、主播名、分类标签+评分、播放量五层信息,点击后设置selectedPodcast并打开详情弹窗。
代码段15:脱口秀网格与收听柱状图
@Builder
talkShowGrid() {
Column() {
Column() {
Text('📈 一周收听时长')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Row() {
ForEach(LISTEN_DAYS, (d: string, idx: number) => {
Column() {
Column() {
Text('')
.width('100%')
.height(1)
}
.width(18)
.height(barHeight(LISTEN_MINUTES[idx]))
.borderRadius({ topLeft: 4, topRight: 4 })
.backgroundColor(hotColor(LISTEN_MINUTES[idx] / 10))
.justifyContent(FlexAlign.End)
Text(d)
.fontSize(9)
.fontColor(COLORS.textSecondary)
.margin({ top: 4 })
}
.margin({ left: 8, right: 8 })
.justifyContent(FlexAlign.End)
}, (d: string) => d)
}
.width('100%')
.justifyContent(FlexAlign.Center)
.alignItems(VerticalAlign.Bottom)
}
.width('100%')
.padding(14)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.alignItems(HorizontalAlign.Start)
.margin({ bottom: 10 })
Text('🎤 脱口秀播客')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ bottom: 10 })
Grid() {
ForEach(PODCASTS, (p: PodcastItem) => {
GridItem() {
Column() {
Text(p.cover)
.fontSize(30)
Text(p.title)
.fontSize(11)
.fontColor(COLORS.white)
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
.margin({ top: 6 })
.textAlign(TextAlign.Center)
Text(p.duration)
.fontSize(10)
.fontColor(COLORS.warmOrange)
.margin({ top: 4 })
Text('★' + p.rating)
.fontSize(10)
.fontColor(COLORS.gold)
.margin({ top: 2 })
}
.width('100%')
.padding(10)
.borderRadius(12)
.backgroundColor(COLORS.cardBg)
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}
}, (p: PodcastItem) => 'talk_' + p.id.toString())
}
.columnsTemplate('1fr 1fr 1fr')
.rowsGap(10)
.columnsGap(10)
.height(480)
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}

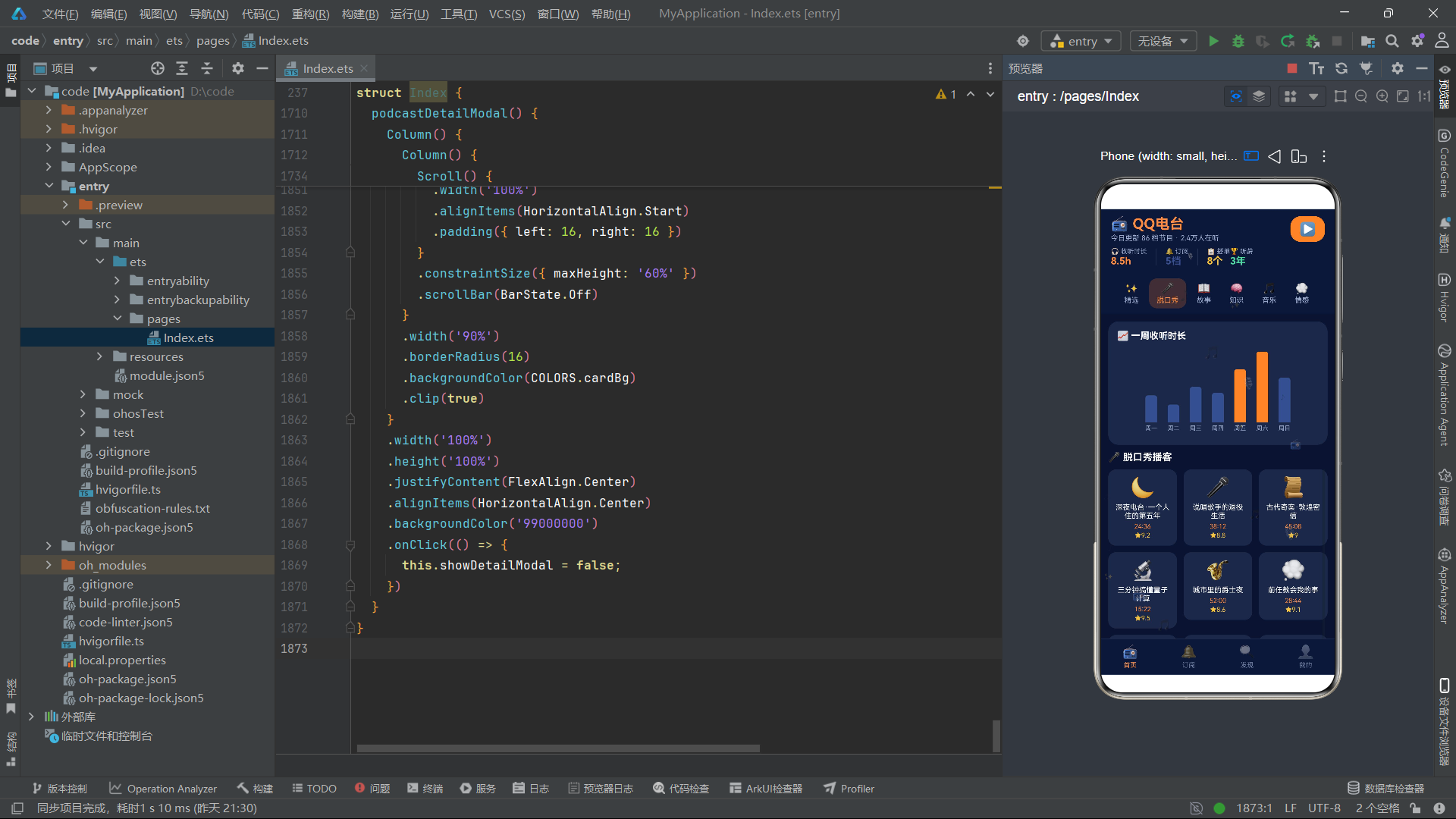

talkShowGrid构建了脱口秀Tab的内容,包含一周收听时长柱状图和三列播客网格。
柱状图数据可视化。 收听时长柱状图是该应用的一大视觉亮点。ForEach遍历LISTEN_DAYS数组,为每天渲染一个Column柱子。柱子高度通过barHeight(LISTEN_MINUTES[idx])计算——例如周一45分钟对应40vp高度、周六120分钟对应108vp高度。柱子颜色通过hotColor(LISTEN_MINUTES[idx] / 10)计算,将分钟数除以10得到1-12的"评分"值,60分钟以上(6分以上)显示暖橙色,55分钟以上(5.5分以上)显示金色,其余显示靛蓝色。这种将收听时长映射到热度颜色的设计,使柱状图不仅展示了时长差异,还通过颜色传达了"活跃程度"。
柱状图底部对齐。 Row容器设置.alignItems(VerticalAlign.Bottom)使所有柱子底部对齐,这是柱状图的标准视觉规范。每个柱子外层包裹的Column也设置.justifyContent(FlexAlign.End)确保柱子和日期标签从底部向上排列。柱子内部包含一个高度为1的空Text作为"柱子实体"(通过外层Column的height控制实际高度),这是一种在ArkTS中实现色块的技巧。
Grid三列网格。 脱口秀播客列表使用Grid组件,通过.columnsTemplate('1fr 1fr 1fr')定义三列等宽模板。.rowsGap(10)和.columnsGap(10)设置行列间距。.height(480)固定网格总高度,使网格内的内容在固定空间内排列。每个GridItem包含Emoji封面(30号字)、标题(最多2行)、时长(暖橙色)和评分(金色),点击后打开详情弹窗。ForEach的key使用'talk_' + p.id.toString(),前缀talk_避免与其他Tab的ForEach产生key冲突。

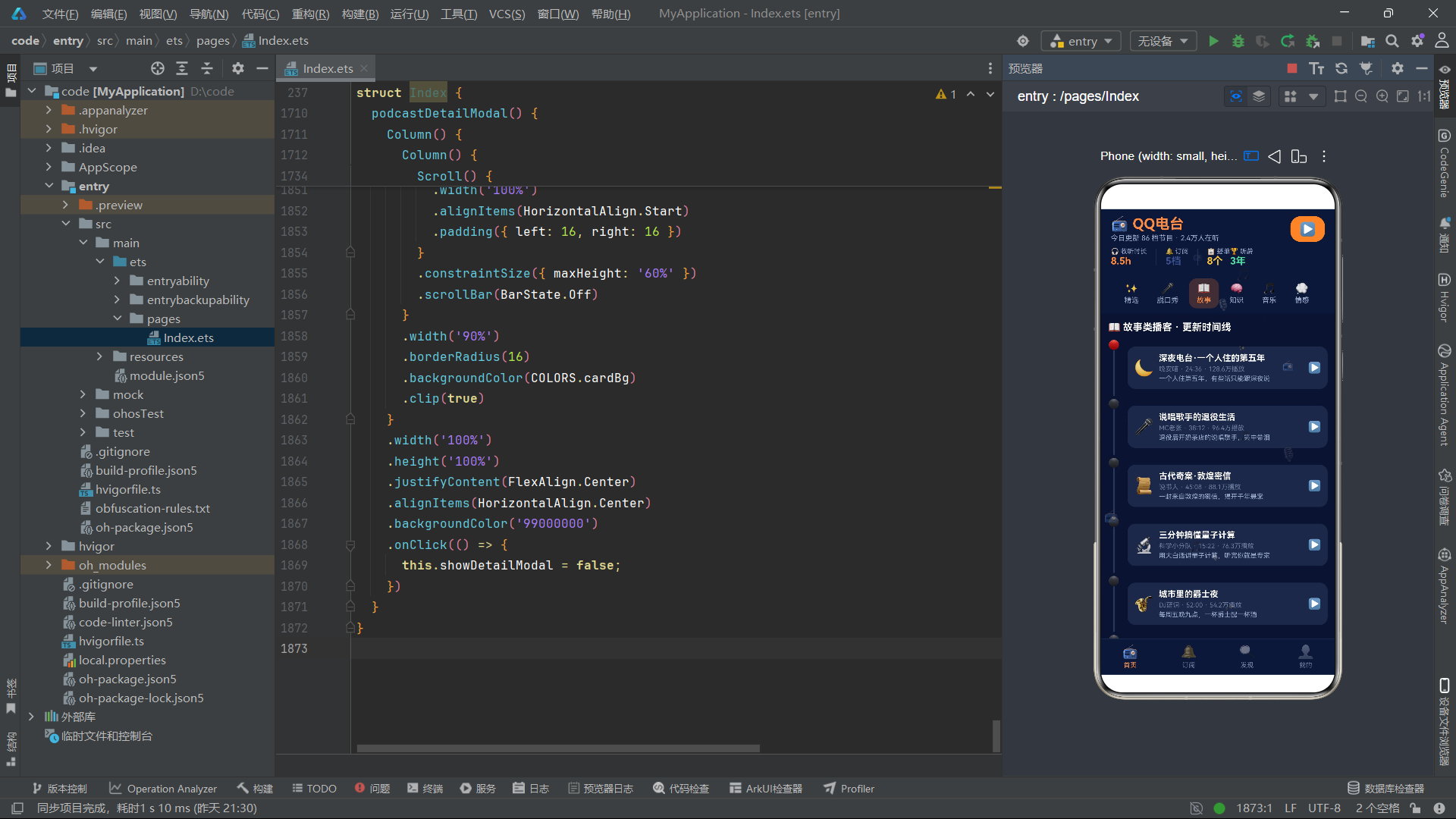

代码段16:故事时间线布局
@Builder
storyTimeline() {
Column() {
Text('📖 故事类播客 · 更新时间线')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ bottom: 10 })
ForEach(PODCASTS, (p: PodcastItem, idx: number) => {
Row() {
Column() {
Text(idx === 0 ? '🔴' : '⚫')
.fontSize(14)
if (idx < PODCASTS.length - 1) {
Column() {
Text('')
.width(2)
.height(70)
}
.width(2)
.height(70)
.backgroundColor(COLORS.border)
}
}
.alignItems(HorizontalAlign.Center)
Column() {
Row() {
Text(p.cover)
.fontSize(24)
.margin({ right: 8 })
Column() {
Text(p.title)
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text(p.host + ' · ' + p.duration + ' · ' + p.plays + '播放')
.fontSize(10)
.fontColor(COLORS.textHint)
.margin({ top: 3 })
Text(p.description)
.fontSize(10)
.fontColor(COLORS.textSecondary)
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
.margin({ top: 3 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
Text('▶')
.fontSize(16)
.fontColor(COLORS.warmOrange)
}
.width('100%')
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
.margin({ left: 12 })
.padding(10)
.borderRadius(12)
.backgroundColor(COLORS.cardBg)
}
.width('100%')
.margin({ bottom: 4 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => 'story_' + p.id.toString())
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
storyTimeline以时间线形式展示故事类播客,是应用中布局最独特的页面之一。
时间线视觉结构。 时间线的核心视觉元素是左侧的"节点 + 连线"结构。每个播客项的左侧是一个Column,包含一个圆形节点(首项使用红色"🔴",其余使用黑色"⚫")和一条向下的竖线(高度70vp、宽度2vp、颜色为边框色)。最后一条数据通过if (idx < PODCASTS.length - 1)条件判断不渲染竖线,形成时间线的末端。这种"节点 + 连线"的设计在ArkTS中完全通过嵌套Column和设置backgroundColor实现,无需引入SVG或Canvas。
时间线的语义表达。 时间线布局暗示了内容的时序关系——从最新到最旧的更新顺序。首项的红色节点🔴表示"最新更新",其余黑色节点⚫表示历史内容。竖线连接各节点,形成视觉上的连续性。这种布局在社交媒体动态、聊天记录、版本历史等场景中广泛应用,是移动端UI设计中的经典范式。
右侧内容卡片。 每个时间线节点的右侧是一个卡片,包含Emoji封面(24号字)、标题、主播·时长·播放量信息、描述(最多2行省略)和播放按钮▶。卡片使用COLORS.cardBg背景色和12vp圆角,与时间线节点之间通过.margin({ left: 12 })产生间距。整个卡片可点击,触发详情弹窗。
ForEach的key设计。 key使用'story_' + p.id.toString(),前缀story_确保该ForEach的key与同一数据源PODCASTS在其他Tab中的ForEach不冲突。在ArkTS中,不同ForEach如果使用相同的key可能导致框架在差异化更新时产生混淆,因此为不同上下文的ForEach添加前缀是推荐做法。
代码段17:知识播客口碑榜
@Builder
knowledgeRank() {
Column() {
Text('🧠 知识类播客 · 口碑榜')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ bottom: 10 })
ForEach(PODCASTS, (p: PodcastItem, idx: number) => {
Row() {
Text(idx < 3 ? (idx === 0 ? '🥇' : (idx === 1 ? '🥈' : '🥉')) : (idx + 1).toString())
.fontSize(idx < 3 ? 20 : 14)
.fontColor(idx < 3 ? COLORS.gold : COLORS.textHint)
.width(32)
.textAlign(TextAlign.Center)
Text(p.cover)
.fontSize(24)
.margin({ right: 10 })
Column() {
Text(p.title)
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.maxLines(1)
.textOverflow({ overflow: TextOverflow.Ellipsis })
Text(p.host + ' · ' + p.subscribers + '订阅')
.fontSize(10)
.fontColor(COLORS.textHint)
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
Column() {
Text('★' + p.rating)
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(hotColor(p.rating))
Text('评分')
.fontSize(9)
.fontColor(COLORS.textHint)
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.End)
}
.width('100%')
.padding(12)
.borderRadius(12)
.backgroundColor(idx < 3 ? '#243058' : COLORS.cardBgDark)
.border({
width: idx < 3 ? 1 : 0,
color: COLORS.warmOrange
})
.margin({ bottom: 8 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => 'rank_' + p.id.toString())
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
knowledgeRank以排行榜形式展示知识类播客,前三名使用奖牌图标和特殊背景样式突出显示。
奖牌图标的三元嵌套。 排名图标的生成使用了嵌套三元表达式:idx < 3 ? (idx === 0 ? '🥇' : (idx === 1 ? '🥈' : '🥉')) : (idx + 1).toString()。第1名显示金牌🥇、第2名银牌🥈、第3名铜牌🥉,第4名及以后显示数字。前三名的图标字号为20(大于其余的14),颜色为金色(区别于其余的灰色),宽度统一为32保证对齐。这种嵌套三元表达式虽然可读性一般,但在ArkTS的@Builder方法中是处理条件渲染的简洁方式。
前三名特殊样式。 前三名排行榜项使用#243058背景色(比普通卡片背景稍亮)和1vp宽的暖橙色边框,视觉上与第4名及以后的项形成区分。idx < 3 ? 1 : 0控制边框宽度,前三名有边框、其余无边框。这种"Top 3特殊化"的设计在各类排行榜UI中是通行做法,能够引导用户关注优质内容。
评分颜色动态映射。 右侧评分使用hotColor(p.rating)动态映射颜色:9.0分以上暖橙、8.5分以上金色、其余靛蓝。由于排行榜已按评分排序(PODCASTS数组中评分较高的排在前面),前三名的评分颜色通常为暖橙色,进一步强化了"高分=优质"的视觉暗示。
标题单行省略。 与故事时间线的双行省略不同,排行榜中的标题使用maxLines(1)单行省略。这是因为排行榜布局水平方向需要容纳排名图标、封面、标题、主播信息和评分多个元素,标题行需要压缩到一行以保证布局紧凑。右侧评分区域使用.alignItems(HorizontalAlign.End)右对齐,与左侧内容形成对称平衡。
代码段18:音乐播客横向滚动与列表
@Builder
musicCircle() {
Column() {
Text('🎵 音乐类播客')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ bottom: 10 })
Scroll() {
Row() {
ForEach(PODCASTS, (p: PodcastItem) => {
Column() {
Column() {
Text(p.cover)
.fontSize(36)
Text('▶')
.fontSize(14)
.fontColor(COLORS.warmOrange)
.position({ x: 52, y: 8 })
}
.width(90)
.height(90)
.borderRadius(45)
.backgroundColor(COLORS.cardBgDark)
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
Text(p.title)
.fontSize(11)
.fontColor(COLORS.white)
.maxLines(1)
.margin({ top: 6 })
Text(p.host)
.fontSize(9)
.fontColor(COLORS.textHint)
.margin({ top: 2 })
Text(p.duration)
.fontSize(9)
.fontColor(COLORS.warmOrange)
.margin({ top: 2 })
}
.width(100)
.borderRadius(14)
.backgroundColor(COLORS.cardBg)
.padding({ bottom: 8 })
.margin({ right: 10 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => 'music_' + p.id.toString())
}
}
.scrollable(ScrollDirection.Horizontal)
.scrollBar(BarState.Off)
.width('100%')
Text('🎶 音乐播客列表')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14, bottom: 8 })
ForEach(PODCASTS, (p: PodcastItem, idx: number) => {
Row() {
Text((idx + 1).toString())
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(idx < 3 ? COLORS.warmOrange : COLORS.textHint)
.width(24)
Text(p.cover)
.fontSize(20)
.margin({ right: 8 })
Column() {
Text(p.title)
.fontSize(12)
.fontColor(COLORS.white)
.maxLines(1)
.textOverflow({ overflow: TextOverflow.Ellipsis })
Text(p.host + ' · ' + p.duration + ' · ' + p.plays)
.fontSize(9)
.fontColor(COLORS.textHint)
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
Text('▶')
.fontSize(14)
.fontColor(COLORS.warmOrange)
}
.width('100%')
.padding(10)
.borderRadius(10)
.backgroundColor(COLORS.cardBgDark)
.margin({ bottom: 6 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => 'music2_' + p.id.toString())
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
musicCircle构建了音乐Tab的内容,包含横向滚动的圆形封面卡片和纵向排列的列表两个区域。
横向滚动圆形卡片。 顶部区域使用Scroll容器包裹Row实现水平滚动,每个播客以圆形卡片形式展示。圆形封面通过.width(90).height(90).borderRadius(45)实现(borderRadius为宽度的一半即形成正圆)。封面区域内使用.justifyContent(FlexAlign.Center).alignItems(HorizontalAlign.Center)使Emoji封面居中,右上角通过.position({ x: 52, y: 8 })绝对定位一个播放按钮"▶"。这种圆形封面 + 播放按钮的组合是音乐类应用的经典设计语言,参考了Spotify、Apple Music等主流音乐应用。
横向滚动配置。 Scroll设置.scrollable(ScrollDirection.Horizontal)启用水平滚动,.scrollBar(BarState.Off)隐藏滚动条。每个卡片宽度固定100vp,通过.margin({ right: 10 })产生卡片间距。15张卡片总宽度约1650vp,远超屏幕宽度,用户需要左右滑动浏览全部内容。
纵向列表区域。 底部区域以列表形式展示音乐播客,每行包含排名数字、Emoji封面、标题+主播+时长+播放量信息、播放按钮。排名前三的数字使用暖橙色,其余灰色,形成视觉层级。列表项使用COLORS.cardBgDark背景色(比横向卡片的COLORS.cardBg更深),通过背景色差异区分两个区域。
两种布局的互补设计。 横向滚动卡片适合"浏览发现"场景(视觉吸引力强、信息密度低),纵向列表适合"查找定位"场景(信息密度高、扫描效率高)。两种布局共存于同一Tab中,为用户提供了不同的内容消费模式,是音乐类应用中常见的双视图设计。
代码段19:情感播客聊天式布局
@Builder
emotionChat() {
Column() {
Text('💭 情感类播客 · 聊天式推荐')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ bottom: 10 })
ForEach(PODCASTS, (p: PodcastItem, idx: number) => {
Column() {
if (idx % 2 === 0) {
Row() {
Text(p.cover)
.fontSize(24)
.width(36)
.height(36)
.textAlign(TextAlign.Center)
Column() {
Text(p.title)
.fontSize(12)
.fontColor(COLORS.white)
Text(p.description)
.fontSize(11)
.fontColor(COLORS.textSecondary)
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
.margin({ top: 3 })
Text('🎙️ ' + p.host + ' · ' + p.duration + ' · ' + p.plays + '播放')
.fontSize(9)
.fontColor(COLORS.warmOrange)
.margin({ top: 3 })
}
.alignItems(HorizontalAlign.Start)
.padding(10)
.borderRadius({
topLeft: 2,
topRight: 12,
bottomLeft: 12,
bottomRight: 12
})
.backgroundColor(COLORS.cardBg)
.margin({ left: 8 })
}
.width('100%')
.justifyContent(FlexAlign.Start)
} else {
Row() {
Column() {
Text(p.description)
.fontSize(11)
.fontColor(COLORS.textSecondary)
.textAlign(TextAlign.End)
Text(p.title)
.fontSize(11)
.fontColor(COLORS.white)
.textAlign(TextAlign.End)
.margin({ top: 3 })
Text('🎧 ' + p.plays + ' · ★' + p.rating)
.fontSize(9)
.fontColor(COLORS.gold)
.margin({ top: 3 })
}
.alignItems(HorizontalAlign.End)
.padding(10)
.borderRadius({
topLeft: 12,
topRight: 2,
bottomLeft: 12,
bottomRight: 12
})
.backgroundColor('#2A3D6E')
.margin({ right: 8 })
Text(p.cover)
.fontSize(24)
.width(36)
.height(36)
.textAlign(TextAlign.Center)
}
.width('100%')
.justifyContent(FlexAlign.End)
}
}
.width('100%')
.margin({ bottom: 10 })
.onClick(() => {
this.selectedPodcast = p;
this.showDetailModal = true;
})
}, (p: PodcastItem) => 'emo_' + p.id.toString())
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
emotionChat以聊天对话气泡的形式展示情感类播客,是应用中最具创意的布局方案。
左右交替气泡布局。 通过idx % 2 === 0判断奇偶索引,偶数项渲染在左侧(发送方气泡),奇数项渲染在右侧(接收方气泡)。左侧气泡的Row使用.justifyContent(FlexAlign.Start)左对齐,右侧气泡使用.justifyContent(FlexAlign.End)右对齐。这种左右交替的布局模拟了即时通讯应用的聊天界面,为内容推荐赋予了"对话感"。
气泡圆角差异化。 左侧气泡的圆角为{ topLeft: 2, topRight: 12, bottomLeft: 12, bottomRight: 12 }——左上角小圆角(2vp)模拟"气泡尾巴",其余三角大圆角(12vp)。右侧气泡圆角为{ topLeft: 12, topRight: 2, bottomLeft: 12, bottomRight: 12 }——右上角小圆角模拟尾巴。这种不对称圆角设计是聊天气泡的标志性视觉特征,在微信、Telegram等IM应用中广泛使用。
气泡背景色区分。 左侧气泡使用COLORS.cardBg(#1E2848),右侧气泡使用#2A3D6E(稍亮的蓝色),两种背景色都偏蓝调但亮度不同,形成了"双方对话"的视觉暗示。左侧气泡内容包含标题、描述、主播信息(暖橙色),右侧气泡内容包含描述、标题、播放量和评分(金色),两侧气泡的信息侧重不同——左侧侧重节目介绍、右侧侧重数据反馈。
聊天式推荐的用户体验。 这种布局将播客推荐伪装成一段对话,降低了商业推荐的侵入感。用户在浏览时仿佛在阅读一段朋友间的聊天记录,每条"消息"都是一个播客推荐。这种设计在情感类内容中尤为契合,因为情感类播客本身就需要建立亲密感与对话感。点击任意气泡仍然会打开详情弹窗,保持了与其他Tab一致的交互闭环。

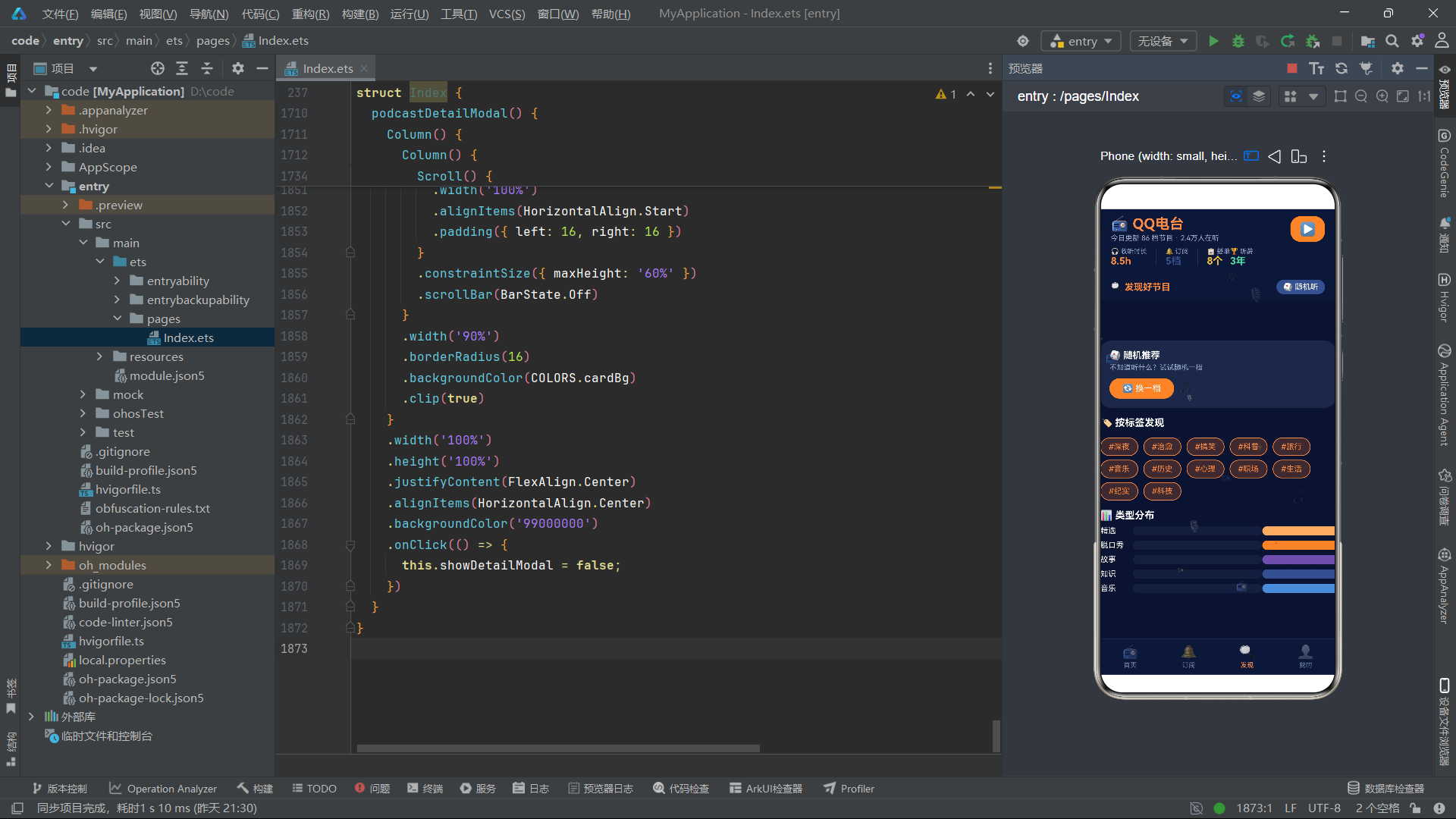

代码段20:订阅内容与发现内容
@Builder
subContent() {
Column() {
ForEach(SUBS, (s: SubItem) => {
Row() {
Column() {
Text(s.cover)
.fontSize(28)
if (s.newEp > 0) {
Text(s.newEp.toString())
.fontSize(9)
.fontColor(COLORS.white)
.padding({ left: 4, right: 4, top: 1, bottom: 1 })
.borderRadius(8)
.backgroundColor(COLORS.warmOrange)
.position({ x: 30, y: 0 })
}
}
.width(50)
.height(50)
Column() {
Row() {
Text(s.title)
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text(s.lastUpdate)
.fontSize(9)
.fontColor(s.newEp > 0 ? COLORS.warmOrange : COLORS.textHint)
.margin({ left: 8 })
}
.width('100%')
Text(s.host + ' · 共' + s.totalEps + '集')
.fontSize(10)
.fontColor(COLORS.textSecondary)
.margin({ top: 3 })
Text(s.newEp > 0 ? '🔴 有' + s.newEp + '集新更新' : '暂无更新')
.fontSize(10)
.fontColor(s.newEp > 0 ? COLORS.warmOrange : COLORS.textHint)
.margin({ top: 3 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
.margin({ left: 10 })
Text('▶')
.fontSize(18)
.fontColor(COLORS.warmOrange)
}
.width('100%')
.padding(10)
.borderRadius(12)
.backgroundColor(COLORS.cardBg)
.margin({ bottom: 8 })
.onClick(() => {
this.showDetailModal = true;
})
}, (s: SubItem) => s.id.toString())
Text('⚠️ 取消订阅后将不再收到更新提醒')
.fontSize(10)
.fontColor(COLORS.textHint)
.margin({ top: 6 })
.onClick(() => {
this.showUnsubModal = true;
})
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
@Builder
discoverContent() {
Column() {
Column() {
Text('🎲 随机推荐')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text('不知道听什么?试试随机一档')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 4 })
Text('🔄 换一档')
.fontSize(13)
.fontColor(COLORS.white)
.padding({ left: 20, right: 20, top: 8, bottom: 8 })
.borderRadius(18)
.backgroundColor(COLORS.warmOrange)
.margin({ top: 10 })
}
.width('100%')
.padding(14)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.alignItems(HorizontalAlign.Start)
Text('🏷 按标签发现')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14, bottom: 8 })
Flex({ wrap: FlexWrap.Wrap }) {
ForEach(['深夜', '治愈', '搞笑', '科普', '旅行', '音乐', '历史', '心理', '职场', '生活', '纪实', '科技'], (tag: string) => {
Text('#' + tag)
.fontSize(12)
.fontColor(COLORS.warmOrange)
.padding({ left: 12, right: 12, top: 6, bottom: 6 })
.borderRadius(14)
.backgroundColor('#33FF8C42')
.border({ width: 1, color: COLORS.warmOrange })
.margin({ right: 8, top: 6 })
.onClick(() => {
this.showDetailModal = true;
})
}, (tag: string) => tag)
}
.width('100%')
Text('📊 类型分布')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14, bottom: 8 })
ForEach(['精选', '脱口秀', '故事', '知识', '音乐'], (g: string, idx: number) => {
Row() {
Text(g)
.fontSize(12)
.fontColor(COLORS.white)
.width(50)
Column() {
Text('')
.width('100%')
.height(1)
}
.width('55%')
.height(14)
.borderRadius(7)
.backgroundColor(COLORS.cardBgDark)
Column() {
Text('')
.width('100%')
.height(1)
}
.width((100 - idx * 15).toString() + '%')
.height(14)
.borderRadius(7)
.backgroundColor(categoryColor(g))
Text((100 - idx * 15).toString() + '档')
.fontSize(10)
.fontColor(COLORS.textSecondary)
.margin({ left: 8 })
}
.width('100%')
.margin({ bottom: 8 })
}, (g: string) => g)
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
subContent和discoverContent分别构建了订阅页和发现页的内容区域。
订阅页的新更新角标。 订阅列表中每个订阅项的封面区域使用if (s.newEp > 0)条件渲染一个橙色角标,显示新集数数量。角标通过.position({ x: 30, y: 0 })绝对定位到封面右上角,模拟iOS/Android应用图标角标的视觉效果。有新更新的订阅项使用暖橙色文字显示更新时间和"🔴 有X集新更新"提示,无更新的订阅项使用灰色文字显示"暂无更新"。这种颜色编码让用户一眼识别哪些订阅有新内容。
订阅页的取消订阅入口。 列表底部提供"⚠️ 取消订阅后将不再收到更新提醒"的提示文字,点击后打开取消订阅确认弹窗。将危险操作(取消订阅)放在列表底部而非每行操作中,是一种常见的防误触设计——用户需要主动滑动到底部才能触发取消操作。
发现页的随机推荐卡片。 发现页顶部是一个随机推荐卡片,包含标题、说明文字和"换一档"按钮。按钮使用暖橙色背景和18vp圆角,视觉上引导用户点击。在实际应用中,点击"换一档"会随机展示一个播客,这里简化为打开详情弹窗。
标签云与类型分布。 标签发现区域使用Flex({ wrap: FlexWrap.Wrap })实现标签云布局,12个标签(深夜、治愈、搞笑等)以#标签形式展示,使用半透明橙色背景和橙色边框。类型分布区域使用水平进度条展示各分类的节目数量分布,进度条宽度通过(100 - idx * 15).toString() + '%'计算——精选100%、脱口秀85%、故事70%、知识55%、音乐40%,递减的数值暗示了各分类的内容丰富度差异。
代码段21:个人中心与底部导航
@Builder
mineContent() {
Column() {
Column() {
Row() {
Text('🎧')
.fontSize(40)
.width(64)
.height(64)
.textAlign(TextAlign.Center)
.borderRadius(32)
.backgroundColor(COLORS.cardBgDark)
Column() {
Text('播客达人')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text('听龄3年 · 收听2,860小时')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 3 })
Text('🔔 订阅5档 · 播单8个 · 收藏156集')
.fontSize(10)
.fontColor(COLORS.warmOrange)
.margin({ top: 3 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
.margin({ left: 12 })
Column() {
Text('编辑')
.fontSize(12)
.fontColor(COLORS.white)
}
.padding({ left: 12, right: 12, top: 6, bottom: 6 })
.borderRadius(14)
.backgroundColor(COLORS.warmOrange)
.onClick(() => {
this.showEditModal = true;
})
}
.width('100%')
}
.width('100%')
.padding(14)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.alignItems(HorizontalAlign.Start)
Row() {
Column() {
Text('5')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
Text('订阅')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 2 })
}
.layoutWeight(1)
Column() {
Text('8')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.indigoLight)
Text('播单')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 2 })
}
.layoutWeight(1)
Column() {
Text('156')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.gold)
Text('收藏')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 2 })
}
.layoutWeight(1)
Column() {
Text('2,460')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.success)
Text('声波币')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 2 })
}
.layoutWeight(1)
}
.width('100%')
.padding(14)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.margin({ top: 10 })
Text('📋 我的播单')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14, bottom: 8 })
ForEach(['深夜陪伴播单', '通勤路上播单', '学习专注播单', '睡前安眠播单'], (title: string, idx: number) => {
Row() {
Text((idx + 1).toString())
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
.width(24)
Text('🎵 ' + title)
.fontSize(12)
.fontColor(COLORS.white)
.layoutWeight(1)
Text((10 + idx * 3).toString() + '集')
.fontSize(10)
.fontColor(COLORS.textHint)
Text('播放')
.fontSize(10)
.fontColor(COLORS.warmOrange)
.margin({ left: 8 })
}
.width('100%')
.padding(10)
.borderRadius(10)
.backgroundColor(COLORS.cardBgDark)
.margin({ bottom: 6 })
.onClick(() => {
this.showCreateModal = true;
})
}, (title: string) => title)
Text('🗑 取消所有订阅')
.fontSize(13)
.fontColor(COLORS.danger)
.padding({ left: 20, right: 20, top: 10, bottom: 10 })
.borderRadius(20)
.border({ width: 1, color: COLORS.danger })
.margin({ top: 12 })
.onClick(() => {
this.showUnsubModal = true;
})
}
.width('100%')
.alignItems(HorizontalAlign.Start)
}
@Builder
bottomTabs() {
Row() {
ForEach(BOTTOM_TABS, (t: TabItem, idx: number) => {
Column() {
Text(t.icon)
.fontSize(20)
.opacity(this.currentBottomTab === idx ? 1 : 0.5)
Text(t.label)
.fontSize(10)
.fontColor(this.currentBottomTab === idx ? COLORS.warmOrange : COLORS.textHint)
.margin({ top: 3 })
}
.layoutWeight(1)
.padding({ top: 8, bottom: 8 })
.onClick(() => {
this.currentBottomTab = idx;
this.currentTopTab = 0;
})
}, (t: TabItem) => t.label)
}
.width('100%')
.backgroundColor(COLORS.indigoDeep)
.border({ width: 1, color: COLORS.border })
}
mineContent和bottomTabs分别构建了个人中心页面和底部导航栏。
个人中心用户卡片。 用户卡片以Row布局展示头像(🎧 Emoji,64x64圆形,深色背景)、昵称"播客达人"、听龄与收听时长、订阅/播单/收藏数量,以及"编辑"按钮。编辑按钮点击后打开订阅设置弹窗。头像使用Emoji而非真实头像图片,在演示场景下既简洁又有效。
四象限数据统计。 用户卡片下方是四象限数据展示:订阅数(5,暖橙色)、播单数(8,靛蓝色)、收藏数(156,金色)、声波币(2,460,绿色)。四项数据使用.layoutWeight(1)等分宽度,每项垂直排列数值和标签,颜色与首页头部统计保持一致。"声波币"是该应用的虚拟积分系统,绿色数值暗示了"财富/成长"的语义。
播单列表。 展示4个预设播单(深夜陪伴、通勤路上、学习专注、睡前安眠),每行包含序号、标题(带🎵前缀)、集数和"播放"操作。集数通过(10 + idx * 3).toString()计算(10、13、16、19集),制造了数据多样性。点击播单项打开创建播单弹窗——这里的交互逻辑是点击已有播单后跳转到创建新播单的弹窗,在真实应用中应该跳转到播单详情页。
底部导航栏。 bottomTabs使用Row + ForEach渲染4个底部Tab项。选中态通过.opacity(1)和暖橙色文字标识,未选中态通过.opacity(0.5)和灰色文字标识。点击时同时更新currentBottomTab和currentTopTab(重置为0),确保切换底部Tab时顶部Tab回到第一个。这种"父子Tab联动"的设计保证了用户切换主页面时不会保留之前子Tab的选中状态,提供更干净的用户体验。
底部导航的视觉设计。 底部导航使用COLORS.indigoDeep背景色(与头部一致),顶部添加1vp边框线分隔内容区。每个Tab项垂直排列图标(20号字)和文字标签(10号字),使用.layoutWeight(1)等分宽度。这种底部导航设计是移动端应用的标准范式,符合用户操作习惯。
代码段22:四大弹窗组件
@Builder
createPlaylistModal() {
Column() {
Column() {
Column() {
Text('📋 创建新播单')
.fontSize(17)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text('把喜欢的节目收藏到一起')
.fontSize(11)
.fontColor('#FFD8B5')
.margin({ top: 4 })
}
.width('100%')
.padding(16)
.alignItems(HorizontalAlign.Start)
.linearGradient({
angle: 135,
colors: [['#FF8C42', 0], ['#1B2A5E', 1]]
})
Scroll() {
Column() {
Text('播单名称')
.fontSize(13)
.fontColor(COLORS.textSecondary)
.margin({ top: 14 })
TextInput({ placeholder: '例如:深夜陪伴播单', text: this.playlistName })
.fontSize(13)
.fontColor(COLORS.white)
.placeholderColor(COLORS.textHint)
.backgroundColor(COLORS.cardBgDark)
.borderRadius(10)
.padding({ left: 12, right: 12 })
.height(42)
.margin({ top: 6 })
.onChange((v: string) => {
this.playlistName = v;
})
Text('播单分类')
.fontSize(13)
.fontColor(COLORS.textSecondary)
.margin({ top: 14 })
Flex({ wrap: FlexWrap.Wrap }) {
ForEach(['深夜', '通勤', '学习', '睡前', '运动', '其他'], (t: string, idx: number) => {
Text(t)
.fontSize(12)
.fontColor(this.playlistCat === idx ? COLORS.white : COLORS.textSecondary)
.padding({ left: 14, right: 14, top: 6, bottom: 6 })
.borderRadius(14)
.backgroundColor(this.playlistCat === idx ? COLORS.warmOrange : COLORS.cardBgDark)
.margin({ right: 8, top: 6 })
.onClick(() => {
this.playlistCat = idx;
})
}, (t: string) => t)
}
.width('100%')
Text('💡 创建播单后可随时添加节目到播单中')
.fontSize(10)
.fontColor(COLORS.textHint)
.margin({ top: 16, bottom: 10 })
}
.width('100%')
.alignItems(HorizontalAlign.Start)
.padding({ left: 16, right: 16 })
}
.constraintSize({ maxHeight: '55%' })
.scrollBar(BarState.Off)
Row() {
Text('取消')
.fontSize(14)
.fontColor(COLORS.textSecondary)
.layoutWeight(1)
.textAlign(TextAlign.Center)
.padding({ top: 12, bottom: 12 })
.onClick(() => {
this.showCreateModal = false;
})
Text('创建播单')
.fontSize(14)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.layoutWeight(1)
.textAlign(TextAlign.Center)
.padding({ top: 12, bottom: 12 })
.linearGradient({
angle: 90,
colors: [['#FF8C42', 0], ['#1B2A5E', 1]]
})
.onClick(() => {
this.showCreateModal = false;
})
}
.width('100%')
.border({ width: 1, color: COLORS.border })
}
.width('90%')
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.clip(true)
}
.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
.backgroundColor('99000000')
.onClick(() => {
this.showCreateModal = false;
})
}
createPlaylistModal是四个弹窗中最复杂的一个,包含表单输入、分类选择和创建/取消操作。
弹窗遮罩层设计。 弹窗最外层Column设置.width('100%').height('100%')覆盖全屏,.backgroundColor('99000000')设置半透明黑色遮罩(99为十六进制的153,约60%不透明度),.justifyContent(FlexAlign.Center).alignItems(HorizontalAlign.Center)使弹窗内容居中显示。外层.onClick点击遮罩区域关闭弹窗,这是移动端弹窗的标准交互——点击遮罩关闭、点击弹窗内容不关闭(因事件不冒泡)。
渐变标题栏。 弹窗顶部使用.linearGradient({ angle: 135, colors: [['#FF8C42', 0], ['#1B2A5E', 1]] })实现135度角的线性渐变,从暖橙色(起点0%)过渡到靛蓝色(终点100%)。这种品牌色渐变在弹窗标题区域营造了视觉焦点,使弹窗标题"📋 创建新播单"在视觉上脱颖而出。副标题使用#FFD8B5(浅橙色)保持与渐变色调的协调。
TextInput表单输入。 弹窗包含一个TextInput组件用于输入播单名称,设置placeholder提示文字、白色文字、灰色占位符、深色背景和10vp圆角。.onChange((v: string) => { this.playlistName = v; })回调将输入值同步到playlistName状态变量。在HarmonyOS API 24中,TextInput是标准的表单输入组件,支持placeholder、文字颜色、背景色等丰富的自定义属性。
分类选择标签。 使用Flex + ForEach渲染6个分类标签(深夜、通勤、学习、睡前、运动、其他),选中态使用暖橙色背景和白色文字,未选中态使用深色背景和灰色文字。点击标签更新playlistCat索引值。这种标签选择器在表单中比下拉选择更加直观,是移动端分类选择的主流交互模式。
底部操作按钮。 "取消"和"创建播单"按钮使用.layoutWeight(1)等分宽度并排排列。取消按钮使用灰色文字和透明背景,创建按钮使用渐变背景(90度角,暖橙到靛蓝)和白色加粗文字。两个按钮之间通过1vp边框线分隔。点击任一按钮都会设置showCreateModal = false关闭弹窗,在实际应用中创建按钮还需要执行保存逻辑。
可滚动表单内容。 弹窗内容区使用Scroll包裹,.constraintSize({ maxHeight: '55%' })限制最大高度为屏幕的55%,防止内容过多时弹窗超出屏幕范围。.scrollBar(BarState.Off)隐藏滚动条,保持弹窗视觉简洁。这种设计保证了弹窗在小屏幕设备上也能正常显示所有内容。
代码段23:编辑订阅与取消订阅弹窗
@Builder
editSubModal() {
Column() {
Column() {
Text('⚙️ 订阅设置')
.fontSize(16)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text('修改通知与自动下载设置')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 4 })
Column() {
Text('更新通知')
.fontSize(12)
.fontColor(COLORS.warmOrange)
.alignSelf(ItemAlign.Start)
Row() {
Text(this.editNotify ? '🔔 已开启' : '🔕 已关闭')
.fontSize(13)
.fontColor(COLORS.white)
.layoutWeight(1)
Text(this.editNotify ? '开' : '关')
.fontSize(11)
.fontColor(COLORS.white)
.padding({ left: 14, right: 14, top: 5, bottom: 5 })
.borderRadius(12)
.backgroundColor(this.editNotify ? COLORS.warmOrange : COLORS.cardBgDark)
.onClick(() => {
this.editNotify = !this.editNotify;
})
}
.width('100%')
.margin({ top: 8 })
}
.width('100%')
.alignItems(HorizontalAlign.Start)
.margin({ top: 16 })
Column() {
Text('自动下载')
.fontSize(12)
.fontColor(COLORS.warmOrange)
.alignSelf(ItemAlign.Start)
Row() {
Text(this.editAutoDownload ? '✅ 已开启' : '❌ 已关闭')
.fontSize(13)
.fontColor(COLORS.white)
.layoutWeight(1)
Text(this.editAutoDownload ? '开' : '关')
.fontSize(11)
.fontColor(COLORS.white)
.padding({ left: 14, right: 14, top: 5, bottom: 5 })
.borderRadius(12)
.backgroundColor(this.editAutoDownload ? COLORS.warmOrange : COLORS.cardBgDark)
.onClick(() => {
this.editAutoDownload = !this.editAutoDownload;
})
}
.width('100%')
.margin({ top: 8 })
}
.width('100%')
.alignItems(HorizontalAlign.Start)
.margin({ top: 12 })
Row() {
Text('恢复默认')
.fontSize(13)
.fontColor(COLORS.textSecondary)
.padding({ left: 18, right: 18, top: 10, bottom: 10 })
.borderRadius(18)
.border({ width: 1, color: COLORS.border })
.onClick(() => {
this.editNotify = true;
this.editAutoDownload = false;
})
Text('保存设置')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.padding({ left: 22, right: 22, top: 10, bottom: 10 })
.borderRadius(18)
.backgroundColor(COLORS.warmOrange)
.margin({ left: 10 })
.onClick(() => {
this.showEditModal = false;
})
}
.margin({ top: 20, bottom: 16 })
}
.width('86%')
.padding(18)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.border({ width: 1, color: COLORS.warmOrange })
}
.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
.backgroundColor('99000000')
.onClick(() => {
this.showEditModal = false;
})
}
@Builder
unsubModal() {
Column() {
Column() {
Text('🔕')
.fontSize(36)
Text('确定取消订阅吗?')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 8 })
Text('取消后将不再收到更新提醒,已下载内容保留')
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 6 })
Row() {
Text('再想想')
.fontSize(13)
.fontColor(COLORS.textSecondary)
.layoutWeight(1)
.textAlign(TextAlign.Center)
.padding({ top: 10, bottom: 10 })
.borderRadius(20)
.border({ width: 1, color: COLORS.border })
Text('确认取消')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.layoutWeight(1)
.textAlign(TextAlign.Center)
.padding({ top: 10, bottom: 10 })
.borderRadius(20)
.backgroundColor(COLORS.danger)
.margin({ left: 10 })
.onClick(() => {
this.showUnsubModal = false;
})
}
.width('100%')
.margin({ top: 18 })
}
.width('76%')
.padding(20)
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.alignItems(HorizontalAlign.Center)
}
.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
.backgroundColor('99000000')
.onClick(() => {
this.showUnsubModal = false;
})
}
editSubModal和unsubModal分别实现了订阅设置弹窗和取消订阅确认弹窗,展示了两种不同的弹窗交互模式。
编辑弹窗的开关组件。 订阅设置弹窗包含两个开关项:更新通知和自动下载。每个开关项由标签(暖橙色)、状态文字(白色,显示"🔔 已开启"或"🔕 已关闭")和切换按钮组成。切换按钮通过this.editNotify和this.editAutoDownload两个布尔状态控制:开启时显示暖橙色背景和"开"文字,关闭时显示深色背景和"关"文字。点击切换按钮取反布尔值,驱动UI即时更新。这种"自定义开关"在ArkTS中比使用系统Toggle组件更加灵活,可以完全控制视觉样式。
alignSelf的对齐控制。 开关项的标题使用.alignSelf(ItemAlign.Start)覆盖父容器的居中对齐,使标题左对齐。alignSelf允许单个子元素覆盖父容器的alignItems设置,在需要个别元素特殊对齐的场景下非常有用。
恢复默认功能。 "恢复默认"按钮将editNotify重置为true、editAutoDownload重置为false,恢复到初始状态。这种"一键恢复"功能在设置类弹窗中是标配,降低了用户的操作焦虑。"保存设置"按钮使用暖橙色背景,点击后关闭弹窗(在实际应用中还需要执行保存逻辑)。
取消订阅确认弹窗。 这是一个典型的危险操作确认弹窗,采用居中卡片布局,宽度76%屏幕宽度。弹窗包含一个🔕图标(36号字)、标题"确定取消订阅吗?"、说明文字和两个操作按钮。"再想想"按钮使用描边样式(灰色边框),"确认取消"按钮使用红色背景(COLORS.danger即#E84A4A)。红色按钮传达了"危险操作"的视觉警告,与"再想想"的灰色描边按钮形成对比,引导用户谨慎操作。
弹窗的视觉层次差异。 编辑弹窗使用暖橙色边框(border({ width: 1, color: COLORS.warmOrange }))暗示"设置/配置"语义,取消订阅弹窗无额外边框但使用红色确认按钮暗示"危险操作"语义。两种弹窗通过不同的视觉处理传达了不同的操作风险等级。
代码段24:节目详情弹窗
@Builder
podcastDetailModal() {
Column() {
Column() {
Column() {
Row() {
Text('📻 节目详情')
.fontSize(16)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.warmOrange)
Text('✕')
.fontSize(16)
.fontColor(COLORS.textSecondary)
.padding({ left: 8, right: 8, top: 2, bottom: 2 })
.onClick(() => {
this.showDetailModal = false;
})
}
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
}
.width('100%')
.padding({ left: 16, right: 16, top: 14, bottom: 14 })
.backgroundColor(COLORS.cardBgDark)
Scroll() {
Column() {
Row() {
Text(this.selectedPodcast!.cover)
.fontSize(40)
.width(70)
.height(70)
.textAlign(TextAlign.Center)
.borderRadius(35)
.backgroundColor(COLORS.cardBgDark)
Column() {
Text(this.selectedPodcast!.title)
.fontSize(15)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
Text(this.selectedPodcast!.host + ' · ' + this.selectedPodcast!.category)
.fontSize(10)
.fontColor(COLORS.textHint)
.margin({ top: 3 })
Row() {
Text(this.selectedPodcast!.category)
.fontSize(9)
.fontColor(COLORS.white)
.padding({ left: 6, right: 6, top: 1, bottom: 1 })
.borderRadius(6)
.backgroundColor(categoryColor(this.selectedPodcast!.category))
Text('★' + this.selectedPodcast!.rating)
.fontSize(9)
.fontColor(COLORS.gold)
.margin({ left: 6 })
Text('🎧 ' + this.selectedPodcast!.plays)
.fontSize(9)
.fontColor(COLORS.textHint)
.margin({ left: 6 })
}
.margin({ top: 4 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
.margin({ left: 12 })
}
.width('100%')
Text(this.selectedPodcast!.description)
.fontSize(11)
.fontColor(COLORS.textSecondary)
.margin({ top: 10 })
.padding(10)
.borderRadius(10)
.backgroundColor(COLORS.cardBgDark)
Row() {
Text(this.selectedPodcast!.tags)
.fontSize(10)
.fontColor(COLORS.warmOrange)
.padding({ left: 8, right: 8, top: 4, bottom: 4 })
.borderRadius(8)
.backgroundColor('#33FF8C42')
}
.margin({ top: 10 })
Text('📑 剧集列表')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.margin({ top: 14 })
ForEach(EPISODES, (ep: EpisodeItem) => {
Row() {
Text(ep.isPlayed ? '✅' : '🆕')
.fontSize(14)
.width(24)
Column() {
Text(ep.title)
.fontSize(12)
.fontColor(ep.isPlayed ? COLORS.textHint : COLORS.white)
Text(ep.duration + ' · ' + ep.date)
.fontSize(9)
.fontColor(COLORS.textHint)
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.Start)
.layoutWeight(1)
.margin({ left: 6 })
Text('▶')
.fontSize(14)
.fontColor(COLORS.warmOrange)
}
.width('100%')
.padding(8)
.borderRadius(8)
.backgroundColor(COLORS.cardBgDark)
.margin({ top: 4 })
}, (ep: EpisodeItem) => ep.epNo.toString())
Row() {
Text('🔔 订阅')
.fontSize(13)
.fontColor(COLORS.warmOrange)
.padding({ left: 18, right: 18, top: 10, bottom: 10 })
.borderRadius(18)
.border({ width: 1, color: COLORS.warmOrange })
Text('▶ 立即收听')
.fontSize(13)
.fontWeight(FontWeight.Bold)
.fontColor(COLORS.white)
.padding({ left: 18, right: 18, top: 10, bottom: 10 })
.borderRadius(18)
.backgroundColor(COLORS.warmOrange)
.margin({ left: 10 })
.onClick(() => {
this.showDetailModal = false;
})
}
.margin({ top: 14, bottom: 10 })
}
.width('100%')
.alignItems(HorizontalAlign.Start)
.padding({ left: 16, right: 16 })
}
.constraintSize({ maxHeight: '60%' })
.scrollBar(BarState.Off)
}
.width('90%')
.borderRadius(16)
.backgroundColor(COLORS.cardBg)
.clip(true)
}
.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
.backgroundColor('99000000')
.onClick(() => {
this.showDetailModal = false;
})
}
podcastDetailModal是应用中最复杂的弹窗组件,展示了选中播客的完整详情和剧集列表。
非空断言操作符的运用。 弹窗中大量使用this.selectedPodcast!.cover、this.selectedPodcast!.title等表达式,!操作符告诉TypeScript编译器"此处selectedPodcast一定不为null"。由于弹窗的渲染条件是if (this.showDetailModal),而showDetailModal只有在用户点击播客项(设置selectedPodcast)后才会为true,因此在弹窗渲染时selectedPodcast一定已被赋值,使用非空断言是安全的。
弹窗结构的三段式设计。 弹窗内部分为三个区域:顶部标题栏(“📻 节目详情"和关闭按钮"✕”,使用深色背景COLORS.cardBgDark)、可滚动内容区(.constraintSize({ maxHeight: '60%' })限制最大高度)和底部操作按钮区(“订阅"和"立即收听”)。这种"标题 + 内容 + 操作"的三段式结构是详情类弹窗的标准布局。
播客信息展示。 内容区顶部以Row布局展示圆形封面(70x70,圆角35形成正圆)、标题、主播·分类、分类标签+评分+播放量三联标签。分类标签颜色通过categoryColor()动态映射,评分使用金色,播放量使用灰色,三层信息通过颜色编码实现视觉分层。描述文字使用深色背景卡片展示,标签以半透明橙色背景的胶囊形式展示。
剧集列表渲染。 使用ForEach遍历EPISODES数组渲染剧集列表,每行包含播放状态图标(已播放"✅"或未播放"🆕")、剧集标题和时长·日期信息。已播放剧集的标题使用灰色(COLORS.textHint),未播放的使用白色(COLORS.white),通过文字颜色区分播放状态。ForEach的key使用ep.epNo.toString()(集号唯一)。
clip与圆角裁剪。 弹窗容器使用.clip(true)启用裁剪,确保内部内容不会溢出圆角边界。这在弹窗顶部标题栏使用直角背景而外层使用圆角时尤为重要——没有.clip(true),标题栏的直角会"刺破"外层的圆角。.clip(true)是ArkTS中处理圆角溢出的标准方案。
三、技术对比分析
3.1 ArkTS状态管理装饰器对比
| 装饰器 | 作用范围 | 触发重渲染条件 | 典型使用场景 | 本应用中的使用 |
|---|---|---|---|---|
@State |
组件内部 | 变量引用变更或@Observed对象属性变更 |
组件私有状态管理 | 13个状态变量(Tab索引、弹窗开关、选中播客等) |
@Observed |
类级别 | 类实例属性被修改时通知观察者 | 可变数据模型的响应式追踪 | PodcastItem类 |
@Builder |
方法级别 | 被调用时执行构建 | UI片段的组件化拆分 | 24个构建器方法 |
@Entry |
struct级别 | 作为页面入口被框架管理 | 页面根组件标识 | Index组件 |
@Prop |
组件入参 | 父组件传入的值变更 | 父子单向数据传递 | 未使用(本应用为单页面) |
@Link |
组件入参 | 父子双向同步 | 父子双向数据绑定 | 未使用(本应用为单页面) |
3.2 ArkTS布局容器对比
| 容器 | 排列方式 | 滚动支持 | 适用场景 | 本应用中的使用 |
|---|---|---|---|---|
Column |
垂直排列 | 需配合Scroll |
页面主体结构、卡片内容 | 几乎所有构建器的根容器 |
Row |
水平排列 | 需配合Scroll |
顶部栏、列表行、按钮组 | 头部品牌区、Tab栏、列表项 |
Stack |
层叠堆叠 | 不支持 | 浮层叠加、粒子覆盖、弹窗 | build()根容器 |
Flex |
弹性布局 | 不支持 | 换行标签云、等分分布 | 热门播客网格、标签云 |
Grid |
网格布局 | 内容可滚动 | 等宽卡片网格 | 脱口秀三列网格 |
Scroll |
包裹内容 | 支持水平/垂直 | 长内容滚动、横向滑动 | 页面内容区、横向卡片、弹窗内容 |
3.3 四大弹窗功能对比
| 弹窗 | 触发位置 | 核心功能 | 状态变量 | 交互复杂度 | 视觉特色 |
|---|---|---|---|---|---|
| 创建播单 | 我的页播单项 | 输入播单名称+选择分类 | playlistName、playlistCat |
高(表单输入+标签选择) | 渐变标题栏 |
| 编辑订阅 | 头部管理按钮 | 切换通知和自动下载开关 | editNotify、editAutoDownload |
中(开关切换+恢复默认) | 暖橙边框 |
| 取消订阅 | 订阅页/我的页 | 确认取消操作 | showUnsubModal |
低(二选一确认) | 红色危险按钮 |
| 节目详情 | 各内容项点击 | 查看播客详情+剧集列表 | selectedPodcast |
中(浏览+操作) | 圆形封面+剧集列表 |
安装DevEco Studio程序

选择目标安装目录:

设置环境变量,但是需要重启一下:

新建一个空白模板:

设置API为24的模板项目:
初始化项目,自动下载相关依赖:

完整代码:
// ============================================================
// 风格:深靛蓝 + 暖橙 · 播客风
// 底部4tab:首页 / 订阅 / 发现 / 我的
// 顶部6tab:精选 / 脱口秀 / 故事 / 知识 / 音乐 / 情感
// 弹框:创建播单(新增) / 编辑订阅(编辑) / 取消订阅(删除) / 节目详情
// 特效:音波粒子 + 7天收听柱状图
// ============================================================
interface ColorPalette {
indigo: string;
indigoDeep: string;
indigoLight: string;
warmOrange: string;
warmOrangeLight: string;
bg: string;
cardBg: string;
cardBgDark: string;
textPrimary: string;
textSecondary: string;
textHint: string;
white: string;
gold: string;
border: string;
danger: string;
success: string;
}
const COLORS: ColorPalette = {
indigo: '#1B2A5E',
indigoDeep: '#0F1838',
indigoLight: '#3A4F8E',
warmOrange: '#FF8C42',
warmOrangeLight: '#FFB070',
bg: '#0C1330',
cardBg: '#1E2848',
cardBgDark: '#161E3C',
textPrimary: '#E8ECF8',
textSecondary: '#9AABD0',
textHint: '#6B7BA0',
white: '#FFFFFF',
gold: '#F5C242',
border: '#2D3858',
danger: '#E84A4A',
success: '#4DD9A0'
};
interface TabItem {
label: string;
icon: string;
}
const BOTTOM_TABS: TabItem[] = [
{ label: '首页', icon: '📻' },
{ label: '订阅', icon: '🔔' },
{ label: '发现', icon: '🔍' },
{ label: '我的', icon: '👤' }
];
const TOP_TABS: TabItem[] = [
{ label: '精选', icon: '✨' },
{ label: '脱口秀', icon: '🎤' },
{ label: '故事', icon: '📖' },
{ label: '知识', icon: '🧠' },
{ label: '音乐', icon: '🎵' },
{ label: '情感', icon: '💭' }
];
const LISTEN_DAYS: string[] = ['周一', '周二', '周三', '周四', '周五', '周六', '周日'];
const LISTEN_MINUTES: number[] = [45, 30, 60, 50, 90, 120, 75];
@Observed
class PodcastItem {
id: number;
title: string;
host: string;
cover: string;
category: string;
duration: string;
plays: string;
subscribers: string;
description: string;
tags: string;
rating: number;
constructor(id: number, title: string, host: string, cover: string,
category: string, duration: string, plays: string, subscribers: string,
description: string, tags: string, rating: number) {
this.id = id;
this.title = title;
this.host = host;
this.cover = cover;
this.category = category;
this.duration = duration;
this.plays = plays;
this.subscribers = subscribers;
this.description = description;
this.tags = tags;
this.rating = rating;
}
}ter)
.backgroundColor('99000000')
.onClick(() => {
this.showDetailModal = false;
})
}
}

四、总结
本文以"QQ电台·播客台"播客音频社区应用为例,系统解析了基于HarmonyOS 6.1.1和ArkTS API 24构建复杂社区型应用的全套技术方案。通过24段代码的逐行深度分析,我们涵盖了以下核心技术要点。
状态管理体系。 应用使用13个@State变量驱动全部UI渲染,涵盖了导航索引、弹窗开关、选中数据、表单输入和动画状态五类状态。@Observed装饰的PodcastItem类实现了数据模型的可观察追踪,配合不可变更新模式(driftParticles每次返回新数组)确保框架正确检测状态变更并触发差异化重渲染。这种"状态驱动UI"的声明式范式是ArkTS API 24的核心开发理念。
组件化架构设计。 24个@Builder构建器方法将1873行代码的复杂UI分解为可维护的组件单元。build()方法作为根构建器,通过Stack层叠容器实现了"主布局 + 粒子动画 + 弹窗浮层"的三层视觉架构。if/else条件渲染实现了底部Tab和顶部Tab的两级内容路由,每次切换仅渲染当前页面,优化了内存和性能。
动画与数据可视化。 应用实现了两种动态视觉效果:基于setInterval定时器的130ms粒子漂移动画(16个粒子,正弦波水平摆动+垂直上升+底部回收),和基于barHeight/hotColor函数的柱状图数据可视化(7天收听时长,高度和颜色双重映射)。两种效果都通过纯ArkTS代码实现,无需引入额外动画库或图表库。
多模态交互设计。 应用实现了四种弹窗交互模式:表单输入型(创建播单)、设置切换型(编辑订阅)、确认操作型(取消订阅)和详情浏览型(节目详情)。每种弹窗都采用半透明遮罩+居中卡片的布局,点击遮罩关闭弹窗,形成了统一的交互规范。弹窗内部根据功能差异提供了不同的交互元素——TextInput输入、标签选择器、开关按钮、剧集列表等。
视觉设计体系。 应用采用"深靛蓝+暖橙"的播客风格主题,通过ColorPalette接口定义了16种语义化颜色常量,建立了完整的颜色层级体系。三种布局创新——聊天气泡(情感Tab)、时间线(故事Tab)、排行榜(知识Tab)——展示了ArkTS在复杂布局场景下的灵活性。linearGradient渐变、Flex换行、Grid三列网格、Scroll横向滚动等布局技术在不同页面中组合运用,实现了丰富的视觉表现力。
更多推荐



所有评论(0)
