一、前置思考

跨设备通信的性能直接决定了分布式体验的流畅度——视频流转是否有延迟、文件传输快不快、协同编辑是否实时。本文将深入鸿蒙分布式通信的性能调优方案。

本文聚焦：

• 软总线Channel的多路复用优化
• 自适应码率控制（ABR）的实现
• 零拷贝（Zero-Copy）传输在鸿蒙中的实践
• Profiler工具定位通信瓶颈

真实痛点场景：

1. 投屏延迟大：视频画面延迟超过200ms，音画不同步
2. 文件传输慢：同WiFi下传输速度只有理论值的1/5
3. CPU占用高：传输1MB/s的数据CPU占用30%+
4. 并发传输互相影响：同时传输文件和视频通话，两者都卡

二、核心原理

2.1 多路复用架构

                     软总线Channel
                           │
              ┌────────────┼────────────┐
              │            │            │
        VideoStream   FileStream   MessageStream
          (高带宽)     (中带宽)      (低带宽)
              │            │            │
         ┌────┴────┐  ┌────┴────┐  ┌────┴────┐
       vframe1   vframe2  chunk1 chunk2  msg1  msg2

    优先级调度: Video > File > Message
    带宽分配:   Video 60% / File 30% / Message 10%

// 软总线通道优先级管理
interface ChannelConfig {
  channelType: string;
  priority: number;      // 0-10, 越高越优先
  bandwidthCap: number;  // 带宽上限 Mbps
  latencyTarget: number; // 目标延迟 ms
  lossTolerant: boolean; // 是否容忍丢包
}

const CHANNEL_CONFIGS: Record<string, ChannelConfig> = {
  'video': {
    channelType: 'video',
    priority: 10,
    bandwidthCap: 500,
    latencyTarget: 16,      // 60fps ≈ 16ms/帧
    lossTolerant: true      // 视频丢帧可接受
  },
  'file': {
    channelType: 'file',
    priority: 5,
    bandwidthCap: 200,
    latencyTarget: 100,
    lossTolerant: false     // 文件传输不能丢
  },
  'message': {
    channelType: 'message',
    priority: 8,
    bandwidthCap: 1,
    latencyTarget: 50,
    lossTolerant: false
  }
};

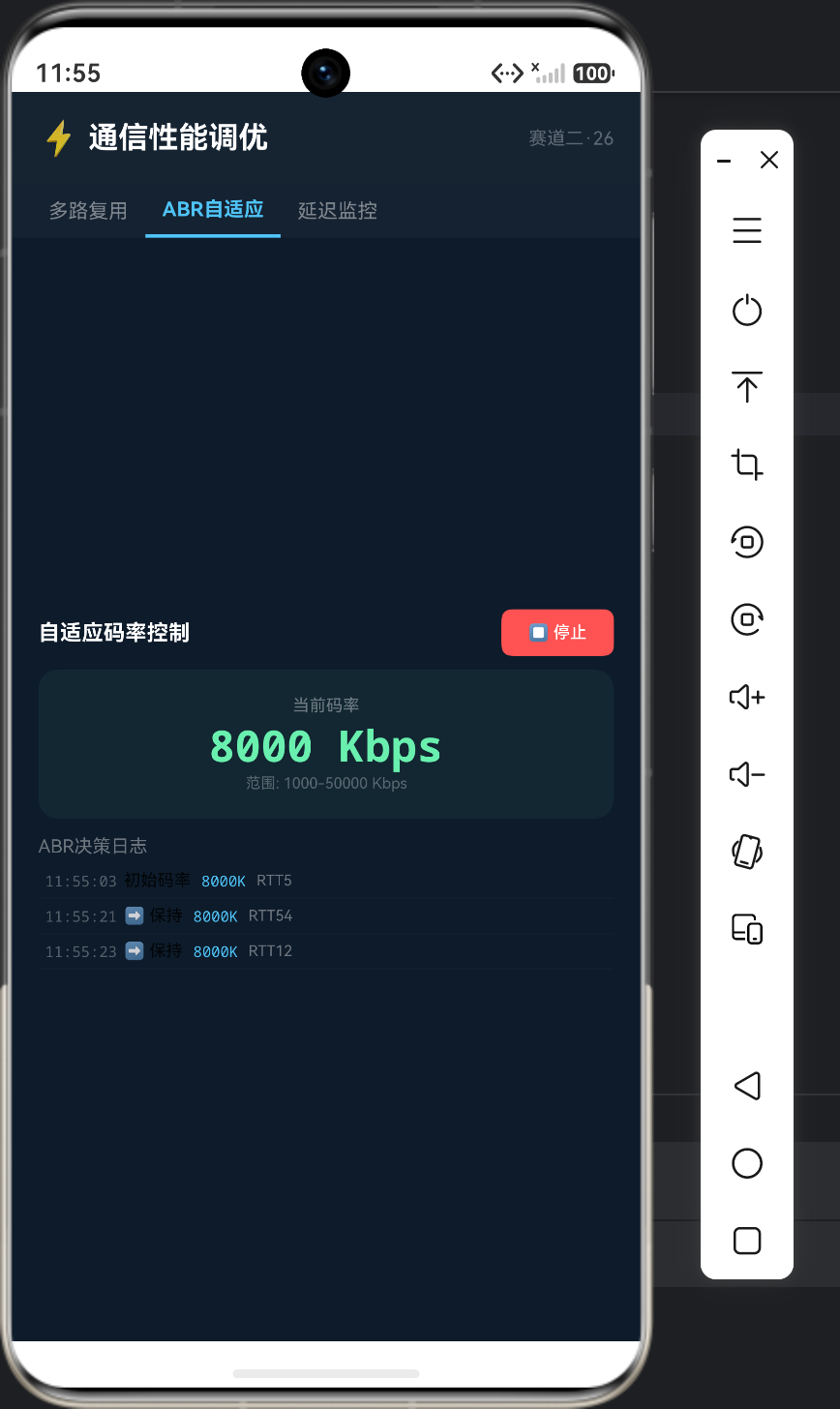

2.2 自适应码率控制

class AdaptiveBitrateController {
  private currentBitrate: number = 8000000; // 初始8Mbps
  private readonly MIN_BITRATE: number = 1000000;
  private readonly MAX_BITRATE: number = 50000000;
  private readonly INCREASE_STEP: number = 0.1;  // 10%上调
  private readonly DECREASE_FACTOR: number = 0.5; // 50%下调

  // 根据网络质量调整码率
  adjustBitrate(networkMetrics: NetworkQualityMetrics): number {
    const { rtt, packetLoss, bandwidth } = networkMetrics;

    if (packetLoss > 0.05 || rtt > 150) {
      // 网络差：快速降码率
      this.currentBitrate = Math.max(
        this.MIN_BITRATE,
        this.currentBitrate * this.DECREASE_FACTOR
      );
    } else if (packetLoss < 0.01 && rtt < 30 && this.currentBitrate < bandwidth * 0.8) {
      // 网络好：缓慢升码率
      this.currentBitrate = Math.min(
        this.MAX_BITRATE,
        this.currentBitrate * (1 + this.INCREASE_STEP)
      );
    }

    return this.currentBitrate;
  }

  getCurrentBitrate(): number {
    return this.currentBitrate;
  }
}

2.3 零拷贝传输

// 鸿蒙通过SharedMemory实现零拷贝跨进程/跨设备传输
import { sharedMemory } from '@kit.IPCKit';

class ZeroCopyTransfer {
  // 创建共享内存池
  async createSharedPool(sizeBytes: number): Promise<number> {
    const ashmem: sharedMemory.AshMemory =
      await sharedMemory.create('dist_transfer_pool', sizeBytes);
    return ashmem.getFd();
  }

  // 写入数据到共享内存（零拷贝）
  async writeToSharedMemory(fd: number, data: ArrayBuffer, offset: number): Promise<void> {
    const ashmem: sharedMemory.AshMemory =
      sharedMemory.mapAshmem(fd, data.byteLength);
    ashmem.setProt(sharedMemory.PROT_READ | sharedMemory.PROT_WRITE);
    ashmem.write(offset, data);
  }

  // 从共享内存读取（零拷贝）
  async readFromSharedMemory(
    fd: number, offset: number, length: number
  ): Promise<ArrayBuffer> {
    const ashmem: sharedMemory.AshMemory =
      sharedMemory.mapAshmem(fd, length);
    const buffer: ArrayBuffer = new ArrayBuffer(length);
    ashmem.read(offset, buffer);
    return buffer;
  }
}

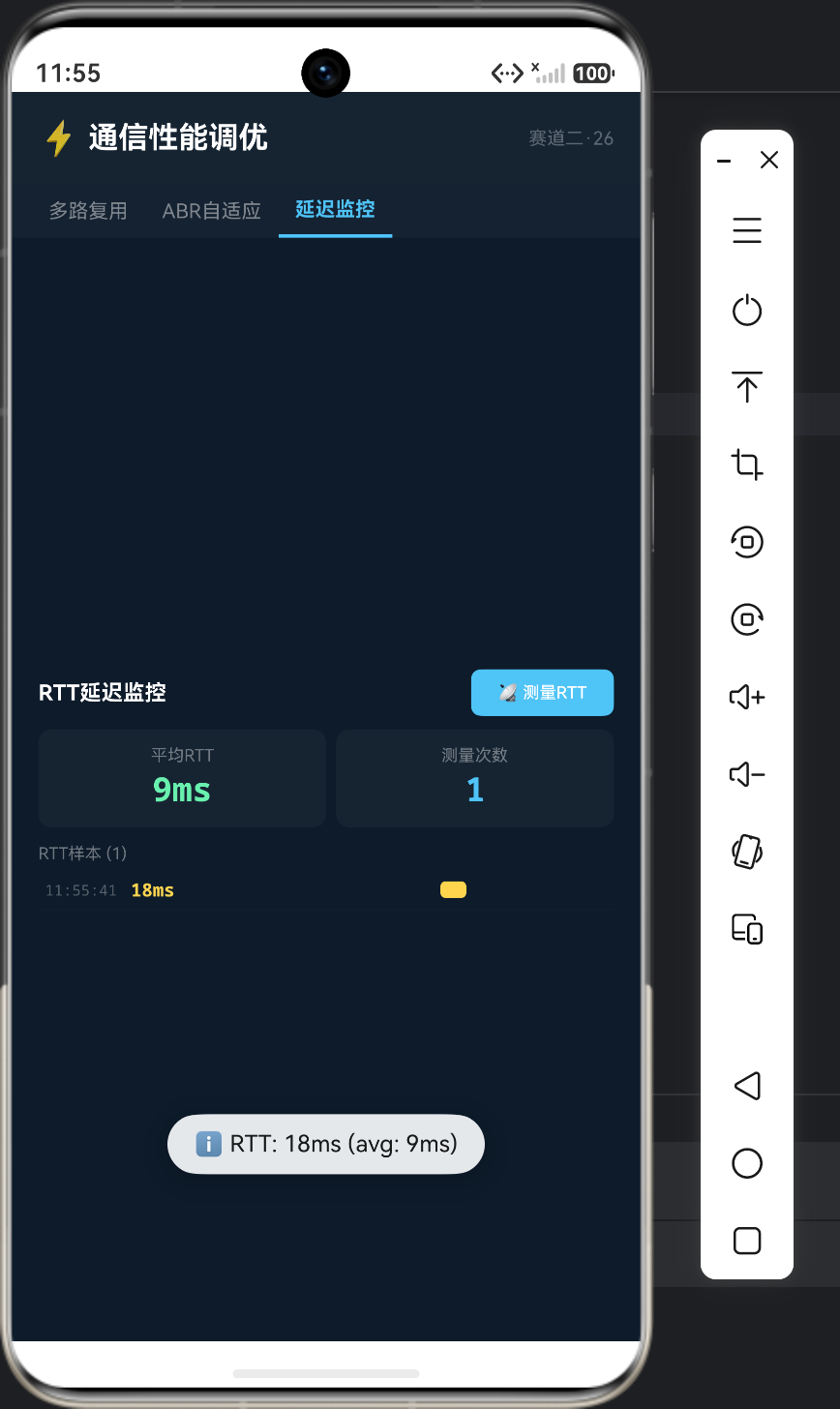

2.4 延迟测量与优化

class LatencyOptimizer {
  private rttHistory: number[] = [];

  // 测量RTT
  async measureRTT(targetDeviceId: string): Promise<number> {
    const startTime: number = performance.now();

    // 发送ping包
    const pingSent: boolean = await this.sendPing(targetDeviceId);
    if (!pingSent) return -1;

    const rtt: number = performance.now() - startTime;
    this.rttHistory.push(rtt);

    // 窗口大小=10
    if (this.rttHistory.length > 10) {
      this.rttHistory.shift();
    }

    return rtt;
  }

  // 获取平均RTT
  getAverageRTT(): number {
    if (this.rttHistory.length === 0) return 0;
    let sum: number = 0;
    for (let i: number = 0; i < this.rttHistory.length; i++) {
      sum += this.rttHistory[i];
    }
    return sum / this.rttHistory.length;
  }

  // 延迟预测：使用简单移动平均
  predictNextRTT(): number {
    if (this.rttHistory.length < 3) return this.getAverageRTT();

    // 检查是否稳定(标准差<5ms)
    const avg: number = this.getAverageRTT();
    let variance: number = 0;
    for (let i: number = 0; i < this.rttHistory.length; i++) {
      variance += Math.pow(this.rttHistory[i] - avg, 2);
    }
    variance /= this.rttHistory.length;

    return variance < 25 ? avg : avg * 1.2; // 不稳定时加20%缓冲
  }
}

三、性能优化速查

四、避坑速查

五、总结

跨设备通信性能调优的关键路径：

1. 多路复用：Video/File/Message分Channel，优先级调度
2. ABR自适应：根据RTT/丢包动态调码率，快速降/慢升
3. 零拷贝：SharedMemory绕开内核缓冲区拷贝
4. Buffer Pool：预分配复用，避免频繁GC
