一、前置思考

分布式应用的"阿喀琉斯之踵"是网络——弱网、断连、NAT穿越失败、信道冲突，任何一个网络问题都能让精心设计的分布式体验瞬间崩塌。开发者在稳定WiFi环境下测试一切正常，一到用户家中（路由器老旧、微波炉干扰、隔壁WiFi信道重叠）就各种问题。

本文聚焦：

  • 软总线重连机制的底层原理
  • 心跳检测的长短周期策略
  • 超时重试的指数退避算法
  • 网络质量探测与自适应策略

真实痛点场景：

  1. 间歇性断连：投屏每隔几分钟就断开一次，自动重连后又断
  2. 重连风暴：设备断连后大量重试请求，波及正常连接
  3. 信道切换导致丢包：WiFi P2P降级到BLE时，正在传输的文件损坏
  4. NAT穿越失败：公司和家中设备在不同子网，完全发现不了对方

二、核心原理

2.1 软总线重连机制

正常状态                       异常处理
┌─────────┐                  ┌──────────────┐
│ CONNECTED│ ──心跳超时──→   │  DISCONNECTING│
└─────────┘                  └──────┬───────┘
     ↑                              │
     │                    ┌─────────▼──────────┐
     │                    │   快速重试阶段      │
     │                    │   (0-30s)           │
     │                    │   间隔: 1s/2s/4s/8s │
     │                    └─────────┬──────────┘
     │                              │ 重试失败
     │                    ┌─────────▼──────────┐
     │                    │   慢速重试阶段      │
     │                    │   (30s-5min)        │
     │                    │   间隔: 8s/16s/32s  │
     │                    └─────────┬──────────┘
     │                              │ 重试失败
     │                    ┌─────────▼──────────┐
     │                    │   保活探测阶段      │
     │                    │   (5min-infinity)   │
     │                    │   间隔: 30s         │
     │                    └─────────┬──────────┘
     │                              │ 探测成功
     └──────────────────────────────┘

2.2 心跳机制设计

interface HeartbeatConfig {
  normalInterval: number;     // 正常心跳间隔 (ms)，推荐5000
  suspiciousInterval: number; // 可疑心跳间隔 (ms)，推荐1000
  timeoutMultiplier: number;  // 超时倍数，推荐3
  missedThreshold: number;    // 连续丢失阈值，推荐3
}

class HeartbeatManager {
  private config: HeartbeatConfig;
  private missedCount: number = 0;
  private lastResponseTime: number = 0;
  private timerId: number = -1;

  constructor(config: HeartbeatConfig) {
    this.config = config;
  }

  // 启动心跳
  start(onTimeout: () => void): void {
    this.scheduleNext(onTimeout);
  }

  private scheduleNext(onTimeout: () => void): void {
    // 根据丢包情况动态调整间隔
    let interval: number = this.config.normalInterval;
    if (this.missedCount > 0) {
      interval = this.config.suspiciousInterval;
    }

    this.timerId = setTimeout(() => {
      this.missedCount++;
      if (this.missedCount >= this.config.missedThreshold) {
        onTimeout(); // 触发断连处理
      } else {
        this.scheduleNext(onTimeout);
      }
    }, interval);
  }

  // 收到心跳响应
  onHeartbeatReceived(): void {
    this.missedCount = 0;
    this.lastResponseTime = Date.now();
  }

  // 当前网络健康度
  getHealthStatus(): 'healthy' | 'suspicious' | 'dead' {
    if (this.missedCount === 0) return 'healthy';
    if (this.missedCount < this.config.missedThreshold) return 'suspicious';
    return 'dead';
  }

  stop(): void {
    if (this.timerId >= 0) {
      clearTimeout(this.timerId);
      this.timerId = -1;
    }
  }
}

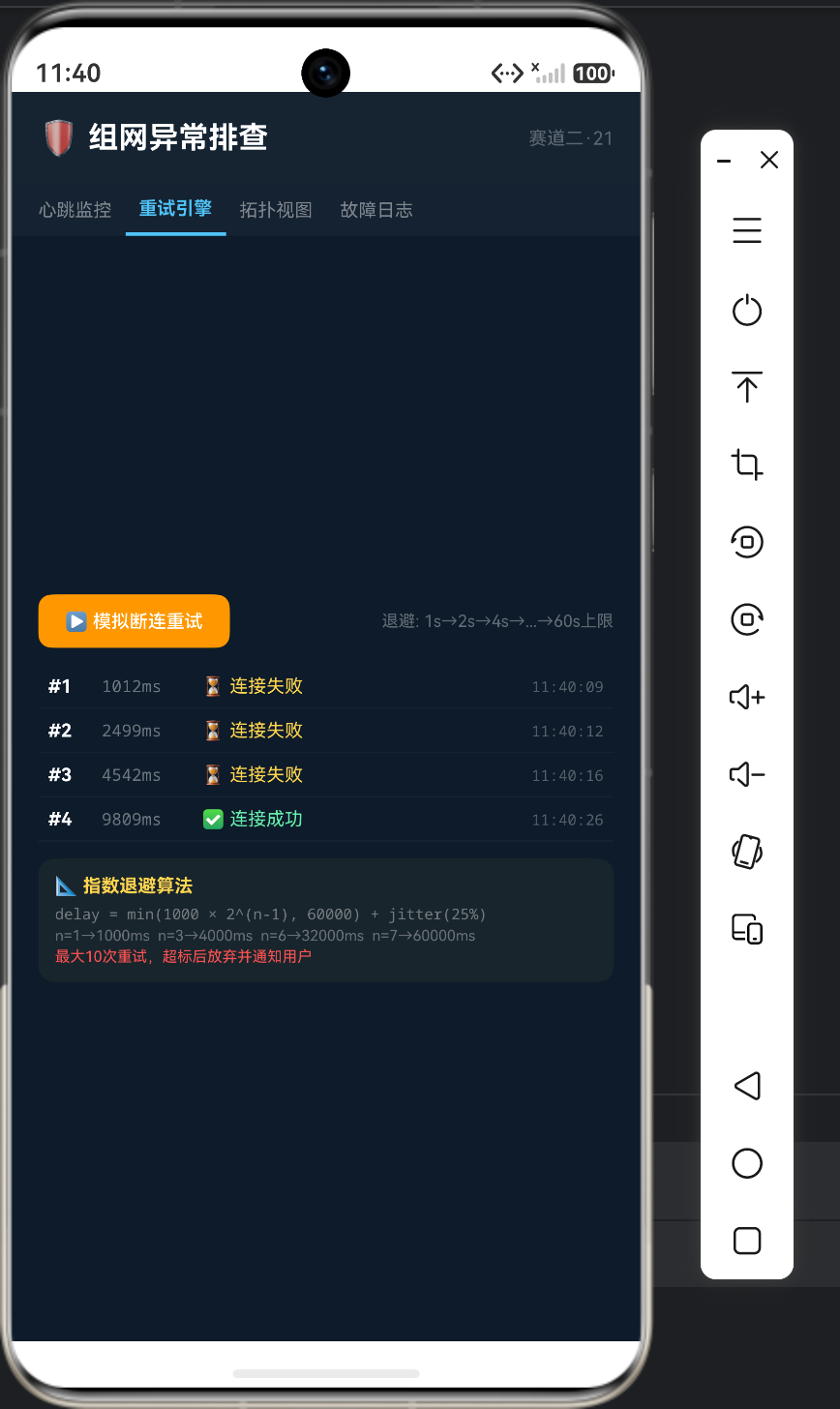

2.3 指数退避重试

class ExponentialBackoffRetry {
  private readonly BASE_DELAY_MS: number = 1000;  // 基础延迟1秒
  private readonly MAX_DELAY_MS: number = 60000;  // 最大延迟60秒
  private readonly JITTER_FACTOR: number = 0.25;   // 抖动因子25%
  private readonly MAX_RETRIES: number = 10;

  private retryCount: number = 0;
  private timerId: number = -1;

  // 执行带重试的操作
  async executeWithRetry<T>(
    operation: () => Promise<T>,
    onRetry: (attempt: number, delayMs: number) => void
  ): Promise<T> {
    while (this.retryCount <= this.MAX_RETRIES) {
      try {
        return await operation();
      } catch (err) {
        this.retryCount++;
        if (this.retryCount > this.MAX_RETRIES) {
          throw err; // 重试耗尽
        }

        // 计算退避延迟: BASE * 2^(retryCount-1) + jitter
        const baseDelay: number = Math.min(
          this.BASE_DELAY_MS * Math.pow(2, this.retryCount - 1),
          this.MAX_DELAY_MS
        );
        const jitter: number = baseDelay * this.JITTER_FACTOR * Math.random();
        const delay: number = baseDelay + jitter;

        onRetry(this.retryCount, delay);

        // 等待后重试
        await this.delay(delay);
      }
    }
    throw new Error('不可达状态');
  }

  reset(): void {
    this.retryCount = 0;
  }

  private delay(ms: number): Promise<void> {
    return new Promise<void>((resolve) => {
      setTimeout(() => { resolve(); }, ms);
    });
  }
}

// 使用示例
const retryManager: ExponentialBackoffRetry =
  new ExponentialBackoffRetry();

try {
  const result: Record<string, Object> =
    await retryManager.executeWithRetry(
      async () => {
        return await distributedKVStore.sync([], SyncMode.PUSH_PULL);
      },
      (attempt: number, delayMs: number) => {
        console.info('[Retry] 第' + String(attempt) +
          '次重试, 延迟' + String(delayMs) + 'ms');
      }
    );
} catch (e) {
  console.error('[Retry] 所有重试耗尽');
}

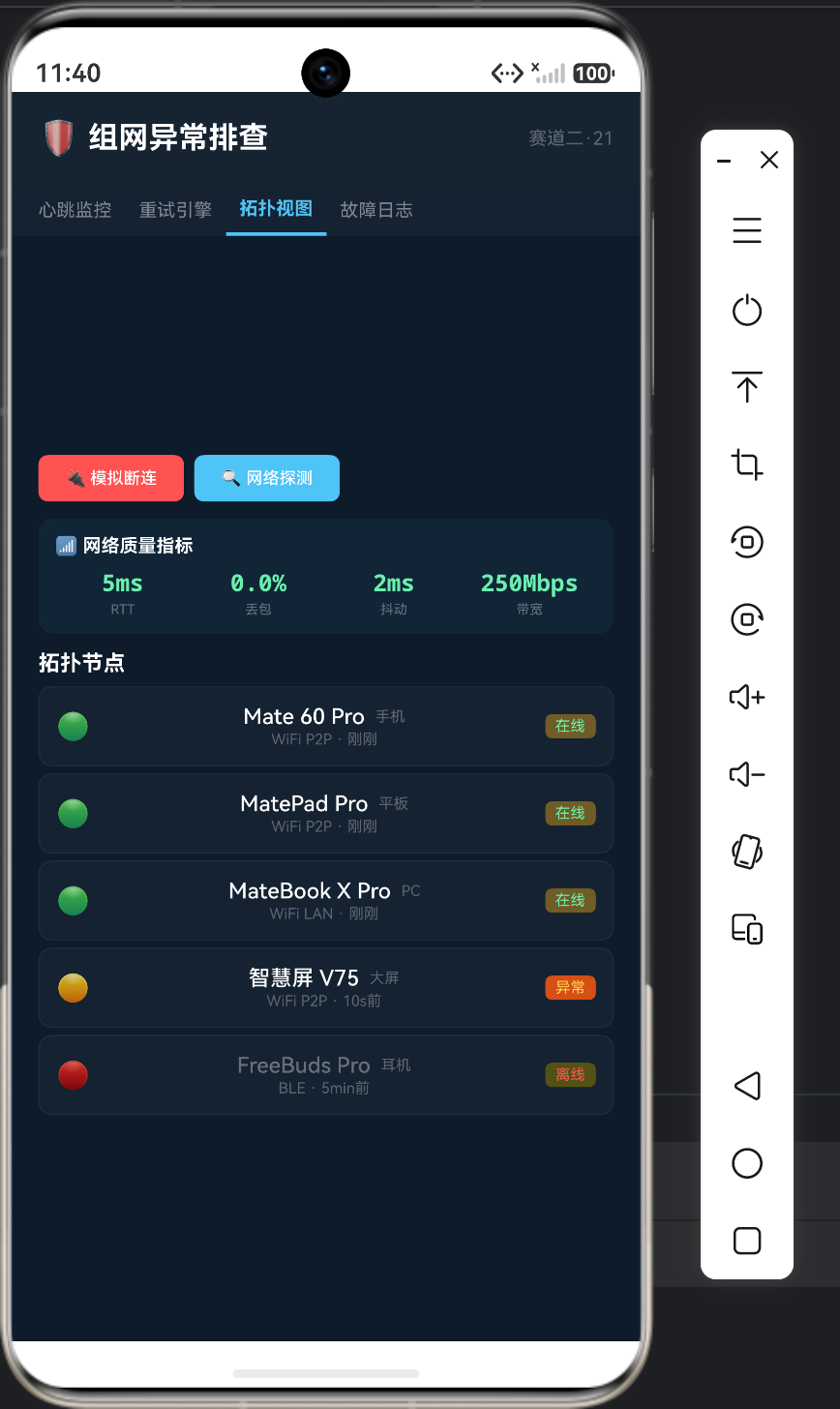

2.4 网络质量探测

interface NetworkQualityMetrics {
  rtt: number;          // 往返时延(ms)
  packetLoss: number;   // 丢包率(0~1)
  jitter: number;       // 抖动(ms)
  bandwidth: number;    // 可用带宽(Mbps)
  signalStrength: number; // 信号强度(dBm)
}

class NetworkQualityProbe {
  private readonly PROBE_INTERVAL_MS: number = 10000; // 每10秒探测一次
  private history: NetworkQualityMetrics[] = [];
  private readonly HISTORY_SIZE: number = 10;

  // 主动探测（发送小包测量RTT）
  async probe(targetDeviceId: string): Promise<NetworkQualityMetrics> {
    const startTime: number = Date.now();
    let packetLoss: number = 0;
    let rttSum: number = 0;

    // 发送5个探测包
    for (let i: number = 0; i < 5; i++) {
      const sentTime: number = Date.now();
      const received: boolean = await this.sendProbePacket(targetDeviceId);
      if (received) {
        rttSum += (Date.now() - sentTime);
      } else {
        packetLoss++;
      }
    }

    const metrics: NetworkQualityMetrics = {
      rtt: rttSum / (5 - packetLoss),
      packetLoss: packetLoss / 5,
      jitter: this.calculateJitter(),
      bandwidth: this.estimateBandwidth(),
      signalStrength: this.getSignalStrength()
    };

    this.recordMetric(metrics);
    return metrics;
  }

  // 根据质量指标决策
  getAdaptiveStrategy(metrics: NetworkQualityMetrics): ChannelStrategy {
    if (metrics.rtt < 10 && metrics.packetLoss < 0.01) {
      return { fps: 60, bitrate: 8000000, codec: 'h265', channel: 'wifi_p2p' };
    } else if (metrics.rtt < 50 && metrics.packetLoss < 0.05) {
      return { fps: 30, bitrate: 4000000, codec: 'h264', channel: 'wifi_p2p' };
    } else if (metrics.rtt < 100 && metrics.packetLoss < 0.1) {
      return { fps: 15, bitrate: 1500000, codec: 'h264', channel: 'wifi_lan' };
    } else {
      return { fps: 10, bitrate: 500000, codec: 'h264', channel: 'ble' };
    }
  }

  private recordMetric(m: NetworkQualityMetrics): void {
    this.history.push(m);
    if (this.history.length > this.HISTORY_SIZE) {
      this.history.shift();
    }
  }

  private calculateJitter(): number {
    if (this.history.length < 2) return 0;
    let jitterSum: number = 0;
    for (let i: number = 1; i < this.history.length; i++) {
      jitterSum += Math.abs(this.history[i].rtt - this.history[i-1].rtt);
    }
    return jitterSum / (this.history.length - 1);
  }

  private estimateBandwidth(): number {
    // 简化估算：根据历史RTT反推
    const avgRtt: number = this.history.length > 0 ?
      this.history[this.history.length - 1].rtt : 50;
    // 假设TCP吞吐量 ≈ MSS / (RTT * sqrt(packetLoss))
    const mss: number = 1460 * 8; // bits
    const loss: number = 0.01;
    return Math.round(mss / (avgRtt / 1000 * Math.sqrt(loss)) / 1000000);
  }

  private getSignalStrength(): number {
    return -45; // 模拟值
  }
}

interface ChannelStrategy {
  fps: number;
  bitrate: number;
  codec: string;
  channel: string;
}

三、容错实战

3.1 断连保护机制

class ConnectionGuard {
  private readonly RECONNECT_COOLDOWN_MS: number = 5000; // 冷却时间
  private lastReconnectTime: number = 0;
  private isReconnecting: boolean = false;

  // 防抖重连
  async safeReconnect(deviceId: string): Promise<boolean> {
    const now: number = Date.now();
    if (now - this.lastReconnectTime < this.RECONNECT_COOLDOWN_MS) {
      console.info('[Guard] 重连冷却中, 跳过');
      return false;
    }
    if (this.isReconnecting) {
      console.info('[Guard] 已有重连进行中');
      return false;
    }

    this.isReconnecting = true;
    this.lastReconnectTime = now;

    try {
      await this.doReconnect(deviceId);
      return true;
    } finally {
      this.isReconnecting = false;
    }
  }

  private async doReconnect(deviceId: string): Promise<void> {
    // 1. 检查设备是否在线
    // 2. 重新建立Session
    // 3. 恢复数据同步状态
    console.info('[Guard] 重连成功: ' + deviceId);
  }
}

3.2 拓扑变化适应

interface TopologyChangeHandler {
  onNodeAdded(nodeId: string): void;
  onNodeRemoved(nodeId: string): void;
  onChannelChanged(from: string, to: string): void;
}

class TopologyAwareClient {
  private handler: TopologyChangeHandler;
  private nodeSnapshot: Map<string, string> = new Map();

  constructor(handler: TopologyChangeHandler) {
    this.handler = handler;
  }

  // 检测拓扑变化
  detectChanges(newNodes: Map<string, string>): void {
    // 检测新增节点
    const newNodeIds: string[] = [];
    const newKeys: string[] = [];
    const newEntries: MapIterator<[string, string]> = newNodes.entries();
    for (let entry = newEntries.next(); !entry.done; entry = newEntries.next()) {
      newKeys.push(entry.value[0]);
    }
    for (let i: number = 0; i < newKeys.length; i++) {
      const nodeId: string = newKeys[i];
      if (!this.nodeSnapshot.has(nodeId)) {
        newNodeIds.push(nodeId);
      }
    }

    // 检测移除节点
    const removedIds: string[] = [];
    const snapKeys: string[] = [];
    const snapEntries: MapIterator<[string, string]> = this.nodeSnapshot.entries();
    for (let entry = snapEntries.next(); !entry.done; entry = snapEntries.next()) {
      snapKeys.push(entry.value[0]);
    }
    for (let i: number = 0; i < snapKeys.length; i++) {
      const nodeId: string = snapKeys[i];
      if (!newNodes.has(nodeId)) {
        removedIds.push(nodeId);
      }
    }

    // 回调通知
    for (let i: number = 0; i < newNodeIds.length; i++) {
      this.handler.onNodeAdded(newNodeIds[i]);
    }
    for (let i: number = 0; i < removedIds.length; i++) {
      this.handler.onNodeRemoved(removedIds[i]);
    }

    // 更新快照
    this.nodeSnapshot = new Map(newNodes);
  }
}

四、避坑速查

坑 现象 原因 解决
重连风暴 断连后CPU飙升至100% 无退避的while(true)重试 指数退避+上限60秒+最大重试次数10
假死检测 设备已掉线但仍显示在线 心跳间隔过长 正常5s/可疑1s心跳，3次丢失判定离线
DNS缓存污染 重连后连到旧IP 局域网IP/DNS未刷新 重连前flushDNS()
NAT超时 空闲连接10分钟后断连 NAT表项过期 发送keepalive保活包，间隔比NAT超时短(如60s)
多信道冲突 WiFi和BLE同时传输互相干扰 2.4GHz频段共存 优先用5GHz WiFi，或分时复用
重连后数据不一致 断连期间本地有修改 未做增量同步 断连期间记录本地change log，重连后增量合并
自动重连不触发 断连后永远不再尝试 重连逻辑有bug/无限循环 重连状态机+超时保护+冷却防抖
断连期间UI未更新 界面仍显示"已连接" 未监听stateChange 注册软总线stateChange回调同步更新UI

五、总结

分布式组网容错的核心是**“假设网络不可靠，所有操作都要有重试和超时”**：

  1. 心跳：5s正常/1s可疑 → 3次丢失 → 判定离线 → 启动重连
  2. 重试：指数退避 → 1s/2s/4s/8s…直到60s上限 → 10次后放弃
  3. 防抖：重连CD 5秒，避免重连风暴
  4. 自适应：根据RTT/丢包动态调整FPS/码率/信道
