📚 鸿蒙原生应用实战（二十）ArkUI 课程表 App：Grid 网格 + SQLite 存储 + 周次切换 + 上课提醒

博主说： 每个学生手机里都应该有一个课程表 App。今天我们用 ArkUI 的 Grid 网格布局 + SQLite 存储 + Notification 通知，从零实现一个支持课程管理、周次切换、上课提醒、单/双周区分、Widget 桌面显示的智能课程表。

📱 应用场景

⚙️ 运行环境要求

🛠️ 实战：从零搭建课程表 App

Step 1：数据结构

interface Course {
  id: number;
  name: string;           // 课程名
  teacher: string;        // 老师
  classroom: string;      // 教室
  dayOfWeek: number;      // 1~7 (周一~周日)
  startSlot: number;      // 开始节次 1~12
  endSlot: number;        // 结束节次
  weekStart: number;      // 开始周
  weekEnd: number;        // 结束周
  weekType: 'all' | 'odd' | 'even'; // 全部/单周/双周
  color: string;          // 颜色标记
}

Step 2：完整代码

// pages/Index.ets — 课程表 App
import relationalStore from '@ohos.data.relationalStore';
import notification from '@ohos.notification';

const TIME_SLOTS = [
  '08:00-08:45', '08:55-09:40', '09:50-10:35', '10:45-11:30',
  '11:40-12:25', '14:00-14:45', '14:55-15:40', '15:50-16:35',
  '16:45-17:30', '18:30-19:15', '19:25-20:10', '20:20-21:05'
];

const COLORS = ['#FF3B30','#FF9500','#FFCC00','#34C759','#007AFF','#5856D6','#AF52DE'];

@Entry
@Component
struct TimetableApp {
  @State courses: Course[] = [];
  @State currentWeek: number = 1;
  @State totalWeeks: number = 20;
  @State showAddDialog: boolean = false;
  @State editName: string = '';
  @State editTeacher: string = '';
  @State editRoom: string = '';
  @State editDay: number = 1;
  @State editStart: number = 1;
  @State editEnd: number = 2;
  @State editColor: string = '#007AFF';
  @State editWeekType: 'all' | 'odd' | 'even' = 'all';
  @State selectedCourse: Course | null = null;

  private store!: relationalStore.RdbStore;

  // 星期标题
  private weekDays = ['周一', '周二', '周三', '周四', '周五', '周六', '周日'];

  aboutToAppear() {
    this.initDB();
  }

  async initDB() {
    const config = { name: 'timetable.db', securityLevel: relationalStore.SecurityLevel.S1 };
    this.store = await relationalStore.getRdbStore(getContext(this), config);
    await this.store.executeSql(
      `CREATE TABLE IF NOT EXISTS courses (
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        name TEXT, teacher TEXT, classroom TEXT,
        dayOfWeek INTEGER, startSlot INTEGER, endSlot INTEGER,
        weekStart INTEGER, weekEnd INTEGER,
        weekType TEXT DEFAULT 'all', color TEXT DEFAULT '#007AFF'
      )`
    );
    await this.loadCourses();
  }

  async loadCourses() {
    const p = new relationalStore.RdbPredicates('courses');
    p.orderByAsc('dayOfWeek').orderByAsc('startSlot');
    const r = await this.store.query(p, ['id','name','teacher','classroom','dayOfWeek','startSlot','endSlot','weekStart','weekEnd','weekType','color']);
    const list: Course[] = [];
    while (r.goToNextRow()) {
      list.push({
        id: r.getLong(r.getColumnIndex('id')),
        name: r.getString(r.getColumnIndex('name')),
        teacher: r.getString(r.getColumnIndex('teacher') || ''),
        classroom: r.getString(r.getColumnIndex('classroom') || ''),
        dayOfWeek: r.getLong(r.getColumnIndex('dayOfWeek')),
        startSlot: r.getLong(r.getColumnIndex('startSlot')),
        endSlot: r.getLong(r.getColumnIndex('endSlot')),
        weekStart: r.getLong(r.getColumnIndex('weekStart')),
        weekEnd: r.getLong(r.getColumnIndex('weekEnd')),
        weekType: r.getString(r.getColumnIndex('weekType')) as 'all' | 'odd' | 'even',
        color: r.getString(r.getColumnIndex('color'))
      });
    }
    this.courses = list;
    r.close();
  }

  async addCourse() {
    if (!this.editName.trim()) return;
    await this.store.insert('courses', {
      name: this.editName, teacher: this.editTeacher,
      classroom: this.editRoom, dayOfWeek: this.editDay,
      startSlot: this.editStart, endSlot: this.editEnd,
      weekStart: 1, weekEnd: this.totalWeeks,
      weekType: this.editWeekType, color: this.editColor
    });
    await this.loadCourses();
    this.showAddDialog = false;
    this.editName = '';
  }

  async deleteCourse(id: number) {
    const p = new relationalStore.RdbPredicates('courses');
    p.equalTo('id', id);
    await this.store.delete(p);
    await this.loadCourses();
  }

  // ======== 判断当前周是否上课 ========
  isCourseActive(course: Course): boolean {
    if (this.currentWeek < course.weekStart || this.currentWeek > course.weekEnd) return false;
    if (course.weekType === 'odd' && this.currentWeek % 2 === 0) return false;
    if (course.weekType === 'even' && this.currentWeek % 2 === 1) return false;
    return true;
  }

  // ======== 获取某天某节次的课程 ========
  getCourse(day: number, slot: number): Course | undefined {
    return this.courses.find(c =>
      c.dayOfWeek === day &&
      c.startSlot <= slot && c.endSlot >= slot &&
      this.isCourseActive(c)
    );
  }

  // ======== 计算课程占据的行数 ========
  getCourseRowSpan(course: Course): number {
    return course.endSlot - course.startSlot + 1;
  }

  // ======== 获取某天的所有课程（按节次排序） ========
  getCoursesForDay(day: number): Course[] {
    return this.courses.filter(c => c.dayOfWeek === day && this.isCourseActive(c))
      .sort((a, b) => a.startSlot - b.startSlot);
  }

  // ======== 时间格式化 ========
  formatCourseTime(course: Course): string {
    return `${TIME_SLOTS[course.startSlot - 1]}~${TIME_SLOTS[course.endSlot - 1].split('-')[1]}`;
  }

  // ======== 获取周的奇偶 ========
  getWeekLabel(): string {
    return `第 ${this.currentWeek} 周${this.currentWeek % 2 === 1 ? ' (单周)' : ' (双周)'}`;
  }

  build() {
    Column() {
      // ---- 周次导航 ----
      Row() {
        Button('◀').fontSize(20).backgroundColor('transparent').fontColor('#007AFF')
          .onClick(() => { if (this.currentWeek > 1) this.currentWeek--; })
        Text(this.getWeekLabel()).fontSize(18).fontWeight(FontWeight.Bold).layoutWeight(1)
          .textAlign(TextAlign.Center)
        Button('▶').fontSize(20).backgroundColor('transparent').fontColor('#007AFF')
          .onClick(() => { if (this.currentWeek < this.totalWeeks) this.currentWeek++; })
        Button('➕').fontSize(18).backgroundColor('transparent').fontColor('#FF3B30')
          .onClick(() => { this.showAddDialog = true; })
      }.width('96%').padding({ top: 8 })

      // ---- 星期标题行 ----
      Grid() {
        ForEach(this.weekDays, (day: string) => {
          GridItem() {
            Text(day).fontSize(12).fontColor('#666').fontWeight(FontWeight.Bold)
              .textAlign(TextAlign.Center).width('100%')
          }
        })
      }
      .columnsTemplate('1fr 1fr 1fr 1fr 1fr 1fr 1fr')
      .width('96%').height(24)

      // ---- 课程网格 (节次×星期) ----
      Scroll() {
        Grid() {
          ForEach([1,2,3,4,5,6,7,8,9,10,11,12], (slot: number) => {
            ForEach([1,2,3,4,5,6,7], (day: number) => {
              GridItem() {
                const course = this.getCourse(day, slot);
                if (course && course.startSlot === slot) {
                  // 课程卡片（只渲染起始节次）
                  Column() {
                    Text(course.name).fontSize(12).fontWeight(FontWeight.Bold)
                      .fontColor('#fff').maxLines(2).textOverflow({ overflow: TextOverflow.Ellipsis })
                    Text(`@${course.classroom || '未定'}`).fontSize(9).fontColor('rgba(255,255,255,0.8)')
                      .margin({ top: 2 })
                  }
                  .padding(4).width('100%').height('100%')
                  .backgroundColor(course.color)
                  .borderRadius(6)
                  .onClick(() => {
                    this.selectedCourse = course;
                    AlertDialog.show({
                      title: course.name,
                      message: `👨‍🏫 ${course.teacher}\n🏫 ${course.classroom}\n⏰ ${this.formatCourseTime(course)}`,
                      confirm: { value: '删除', fontColor: '#FF3B30', action: () => { this.deleteCourse(course.id); } }
                    });
                  })
                } else if (!course) {
                  // 空格
                  Column().width('100%').height(55)
                } else {
                  // 已被占据（跨节的课程）
                  Column().width('100%').height(55)
                }
              }
            })
          })
        }
        .columnsTemplate('1fr 1fr 1fr 1fr 1fr 1fr 1fr')
        .rowsTemplate('repeat(12, 55px)')
        .width('96%')
      }
      .layoutWeight(1).width('100%')

      // ---- 底部统计 ----
      Row() {
        Text(`📚 本周 ${this.courses.filter(c => this.isCourseActive(c)).length} 节课`)
          .fontSize(13).fontColor('#888')
      }.padding(8)
    }
    .width('100%').height('100%').backgroundColor('#F8F9FA')

    // 添加课程弹窗
    .bindSheet(this.showAddDialog, this.AddSheet())
  }

  @Builder
  AddSheet() {
    Column() {
      Text('添加课程').fontSize(20).fontWeight(FontWeight.Bold).margin({ bottom: 16 })

      TextInput({ placeholder: '课程名称 *', text: this.editName })
        .width('100%').height(40).backgroundColor('#F8F8F8').borderRadius(8).padding({ left: 12 })
      TextInput({ placeholder: '授课老师', text: this.editTeacher })
        .width('100%').height(40).backgroundColor('#F8F8F8').borderRadius(8).padding({ left: 12 }).margin({ top: 8 })
      TextInput({ placeholder: '教室', text: this.editRoom })
        .width('100%').height(40).backgroundColor('#F8F8F8').borderRadius(8).padding({ left: 12 }).margin({ top: 8 })

      Row() {
        Text('星期:').fontSize(14)
        ForEach(['周一','周二','周三','周四','周五','周六','周日'], (day: string, i: number) => {
          Button(day).fontSize(12).height(30)
            .backgroundColor(this.editDay === i+1 ? '#007AFF' : '#F0F0F0')
            .fontColor(this.editDay === i+1 ? '#fff' : '#333')
            .onClick(() => { this.editDay = i+1; })
        })
      }.width('100%').gap(4).margin({ top: 8 })

      Row() {
        Text('节次:').fontSize(14)
        Select([{ value: '1-2' }, { value: '3-4' }, { value: '5-6' }, { value: '7-8' }, { value: '9-10' }])
          .selected(0)
          .onSelect((_, val) => {
            const parts = val.split('-');
            this.editStart = parseInt(parts[0]);
            this.editEnd = parseInt(parts[1]);
          })
      }.margin({ top: 8 })

      Row() {
        Button('取消').backgroundColor('#E5E5EA').fontColor('#333').borderRadius(8).width('45%')
          .onClick(() => { this.showAddDialog = false; })
        Button('保存').backgroundColor('#007AFF').fontColor('#fff').borderRadius(8).width('45%')
          .onClick(() => { this.addCourse(); })
      }.width('100%').margin({ top: 16 })
    }.padding(24).width('100%')
  }
}

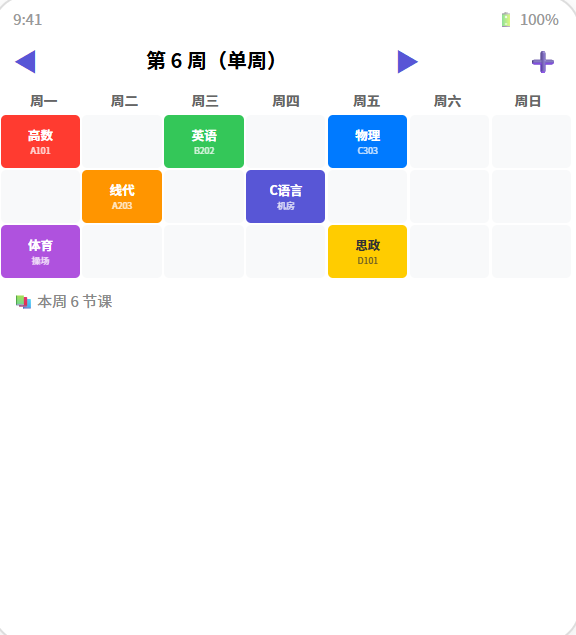

📊 课程表网格结构

┌──────┬──────┬──────┬──────┬──────┬──────┬──────┐
│ 周一  │ 周二  │ 周三  │ 周四  │ 周五  │ 周六  │ 周日  │
├──────┼──────┼──────┼──────┼──────┼──────┼──────┤
│ 高数  │      │ 英语  │      │ 物理  │      │      │
│ 1-2节│      │ 1-2节│      │ 1-2节│      │      │
├──────┼──────┼──────┼──────┼──────┼──────┼──────┤
│      │ 线代  │      │ C语言 │      │      │      │
│      │ 3-4节│      │ 3-4节│      │      │      │
├──────┼──────┼──────┼──────┼──────┼──────┼──────┤
│ 体育  │      │      │      │ 思政  │      │      │
│ 5-6节│      │      │      │ 5-6节│      │      │
└──────┴──────┴──────┴──────┴──────┴──────┴──────┘

⚠️ 避坑指南

🔥 最佳实践

1. 颜色编码：每门课固定颜色，一目了然
2. 学期切换：支持上/下学期数据分离
3. 上课提醒：每天早晨推送当天课程表
4. Widget 卡片：桌面 Widget 显示今日课程
5. 考试模式：课程结束后显示"已结课"标记
