鸿蒙ArkTS的http框架下的AI应用创建
本文介绍了如何使用Atomgit模型学习ArkTS的HTTP框架,重点展示了AIChatService.ets文件的实现。该文件将Python的HTTP请求转换为ArkTS版本,支持SSE流式响应和非流式回退。主要功能包括:解析SSE数据行、处理完整响应体、调用AI API进行聊天交互。代码提供了完整的请求结构体和回调接口,并实现了请求取消功能。示例效果展示了女友对话助手的功能实现,系统提示词定义

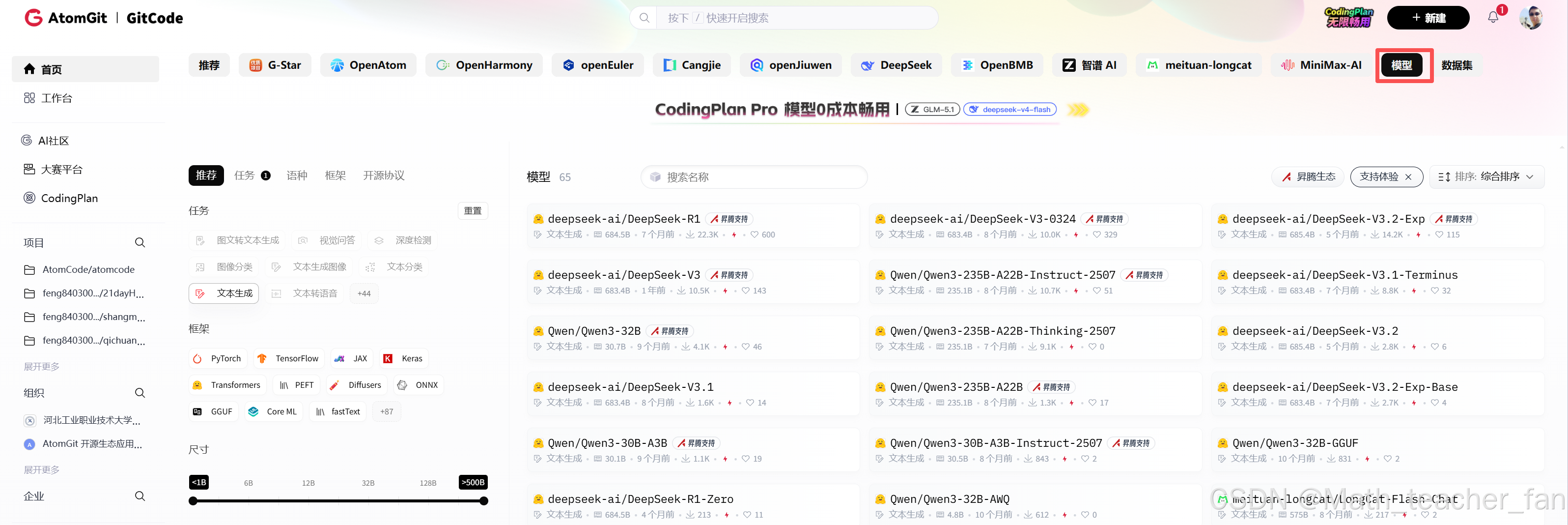

利用Atomgit的模型来学习ArkTS的HTTP框架。

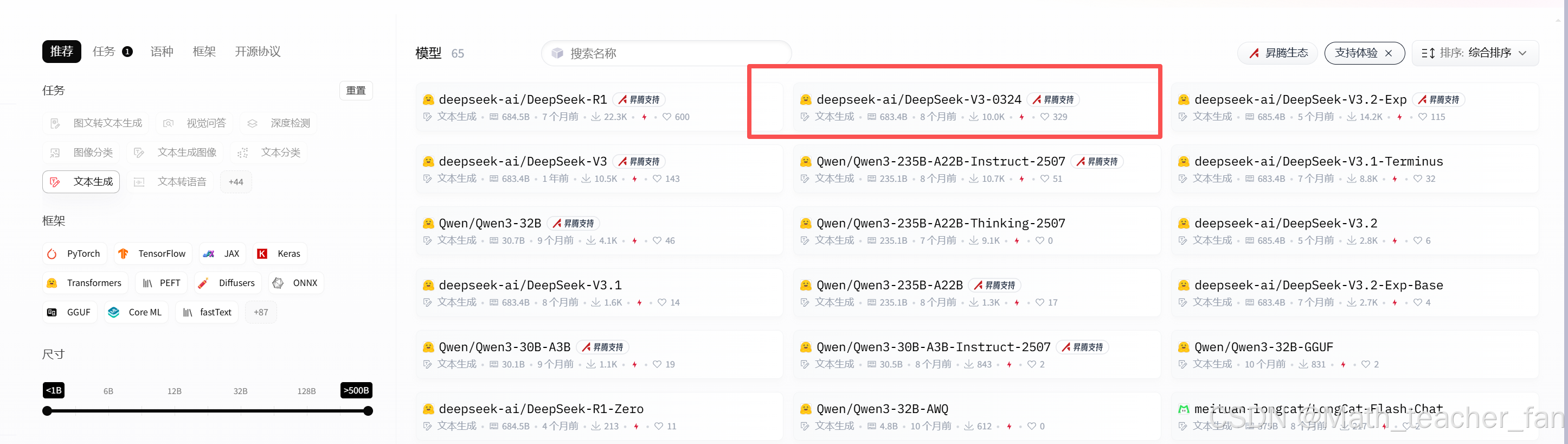

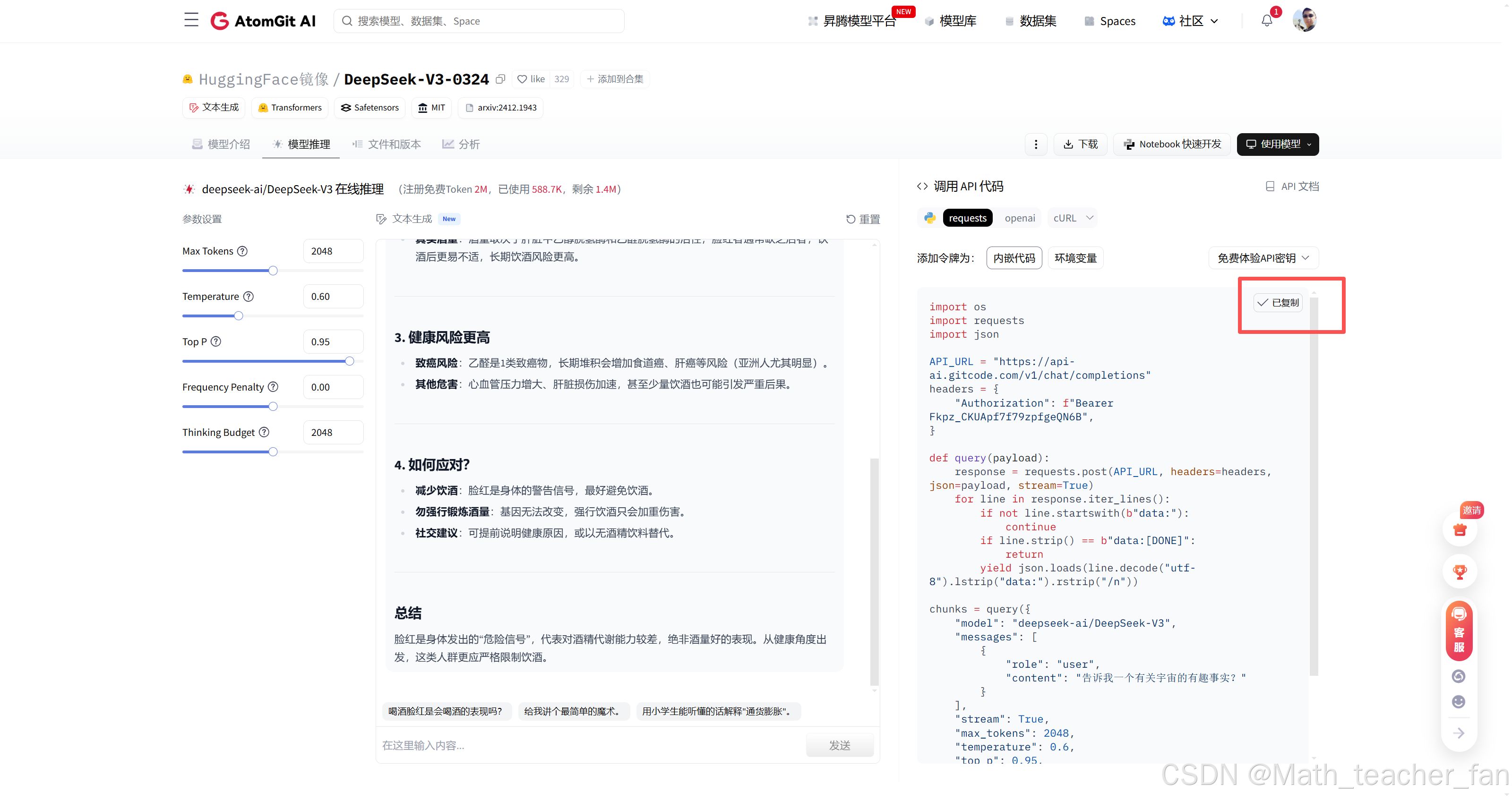

点击模型进入获取代码

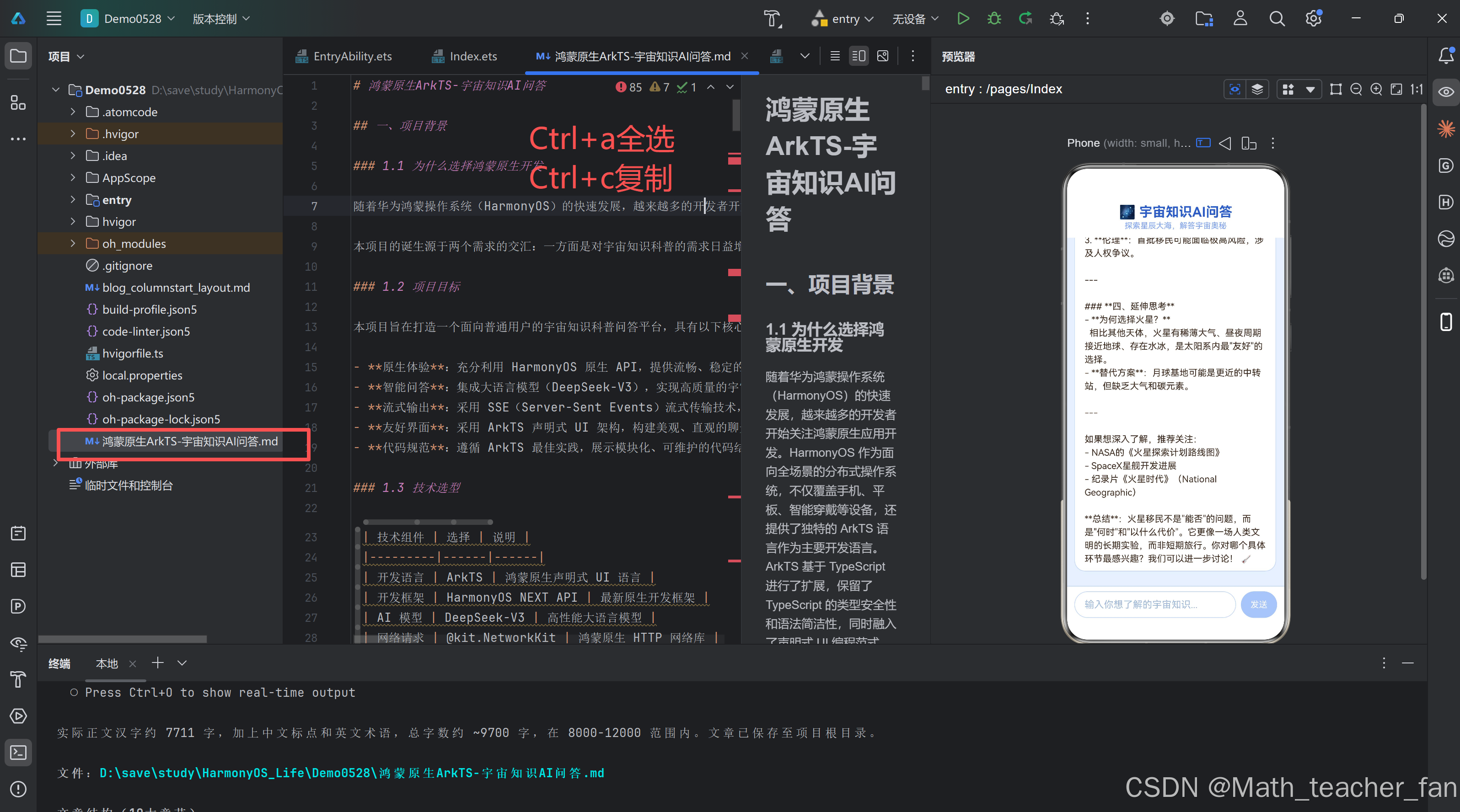

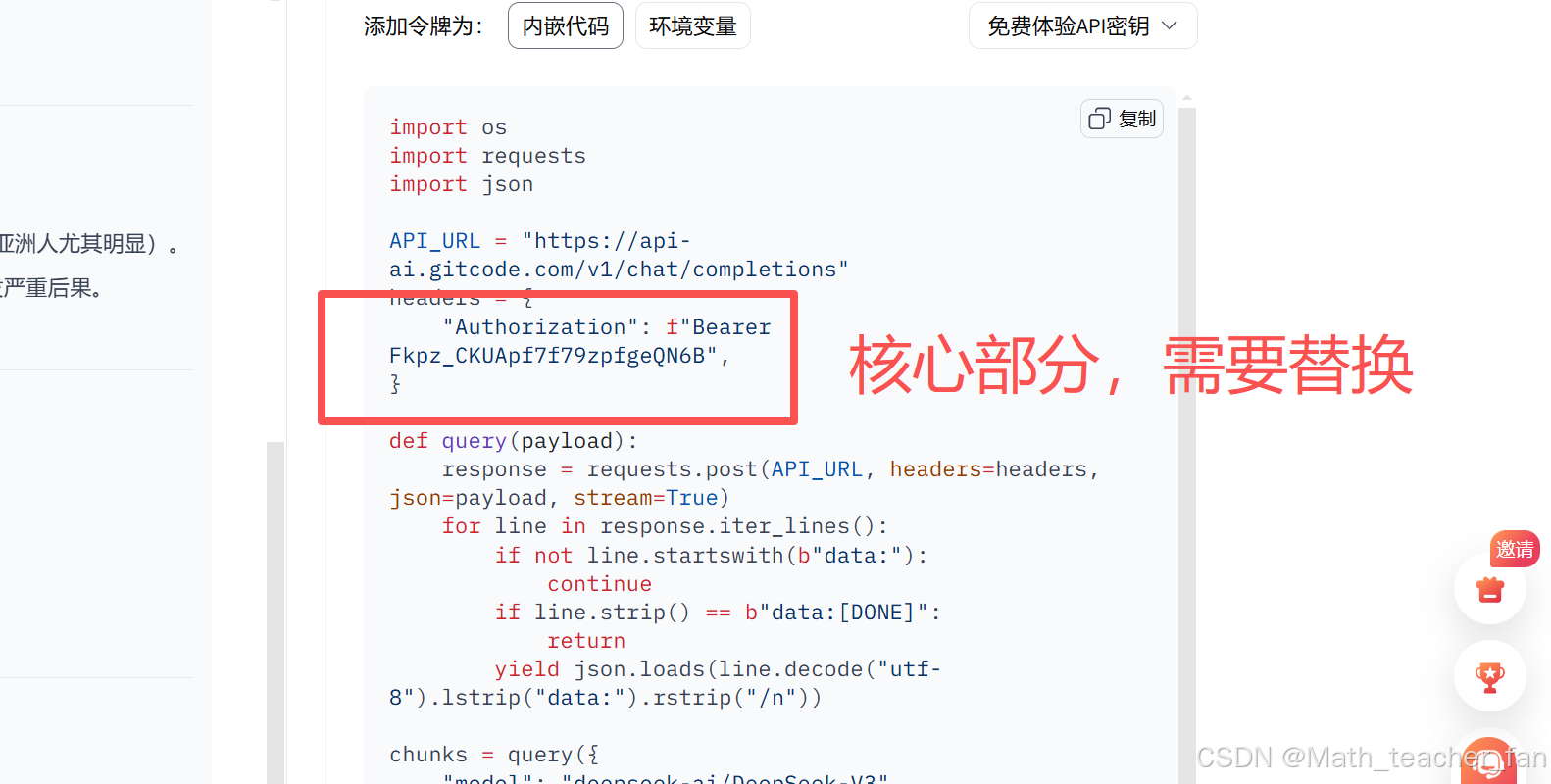

复制代码

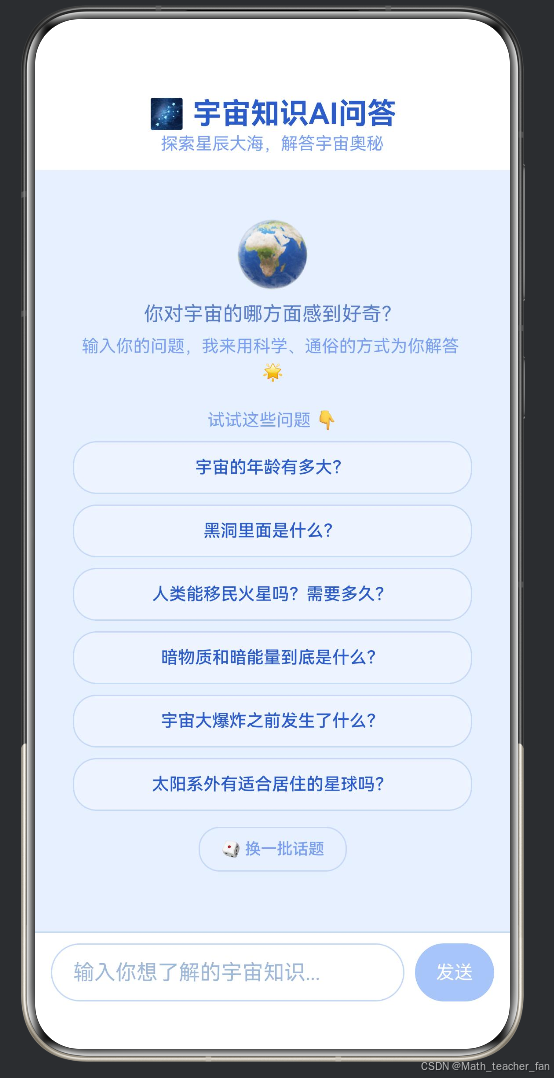

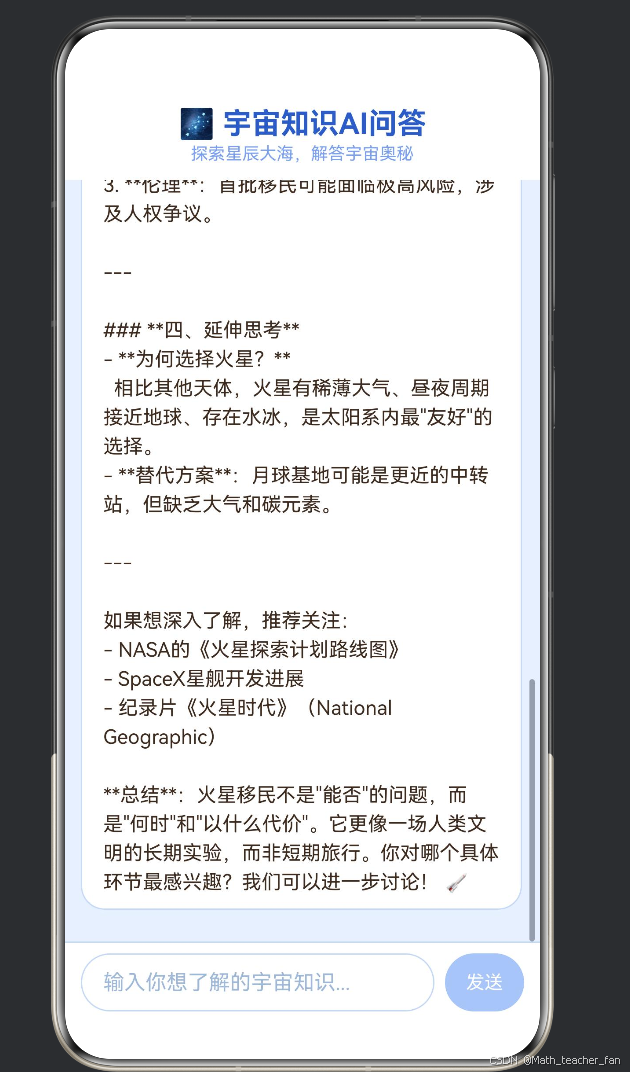

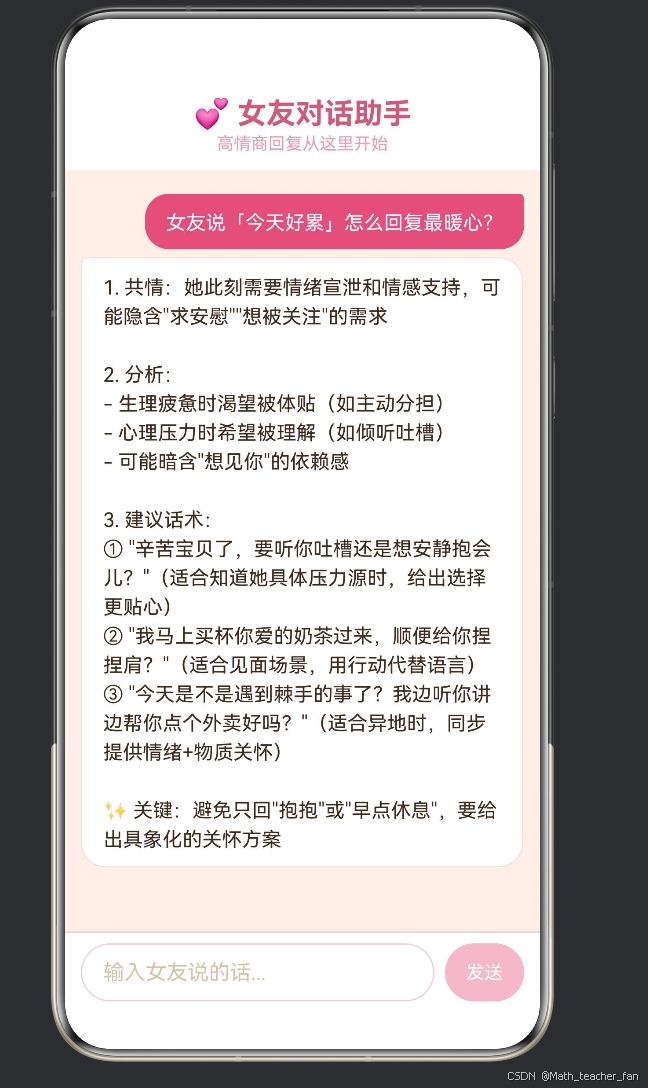

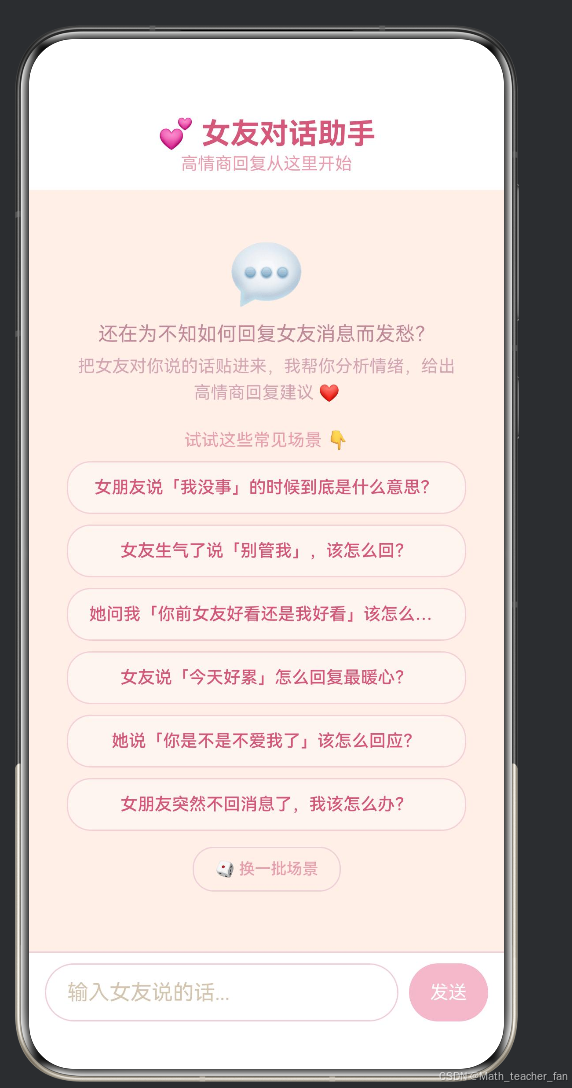

示例效果

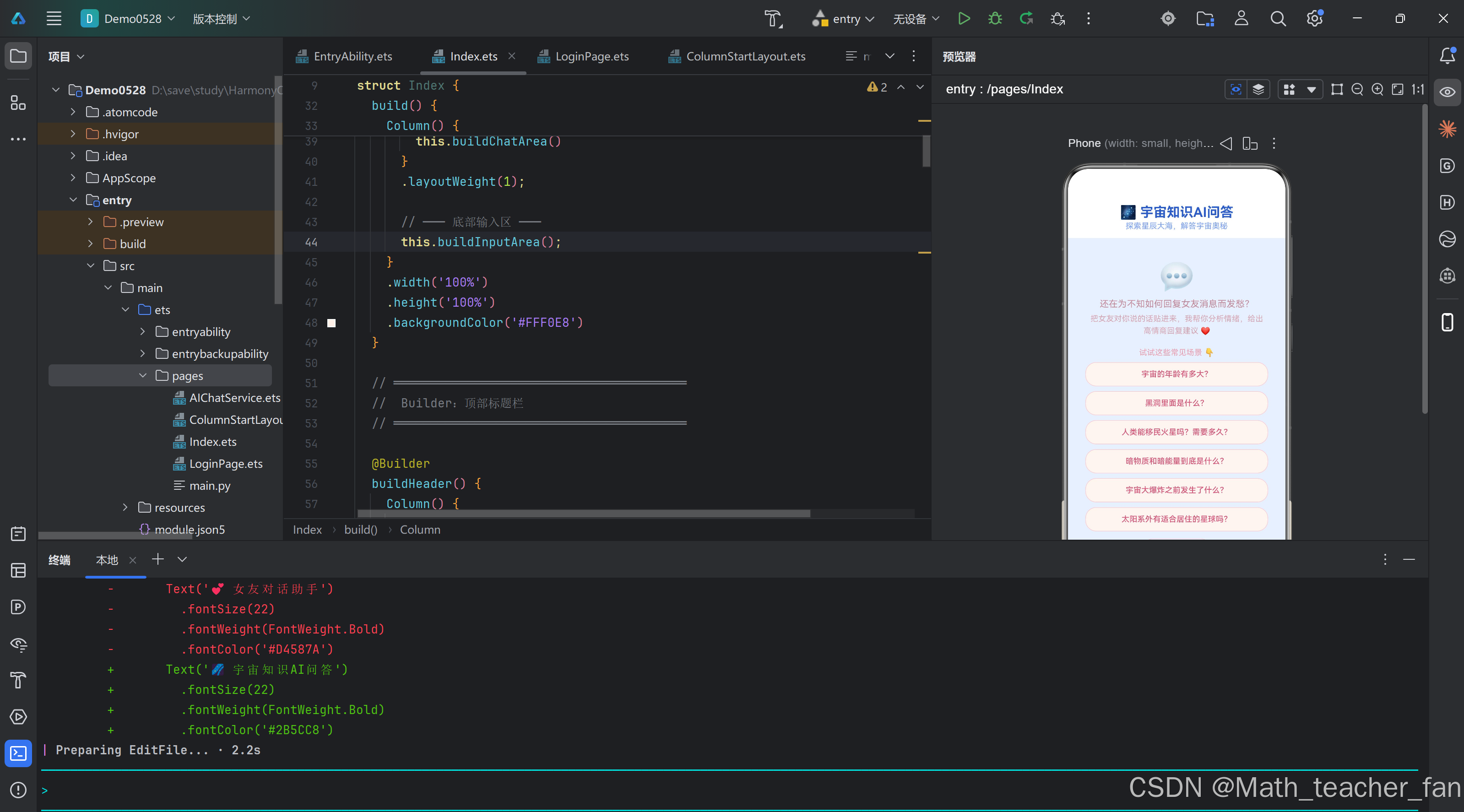

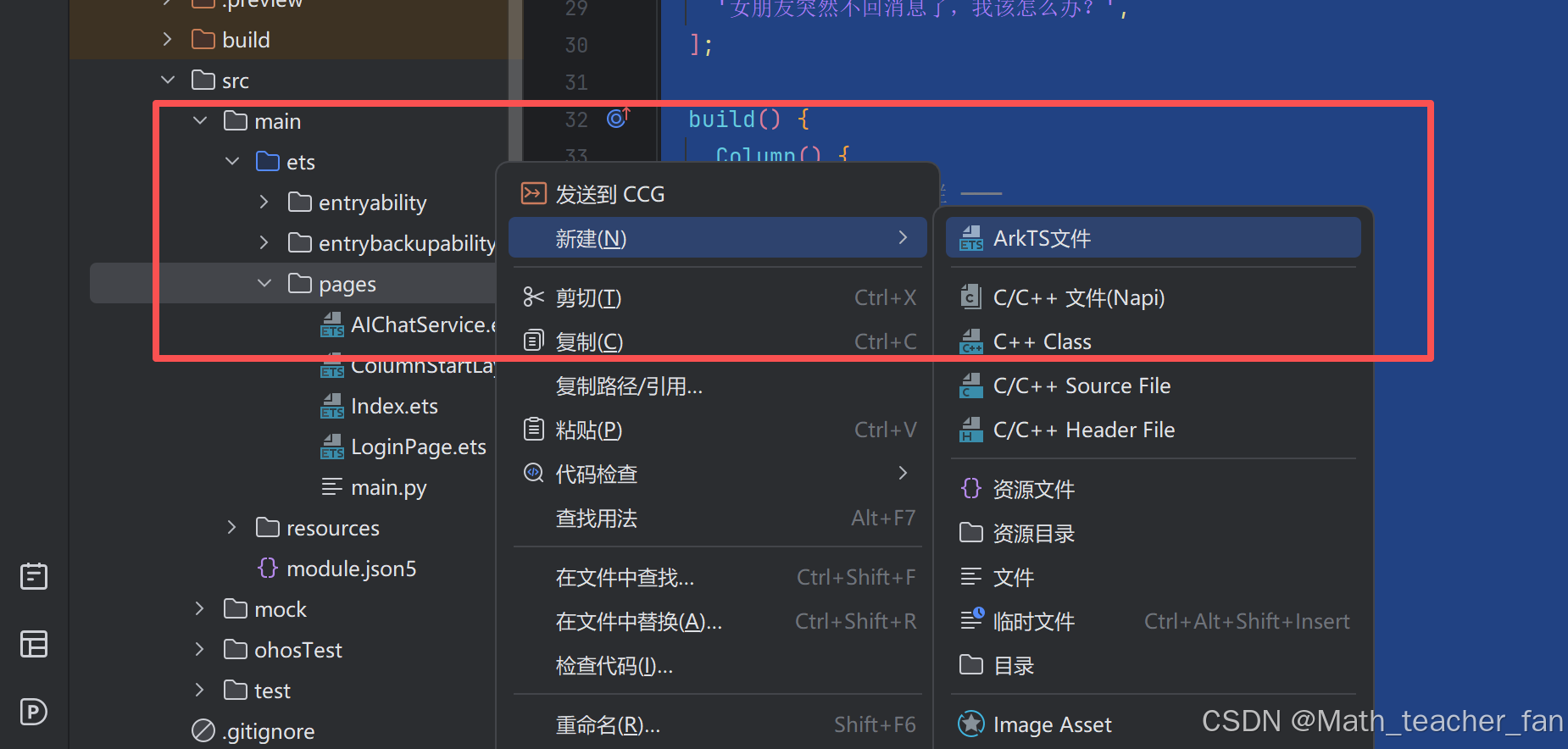

创建ets文件

AIChatService.ets
AI的功能代码:
/**
* AI Chat Service
* 将 main.py 的 HTTP 请求转换为 ArkTS 版本
* 使用 HarmonyOS NEXT 原生网络请求 API (@kit.NetworkKit)
* 支持 SSE 流式响应 (Server-Sent Events)
* 同时支持非流式回退(当 dataReceive 不触发时)
*/
import { http } from '@kit.NetworkKit';
import { BusinessError } from '@kit.BasicServicesKit';
/** API 配置常量(与 main.py 一致) */
const API_URL = 'https://api-ai.gitcode.com/v1/chat/completions';
const API_KEY = 'Fkpz_CKUApf7f79zpfgeQN6B'; /*这里需要替换成自己的*/
/** 系统提示词:女友对话助手 */
const SYSTEM_PROMPT: string =
'你是一位资深的恋爱沟通顾问,擅长帮助男生分析女友话语背后的情感需求,' +
'并提供真诚、体贴、有温度的高情商回复建议。\n\n' +
'以下是你要遵循的原则:\n' +
'1. 先共情:理解女友当下的情绪(开心、难过、生气、焦虑等)。\n' +
'2. 再分析:指出她话语中隐含的需求(被关注、被理解、被重视、安全感等)。\n' +
'3. 给建议:提供 1~3 条具体可用的回复话术,并说明每条话术的适用场景。\n' +
'4. 语气温柔但真诚,避免油腻或过度讨好。\n' +
'5. 如果涉及矛盾冲突,优先建议冷静沟通而非道歉敷衍。\n\n' +
'请用中文回复,保持简洁实用。';
/** 聊天消息结构体 */
export interface ChatMessage {
role: string;
content: string;
}
/** 请求体结构体 */
export interface ChatCompletionRequest {
model: string;
messages: ChatMessage[];
stream: boolean;
max_tokens: number;
temperature: number;
top_p: number;
frequency_penalty: number;
thinking_budget: number;
}
/** SSE 解析结果回调 */
export interface AICallbacks {
/** 每次收到新的 token 内容时触发 */
onData: (text: string) => void;
/** 流式响应结束时触发 */
onDone: () => void;
/** 发生错误时触发 */
onError: (errMsg: string) => void;
}
/** HTTP 请求任务引用,用于取消 */
let httpRequestTask: http.HttpRequest | null = null;
/**
* 解析 SSE data 行,提取 content 增量
* @param line - 以 "data:" 开头的行(不含前缀)
* @returns 提取到的 content,或 null
*/
function parseSSEDataLine(line: string): string | null {
const jsonStr = line.slice(5).trim();
if (!jsonStr) {
return null;
}
try {
const parsed: Record<string, Object> = JSON.parse(jsonStr) as Record<string, Object>;
const choices: Object[] = parsed.choices as Object[];
if (choices && choices.length > 0) {
const choice: Record<string, Object> = choices[0] as Record<string, Object>;
// 兼容 delta 和 message 两种格式(流式 vs 非流式)
const delta: Record<string, Object> = choice.delta as Record<string, Object>;
if (delta) {
return delta.content as string;
}
const message: Record<string, Object> = choice.message as Record<string, Object>;
if (message) {
return message.content as string;
}
}
} catch (_) {
// JSON 解析失败,跳过
}
return null;
}
/**
* 从完整响应体中解析所有 SSE data 行
* @param body - 整个响应体字符串
* @returns 拼接后的 content
*/
function parseFullSSEBody(body: string): string {
let result = '';
const lines = body.split('\n');
for (const line of lines) {
const trimmed = line.trim();
if (trimmed.startsWith('data:')) {
// 检查是否结束
if (trimmed === 'data:[DONE]') {
break;
}
const content = parseSSEDataLine(trimmed);
if (content) {
result += content;
}
}
}
return result;
}
/**
* 从完整 JSON 响应体中提取 content(非流式回退)
* @param body - 整个 JSON 响应体字符串
* @returns 提取到的 content,或 null
*/
function parseNonStreamingBody(body: string): string | null {
try {
const parsed: Record<string, Object> = JSON.parse(body) as Record<string, Object>;
const choices: Object[] = parsed.choices as Object[];
if (choices && choices.length > 0) {
const choice: Record<string, Object> = choices[0] as Record<string, Object>;
const message: Record<string, Object> = choice.message as Record<string, Object>;
if (message) {
return message.content as string;
}
// 也可能是流式格式 (delta 而非 message)
const delta: Record<string, Object> = choice.delta as Record<string, Object>;
if (delta) {
return delta.content as string;
}
}
} catch (_) {
// 不是纯 JSON,可能是 SSE 格式
}
return null;
}
/**
* 将 ArrayBuffer 解码为字符串
*/
function arrayBufferToString(buffer: ArrayBuffer): string {
const uint8Arr = new Uint8Array(buffer);
let text = '';
for (let i = 0; i < uint8Arr.length; i++) {
text += String.fromCharCode(uint8Arr[i]);
}
return text;
}
/**
* 调用 AI API(SSE 流式 + 非流式回退)
* 对应 main.py 中 query() 函数 + chunks 遍历
*
* @param callbacks - 回调集合
* @param messages - 聊天历史消息列表(含 system + user + assistant)
*/
export function queryAI(
callbacks: AICallbacks,
messages: ChatMessage[],
): void {
// 取消上一次未完成的请求
if (httpRequestTask) {
try {
httpRequestTask.destroy();
} catch (_) { /* ignore */ }
httpRequestTask = null;
}
const httpRequest = http.createHttp();
httpRequestTask = httpRequest;
// 构建请求体,合并系统提示词 + 用户聊天历史
const fullMessages: ChatMessage[] = [
{ role: 'system', content: SYSTEM_PROMPT },
...messages,
];
const requestBody: ChatCompletionRequest = {
model: 'deepseek-ai/DeepSeek-V3',
messages: fullMessages,
stream: true,
max_tokens: 2048,
temperature: 0.6,
top_p: 0.95,
frequency_penalty: 0,
thinking_budget: 2048,
};
// ---- 状态标记 ----
let isDone: boolean = false;
let receivedAnyData: boolean = false;
// ---- SSE 流式缓冲区 ----
let buffer = '';
// 监听数据到达事件(流式场景)
httpRequest.on('dataReceive', (data: ArrayBuffer) => {
const text = arrayBufferToString(data);
buffer += text;
receivedAnyData = true;
// 按行拆解(SSE 以 \n 分隔)
const lines = buffer.split('\n');
buffer = lines.pop() ?? ''; // 最后一行可能不完整,留到下次
for (const line of lines) {
const trimmed = line.trim();
// 忽略非 data: 开头的行
if (!trimmed.startsWith('data:')) {
continue;
}
// 结束标记
if (trimmed === 'data:[DONE]') {
if (!isDone) {
isDone = true;
callbacks.onDone();
}
// 不能 return,因为 buffer 中可能还有后续数据
continue;
}
// 解析 content
const content = parseSSEDataLine(trimmed);
if (content) {
callbacks.onData(content);
}
}
});
// 数据接收完毕
httpRequest.on('dataEnd', () => {
if (!isDone) {
// 如果 dataReceive 从未触发过(非流式场景),尝试从完整 body 解析
// 但 dataEnd 不提供响应体,所以这个只是兜底标记
isDone = true;
callbacks.onDone();
}
httpRequestTask = null;
});
// 监听响应头(仅用于调试)
httpRequest.on('headerReceive', (header: object) => {
console.info('[AIChat] Header received: ' + JSON.stringify(header));
});
// 发起 POST 请求
httpRequest.request(
API_URL,
{
method: http.RequestMethod.POST,
header: {
Authorization: `Bearer ${API_KEY}`,
'Content-Type': 'application/json',
Accept: 'text/event-stream',
},
extraData: JSON.stringify(requestBody),
connectTimeout: 30000,
readTimeout: 120000,
},
(err: BusinessError | null, resp: http.HttpResponse) => {
if (err) {
callbacks.onError(`请求失败: ${JSON.stringify(err)}`);
httpRequest.destroy();
httpRequestTask = null;
return;
}
// 检查 HTTP 状态码
if (resp.responseCode !== 200) {
const errBody = typeof resp.result === 'string' ? resp.result : 'HTTP ' + resp.responseCode;
callbacks.onError(`服务器返回错误 (${resp.responseCode}): ${errBody}`.substring(0, 200));
httpRequest.destroy();
httpRequestTask = null;
return;
}
// ---- 非流式回退 ----
// 如果 dataReceive 没有被触发过(某些 HarmonyOS 版本的 http 模块
// 在 SSE 场景下不会触发 dataReceive 事件),
// 从 request 回调的响应体中解析结果
if (!receivedAnyData && resp.result) {
const bodyStr: string = typeof resp.result === 'string'
? resp.result
: arrayBufferToString(resp.result as ArrayBuffer);
console.info('[AIChat] Fallback: parsing body from callback, len=' + bodyStr.length);
// 先尝试按 SSE 格式解析
const sseContent = parseFullSSEBody(bodyStr);
if (sseContent) {
callbacks.onData(sseContent);
} else {
// 再尝试非流式 JSON 格式
const jsonContent = parseNonStreamingBody(bodyStr);
if (jsonContent) {
callbacks.onData(jsonContent);
} else {
// 实在解析不了,把原始 body 前 200 字符作为错误提示
const preview = bodyStr.length > 200 ? bodyStr.substring(0, 200) + '...' : bodyStr;
callbacks.onError(`无法解析响应: ${preview}`);
httpRequest.destroy();
httpRequestTask = null;
return;
}
}
if (!isDone) {
isDone = true;
callbacks.onDone();
}
}
},
);
}
/**
* 取消当前 AI 请求
*/
export function cancelAI(): void {
if (httpRequestTask) {
try {
httpRequestTask.destroy();
} catch (_) { /* ignore */ }
httpRequestTask = null;
}
}
index.ets代码
import {
queryAI,
cancelAI,
ChatMessage,
} from './AIChatService';
@Entry
@Component
struct Index {
/** 聊天历史消息 */
@State messageList: ChatMessage[] = [];
/** 当前输入框内容 */
@State inputText: string = '';
/** AI 正在回复中 */
@State isLoading: boolean = false;
/** 流式累积的 AI 回复(实时追加) */
@State streamingContent: string = '';
/** 错误提示 */
@State errorMsg: string = '';
/** 示例问题轮播索引 */
private sampleIndex: number = 0;
private sampleQuestions: string[] = [
'女朋友说「我没事」的时候到底是什么意思?',
'女友生气了说「别管我」,该怎么回?',
'她问我「你前女友好看还是我好看」该怎么回答?',
'女友说「今天好累」怎么回复最暖心?',
'她说「你是不是不爱我了」该怎么回应?',
'女朋友突然不回消息了,我该怎么办?',
];
build() {
Column() {
// ─── 顶部标题栏 ───
this.buildHeader();
// ─── 聊天消息区 ───
Column() {
this.buildChatArea()
}
.layoutWeight(1);
// ─── 底部输入区 ───
this.buildInputArea();
}
.width('100%')
.height('100%')
.backgroundColor('#FFF0E8')
}
// ════════════════════════════════════════
// Builder:顶部标题栏
// ════════════════════════════════════════
@Builder
buildHeader() {
Column() {
Text('💕 女友对话助手')
.fontSize(22)
.fontWeight(FontWeight.Bold)
.fontColor('#D4587A')
.margin({ top: 12 })
Text('高情商回复从这里开始')
.fontSize(13)
.fontColor('#E8A0B0')
.margin({ top: 2, bottom: 4 })
}
.width('100%')
.padding({ top: 8, bottom: 8 })
.backgroundColor('#FFFFFF')
}
// ════════════════════════════════════════
// Builder:聊天消息区
// ════════════════════════════════════════
@Builder
buildChatArea() {
Scroll() {
Column() {
// ─── 欢迎消息 ───
if (this.messageList.length === 0) {
this.buildWelcomeMessage();
}
// ─── 对话气泡 ───
ForEach(this.messageList, (msg: ChatMessage) => {
if (msg.role === 'user') {
this.buildUserBubble(msg.content);
} else {
this.buildAIBubble(msg.content);
}
}, (msg: ChatMessage) => msg.role + '#' + msg.content)
// ─── 流式 AI 回复(尚未完成) ───
if (this.isLoading && this.streamingContent) {
this.buildAIBubble(this.streamingContent + ' ▍');
}
// ─── 加载中占位 ───
if (this.isLoading && !this.streamingContent) {
this.buildLoadingIndicator();
}
// ─── 错误提示 ───
if (this.errorMsg) {
this.buildErrorBubble(this.errorMsg);
}
// 底部留白
Blank().height(12)
}
.width('100%')
.padding(12)
}
.width('100%')
.scrollBar(BarState.Auto)
}
// ─── 欢迎界面 ───
@Builder
buildWelcomeMessage() {
Column() {
Text('💬')
.fontSize(48)
.margin({ top: 24, bottom: 8 })
Text('还在为不知如何回复女友消息而发愁?')
.fontSize(15)
.fontColor('#C08A9A')
.textAlign(TextAlign.Center)
.margin({ bottom: 4 })
Text('把女友对你说的话贴进来,我帮你分析情绪,给出高情商回复建议 ❤️')
.fontSize(13)
.fontColor('#D4A5B3')
.textAlign(TextAlign.Center)
.lineHeight(20)
.margin({ bottom: 20 })
.padding({ left: 20, right: 20 })
Text('试试这些常见场景 👇')
.fontSize(13)
.fontColor('#E8A0B0')
.margin({ bottom: 8 })
// 示例问题按钮
ForEach(this.sampleQuestions, (q: string, idx?: number) => {
Button(q)
.fontSize(13)
.fontColor('#D4587A')
.backgroundColor('#FFF5F0')
.border({ width: 1, color: '#F5D0D8' })
.borderRadius(18)
.height(40)
.width('90%')
.margin({ bottom: 8 })
.onClick(() => {
this.inputText = q;
})
}, (_q: string, i?: number) => (i ?? 0).toString())
// 随机示例按钮
Button('🎲 换一批场景')
.fontSize(12)
.fontColor('#E8A0B0')
.backgroundColor('transparent')
.border({ width: 1, color: '#F0D0D8' })
.borderRadius(16)
.height(34)
.margin({ top: 4, bottom: 16 })
.onClick(() => {
this.rotateSamples();
})
}
.width('100%')
.alignItems(HorizontalAlign.Center)
}
// ─── 用户气泡 ───
@Builder
buildUserBubble(content: string) {
Column() {
Row() {
Blank()
Text(content)
.fontSize(15)
.fontColor('#FFFFFF')
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
.backgroundColor('#D4587A')
.borderRadius({ topLeft: 18, topRight: 4, bottomLeft: 18, bottomRight: 18 })
.maxLines(20)
.lineHeight(22)
}
.width('100%')
.margin({ top: 6 })
}
}
// ─── AI 气泡 ───
@Builder
buildAIBubble(content: string) {
Column() {
Row() {
Text(content)
.fontSize(15)
.fontColor('#3D2B1F')
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
.backgroundColor('#FFFFFF')
.border({ width: 1, color: '#F5E0E5' })
.borderRadius({ topLeft: 4, topRight: 18, bottomLeft: 18, bottomRight: 18 })
.lineHeight(22)
Blank()
}
.width('100%')
.margin({ top: 6 })
}
}
// ─── 加载动画 ───
@Builder
buildLoadingIndicator() {
Column() {
Row() {
Text('💭 正在思考...')
.fontSize(14)
.fontColor('#E8A0B0')
.padding(16)
.backgroundColor('#FFFFFF')
.border({ width: 1, color: '#F5E0E5' })
.borderRadius({ topLeft: 4, topRight: 18, bottomLeft: 18, bottomRight: 18 })
Blank()
}
.width('100%')
.margin({ top: 6 })
}
}
// ─── 错误提示 ───
@Builder
buildErrorBubble(errMsg: string) {
Column() {
Row() {
Text('⚠️ ' + errMsg)
.fontSize(13)
.fontColor('#C94A4A')
.padding(12)
.backgroundColor('#FFF0F0')
.border({ width: 1, color: '#F5C0C0' })
.borderRadius(12)
Blank()
}
.width('100%')
.margin({ top: 6 })
}
}
// ════════════════════════════════════════
// Builder:底部输入区
// ════════════════════════════════════════
@Builder
buildInputArea() {
Column() {
// ── 输入行 ──
Row() {
TextInput({ placeholder: '输入女友说的话...', text: this.inputText })
.layoutWeight(1)
.height(44)
.fontSize(15)
.fontColor('#3D2B1F')
.placeholderColor('#D4C5B0')
.backgroundColor('#FFFFFF')
.border({ width: 1, color: '#F0D0D8' })
.borderRadius(22)
.padding({ left: 16 })
.enabled(!this.isLoading)
.onChange((val: string) => {
this.inputText = val;
})
.onSubmit(() => {
this.handleSend();
})
Blank().width(8)
// 发送按钮
Button() {
Text('发送')
.fontSize(14)
.fontColor('#FFFFFF')
}
.width(60)
.height(44)
.backgroundColor(this.isLoading ? '#E8C0C8' : '#D4587A')
.borderRadius(22)
.enabled(!this.isLoading && this.inputText.trim().length > 0)
.onClick(() => {
this.handleSend();
})
}
.width('100%')
.padding({ left: 12, right: 12, top: 8, bottom: 8 })
.backgroundColor('#FFFFFF')
.border({ width: { top: 1 }, color: '#F0D0D8' })
// ── 取消按钮(加载时显示) ──
if (this.isLoading) {
Button('⏹ 取消回复')
.fontSize(13)
.fontColor('#B0A595')
.backgroundColor('#F5F0E8')
.border({ width: 1, color: '#E8DDD0' })
.borderRadius(16)
.height(32)
.width(120)
.margin({ bottom: 6 })
.onClick(() => {
this.handleCancel();
})
}
}
.width('100%')
}
// ════════════════════════════════════════
// 工具方法
// ════════════════════════════════════════
/** 轮换示例问题 */
rotateSamples(): void {
// 重新排列示例问题(用交换法模拟洗牌)
const arr: string[] = this.sampleQuestions;
for (let i: number = 0; i < arr.length; i++) {
const j: number = (i * 7 + 3) % arr.length;
const tmp: string = arr[i];
arr[i] = arr[j];
arr[j] = tmp;
}
this.sampleQuestions = [...arr];
}
/** 发送消息 */
handleSend(): void {
const msg: string = this.inputText.trim();
if (!msg) {
return;
}
// 清空输入
this.inputText = '';
// 添加用户消息到历史
const userMsg: ChatMessage = { role: 'user', content: msg };
this.messageList = [...this.messageList, userMsg];
// 重置 AI 回复状态
this.streamingContent = '';
this.errorMsg = '';
this.isLoading = true;
// 调用 AI(带上完整聊天历史,让 AI 知道上下文)
queryAI({
onData: (text: string) => {
this.streamingContent += text;
},
onDone: () => {
// 流式完成后,将完整回复加入消息历史
if (this.streamingContent) {
const aiMsg: ChatMessage = { role: 'assistant', content: this.streamingContent };
this.messageList = [...this.messageList, aiMsg];
}
this.streamingContent = '';
this.isLoading = false;
},
onError: (errMsg: string) => {
this.errorMsg = errMsg;
this.isLoading = false;
},
}, this.messageList);
}
/** 取消请求 */
handleCancel(): void {
cancelAI();
this.isLoading = false;
// 保留已收到的流式内容作为 AI 回复
if (this.streamingContent) {
const aiMsg: ChatMessage = { role: 'assistant', content: this.streamingContent };
this.messageList = [...this.messageList, aiMsg];
}
this.streamingContent = '';
}
}
升级项目

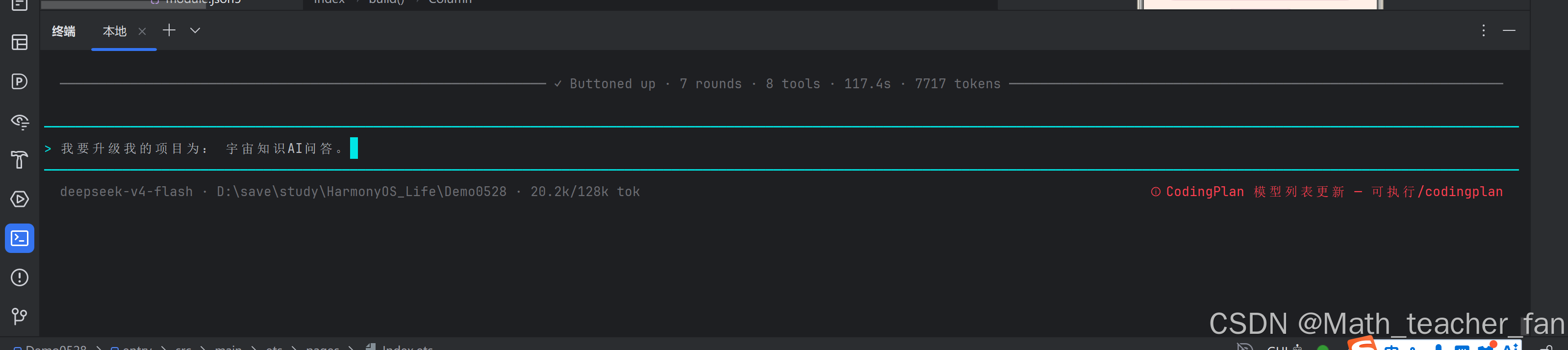

我要升级我的项目为: 宇宙知识AI问答。
持续变化中:
- 原生体验:充分利用 HarmonyOS 原生 API,提供流畅、稳定的用户体验。
- 智能问答:集成大语言模型(DeepSeek-V3),实现高质量的宇宙知识问答。
- 流式输出:采用 SSE(Server-Sent Events)流式传输技术,实现 AI 回复的逐字呈现,提升交互感。
- 友好界面:采用 ArkTS 声明式 UI 架构,构建美观、直观的聊天界面。
- 代码规范:遵循 ArkTS 最佳实践,展示模块化、可维护的代码结构。
| 技术组件 | 选择 | 说明 |
|---|---|---|
| 开发语言 | ArkTS | 鸿蒙原生声明式 UI 语言 |
| 开发框架 | HarmonyOS NEXT API | 最新原生开发框架 |
| AI 模型 | DeepSeek-V3 | 高性能大语言模型 |
| 网络请求 | @kit.NetworkKit | 鸿蒙原生 HTTP 网络库 |
| 数据传输 | SSE 流式传输 | 实时增量更新 |
| UI 构建 | @Builder 装饰器 | 组件化 UI 构建方案 |
![]() |
||
![]() |
文章撰写

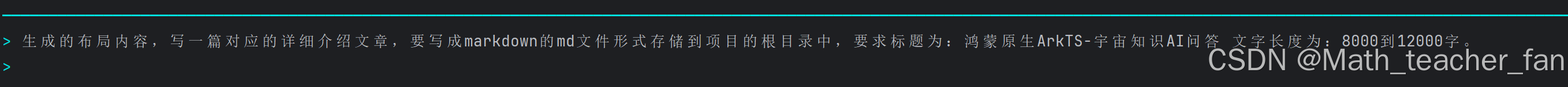

生成的布局内容,写一篇对应的详细介绍文章,要写成markdown的md文件形式存储到项目的根目录中,要求标题为:鸿蒙原生ArkTS-宇宙知识AI问答 文字长度为:8000到12000字。


到CSDN中的MD格式发布文章即可。
本项目的目录结构遵循 HarmonyOS 标准工程规范,主要代码集中在 entry/src/main/ets/pages/ 目录下:
Demo0528/
├── entry/
│ └── src/
│ └── main/
│ └── ets/
│ └── pages/
│ ├── Index.ets # 主页面(聊天界面)
│ ├── AIChatService.ets # AI 服务层(网络请求+SSE解析)
│ └── ColumnStartLayout.ets # 其他布局组件
├── build-profile.json5 # 项目构建配置
├── hvigor/ # 构建工具配置
├── AppScope/ # 应用级配置
└── oh-package.json5 # 包依赖管理
项目采用了明确的职责分离架构,共分为三个核心层次:
UI 表现层(Index.ets):负责所有用户界面元素的构建和交互逻辑,包括聊天消息展示、输入框、按钮、加载动画等。通过 @Builder 装饰器将 UI 拆分为多个独立构建函数,每个函数负责一个独立的 UI 区域。
AI 服务层(AIChatService.ets):封装了所有与 AI API 通信的逻辑,包括 HTTP 请求的发起、SSE 流式数据的解析、非流式回退机制以及请求取消功能。该层对上层完全黑盒,仅通过定义清晰的接口(AICallbacks、ChatMessage)与 UI 层交互。
配置管理层(build-profile.json5、module.json5 等):管理网络权限、应用签名、模块配置等基础设施,确保应用能够正常访问网络接口。
这种分层设计使得代码具有良好的可测试性和可维护性。当需要更换 AI 模型提供商时,只需修改 AIChatService.ets 中的 API 配置和解析逻辑,UI 层完全无需改动。
ArkTS 采用的声明式 UI 编程范式,与传统的命令式 UI(如 Java Android 的 XML+Activity)有本质区别。在声明式 UI 中,开发者描述 UI “应该是什么样”,而非"如何一步步构建"。状态驱动视图更新——当 @State 装饰的变量发生变化时,框架自动重新渲染相关组件。
以本项目的聊天消息列表为例:
@State messageList: ChatMessage[] = [];
@State isLoading: boolean = false;
@State streamingContent: string = '';
@State inputText: string = '';
@State errorMsg: string = '';
build() {
Column() {
this.buildHeader(); // 标题栏
Column() {
this.buildChatArea() // 聊天区
}
.layoutWeight(1);
this.buildInputArea(); // 输入区
}
.width('100%')
.height('100%')
.backgroundColor('#E8F0FF')
}
当 messageList 新增一条消息、isLoading 变为 true 或 streamingContent 收到新的 token 时,框架会自动触发 UI 重新渲染,开发者无需手动操作 DOM。
更多推荐




所有评论(0)
