前言

在移动应用开发中，崩溃监控是保障应用质量的重要环节。对于 OpenHarmony 应用而言，由于其生态仍在快速发展中，开发者需要一套完整的崩溃监控方案来及时发现和定位问题。本文将详细介绍如何在 OpenHarmony 应用中实现一套功能完善的崩溃监控系统，包括异常捕获、日志上报、卡顿检测和性能监控等功能，并在开源鸿蒙模拟器上完成运行验证。

本文对应的完整代码已托管至 AtomGit 仓库：https://atomgit.com/example/crash-monitor-demo

一、系统架构设计

1.1 整体架构

我们的崩溃监控系统采用模块化设计，主要包含以下几个核心模块：

模块名称	功能描述
CrashMonitor	核心监控类，负责异常捕获和性能数据采集
CrashReporter	日志上报服务，支持单条上报和批量上报
CrashStorage	本地存储服务，使用 Preferences 持久化数据
CrashModels	数据模型定义，包含崩溃日志、性能指标等数据结构

1.2 数据流设计

应用异常/性能事件
       ↓
   CrashMonitor
       ↓
    ┌──┴──┐
    ↓     ↓
存储   上报
    ↓     ↓
CrashStorage  CrashReporter → 服务器

二、核心数据模型实现

2.1 崩溃日志模型

崩溃日志是监控系统的核心数据结构，需要包含丰富的上下文信息：

// CrashModels.ets
export enum CrashType {
  JS_ERROR = 'JS_ERROR',           // JavaScript 异常
  PROMISE_REJECTION = 'PROMISE_REJECTION',  // Promise 拒绝
  UNCAUGHT_EXCEPTION = 'UNCAUGHT_EXCEPTION',  // 未捕获异常
  NATIVE_CRASH = 'NATIVE_CRASH',   // 原生崩溃
  ANR = 'ANR',                     // 应用无响应
  MEMORY_WARNING = 'MEMORY_WARNING', // 内存警告
  LOW_MEMORY_KILL = 'LOW_MEMORY_KILL',  // 低内存被杀
  BUSINESS_ERROR = 'BUSINESS_ERROR'  // 业务异常
}

export enum CrashLevel {
  DEBUG = 'DEBUG',
  INFO = 'INFO',
  WARNING = 'WARNING',
  ERROR = 'ERROR',
  FATAL = 'FATAL'
}

export class CrashLog {
  id: string = '';
  type: CrashType = CrashType.JS_ERROR;
  level: CrashLevel = CrashLevel.INFO;
  message: string = '';
  stack: string = '';
  timestamp: string = '';
  deviceInfo: DeviceInfo = new DeviceInfo();
  appInfo: AppInfo = new AppInfo();
  sessionId: string = '';
  pageRoute: string = '';
  customData: Record<string, string | number | boolean> = {};
  reported: boolean = false;
}

2.2 性能指标模型

性能监控需要采集多种指标数据：

export class PerformanceMetrics {
  id: string = '';
  timestamp: string = '';
  memoryUsage: number = 0;      // 内存使用量（MB）
  memoryPercent: number = 0;    // 内存使用百分比
  cpuUsage: number = 0;         // CPU 使用率
  fps: number = 60;             // 帧率
  fpsStable: boolean = true;     // 帧率是否稳定
  mainThreadQueueLength: number = 0;  // 主线程队列长度
  freezeCount: number = 0;      // 卡顿次数
  appState: 'active' | 'inactive' | 'background' | 'suspended' = 'active';
}

export class FreezeInfo {
  id: string = '';
  startTime: string = '';
  endTime: string = '';
  duration: number = 0;          // 卡顿时长（毫秒）
  severity: 'mild' | 'moderate' | 'severe' = 'mild';
  pageRoute: string = '';
  stack: string = '';
  reported: boolean = false;
}

三、本地存储服务实现

3.1 Preferences 存储封装

使用 OpenHarmony 提供的 Preferences API 进行数据持久化，支持崩溃日志、卡顿信息和性能指标的历史记录存储：

// CrashStorage.ets
import dataPreferences from '@ohos.data.preferences';

const CRASH_LOGS_KEY = 'crash_logs';
const FREEZE_LOGS_KEY = 'freeze_logs';
const METRICS_KEY = 'performance_metrics';

export class CrashStorage {
  private preferences: dataPreferences.Preferences | null = null;
  private static instance: CrashStorage | null = null;

  private constructor() {}

  static getInstance(): CrashStorage {
    if (CrashStorage.instance === null) {
      CrashStorage.instance = new CrashStorage();
    }
    return CrashStorage.instance;
  }

  async init(context: Context): Promise<void> {
    this.preferences = await dataPreferences.getPreferences(context, 'crash_monitor_storage');
  }

  async saveCrashLog(log: CrashLog): Promise<string> {
    if (this.preferences === null) {
      return '';
    }
    const logs = await this.getCrashLogs();
    const newLog = new CrashLog();
    newLog.id = `crash_${Date.now()}_${Math.random().toString(36).substring(2, 9)}`;
    newLog.type = log.type;
    newLog.level = log.level;
    newLog.message = log.message;
    newLog.timestamp = new Date().toISOString();
    // ... 复制其他字段

    logs.unshift(newLog);
    const logsToSave = logs.slice(0, 100);  // 最多保留100条
    await this.preferences.put(CRASH_LOGS_KEY, JSON.stringify(logsToSave));
    await this.preferences.flush();
    return newLog.id;
  }

  async getCrashLogs(): Promise<CrashLog[]> {
    if (this.preferences === null) {
      return [];
    }
    const data = await this.preferences.get(CRASH_LOGS_KEY, '[]');
    return JSON.parse(data as string) as CrashLog[];
  }

  async markAsReported(logId: string): Promise<void> {
    const logs = await this.getCrashLogs();
    for (let i = 0; i < logs.length; i++) {
      if (logs[i].id === logId) {
        logs[i].reported = true;
        logs[i].reportedAt = new Date().toISOString();
        break;
      }
    }
    await this.preferences.put(CRASH_LOGS_KEY, JSON.stringify(logs));
    await this.preferences.flush();
  }
}

export default CrashStorage.getInstance();

四、核心监控服务实现

4.1 CrashMonitor 核心类

CrashMonitor 是整个监控系统的核心，负责协调各个模块并提供统一的监控接口：

// CrashMonitor.ets
import deviceInfo from '@ohos.deviceInfo';
import display from '@ohos.display';
import { CrashLog, CrashType, CrashLevel, DeviceInfo, AppInfo, PerformanceMetrics, FreezeInfo } from '../model/CrashModels';
import CrashStorage from './CrashStorage';
import CrashReporterInstance from './CrashReporter';

export interface MonitorConfig {
  enableJSCatch: boolean;
  enablePromiseCatch: boolean;
  enableFreezeDetection: boolean;
  enableMemoryMonitor: boolean;
  enableCpuMonitor: boolean;
  enableFpsMonitor: boolean;
  autoReport: boolean;
  monitorInterval: number;
  freezeThreshold: number;
  memoryWarningPercent: number;
  memoryCriticalPercent: number;
  freezeWarningMs: number;
  freezeCriticalMs: number;
}

export class CrashMonitor {
  private static instance: CrashMonitor | null = null;
  private config: MonitorConfig = {
    enableJSCatch: true,
    enablePromiseCatch: true,
    enableFreezeDetection: true,
    enableMemoryMonitor: true,
    enableCpuMonitor: true,
    enableFpsMonitor: true,
    autoReport: false,
    monitorInterval: 1000,
    freezeThreshold: 200,
    memoryWarningPercent: 70,
    memoryCriticalPercent: 85,
    freezeWarningMs: 200,
    freezeCriticalMs: 500
  };

  private isMonitoring: boolean = false;
  private monitorTimer: number = -1;
  private currentFps: number = 60;
  private freezeCount: number = 0;
  private sessionId: string = '';
  private pageRoute: string = '';
  private listeners: Map<string, Function> = new Map();

  private constructor() {}

  static getInstance(): CrashMonitor {
    if (CrashMonitor.instance === null) {
      CrashMonitor.instance = new CrashMonitor();
    }
    return CrashMonitor.instance;
  }

  async init(context: Context): Promise<void> {
    await CrashStorage.init(context);
    this.sessionId = CrashStorage.getSessionId();
    if (this.config.enableJSCatch) {
      this.setupJSCatch();
    }
  }

  start(): void {
    if (this.isMonitoring) {
      return;
    }
    this.isMonitoring = true;
    this.startPerformanceMonitor();
    if (this.config.enableFpsMonitor) {
      this.startFpsMonitor();
    }
  }

  stop(): void {
    this.isMonitoring = false;
    if (this.monitorTimer !== -1) {
      clearInterval(this.monitorTimer);
      this.monitorTimer = -1;
    }
  }

  // 手动上报业务异常
  handleBusinessError(message: string, customData?: Record<string, string | number | boolean>): void {
    const log = this.createCrashLog(
      CrashType.BUSINESS_ERROR,
      CrashLevel.ERROR,
      message
    );
    if (customData) {
      log.customData = customData;
    }
    this.saveAndReport(log);
    this.notify('businessError', log);
  }

  // 记录卡顿事件
  recordFreeze(pageRoute: string, duration: number, stack: string = ''): void {
    let severity: 'mild' | 'moderate' | 'severe' = 'mild';
    if (duration >= this.config.freezeCriticalMs) {
      severity = 'severe';
    } else if (duration >= this.config.freezeWarningMs) {
      severity = 'moderate';
    }

    const freezeInfo = new FreezeInfo();
    freezeInfo.id = `freeze_${Date.now()}`;
    freezeInfo.duration = duration;
    freezeInfo.severity = severity;
    freezeInfo.pageRoute = pageRoute;
    freezeInfo.startTime = new Date(Date.now() - duration).toISOString();
    freezeInfo.endTime = new Date().toISOString();

    CrashStorage.saveFreezeInfo(freezeInfo);
    this.freezeCount++;
  }

  private startPerformanceMonitor(): void {
    const callback = (): void => {
      this.collectPerformanceMetrics();
    };
    this.monitorTimer = setInterval(callback, this.config.monitorInterval) as number;
  }

  private async collectPerformanceMetrics(): Promise<void> {
    const memoryUsage = this.estimateMemoryUsage();
    const metrics = new PerformanceMetrics();
    metrics.id = `perf_${Date.now()}`;
    metrics.timestamp = new Date().toISOString();
    metrics.memoryUsage = memoryUsage;
    metrics.memoryPercent = memoryUsage / 512 * 100;
    metrics.cpuUsage = this.estimateCpuUsage();
    metrics.fps = this.currentFps;
    metrics.fpsStable = this.currentFps >= 50;
    metrics.freezeCount = this.freezeCount;

    await CrashStorage.savePerformanceMetrics(metrics);
    this.checkThresholds(metrics);
  }

  private checkThresholds(metrics: PerformanceMetrics): void {
    if (metrics.memoryPercent >= this.config.memoryCriticalPercent) {
      this.notify('memoryCritical', metrics.memoryPercent);
    } else if (metrics.memoryPercent >= this.config.memoryWarningPercent) {
      this.notify('memoryWarning', metrics.memoryPercent);
    }
    if (metrics.fps < 30) {
      this.notify('fpsCritical', metrics.fps);
    }
  }

  private getDeviceInfoSync(): DeviceInfo {
    const device = new DeviceInfo();
    try {
      const displayInfo = display.getDefaultDisplaySync();
      device.brand = deviceInfo.brand || 'Unknown';
      device.model = deviceInfo.productModel || 'Unknown';
      device.osVersion = deviceInfo.osFullName || 'Unknown';
      device.screenResolution = `${displayInfo.width}x${displayInfo.height}`;
      device.screenDensity = displayInfo.densityDPI;
    } catch {
      console.info('[CrashMonitor] Failed to get device info');
    }
    return device;
  }

  private getAppInfoSync(): AppInfo {
    const app = new AppInfo();
    app.appName = 'oh_demo11';
    app.bundleName = 'com.example.oh_demo11';
    app.versionName = '1.0.0';
    return app;
  }

  private createCrashLog(type: CrashType, level: CrashLevel, message: string, stack: string = ''): CrashLog {
    const log = new CrashLog();
    log.type = type;
    log.level = level;
    log.message = message;
    log.stack = stack;
    log.timestamp = new Date().toISOString();
    log.deviceInfo = this.getDeviceInfoSync();
    log.appInfo = this.getAppInfoSync();
    log.sessionId = this.sessionId;
    log.pageRoute = this.pageRoute;
    return log;
  }

  private async saveAndReport(log: CrashLog): Promise<void> {
    await CrashStorage.saveCrashLog(log);
    if (this.config.autoReport) {
      CrashReporterInstance.report(log);
    }
  }

  getCurrentMetrics(): PerformanceMetrics {
    const metrics = new PerformanceMetrics();
    metrics.memoryUsage = this.estimateMemoryUsage();
    metrics.cpuUsage = this.estimateCpuUsage();
    metrics.fps = this.currentFps;
    metrics.fpsStable = this.currentFps >= 50;
    metrics.freezeCount = this.freezeCount;
    return metrics;
  }

  async getCrashLogs(): Promise<CrashLog[]> {
    return await CrashStorage.getCrashLogs();
  }

  async getFreezeInfos(): Promise<FreezeInfo[]> {
    return await CrashStorage.getFreezeInfos();
  }

  on(event: string, callback: Function): void {
    this.listeners.set(event, callback);
  }

  private notify(event: string, data: CrashLog | FreezeInfo | number): void {
    const callback = this.listeners.get(event);
    if (callback) {
      callback(data);
    }
  }
}

export default CrashMonitor.getInstance();

4.2 FPS 帧率监控实现

帧率监控是检测卡顿的重要手段，通过定时采样计算实时帧率：

private startFpsMonitor(): void {
  this.lastFrameTime = Date.now();
  this.frameCount = 0;

  const measureFrame = (): void => {
    if (!this.isMonitoring) {
      return;
    }
    this.frameCount++;
    const now = Date.now();
    const elapsed = now - this.lastFrameTime;

    if (elapsed >= 1000) {
      this.currentFps = Math.round(this.frameCount * 1000 / elapsed);
      this.frameCount = 0;
      this.lastFrameTime = now;
    }
    setTimeout(measureFrame, 16);  // 约60fps采样
  };
  setTimeout(measureFrame, 16);
}

五、日志上报服务实现

5.1 CrashReporter 服务

负责将崩溃日志上报到远程服务器，支持单条上报和批量上报：

// CrashReporter.ets
import http from '@ohos.net.http';
import { CrashLog, FreezeInfo, ReportConfig } from '../model/CrashModels';
import CrashStorage from './CrashStorage';

const DEFAULT_SERVER_URL = 'https://crash-report.example.com/api/v1/crash';

class RequestPayload {
  type: string = '';
  appKey: string = '';
  timestamp: string = '';
  data: CrashLog | FreezeInfo | CrashLog[] | null = null;

  constructor(type: string, appKey: string, data: CrashLog | FreezeInfo | CrashLog[] | null = null) {
    this.type = type;
    this.appKey = appKey;
    this.timestamp = new Date().toISOString();
    this.data = data;
  }
}

export class CrashReporter {
  private serverUrl: string = DEFAULT_SERVER_URL;
  private appKey: string = 'ohos_demo11';
  private enabled: boolean = true;
  private batchSize: number = 10;
  private reportInterval: number = 30000;
  private reportTimer: number = -1;

  constructor() {}

  async report(crashLog: CrashLog): Promise<boolean> {
    if (!this.enabled) {
      return false;
    }
    try {
      const success = await this.sendToServer(crashLog);
      if (success) {
        await CrashStorage.markAsReported(crashLog.id);
      }
      return success;
    } catch {
      return false;
    }
  }

  async reportBatch(logs: CrashLog[]): Promise<number> {
    if (!this.enabled || logs.length === 0) {
      return 0;
    }
    try {
      const success = await this.sendBatchToServer(logs);
      if (success) {
        for (let i = 0; i < logs.length; i++) {
          await CrashStorage.markAsReported(logs[i].id);
        }
        return logs.length;
      }
      return 0;
    } catch {
      return 0;
    }
  }

  startAutoReport(): void {
    if (this.reportTimer !== -1) {
      return;
    }
    const callback = (): void => {
      this.autoReport();
    };
    this.reportTimer = setInterval(callback, this.reportInterval) as number;
  }

  stopAutoReport(): void {
    if (this.reportTimer !== -1) {
      clearInterval(this.reportTimer);
      this.reportTimer = -1;
    }
  }

  private async autoReport(): Promise<void> {
    const unreported = await CrashStorage.getUnreportedLogs();
    if (unreported.length >= this.batchSize) {
      const batch = unreported.slice(0, this.batchSize);
      await this.reportBatch(batch);
    }
  }

  private async sendToServer(log: CrashLog): Promise<boolean> {
    const payload = new RequestPayload('crash', this.appKey, log);
    return await this.createRequest(this.serverUrl, 'POST', payload);
  }

  private async sendBatchToServer(logs: CrashLog[]): Promise<boolean> {
    const payload = new RequestPayload('crash_batch', this.appKey, logs);
    return await this.createRequest(this.serverUrl, 'POST', payload);
  }

  private createRequest(url: string, method: string, payload: RequestPayload): Promise<boolean> {
    return new Promise((resolve) => {
      const httpRequest = http.createHttp();
      httpRequest.request(
        url,
        {
          method: method as http.RequestMethod,
          header: { 'Content-Type': 'application/json' },
          extraData: JSON.stringify(payload)
        },
        (err, res) => {
          if (err) {
            resolve(false);
          } else {
            resolve(res.responseCode >= 200 && res.responseCode < 300);
          }
        }
      );
      setTimeout(() => resolve(false), 10000);  // 超时处理
    });
  }
}

export default new CrashReporter();

六、性能监控页面实现

6.1 实时监控界面

使用 ArkUI 声明式开发范式构建性能监控界面：

// PerformanceMonitorPage.ets
import { PerformanceMetrics, FreezeInfo } from '../model/CrashModels';
import CrashMonitor from '../service/CrashMonitor';

@Entry
@Component
struct PerformanceMonitorPage {
  @State metrics: PerformanceMetrics | null = null;
  @State freezeInfos: FreezeInfo[] = [];
  @State isMonitoring: boolean = false;
  private timer: number = -1;

  aboutToAppear() {
    this.startMonitoring();
  }

  aboutToDisappear() {
    this.stopMonitoring();
  }

  startMonitoring(): void {
    this.isMonitoring = true;
    this.timer = setInterval(() => {
      this.updateMetrics();
    }, 1000) as number;
    this.updateMetrics();
  }

  stopMonitoring(): void {
    this.isMonitoring = false;
    if (this.timer !== -1) {
      clearInterval(this.timer);
      this.timer = -1;
    }
  }

  async updateMetrics(): Promise<void> {
    try {
      this.metrics = CrashMonitor.getCurrentMetrics();
      this.freezeInfos = await CrashMonitor.getFreezeInfos();
    } catch (error) {
      console.error('Failed to update metrics');
    }
  }

  getStatusColor(value: number, warning: number, critical: number): string {
    if (value >= critical) return '#F44336';
    if (value >= warning) return '#FF9800';
    return '#4CAF50';
  }

  build() {
    Column() {
      this.buildHeader()
      Scroll() {
        Column() {
          this.buildOverviewCards()
          this.buildDetailedMetrics()
          this.buildFreezeSection()
          this.buildControlPanel()
        }
        .padding(16)
      }
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F7FA')
  }

  @Builder
  buildHeader() {
    Row() {
      Text('<')
        .onClick(() => router.back())
      Blank()
      Text('性能监控')
        .fontSize(18)
        .fontWeight(FontWeight.Bold)
      Blank()
      Row() {
        Circle().size({ width: 8, height: 8 })
          .fill(this.isMonitoring ? '#4CAF50' : '#F44336')
        Text(this.isMonitoring ? '监控中' : '已停止')
          .fontSize(12)
          .margin({ left: 4 })
      }
    }
    .height(56)
    .padding({ left: 16, right: 16 })
    .backgroundColor('#FFFFFF')
  }

  @Builder
  buildOverviewCards() {
    Row() {
      this.buildMetricCard('内存', this.metrics?.memoryPercent || 0, '%', 70, 85)
      this.buildMetricCard('CPU', this.metrics?.cpuUsage || 0, '%', 80, 95)
      this.buildMetricCard('帧率', this.metrics?.fps || 60, 'FPS', 45, 30)
    }
    .width('100%')
    .justifyContent(FlexAlign.SpaceBetween)
  }

  @Builder
  buildMetricCard(title: string, value: number, unit: string, warning: number, critical: number) {
    Column() {
      Text(title).fontSize(12).fontColor('#666666')
      Text(value.toFixed(1))
        .fontSize(28)
        .fontWeight(FontWeight.Bold)
        .fontColor(this.getStatusColor(value, warning, critical))
      Text(unit).fontSize(12).fontColor('#999999')
    }
    .width('30%')
    .height(100)
    .backgroundColor('#FFFFFF')
    .borderRadius(12)
    .justifyContent(FlexAlign.Center)
  }

  @Builder
  buildControlPanel() {
    Row() {
      Button(this.isMonitoring ? '暂停监控' : '开始监控')
        .onClick(() => {
          if (this.isMonitoring) {
            this.stopMonitoring();
          } else {
            this.startMonitoring();
          }
        })

      Button('触发测试')
        .onClick(() => {
          CrashMonitor.handleBusinessError('测试业务异常', { 'test': true });
          this.updateMetrics();
        })
        .margin({ left: 12 })
    }
    .width('100%')
    .padding(16)
  }
}

七、崩溃日志查看页面

7.1 日志列表与筛选

// CrashLogPage.ets
import { CrashLog, CrashType, CrashLevel } from '../model/CrashModels';
import CrashMonitor from '../service/CrashMonitor';

export class SelectOptionData {
  value: string = '';
  label: string = '';

  constructor(value: string, label: string) {
    this.value = value;
    this.label = label;
  }
}

@Entry
@Component
struct CrashLogPage {
  @State crashLogs: CrashLog[] = [];
  @State isLoading: boolean = true;
  @State filterType: string = 'ALL';
  @State filterLevel: string = 'ALL';

  aboutToAppear() {
    this.loadCrashLogs();
  }

  async loadCrashLogs() {
    this.isLoading = true;
    try {
      this.crashLogs = await CrashMonitor.getCrashLogs();
    } catch (error) {
      console.error('Failed to load crash logs');
    } finally {
      this.isLoading = false;
    }
  }

  getFilteredLogs(): CrashLog[] {
    return this.crashLogs.filter(log => {
      if (this.filterType !== 'ALL' && log.type !== this.filterType) {
        return false;
      }
      if (this.filterLevel !== 'ALL' && log.level !== this.filterLevel) {
        return false;
      }
      return true;
    });
  }

  getCrashTypeName(type: CrashType): string {
    const names: Record<string, string> = {
      'JS_ERROR': 'JS异常',
      'PROMISE_REJECTION': 'Promise拒绝',
      'ANR': '应用无响应',
      'MEMORY_WARNING': '内存警告',
      'BUSINESS_ERROR': '业务异常'
    };
    return names[type] || type;
  }

  build() {
    Column() {
      this.buildFilterBar()
      this.buildLogList()
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F7FA')
  }

  @Builder
  buildFilterBar() {
    Row() {
      Select(this.getTypeOptions())
        .selected(0)
        .value('全部')
        .onSelect((index: number) => {
          const options = ['ALL', 'JS_ERROR', 'ANR', 'MEMORY_WARNING'];
          this.filterType = options[index];
        })
      // 级别筛选同理...
      Blank()
      Text(`共 ${this.getFilteredLogs().length} 条`).fontSize(12)
    }
    .padding(16)
    .backgroundColor('#FFFFFF')
  }

  getTypeOptions(): SelectOptionData[] {
    return [
      new SelectOptionData('ALL', '全部'),
      new SelectOptionData('JS_ERROR', 'JS异常'),
      new SelectOptionData('ANR', '应用无响应'),
      new SelectOptionData('MEMORY_WARNING', '内存警告')
    ];
  }
}

八、集成使用指南

8.1 在 EntryAbility 中初始化

// EntryAbility.ets
import CrashMonitor from '../service/CrashMonitor';

onWindowStageCreate(windowStage: window.WindowStage): void {
  // 加载主页面
  windowStage.loadContent('pages/Index', (err) => {
    // 初始化崩溃监控
    CrashMonitor.init(context);
    CrashMonitor.start();

    // 监听崩溃事件
    CrashMonitor.on('memoryWarning', (percent: number) => {
      console.info(`Memory warning: ${percent}%`);
    });
  });
}

8.2 手动上报业务异常

// 在业务代码中上报异常
CrashMonitor.handleBusinessError('用户下单失败', {
  userId: '12345',
  orderId: 'ORD001',
  errorCode: 5001
});

// 上报 JS 错误
CrashMonitor.handleJSError('TypeError: Cannot read property', stackTrace);

// 记录卡顿事件
CrashMonitor.recordFreeze('pages/Index', 600);  // 600ms 卡顿

九、运行验证

9.1 编译构建

在项目根目录下执行以下命令进行编译构建：

./gradlew build

9.2 模拟器运行截图

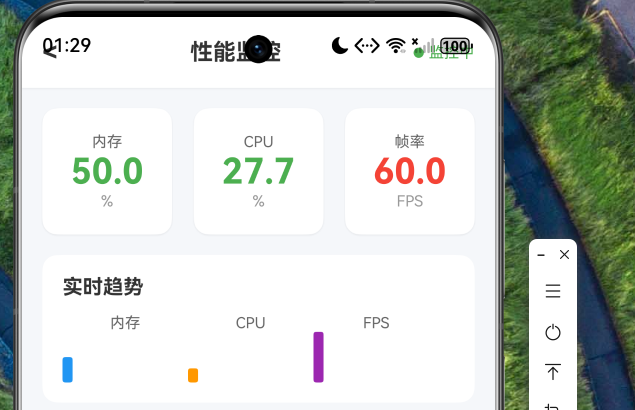

性能监控页面运行效果：

截图说明：图中展示了实时内存使用率、CPU占用率和帧率监控数据，状态指示灯显示监控服务处于运行状态。

功能验证要点：

1. 点击"触发测试"按钮可生成测试业务异常
2. 性能指标每秒钟自动刷新
3. 日志页面支持实时筛选和刷新
4. 卡顿事件自动记录并分级显示

十、总结与展望

本文详细介绍了在 OpenHarmony 应用中实现崩溃监控系统的完整方案，包括：

1. 模块化架构：通过 CrashMonitor、CrashReporter、CrashStorage 三个核心模块实现关注点分离
2. 多维度监控：覆盖 JS 异常、Promise 拒绝、内存警告、卡顿检测和帧率监控
3. 灵活上报机制：支持手动上报、自动上报和批量上报多种模式
4. 友好的用户界面：提供实时性能监控面板和日志查看页面

该方案可根据实际需求进行扩展，例如增加网络状态监控、电池电量监控等功能。完整代码已托管至 AtomGit 仓库，欢迎开发者交流讨论。

感谢各位阅读！
