Flutter 三方库 cached_network_image 的鸿蒙化适配与实战指南
欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

一、引言

前言

本文将介绍基于 Flutter for OpenHarmony 的应用开发全流程，涵盖开发环境配置、依赖安装、多语言国际化实现以及在 DevEco 虚拟机上的部署运行。

项目概述

本项目是一个跨平台数据清单管理应用，包含两个主要模块：

模块	技术栈	功能
Flask 后端	Python + Flask-Babel	多语言国际化 API 服务
Flutter 前端	Dart + Dio	数据清单展示与网络请求

开发环境

组件	版本/路径
Flutter SDK	3.27.5-ohos-1.0.4
DevEco Studio	D:\deveco\DevEco Studio\sdk
OpenHarmony	6.0.0.47 (API 20)
Python	3.14.4
Flask	3.1.3
Flask-Babel	4.0.0

---

第一部分：Flask 多语言国际化服务

项目结构

flask_app/
├── app/
│   ├── __init__.py           # 应用工厂
│   ├── routes.py             # 路由定义
│   └── translations/         # 翻译文件目录
│       ├── zh_CN/LC_MESSAGES/messages.po
│       ├── en_US/LC_MESSAGES/messages.po
│       └── ja_JP/LC_MESSAGES/messages.po
├── config.py                 # 配置文件
├── compile_messages.py       # 编译脚本
└── run.py                    # 启动文件

核心代码

1. 应用工厂（app/init.py）

Flask-Babel 4.0 使用 locale_selector 参数配置语言选择器：

from flask import Flask, request, session
from flask_babel import Babel, gettext as _, ngettext

def get_locale():
    # 优先使用用户会话中保存的语言
    if 'language' in session:
        return session['language']

    # 回退到浏览器 Accept-Language 头
    return request.accept_languages.best_match(
        ['zh_CN', 'en_US', 'ja_JP']
    ) or 'zh_CN'

def create_app(config_name='default'):
    app = Flask(__name__)
    app.config.from_object(f'config.{config_name.capitalize()}Config')

    # 初始化 Babel，传入语言选择器
    babel = Babel(app, locale_selector=get_locale)

    from app.routes import main_bp
    app.register_blueprint(main_bp)

    return app

2. 配置文件（config.py）

class Config:
    LANGUAGES = ['en', 'zh', 'ja']
    BABEL_DEFAULT_LOCALE = 'zh'
    BABEL_TRANSLATION_DIRECTORIES = 'app/translations'
    SECRET_KEY = 'your-secret-key'
    SUPPORTED_LOCALES = ['zh_CN', 'en_US', 'ja_JP']

class DevelopmentConfig(Config):
    DEBUG = True

3. 编译翻译文件（compile_messages.py）

import os
from babel.messages.mofile import write_mo
from babel.messages.pofile import read_po

def compile_messages():
    base_path = 'app/translations'
    for locale in ['zh_CN', 'en_US', 'ja_JP']:
        po_file = os.path.join(base_path, locale, 'LC_MESSAGES', 'messages.po')
        mo_file = po_file.replace('.po', '.mo')

        if os.path.exists(po_file):
            with open(po_file, 'rb') as f:
                catalog = read_po(f)
            with open(mo_file, 'wb') as f:
                write_mo(f, catalog)
            print(f'Compiled: {po_file} -> {mo_file}')

if __name__ == '__main__':
    compile_messages()

4. 翻译文件示例（messages.po）

中文翻译：

msgid ""
msgstr ""
"Content-Type: text/plain; charset=UTF-8\n"
"Language: zh_CN\n"

msgid "Welcome"
msgstr "欢迎"

msgid "Data List"
msgstr "数据清单"

msgid "Language"
msgstr "语言"

msgid "Settings"
msgstr "设置"

安装与运行

# 安装依赖
python -m pip install Flask Flask-Babel Babel pytz

# 编译翻译文件
python compile_messages.py

# 启动服务
python run.py

运行效果：

 * Serving Flask app 'app'
 * Debug mode: on
 * Running on http://127.0.0.1:5000
 * Running on http://192.168.0.140:5000

---

第二部分：Flutter 数据清单应用

项目结构

lib/
├── main.dart                 # 应用入口
├── models/
│   └── data_item.dart       # 数据模型
│   └── models.dart          # 导出文件
├── services/
│   └── api_service.dart     # API 服务层
│   └── services.dart        # 导出文件
└── pages/
    └── data_list_page.dart  # 列表页面
    └── pages.dart           # 导出文件

依赖配置

dependencies:
  flutter:
    sdk: flutter
  cupertino_icons: ^1.0.8
  dio: ^5.4.0
  flutter_localizations:
    sdk: flutter
  intl: ^0.19.0

核心代码

1. 数据模型（models/data_item.dart）

class DataItem {
  final int id;
  final String name;
  final String description;
  final String category;
  final double price;
  final int quantity;
  final String imageUrl;
  final DateTime createTime;

  DataItem({
    required this.id,
    required this.name,
    required this.description,
    required this.category,
    required this.price,
    required this.quantity,
    required this.imageUrl,
    required this.createTime,
  });

  factory DataItem.fromJson(Map<String, dynamic> json) {
    return DataItem(
      id: json['id'] ?? 0,
      name: json['name'] ?? '',
      description: json['description'] ?? '',
      category: json['category'] ?? '',
      price: (json['price'] ?? 0).toDouble(),
      quantity: json['quantity'] ?? 0,
      imageUrl: json['imageUrl'] ?? '',
      createTime: json['createTime'] != null
          ? DateTime.parse(json['createTime'])
          : DateTime.now(),
    );
  }

  Map<String, dynamic> toJson() {
    return {
      'id': id,
      'name': name,
      'description': description,
      'category': category,
      'price': price,
      'quantity': quantity,
      'imageUrl': imageUrl,
      'createTime': createTime.toIso8601String(),
    };
  }
}

2. API 服务层（services/api_service.dart）

import 'package:dio/dio.dart';
import '../models/data_item.dart';

class ApiService {
  static const String baseUrl = 'https://jsonplaceholder.typicode.com';

  late final Dio _dio;

  ApiService() {
    _dio = Dio(BaseOptions(
      baseUrl: baseUrl,
      connectTimeout: const Duration(seconds: 10),
      receiveTimeout: const Duration(seconds: 10),
      headers: {
        'Content-Type': 'application/json',
        'Accept': 'application/json',
      },
    ));

    _dio.interceptors.add(LogInterceptor(
      requestBody: true,
      responseBody: true,
    ));
  }

  Future<List<DataItem>> getDataItems() async {
    try {
      final response = await _dio.get('/posts');

      if (response.statusCode == 200) {
        final List<dynamic> data = response.data;
        return data.asMap().entries.map((entry) {
          final Map<String, dynamic> item = entry.value;
          return DataItem(
            id: item['id'] ?? 0,
            name: '物品 ${item['id']}',
            description: item['title'] ?? '',
            category: _getCategoryFromId(item['id'] ?? 0),
            price: (item['id'] ?? 0) * 10.0,
            quantity: (item['id'] ?? 0) % 100,
            imageUrl: 'https://picsum.photos/seed/${item['id']}/200/200',
            createTime: DateTime.now().subtract(
              Duration(days: (item['id'] ?? 0) % 30),
            ),
          );
        }).toList();
      }
      throw DioException(
        requestOptions: response.requestOptions,
        message: 'Failed to load data',
      );
    } on DioException catch (e) {
      throw _handleError(e);
    }
  }

  String _getCategoryFromId(int id) {
    final categories = ['电子产品', '服装', '食品', '家居', '运动'];
    return categories[id % categories.length];
  }

  Exception _handleError(DioException e) {
    switch (e.type) {
      case DioExceptionType.connectionTimeout:
      case DioExceptionType.sendTimeout:
      case DioExceptionType.receiveTimeout:
        return Exception('连接超时，请检查网络');
      case DioExceptionType.badResponse:
        return Exception('服务器错误: ${e.response?.statusCode}');
      case DioExceptionType.cancel:
        return Exception('请求取消');
      default:
        return Exception('网络错误: ${e.message}');
    }
  }
}

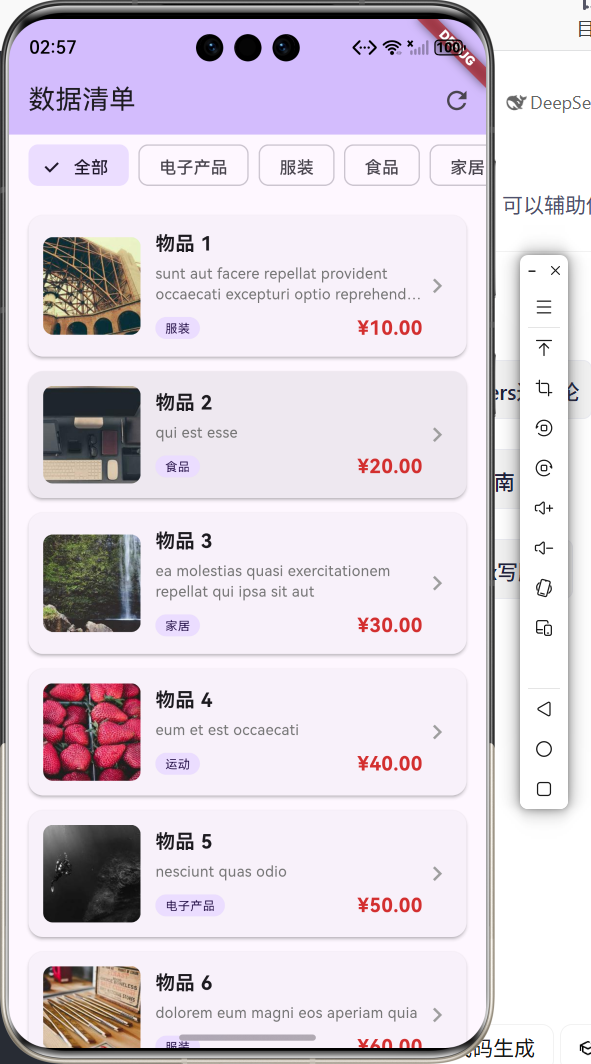

3. 数据列表页面（pages/data_list_page.dart）

import 'package:flutter/material.dart';
import '../models/data_item.dart';
import '../services/api_service.dart';

class DataListPage extends StatefulWidget {
  const DataListPage({super.key});

  @override
  State<DataListPage> createState() => _DataListPageState();
}

class _DataListPageState extends State<DataListPage> {
  final ApiService _apiService = ApiService();
  List<DataItem> _items = [];
  bool _isLoading = true;
  String? _error;
  String _selectedCategory = '全部';

  final List<String> _categories = ['全部', '电子产品', '服装', '食品', '家居', '运动'];

  @override
  void initState() {
    super.initState();
    _loadData();
  }

  Future<void> _loadData() async {
    setState(() {
      _isLoading = true;
      _error = null;
    });

    try {
      final items = await _apiService.getDataItems();
      setState(() {
        _items = items;
        _isLoading = false;
      });
    } catch (e) {
      setState(() {
        _error = e.toString();
        _isLoading = false;
      });
    }
  }

  List<DataItem> get _filteredItems {
    if (_selectedCategory == '全部') {
      return _items;
    }
    return _items.where((item) => item.category == _selectedCategory).toList();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('数据清单'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
        actions: [
          IconButton(
            icon: const Icon(Icons.refresh),
            onPressed: _loadData,
            tooltip: '刷新',
          ),
        ],
      ),
      body: Column(
        children: [
          _buildCategoryFilter(),
          Expanded(child: _buildContent()),
        ],
      ),
    );
  }

  Widget _buildCategoryFilter() {
    return Container(
      height: 50,
      padding: const EdgeInsets.symmetric(vertical: 8),
      child: ListView.builder(
        scrollDirection: Axis.horizontal,
        padding: const EdgeInsets.symmetric(horizontal: 16),
        itemCount: _categories.length,
        itemBuilder: (context, index) {
          final category = _categories[index];
          final isSelected = category == _selectedCategory;
          return Padding(
            padding: const EdgeInsets.only(right: 8),
            child: FilterChip(
              label: Text(category),
              selected: isSelected,
              onSelected: (selected) {
                setState(() {
                  _selectedCategory = category;
                });
              },
              selectedColor: Theme.of(context).colorScheme.primaryContainer,
            ),
          );
        },
      ),
    );
  }

  Widget _buildContent() {
    if (_isLoading) {
      return const Center(child: CircularProgressIndicator());
    }

    if (_error != null) {
      return Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.error_outline, size: 64, color: Colors.red[300]),
            const SizedBox(height: 16),
            Text(_error!, style: const TextStyle(color: Colors.red)),
            const SizedBox(height: 16),
            ElevatedButton(
              onPressed: _loadData,
              child: const Text('重试'),
            ),
          ],
        ),
      );
    }

    if (_filteredItems.isEmpty) {
      return const Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.inventory_2_outlined, size: 64, color: Colors.grey),
            SizedBox(height: 16),
            Text('暂无数据'),
          ],
        ),
      );
    }

    return RefreshIndicator(
      onRefresh: _loadData,
      child: ListView.builder(
        padding: const EdgeInsets.all(16),
        itemCount: _filteredItems.length,
        itemBuilder: (context, index) {
          return _buildItemCard(_filteredItems[index]);
        },
      ),
    );
  }

  Widget _buildItemCard(DataItem item) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      elevation: 2,
      child: InkWell(
        onTap: () => _showItemDetail(item),
        borderRadius: BorderRadius.circular(12),
        child: Padding(
          padding: const EdgeInsets.all(12),
          child: Row(
            children: [
              ClipRRect(
                borderRadius: BorderRadius.circular(8),
                child: Image.network(
                  item.imageUrl,
                  width: 80,
                  height: 80,
                  fit: BoxFit.cover,
                  errorBuilder: (context, error, stackTrace) {
                    return Container(
                      width: 80,
                      height: 80,
                      color: Colors.grey[200],
                      child: const Icon(Icons.image, color: Colors.grey),
                    );
                  },
                ),
              ),
              const SizedBox(width: 12),
              Expanded(
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(
                      item.name,
                      style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
                      maxLines: 1,
                      overflow: TextOverflow.ellipsis,
                    ),
                    const SizedBox(height: 4),
                    Text(
                      item.description,
                      style: TextStyle(fontSize: 12, color: Colors.grey[600]),
                      maxLines: 2,
                      overflow: TextOverflow.ellipsis,
                    ),
                    const SizedBox(height: 8),
                    Row(
                      children: [
                        Container(
                          padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 2),
                          decoration: BoxDecoration(
                            color: Theme.of(context).colorScheme.primaryContainer,
                            borderRadius: BorderRadius.circular(12),
                          ),
                          child: Text(item.category, style: const TextStyle(fontSize: 10)),
                        ),
                        const Spacer(),
                        Text(
                          '¥${item.price.toStringAsFixed(2)}',
                          style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold, color: Colors.red[700]),
                        ),
                      ],
                    ),
                  ],
                ),
              ),
              const Icon(Icons.chevron_right, color: Colors.grey),
            ],
          ),
        ),
      ),
    );
  }

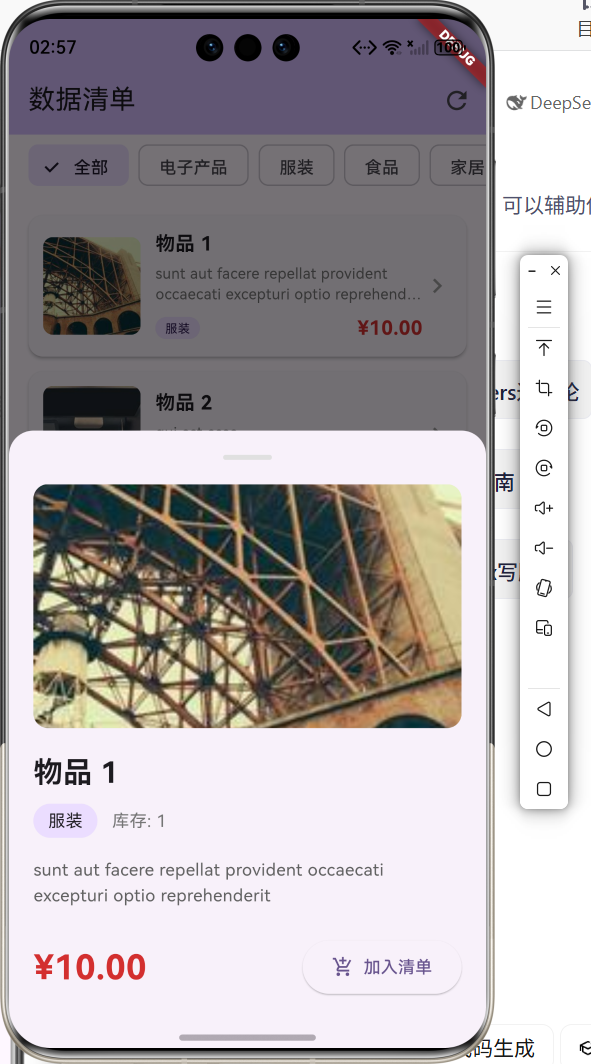

  void _showItemDetail(DataItem item) {
    showModalBottomSheet(
      context: context,
      isScrollControlled: true,
      shape: const RoundedRectangleBorder(
        borderRadius: BorderRadius.vertical(top: Radius.circular(20)),
      ),
      builder: (context) => DraggableScrollableSheet(
        initialChildSize: 0.6,
        minChildSize: 0.4,
        maxChildSize: 0.9,
        expand: false,
        builder: (context, scrollController) {
          return SingleChildScrollView(
            controller: scrollController,
            padding: const EdgeInsets.all(20),
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Center(
                  child: Container(width: 40, height: 4, decoration: BoxDecoration(color: Colors.grey[300], borderRadius: BorderRadius.circular(2))),
                ),
                const SizedBox(height: 20),
                ClipRRect(
                  borderRadius: BorderRadius.circular(12),
                  child: Image.network(item.imageUrl, width: double.infinity, height: 200, fit: BoxFit.cover),
                ),
                const SizedBox(height: 20),
                Text(item.name, style: const TextStyle(fontSize: 24, fontWeight: FontWeight.bold)),
                const SizedBox(height: 8),
                Row(
                  children: [
                    Container(
                      padding: const EdgeInsets.symmetric(horizontal: 12, vertical: 4),
                      decoration: BoxDecoration(
                        color: Theme.of(context).colorScheme.primaryContainer,
                        borderRadius: BorderRadius.circular(16),
                      ),
                      child: Text(item.category),
                    ),
                    const SizedBox(width: 12),
                    Text('库存: ${item.quantity}', style: TextStyle(color: Colors.grey[600])),
                  ],
                ),
                const SizedBox(height: 16),
                Text(item.description, style: TextStyle(fontSize: 14, color: Colors.grey[700], height: 1.5)),
                const SizedBox(height: 24),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceBetween,
                  children: [
                    Text('¥${item.price.toStringAsFixed(2)}', style: TextStyle(fontSize: 28, fontWeight: FontWeight.bold, color: Colors.red[700])),
                    ElevatedButton.icon(
                      onPressed: () {
                        Navigator.pop(context);
                        ScaffoldMessenger.of(context).showSnackBar(
                          SnackBar(content: Text('已添加到购物车: ${item.name}'), behavior: SnackBarBehavior.floating),
                        );
                      },
                      icon: const Icon(Icons.add_shopping_cart),
                      label: const Text('加入清单'),
                    ),
                  ],
                ),
              ],
            ),
          );
        },
      ),
    );
  }
}

4. 应用入口（main.dart）

import 'package:flutter/material.dart';
import 'pages/data_list_page.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '数据清单',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.deepPurple),
        useMaterial3: true,
      ),
      home: const DataListPage(),
    );
  }
}

---

第三部分：在 DevEco 虚拟机上运行

环境要求

Flutter for OpenHarmony 构建需要以下工具：

工具	说明
Node.js	npm 包管理器（用于 hvigor 插件）
ohpm	OpenHarmony 包管理器
hvigor	构建工具

常见问题解决

问题1：npm 未找到

ProcessException: Failed to find "npm" in the search path.

解决方案：安装 Node.js

winget install OpenJS.NodeJS.LTS

安装后需要关闭并重新打开终端使环境变量生效。

问题2：ohpm 未找到

Ohpm is missing, please configure "ohpm" to the environment variable PATH.

解决方案：在 DevEco Studio 中配置 ohpm 路径到系统 PATH。

运行命令

# 获取依赖
cd d:\my_test_app
flutter pub get

# 列出可用设备
flutter devices

# 运行到设备
flutter run -d 127.0.0.1:5555

可用设备列表

Found 3 connected devices:
  127.0.0.1:5555 (mobile)  ohos-x64   Ohos OpenHarmony-6.0.0.47 (API 20)
  Windows (desktop)         windows    Microsoft Windows
  Edge (web)               edge       Microsoft Edge

---

功能总结

功能模块	实现详情
数据模型	DataItem 类，支持 JSON 序列化
网络请求	Dio 库封装，支持超时处理和错误捕获
分类筛选	FilterChip 组件，支持 6 个分类
下拉刷新	RefreshIndicator 组件
详情弹窗	ModalBottomSheet + DraggableScrollableSheet
图片加载	Image.network 支持加载状态和错误处理
国际化	Flask-Babel 支持中英日三种语言

---

总结

本文详细介绍了：

1. Flask 多语言国际化服务：使用 Flask-Babel 4.0 实现后端国际化
2. Flutter 数据清单应用：使用 Dio 实现网络请求和列表展示
3. 鸿蒙设备部署：在 DevEco 虚拟机上运行 Flutter 应用

通过本项目的学习，可以掌握 Flutter 跨平台开发的核心技能，为开发更复杂的应用奠定基础。
