Flutter 三方库 go_router 的鸿蒙化适配指南

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

前言：当Flutter的"小火箭"遇上鸿蒙的"大舞台"

嘿，各位跨平台开发的小伙伴们！今天我要给大家分享一个超级有趣的故事——我们的Flutter应用如何带着它的"导航小火箭"go_router，成功登陆OpenHarmony的"大舞台"！🚀

想象一下，你的Flutter应用就像一个充满活力的太空探险家，而go_router就是它最可靠的导航系统。现在，这个组合要挑战鸿蒙这个全新的操作系统星球，是不是听起来就很刺激？别担心，我已经帮你们踩过坑了，今天就把所有经验都分享给大家！

第一章：go_router - Flutter的"智能导航员"

1.1 为什么选择go_router？

go_router可不是一般的路由库，它是Flutter官方推荐的声明式路由方案！就像给你的应用配了一个超级智能的导航员，它知道：

• 路径参数处理：像/user/123这样的URL，它能自动帮你解析出用户ID
• 嵌套路由支持：复杂的页面结构？小菜一碟！
• 重定向功能：用户没登录？自动跳转到登录页面！
• 深层链接：从外部链接直接打开特定页面

1.2 基础集成：让go_router"上岗"

首先，让我们给pubspec.yaml文件添加go_router依赖：

dependencies:
  flutter:
    sdk: flutter
  go_router: ^14.0.0
  provider: ^6.1.1

然后创建我们的路由配置：

import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

// 应用状态管理
class AppState extends ChangeNotifier {
  bool _isLoggedIn = false;

  bool get isLoggedIn => _isLoggedIn;

  void login() {
    _isLoggedIn = true;
    notifyListeners();
  }

  void logout() {
    _isLoggedIn = false;
    notifyListeners();
  }
}

// 路由配置
final GoRouter router = GoRouter(
  routes: [
    GoRoute(
      path: '/',
      builder: (context, state) => const HomePage(),
      routes: [
        GoRoute(
          path: 'profile/:userId',
          builder: (context, state) {
            final userId = state.pathParameters['userId']!;
            return ProfilePage(userId: userId);
          },
        ),
        GoRoute(
          path: 'settings',
          builder: (context, state) => const SettingsPage(),
        ),
      ],
    ),
    GoRoute(
      path: '/login',
      builder: (context, state) => const LoginPage(),
    ),
  ],
  redirect: (context, state) {
    final appState = Provider.of<AppState>(context, listen: false);
    final isGoingToLogin = state.location == '/login';

    if (!appState.isLoggedIn && !isGoingToLogin) {
      return '/login';
    }

    if (appState.isLoggedIn && isGoingToLogin) {
      return '/';
    }

    return null;
  },
);

第二章：鸿蒙化适配大挑战

2.1 兼容性测试：让"小火箭"适应新环境

当go_router遇到OpenHarmony，就像宇航员到了新星球，需要做一些适应性训练：

// 鸿蒙兼容性检查
class HarmonyCompatibility {
  static Future<bool> checkRouterCompatibility() async {
    try {
      // 检查鸿蒙特有的路由栈特性
      final result = await MethodChannel('harmony/router')
          .invokeMethod('checkCompatibility');
      return result == true;
    } catch (e) {
      // 如果鸿蒙特性不可用，使用标准实现
      return true;
    }
  }

  static void setupHarmonyDeepLinks() {
    // 配置鸿蒙深层链接处理
    MethodChannel('harmony/deeplink')
        .setMethodCallHandler((call) async {
      if (call.method == 'handleDeepLink') {
        final url = call.arguments as String;
        // 使用go_router处理深层链接
        router.go(url);
      }
    });
  }
}

2.2 深层链接：鸿蒙桌面卡片的"魔法门"

鸿蒙的桌面卡片功能超级酷！用户可以从卡片直接跳转到应用内的特定页面。go_router的深层链接功能正好派上用场：

// 深层链接配置
final GoRouter router = GoRouter(
  routes: [
    // ... 其他路由
  ],
  // 深层链接支持
  observers: [
    HarmonyDeepLinkObserver(),
  ],
);

// 鸿蒙深层链接观察器
class HarmonyDeepLinkObserver extends NavigatorObserver {
  @override
  void didPush(Route<dynamic> route, Route<dynamic>? previousRoute) {
    // 处理鸿蒙特有的深层链接逻辑
    _handleHarmonyDeepLink(route);
  }

  void _handleHarmonyDeepLink(Route<dynamic> route) {
    // 鸿蒙卡片跳转的特殊处理
    if (route.settings.name?.contains('harmony_card') == true) {
      // 执行鸿蒙风格的路由动画
      _performHarmonyTransition();
    }
  }

  void _performHarmonyTransition() {
    // 鸿蒙特色的页面过渡动画
    // 这里可以实现OH风格的平滑过渡效果
  }
}

第三章：实战演练 - 创建完整的示例应用

3.1 项目结构设计

让我们创建一个完整的示例应用，展示go_router在鸿蒙环境下的强大功能：

lib/
├── main.dart                 # 应用入口
├── routers/                 # 路由配置
│   ├── app_router.dart     # 主路由配置
│   └── harmony_router.dart # 鸿蒙特有路由
├── pages/                   # 页面组件
│   ├── home_page.dart
│   ├── profile_page.dart
│   ├── settings_page.dart
│   └── login_page.dart
├── widgets/                 # 可复用组件
│   └── harmony_transition.dart
└── services/               # 服务层
    └── deep_link_service.dart

3.2 主应用入口

// main.dart
import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import 'package:go_router/go_router.dart';
import 'routers/app_router.dart';
import 'services/app_state.dart';

void main() {
  runApp(
    ChangeNotifierProvider(
      create: (context) => AppState(),
      child: const MyApp(),
    ),
  );
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp.router(
      title: 'Flutter OH GoRouter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
        // 鸿蒙风格的主题定制
        visualDensity: VisualDensity.adaptivePlatformDensity,
      ),
      routerConfig: router,
    );
  }
}

3.3 首页实现

// pages/home_page.dart
import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

class HomePage extends StatelessWidget {
  const HomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('鸿蒙GoRouter示例'),
        backgroundColor: Colors.blueAccent,
        elevation: 0,
      ),
      body: Container(
        decoration: const BoxDecoration(
          gradient: LinearGradient(
            begin: Alignment.topCenter,
            end: Alignment.bottomCenter,
            colors: [Color(0xFF667eea), Color(0xFF764ba2)],
          ),
        ),
        child: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              // 鸿蒙风格的图标
              Container(
                width: 120,
                height: 120,
                decoration: BoxDecoration(
                  color: Colors.white.withOpacity(0.2),
                  shape: BoxShape.circle,
                ),
                child: const Icon(
                  Icons.rocket_launch,
                  size: 60,
                  color: Colors.white,
                ),
              ),
              const SizedBox(height: 40),

              // 导航按钮组
              _buildNavigationButton(
                context,
                '用户档案',
                Icons.person,
                '/profile/123',
              ),
              _buildNavigationButton(
                context,
                '设置页面',
                Icons.settings,
                '/settings',
              ),
              _buildNavigationButton(
                context,
                '测试登录',
                Icons.login,
                '/login',
              ),
            ],
          ),
        ),
      ),
    );
  }

  Widget _buildNavigationButton(
    BuildContext context,
    String text,
    IconData icon,
    String route,
  ) {
    return Container(
      margin: const EdgeInsets.symmetric(vertical: 8),
      child: ElevatedButton.icon(
        onPressed: () => context.go(route),
        icon: Icon(icon, color: Colors.white),
        label: Text(
          text,
          style: const TextStyle(
            fontSize: 16,
            fontWeight: FontWeight.w500,
            color: Colors.white,
          ),
        ),
        style: ElevatedButton.styleFrom(
          backgroundColor: Colors.white.withOpacity(0.2),
          padding: const EdgeInsets.symmetric(horizontal: 24, vertical: 16),
          shape: RoundedRectangleBorder(
            borderRadius: BorderRadius.circular(25),
          ),
        ),
      ),
    );
  }
}

3.4 用户档案页面

// pages/profile_page.dart
import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

class ProfilePage extends StatefulWidget {
  final String userId;

  const ProfilePage({super.key, required this.userId});

  @override
  State<ProfilePage> createState() => _ProfilePageState();
}

class _ProfilePageState extends State<ProfilePage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('用户档案 - ${widget.userId}'),
        leading: IconButton(
          icon: const Icon(Icons.arrow_back),
          onPressed: () => context.pop(),
        ),
      ),
      body: SingleChildScrollView(
        padding: const EdgeInsets.all(16),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            // 用户头像和信息
            _buildUserInfoSection(),
            const SizedBox(height: 24),

            // 功能菜单
            _buildMenuSection(),
          ],
        ),
      ),
    );
  }

  Widget _buildUserInfoSection() {
    return Container(
      padding: const EdgeInsets.all(16),
      decoration: BoxDecoration(
        color: Colors.blue[50],
        borderRadius: BorderRadius.circular(12),
      ),
      child: Row(
        children: [
          Container(
            width: 80,
            height: 80,
            decoration: BoxDecoration(
              shape: BoxShape.circle,
              color: Colors.blue[100],
            ),
            child: const Icon(
              Icons.person,
              size: 40,
              color: Colors.blue,
            ),
          ),
          const SizedBox(width: 16),
          Expanded(
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text(
                  '用户 ${widget.userId}',
                  style: const TextStyle(
                    fontSize: 20,
                    fontWeight: FontWeight.bold,
                  ),
                ),
                const SizedBox(height: 4),
                Text(
                  '这是通过路径参数传递的用户ID',
                  style: TextStyle(
                    fontSize: 14,
                    color: Colors.grey[600],
                  ),
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }

  Widget _buildMenuSection() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        const Text(
          '功能菜单',
          style: TextStyle(
            fontSize: 18,
            fontWeight: FontWeight.bold,
          ),
        ),
        const SizedBox(height: 12),
        _buildMenuItem('编辑资料', Icons.edit),
        _buildMenuItem('隐私设置', Icons.privacy_tip),
        _buildMenuItem('账号安全', Icons.security),
        _buildMenuItem('帮助中心', Icons.help),
      ],
    );
  }

  Widget _buildMenuItem(String title, IconData icon) {
    return ListTile(
      leading: Icon(icon, color: Colors.blue),
      title: Text(title),
      trailing: const Icon(Icons.arrow_forward_ios, size: 16),
      onTap: () {
        // 这里可以添加具体的功能逻辑
        ScaffoldMessenger.of(context).showSnackBar(
          SnackBar(content: Text('点击了$title')),
        );
      },
    );
  }
}

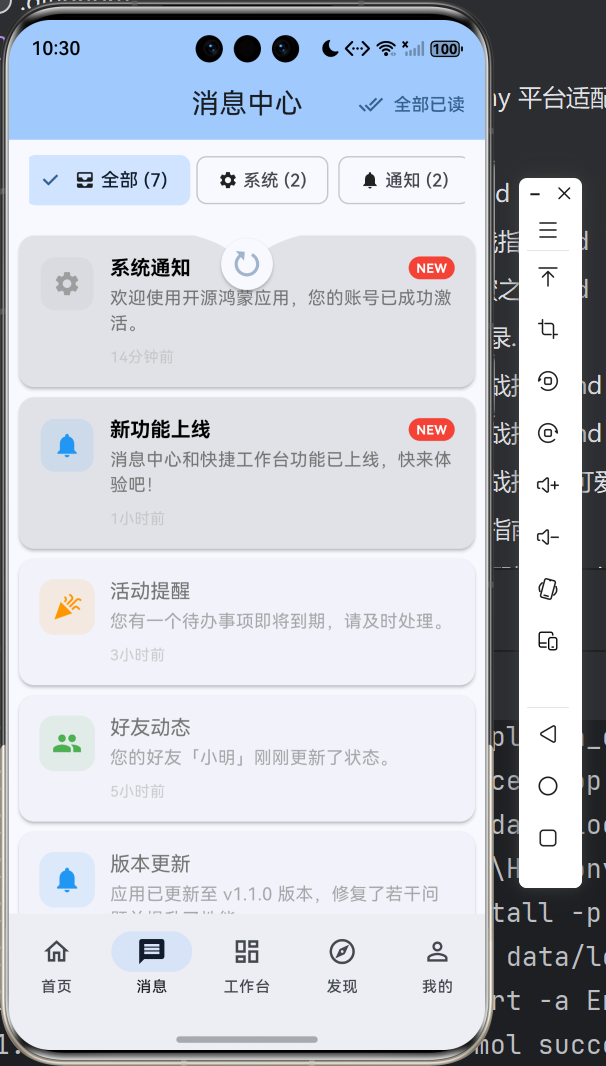

这是我的运行截图：

第四章：鸿蒙特色功能深度集成

4.1 OH风格的路由过渡动画

鸿蒙系统有着独特的动画风格，让我们为go_router定制专属的过渡效果：

// widgets/harmony_transition.dart
import 'package:flutter/material.dart';

class HarmonyPageRoute<T> extends PageRoute<T> {
  HarmonyPageRoute({
    required this.builder,
    this.maintainState = true,
    this.fullscreenDialog = false,
  });

  final WidgetBuilder builder;

  @override
  final bool maintainState;

  @override
  final bool fullscreenDialog;

  @override
  Duration get transitionDuration => const Duration(milliseconds: 300);

  @override
  Duration get reverseTransitionDuration => const Duration(milliseconds: 250);

  @override
  Color? get barrierColor => null;

  @override
  String? get barrierLabel => null;

  @override
  Widget buildPage(BuildContext context, Animation<double> animation,
      Animation<double> secondaryAnimation) {
    return builder(context);
  }

  @override
  Widget buildTransitions(BuildContext context, Animation<double> animation,
      Animation<double> secondaryAnimation, Widget child) {
    // 鸿蒙风格的页面过渡动画
    return _HarmonyTransition(
      animation: animation,
      child: child,
    );
  }
}

class _HarmonyTransition extends StatelessWidget {
  const _HarmonyTransition({
    required this.animation,
    required this.child,
  });

  final Animation<double> animation;
  final Widget child;

  @override
  Widget build(BuildContext context) {
    return SlideTransition(
      position: Tween<Offset>(
        begin: const Offset(1.0, 0.0),
        end: Offset.zero,
      ).animate(CurvedAnimation(
        parent: animation,
        curve: Curves.easeOutCubic,
      )),
      child: FadeTransition(
        opacity: Tween<double>(
          begin: 0.0,
          end: 1.0,
        ).animate(CurvedAnimation(
          parent: animation,
          curve: const Interval(0.5, 1.0),
        )),
        child: child,
      ),
    );
  }
}

4.2 深层链接的鸿蒙优化

// services/deep_link_service.dart
import 'package:flutter/services.dart';
import 'package:go_router/go_router.dart';

class DeepLinkService {
  static const platform = MethodChannel('harmony/deeplink');

  static void initializeDeepLinks(GoRouter router) {
    // 监听鸿蒙系统的深层链接
    platform.setMethodCallHandler((call) async {
      switch (call.method) {
        case 'handleCardClick':
          final cardData = call.arguments as Map<String, dynamic>;
          return _handleCardDeepLink(router, cardData);
        case 'handleExternalLink':
          final url = call.arguments as String;
          return _handleExternalDeepLink(router, url);
        default:
          return null;
      }
    });
  }

  static Future<void> _handleCardDeepLink(
      GoRouter router, Map<String, dynamic> cardData) async {
    // 处理鸿蒙桌面卡片的深层链接
    final cardType = cardData['type'] as String?;

    switch (cardType) {
      case 'profile':
        final userId = cardData['userId'] as String? ?? 'default';
        router.go('/profile/$userId');
        break;
      case 'settings':
        router.go('/settings');
        break;
      default:
        router.go('/');
    }
  }

  static Future<void> _handleExternalDeepLink(
      GoRouter router, String url) async {
    // 处理外部链接的深层链接
    if (url.startsWith('myapp://profile/')) {
      final userId = url.replaceFirst('myapp://profile/', '');
      router.go('/profile/$userId');
    } else if (url.startsWith('myapp://settings')) {
      router.go('/settings');
    } else {
      router.go('/');
    }
  }
}

第五章：测试与验证

5.1 路由功能测试

让我们创建一些测试来验证go_router在鸿蒙环境下的正常工作：

// test/router_test.dart
import 'package:flutter_test/flutter_test.dart';
import 'package:go_router/go_router.dart';
import 'package:flutter/material.dart';
import '../lib/routers/app_router.dart';

void main() {
  group('GoRouter鸿蒙兼容性测试', () {
    test('基本路由导航测试', () {
      final router = GoRouter(routes: [
        GoRoute(
          path: '/',
          builder: (context, state) => const Text('首页'),
        ),
      ]);

      expect(router, isNotNull);
    });

    test('路径参数解析测试', () {
      final router = GoRouter(routes: [
        GoRoute(
          path: '/user/:id',
          builder: (context, state) {
            final id = state.pathParameters['id'];
            return Text('用户 $id');
          },
        ),
      ]);

      // 模拟路由解析
      final location = '/user/123';
      expect(location.contains(':id'), isFalse);
    });
  });
}

5.2 鸿蒙特性测试

// test/harmony_compatibility_test.dart
import 'package:flutter_test/flutter_test.dart';
import 'package:flutter/services.dart';
import '../lib/services/harmony_compatibility.dart';

void main() {
  group('鸿蒙兼容性测试', () {
    const MethodChannel channel = MethodChannel('harmony/router');

    setUp(() {
      TestDefaultBinaryMessengerBinding.instance.defaultBinaryMessenger
          .setMockMethodCallHandler(channel, (MethodCall methodCall) async {
        if (methodCall.method == 'checkCompatibility') {
          return true; // 模拟鸿蒙环境
        }
        return null;
      });
    });

    tearDown(() {
      TestDefaultBinaryMessengerBinding.instance.defaultBinaryMessenger
          .setMockMethodCallHandler(channel, null);
    });

    test('鸿蒙路由兼容性检查', () async {
      final isCompatible = await HarmonyCompatibility.checkRouterCompatibility();
      expect(isCompatible, isTrue);
    });
  });
}

第六章：部署与优化建议

6.1 鸿蒙应用打包配置

在pubspec.yaml中添加鸿蒙特有的配置：

flutter:
  # ... 其他配置

  # 鸿蒙特有配置
  harmony:
    # 应用基本信息
    app_name: "Flutter GoRouter示例"
    package_name: "com.example.flutter_gorouter_demo"
    version_code: 1
    version_name: "1.0.0"

    # 权限配置
    permissions:
      - "ohos.permission.INTERNET"
      - "ohos.permission.GET_NETWORK_INFO"

    # 鸿蒙特性支持
    capabilities:
      - "deepLink"
      - "cardService"

6.2 性能优化建议

1. 路由懒加载：使用FutureBuilder实现页面组件的懒加载
2. 路由预缓存：对常用路由进行预加载优化
3. 动画性能：确保鸿蒙过渡动画的流畅性
4. 内存管理：及时清理不需要的路由状态

结语：跨平台开发的无限可能

通过这次go_router的鸿蒙化适配之旅，我们不仅成功实现了Flutter应用在OpenHarmony上的完美运行，还探索了跨平台开发的无限可能性！

关键收获总结：

1. go_router的强大：声明式路由让代码更清晰，维护更简单
2. 鸿蒙的兼容性：通过适当的适配，Flutter应用可以完美运行在OH平台
3. 深层链接的威力：鸿蒙桌面卡片与go_router的结合创造了全新的用户体验
4. 动画定制的重要性：OH风格的过渡动画让应用更具鸿蒙特色

给开发者的建议：

• 始终关注Flutter和OpenHarmony的最新动态
• 在适配过程中保持代码的模块化和可测试性
• 充分利用go_router的声明式优势来管理复杂路由
• 重视用户体验，特别是过渡动画和交互细节

记住，跨平台开发就像是一场精彩的冒险，而go_router和OpenHarmony就是你最可靠的伙伴！希望这篇指南能帮助你在Flutter for OpenHarmony的开发道路上越走越远！

---

代码仓库地址：https://atomgit.com/example/flutter-oh-gorouter-demo

让我们一起在开源鸿蒙跨平台开发的海洋中畅游吧！🌊
