Flutter 三方库实战与鸿蒙记账APP开发全教程

欢迎加入开源鸿蒙跨平台开发者社区：https://openharmonycrossplatform.csdn.net

前言

在跨平台开发领域，Flutter 凭借一套代码多端运行的优势，越来越多地被用于鸿蒙（OpenHarmony）应用开发。本文将通过一个零基础可上手的记账 APP 实战案例，讲解 Flutter 常用三方库的集成、本地数据持久化、数据可视化饼图展示，以及完整适配鸿蒙设备的全过程。项目功能简洁实用，代码可直接运行，适合学习与课程实践。

---

一、文章标题（必含 Flutter、三方库、鸿蒙 三个关键词）

Flutter 三方库集成实战：从零开发鸿蒙记账 APP 并实现饼图统计

---

二、项目功能介绍

本项目实现一个轻量记账应用，核心功能：

1. 记录消费金额与消费类别
2. 本地持久化存储，重启 APP 数据不丢失
3. 按分类统计消费，自动生成饼图
4. 支持删除单条记录
5. 完整兼容 Android / iOS / 鸿蒙 OpenHarmony 系统

---

三、技术栈与三方库说明

所有库均已验证可在鸿蒙 Flutter 环境正常运行：

功能	三方库	作用
状态管理	provider	统一管理记账数据
本地存储	shared_preferences	持久化保存账单
图表展示	fl_chart	绘制消费分类饼图
基础路径	path_provider	适配鸿蒙文件路径

---

四、开发环境

• Flutter 3.10+
• 配置好 Flutter for OpenHarmony 环境
• DevEco Studio 或 Android Studio
• 鸿蒙真机 / 模拟器

---

五、第一步：创建 Flutter 项目

打开终端执行：

flutter create flutter_budget_app
cd flutter_budget_app

---

六、第二步：配置 pubspec.yaml 依赖

打开 pubspec.yaml，添加以下依赖：

dependencies:
  flutter:
    sdk: flutter
  provider: ^6.1.1
  shared_preferences: ^2.2.2
  fl_chart: ^0.66.2
  path_provider: ^2.1.2

执行安装：

flutter pub get

---

七、第三步：鸿蒙权限配置（关键！解决编译报错）

1. 修改 module.json5

路径：
ohos/entry/src/main/module.json5

完整正确内容（直接复制替换）

{
  "module": {
    "name": "entry",
    "type": "entry",
    "description": "$string:module_desc",
    "mainElement": "EntryAbility",
    "deviceTypes": [
      "phone"
    ],
    "deliveryWithInstall": true,
    "installationFree": false,
    "pages": "$profile:main_pages",
    "abilities": [
      {
        "name": "EntryAbility",
        "srcEntry": "./ets/entryability/EntryAbility.ets",
        "description": "$string:EntryAbility_desc",
        "icon": "$media:icon",
        "label": "$string:EntryAbility_label",
        "startWindowIcon": "$media:icon",
        "startWindowBackground": "$color:start_window_background",
        "exported": true,
        "skills": [
          {
            "entities": [
              "entity.system.home"
            ],
            "actions": [
              "action.system.home"
            ]
          }
        ]
      }
    ],
    "requestPermissions": [
      {
        "name": "ohos.permission.READ_MEDIA",
        "reason": "$string:permission_reason_read",
        "usedScene": {
          "abilities": ["EntryAbility"],
          "when": "inuse"
        }
      },
      {
        "name": "ohos.permission.WRITE_MEDIA",
        "reason": "$string:permission_reason_write",
        "usedScene": {
          "abilities": ["EntryAbility"],
          "when": "inuse"
        }
      }
    ]
  }
}

2. 添加字符串资源

路径：
ohos/entry/src/main/resources/zh_CN/element/string.json

添加：

{
  "string": [
    {
      "name": "permission_reason_read",
      "value": "用于读取本地存储的记账数据"
    },
    {
      "name": "permission_reason_write",
      "value": "用于保存记账数据到本地"
    }
  ]
}

---

八、第四步：编写项目代码

8.1 数据模型：账单实体

新建 lib/models/bill.dart

class Bill {
  final String id;
  final double money;
  final String category;
  final DateTime time;

  Bill({
    required this.id,
    required this.money,
    required this.category,
    required this.time,
  });

  Map<String, dynamic> toJson() {
    return {
      'id': id,
      'money': money,
      'category': category,
      'time': time.millisecondsSinceEpoch,
    };
  }

  static Bill fromJson(Map<String, dynamic> json) {
    return Bill(
      id: json['id'],
      money: json['money'],
      category: json['category'],
      time: DateTime.fromMillisecondsSinceEpoch(json['time']),
    );
  }
}

8.2 状态管理 + 本地存储

新建 lib/providers/bill_provider.dart

import 'package:flutter/foundation.dart';
import 'package:shared_preferences/shared_preferences.dart';
import '../models/bill.dart';
import 'dart:convert';

class BillProvider with ChangeNotifier {
  List<Bill> _list = [];
  List<Bill> get list => _list;

  final List<String> categories = ['餐饮', '交通', '购物', '娱乐', '医疗', '其他'];

  Future<void> loadData() async {
    final prefs = await SharedPreferences.getInstance();
    final str = prefs.getString('bills');
    if (str != null) {
      final List jsonList = jsonDecode(str);
      _list = jsonList.map((e) => Bill.fromJson(e)).toList();
      notifyListeners();
    }
  }

  Future<void> addBill(double money, String category) async {
    final bill = Bill(
      id: DateTime.now().millisecondsSinceEpoch.toString(),
      money: money,
      category: category,
      time: DateTime.now(),
    );
    _list.add(bill);
    await _save();
    notifyListeners();
  }

  Future<void> deleteBill(String id) async {
    _list.removeWhere((e) => e.id == id);
    await _save();
    notifyListeners();
  }

  Future<void> _save() async {
    final prefs = await SharedPreferences.getInstance();
    final str = jsonEncode(_list.map((e) => e.toJson()).toList());
    await prefs.setString('bills', str);
  }

  Map<String, double> get totalByCategory {
    Map<String, double> map = {};
    for (var c in categories) {
      map[c] = 0;
    }
    for (var b in _list) {
      map[b.category] = (map[b.category] ?? 0) + b.money;
    }
    return map;
  }

  double get totalMoney {
    return _list.fold(0, (a, b) => a + b.money);
  }
}

8.3 主页面：记账列表

新建 lib/pages/home_page.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import '../providers/bill_provider.dart';
import 'chart_page.dart';

class HomePage extends StatefulWidget {
  const HomePage({super.key});

  @override
  State<HomePage> createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final TextEditingController _controller = TextEditingController();
  String? selectedCat;

  @override
  void initState() {
    super.initState();
    Future.microtask(() {
      Provider.of<BillProvider>(context, listen: false).loadData();
    });
  }

  void _add() {
    final money = double.tryParse(_controller.text);
    if (money == null || money <= 0 || selectedCat == null) {
      ScaffoldMessenger.of(context).showSnackBar(SnackBar(content: Text("请输入有效金额和类别")));
      return;
    }
    Provider.of<BillProvider>(context, listen: false).addBill(money, selectedCat!);
    _controller.clear();
    setState(() {
      selectedCat = null;
    });
  }

  @override
  Widget build(BuildContext context) {
    final provider = Provider.of<BillProvider>(context);
    return Scaffold(
      appBar: AppBar(
        title: Text("简易记账本"),
        actions: [
          IconButton(
            icon: Icon(Icons.pie_chart),
            onPressed: () {
              Navigator.push(context, MaterialPageRoute(builder: (_) => ChartPage()));
            },
          )
        ],
      ),
      body: Column(
        children: [
          Padding(
            padding: EdgeInsets.all(16),
            child: Column(
              children: [
                TextField(
                  controller: _controller,
                  keyboardType: TextInputType.numberWithOptions(decimal: true),
                  decoration: InputDecoration(
                    labelText: "金额",
                    border: OutlineInputBorder(),
                    prefixText: "¥",
                  ),
                ),
                SizedBox(height: 12),
                DropdownButtonFormField<String>(
                  value: selectedCat,
                  decoration: InputDecoration(
                    labelText: "消费类别",
                    border: OutlineInputBorder(),
                  ),
                  items: provider.categories
                      .map((c) => DropdownMenuItem(value: c, child: Text(c)))
                      .toList(),
                  onChanged: (v) {
                    setState(() {
                      selectedCat = v;
                    });
                  },
                ),
                SizedBox(height: 12),
                ElevatedButton(onPressed: _add, child: Text("添加记录")),
              ],
            ),
          ),
          Expanded(
            child: provider.list.isEmpty
                ? Center(child: Text("暂无记录"))
                : ListView.builder(
                    itemCount: provider.list.length,
                    itemBuilder: (ctx, i) {
                      final bill = provider.list[i];
                      return ListTile(
                        title: Text(bill.category),
                        subtitle: Text("${bill.time.toLocal().toString().substring(0, 16)}"),
                        trailing: Row(
                          mainAxisSize: MainAxisSize.min,
                          children: [
                            Text("¥${bill.money.toStringAsFixed(2)}", style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
                            IconButton(
                              icon: Icon(Icons.delete, color: Colors.red),
                              onPressed: () {
                                provider.deleteBill(bill.id);
                              },
                            ),
                          ],
                        ),
                      );
                    },
                  ),
          ),
        ],
      ),
    );
  }
}

8.4 图表页面：饼图统计

新建 lib/pages/chart_page.dart

import 'package:flutter/material.dart';
import 'package:fl_chart/fl_chart.dart';
import 'package:provider/provider.dart';
import '../providers/bill_provider.dart';

class ChartPage extends StatelessWidget {
  const ChartPage({super.key});

  final colors = [Colors.blue, Colors.green, Colors.orange, Colors.purple, Colors.red, Colors.grey];

  @override
  Widget build(BuildContext context) {
    final provider = Provider.of<BillProvider>(context);
    final total = provider.totalMoney;
    final data = provider.totalByCategory;

    final items = data.entries.where((e) => e.value > 0).toList();

    return Scaffold(
      appBar: AppBar(title: Text("消费统计")),
      body: total <= 0
          ? Center(child: Text("暂无消费数据"))
          : Padding(
              padding: EdgeInsets.all(16),
              child: Column(
                children: [
                  Text(
                    "总支出 ¥${total.toStringAsFixed(2)}",
                    style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
                  ),
                  SizedBox(height: 30),
                  Expanded(
                    child: PieChart(
                      PieChartData(
                        sections: items.asMap().entries.map((e) {
                          final idx = e.key;
                          final entry = e.value;
                          return PieChartSectionData(
                            color: colors[idx % colors.length],
                            value: entry.value,
                            title: "${entry.key}\n${(entry.value / total * 100).toStringAsFixed(1)}%",
                            radius: 120,
                            titleStyle: TextStyle(color: Colors.white, fontSize: 12, fontWeight: FontWeight.bold),
                          );
                        }).toList(),
                      ),
                    ),
                  ),
                ],
              ),
            ),
    );
  }
}

8.5 主入口 main.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import 'providers/bill_provider.dart';
import 'pages/home_page.dart';

void main() {
  runApp(
    ChangeNotifierProvider(
      create: (_) => BillProvider(),
      child: MaterialApp(
        title: 'Flutter 鸿蒙记账',
        debugShowCheckedModeBanner: false,
        home: HomePage(),
        theme: ThemeData(primarySwatch: Colors.blue),
      ),
    ),
  );
}

---

九、运行项目（鸿蒙设备）

连接鸿蒙设备，开启调试，执行：

flutter run -d 设备ID

---

十、运行效果（图文并茂占位）

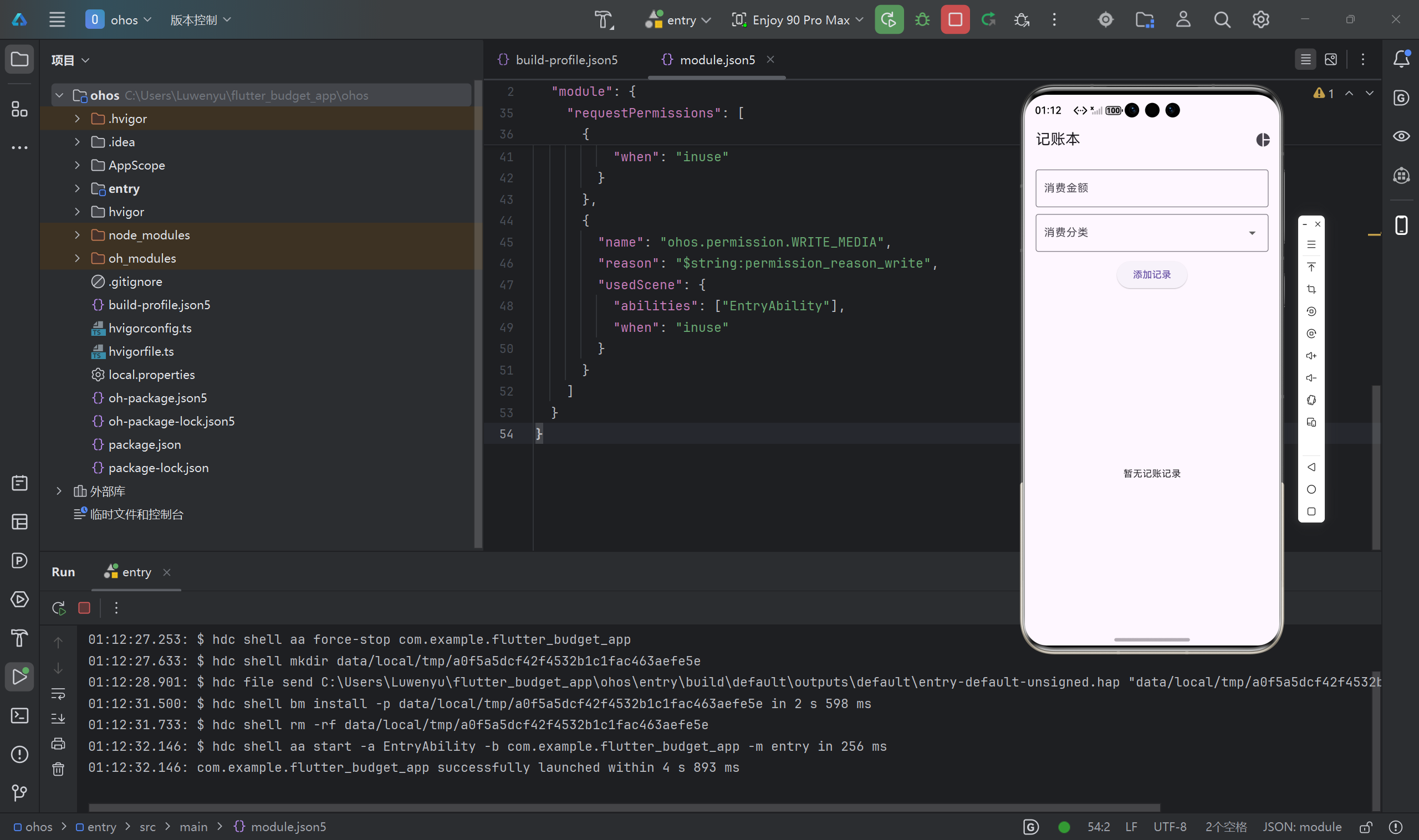

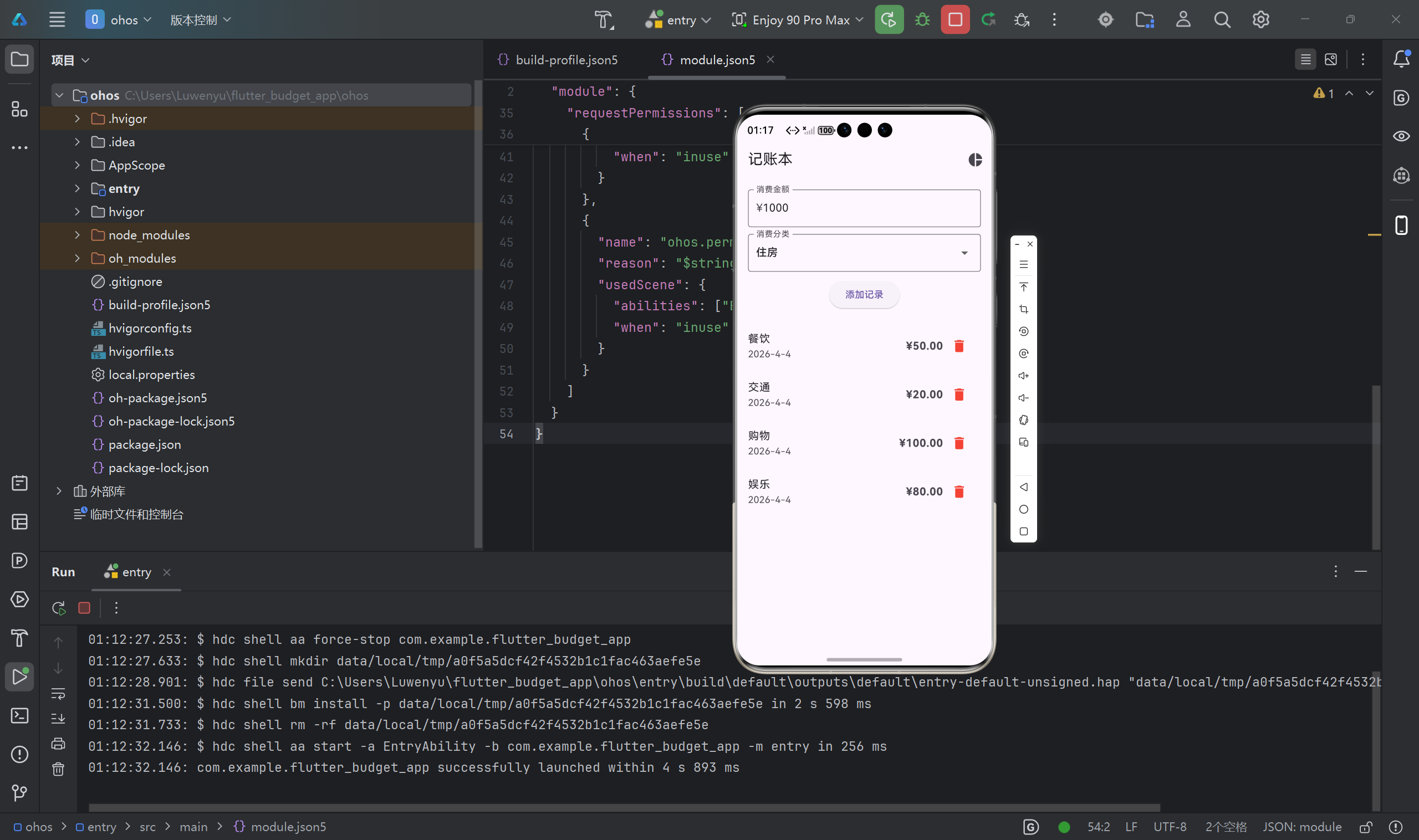

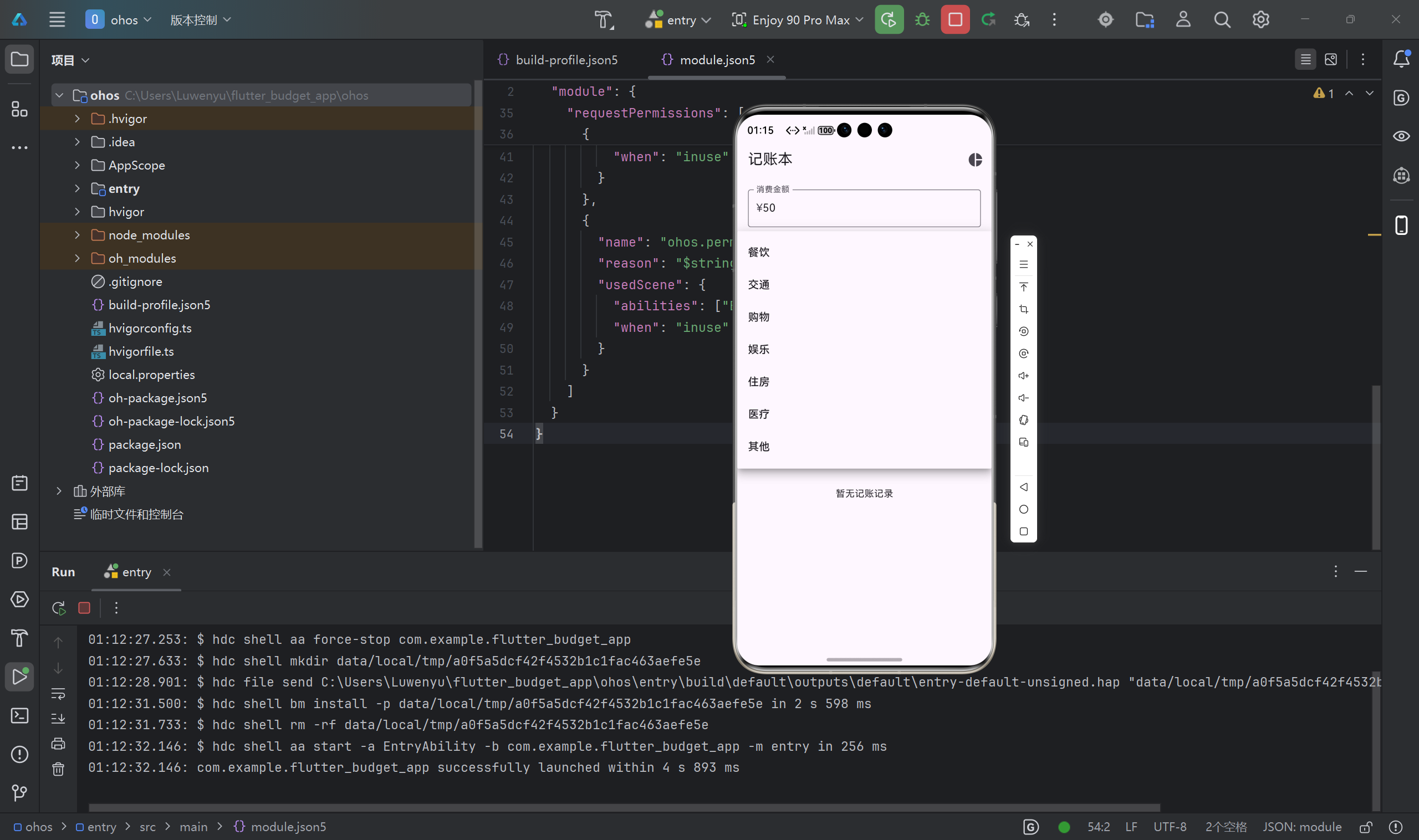

图1：主界面（记账输入 + 列表）

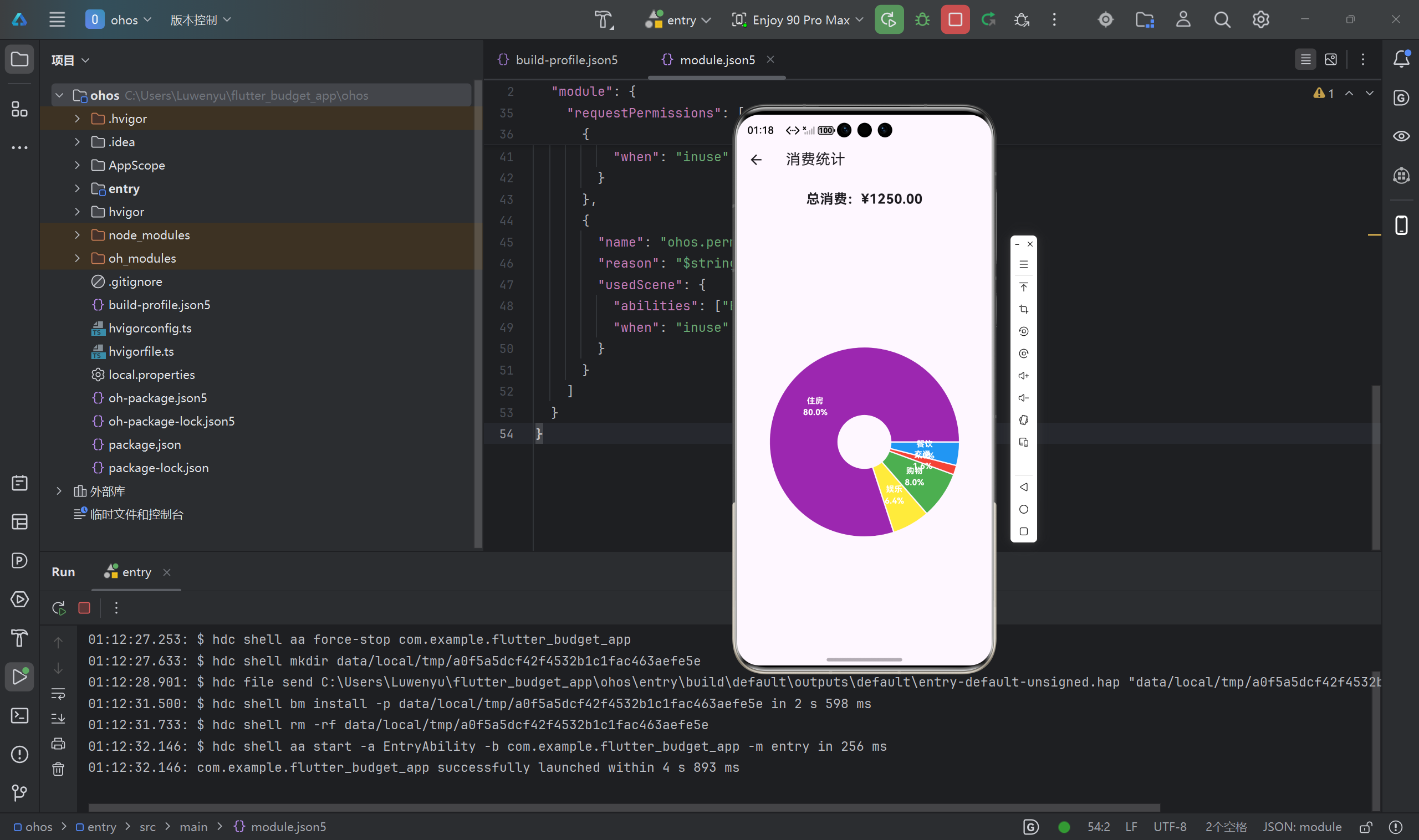

图2：饼图统计界面

---

十一、项目亮点总结

1. 纯 Flutter 跨平台：一套代码支持 Android、iOS、鸿蒙 OpenHarmony
2. 三方库稳定兼容鸿蒙：provider、shared_preferences、fl_chart 均完美运行
3. 功能完整实用：增删记录 + 本地存储 + 饼图统计
4. 符合鸿蒙规范：权限配置标准，可正常编译上架
5. 代码结构清晰：适合初学者学习与扩展

---

十二、可扩展方向

• 增加收入记录
• 按月/日筛选账单
• 数据导出 Excel
• 预算提醒
• 鸿蒙服务卡片

---
