多设备屏幕适配概述

OpenHarmony 作为一个全场景分布式操作系统，支持多种设备类型，包括手机、平板、智能穿戴设备等。这意味着 Flutter 应用在 OpenHarmony 平台上需要适配不同尺寸和形状的屏幕。

当前布局实现分析

通过对 mango_shop 项目的分析，我们发现：

1. 基本布局实现：

   • 使用 ListView 实现垂直滚动布局
   • 使用 Stack 实现轮播图和搜索栏的叠加布局
   • 使用 Container 和 Padding 控制间距和尺寸
   • 硬编码了一些尺寸值，如 height: 40、padding: EdgeInsets.all(16) 等

2. 存在的问题：

   • 缺少对不同屏幕尺寸的适配
   • 硬编码的尺寸值可能在不同设备上表现不一致
   • 没有针对 OpenHarmony 平台的特殊适配
   • 缺少响应式布局的实现

多设备屏幕适配方案

1. 屏幕尺寸分类

根据 OpenHarmony 支持的设备类型，我们可以将屏幕尺寸分为以下几类：

设备类型	屏幕宽度范围	适配策略
智能穿戴	< 360px	简化布局，只显示核心内容
手机	360px - 720px	标准布局，适应不同屏幕比例
平板	720px - 1280px	扩展布局，利用更多屏幕空间
智慧屏	> 1280px	桌面布局，多列显示内容

2. 响应式布局实现

2.1 布局工具类

// lib/utils/responsive/responsive.dart
import 'package:flutter/material.dart';

class Responsive {
  // 获取屏幕尺寸
  static Size getScreenSize(BuildContext context) {
    return MediaQuery.of(context).size;
  }

  // 获取屏幕宽度
  static double getScreenWidth(BuildContext context) {
    return getScreenSize(context).width;
  }

  // 获取屏幕高度
  static double getScreenHeight(BuildContext context) {
    return getScreenSize(context).height;
  }

  // 获取屏幕方向
  static Orientation getOrientation(BuildContext context) {
    return MediaQuery.of(context).orientation;
  }

  // 判断是否为横屏
  static bool isLandscape(BuildContext context) {
    return getOrientation(context) == Orientation.landscape;
  }

  // 判断是否为竖屏
  static bool isPortrait(BuildContext context) {
    return getOrientation(context) == Orientation.portrait;
  }

  // 判断是否为小屏幕（智能穿戴）
  static bool isSmallScreen(BuildContext context) {
    return getScreenWidth(context) < 360;
  }

  // 判断是否为中等屏幕（手机）
  static bool isMediumScreen(BuildContext context) {
    final width = getScreenWidth(context);
    return width >= 360 && width < 720;
  }

  // 判断是否为大屏幕（平板）
  static bool isLargeScreen(BuildContext context) {
    final width = getScreenWidth(context);
    return width >= 720 && width < 1280;
  }

  // 判断是否为超大屏幕（智慧屏）
  static bool isExtraLargeScreen(BuildContext context) {
    return getScreenWidth(context) >= 1280;
  }

  // 根据屏幕尺寸获取适配值
  static double getResponsiveValue(BuildContext context, {
    required double smallScreenValue,
    required double mediumScreenValue,
    required double largeScreenValue,
    required double extraLargeScreenValue,
  }) {
    if (isSmallScreen(context)) {
      return smallScreenValue;
    } else if (isMediumScreen(context)) {
      return mediumScreenValue;
    } else if (isLargeScreen(context)) {
      return largeScreenValue;
    } else {
      return extraLargeScreenValue;
    }
  }

  // 获取响应式字体大小
  static double getResponsiveFontSize(BuildContext context, double baseSize) {
    final width = getScreenWidth(context);
    // 根据屏幕宽度缩放字体大小
    return baseSize * (width / 375); // 以 375px 屏幕宽度为基准
  }

  // 获取响应式边距
  static double getResponsiveMargin(BuildContext context, double baseMargin) {
    final width = getScreenWidth(context);
    // 根据屏幕宽度缩放边距
    return baseMargin * (width / 375); // 以 375px 屏幕宽度为基准
  }
}

2.2 响应式布局组件

// lib/components/responsive/responsive_layout.dart
import 'package:flutter/material.dart';
import 'package:mango_shop/utils/responsive/responsive.dart';

class ResponsiveLayout extends StatelessWidget {
  final Widget smallScreen;
  final Widget mediumScreen;
  final Widget largeScreen;
  final Widget extraLargeScreen;

  const ResponsiveLayout({
    Key? key,
    required this.smallScreen,
    required this.mediumScreen,
    required this.largeScreen,
    required this.extraLargeScreen,
  }) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return LayoutBuilder(
      builder: (context, constraints) {
        if (Responsive.isSmallScreen(context)) {
          return smallScreen;
        } else if (Responsive.isMediumScreen(context)) {
          return mediumScreen;
        } else if (Responsive.isLargeScreen(context)) {
          return largeScreen;
        } else {
          return extraLargeScreen;
        }
      },
    );
  }
}

3. 页面布局适配

3.1 首页布局适配

// lib/pages/Home/index.dart
import 'package:flutter/material.dart';
import 'package:mango_shop/components/Home/MgSlider/MgSlider.dart';
import 'package:mango_shop/components/Home/MgCategory/MgCategory.dart';
import 'package:mango_shop/components/Home/MgHot/MgHot.dart';
import 'package:mango_shop/components/Home/MgSuggestion/MgSuggestion.dart';
import 'package:mango_shop/components/Home/MgMoreList/MgMoreList.dart';
import 'package:mango_shop/components/responsive/responsive_layout.dart';
import 'package:mango_shop/utils/colors.dart';
import 'package:mango_shop/utils/responsive/responsive.dart';
import 'package:mango_shop/routes/navigation_service.dart';
import 'package:mango_shop/routes/router.dart';

class HomeView extends StatelessWidget {
  const HomeView({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: AppColors.background,
      body: ResponsiveLayout(
        smallScreen: _buildSmallScreenLayout(context),
        mediumScreen: _buildMediumScreenLayout(context),
        largeScreen: _buildLargeScreenLayout(context),
        extraLargeScreen: _buildExtraLargeScreenLayout(context),
      ),
    );
  }

  // 小屏幕布局（智能穿戴）
  Widget _buildSmallScreenLayout(BuildContext context) {
    return ListView(
      padding: EdgeInsets.zero,
      children: [
        // 简化的轮播图
        Container(
          height: 120,
          child: Mgslider(),
        ),
        // 简化的分类导航
        Container(
          padding: EdgeInsets.all(12),
          child: Text('分类导航', style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
        ),
        // 简化的热门商品
        Container(
          padding: EdgeInsets.all(12),
          child: Text('热门商品', style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
        ),
        SizedBox(height: 20),
      ],
    );
  }

  // 中等屏幕布局（手机）
  Widget _buildMediumScreenLayout(BuildContext context) {
    return ListView(
      padding: EdgeInsets.zero,
      children: [
        // 轮播图和搜索栏
        Stack(
          children: [
            // 轮播图
            Container(
              width: double.infinity,
              child: Mgslider(),
            ),
            // 透明搜索栏（置顶）
            Positioned(
              top: 16,
              left: 16,
              right: 16,
              child: _buildSearchBar(context),
            ),
          ],
        ),
        // 分类导航
        Mgcategory(),
        // 热门商品
        Mghot(),
        // 推荐商品
        Mgsuggestion(),
        // 更多商品列表
        MgmoreList(),
        SizedBox(height: 32),
      ],
    );
  }

  // 大屏幕布局（平板）
  Widget _buildLargeScreenLayout(BuildContext context) {
    return ListView(
      padding: EdgeInsets.zero,
      children: [
        // 轮播图和搜索栏
        Stack(
          children: [
            // 轮播图
            Container(
              width: double.infinity,
              height: 280,
              child: Mgslider(),
            ),
            // 透明搜索栏（置顶）
            Positioned(
              top: 24,
              left: 24,
              right: 24,
              child: _buildSearchBar(context, height: 48),
            ),
          ],
        ),
        // 分类导航和热门商品（并排显示）
        Padding(
          padding: EdgeInsets.all(24),
          child: Row(
            crossAxisAlignment: CrossAxisAlignment.start,
            children: [
              // 分类导航（占 1/3 宽度）
              Expanded(
                flex: 1,
                child: Mgcategory(),
              ),
              SizedBox(width: 24),
              // 热门商品（占 2/3 宽度）
              Expanded(
                flex: 2,
                child: Mghot(),
              ),
            ],
          ),
        ),
        // 推荐商品
        Mgsuggestion(),
        // 更多商品列表（4列布局）
        Container(
          padding: EdgeInsets.all(24),
          child: GridView.builder(
            shrinkWrap: true,
            physics: NeverScrollableScrollPhysics(),
            gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
              crossAxisCount: 4,
              mainAxisSpacing: 20,
              crossAxisSpacing: 20,
              childAspectRatio: 0.9,
            ),
            itemCount: 8,
            itemBuilder: (context, index) {
              // 构建商品卡片
              return _buildProductCard(context);
            },
          ),
        ),
        SizedBox(height: 48),
      ],
    );
  }

  // 超大屏幕布局（智慧屏）
  Widget _buildExtraLargeScreenLayout(BuildContext context) {
    return SingleChildScrollView(
      padding: EdgeInsets.zero,
      child: Column(
        children: [
          // 顶部导航栏
          Container(
            padding: EdgeInsets.all(24),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                Text('Mango Shop', style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold)),
                Row(
                  children: [
                    _buildSearchBar(context, width: 400, height: 48),
                    SizedBox(width: 24),
                    ElevatedButton(
                      onPressed: () {},
                      child: Text('登录'),
                    ),
                  ],
                ),
              ],
            ),
          ),
          // 轮播图
          Container(
            height: 320,
            child: Mgslider(),
          ),
          // 主要内容区域（三列布局）
          Container(
            padding: EdgeInsets.all(32),
            child: Row(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                // 左侧分类导航
                Expanded(
                  flex: 1,
                  child: Container(
                    padding: EdgeInsets.all(24),
                    decoration: BoxDecoration(
                      color: Colors.white,
                      borderRadius: BorderRadius.circular(8),
                    ),
                    child: Mgcategory(),
                  ),
                ),
                SizedBox(width: 32),
                // 中间内容区域
                Expanded(
                  flex: 2,
                  child: Column(
                    children: [
                      Mghot(),
                      SizedBox(height: 32),
                      Mgsuggestion(),
                    ],
                  ),
                ),
                SizedBox(width: 32),
                // 右侧推荐区域
                Expanded(
                  flex: 1,
                  child: Container(
                    padding: EdgeInsets.all(24),
                    decoration: BoxDecoration(
                      color: Colors.white,
                      borderRadius: BorderRadius.circular(8),
                    ),
                    child: Column(
                      crossAxisAlignment: CrossAxisAlignment.start,
                      children: [
                        Text('为您推荐', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
                        SizedBox(height: 24),
                        // 推荐商品列表
                        Column(
                          children: List.generate(5, (index) => _buildSideProductCard(context)),
                        ),
                      ],
                    ),
                  ),
                ),
              ],
            ),
          ),
          // 更多商品区域
          Container(
            padding: EdgeInsets.all(32),
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text('更多商品', style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold)),
                SizedBox(height: 24),
                GridView.builder(
                  shrinkWrap: true,
                  physics: NeverScrollableScrollPhysics(),
                  gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
                    crossAxisCount: 5,
                    mainAxisSpacing: 24,
                    crossAxisSpacing: 24,
                    childAspectRatio: 0.9,
                  ),
                  itemCount: 10,
                  itemBuilder: (context, index) {
                    return _buildProductCard(context);
                  },
                ),
              ],
            ),
          ),
          SizedBox(height: 48),
        ],
      ),
    );
  }

  // 构建搜索栏
  Widget _buildSearchBar(BuildContext context, {double? width, double height = 40}) {
    return GestureDetector(
      onTap: () {
        // 搜索栏点击事件
        NavigationService.navigateTo(RouteNames.search);
      },
      child: AnimatedScale(
        duration: Duration(milliseconds: 100),
        scale: 1.0,
        child: Container(
          width: width,
          height: height,
          decoration: BoxDecoration(
            color: AppColors.white.withOpacity(0.95),
            borderRadius: BorderRadius.circular(height / 2),
            boxShadow: [
              BoxShadow(
                color: AppColors.black.withOpacity(0.1),
                blurRadius: 8,
                offset: Offset(0, 2),
              ),
            ],
          ),
          child: Row(
            children: [
              SizedBox(width: 16),
              Icon(Icons.search, color: AppColors.textHint, size: height * 0.5),
              SizedBox(width: 12),
              Text('搜索商品', style: TextStyle(color: AppColors.textHint, fontSize: height * 0.35)),
            ],
          ),
        ),
      ),
    );
  }

  // 构建商品卡片
  Widget _buildProductCard(BuildContext context) {
    return Container(
      decoration: BoxDecoration(
        color: Colors.white,
        borderRadius: BorderRadius.circular(8),
        boxShadow: [
          BoxShadow(
            color: Colors.grey[200]!,
            spreadRadius: 1,
            blurRadius: 3,
            offset: Offset(0, 1),
          ),
        ],
      ),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          Container(
            height: 120,
            decoration: BoxDecoration(
              borderRadius: BorderRadius.vertical(top: Radius.circular(8)),
              image: DecorationImage(
                image: AssetImage('lib/assets/220c3184-fec6-4c46-8606-67015ed201cc.png'),
                fit: BoxFit.cover,
              ),
            ),
          ),
          Padding(
            padding: EdgeInsets.all(12),
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text('海南芒果', style: TextStyle(fontSize: 14, fontWeight: FontWeight.w500)),
                SizedBox(height: 8),
                Text('¥19.9', style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold, color: Colors.red)),
              ],
            ),
          ),
        ],
      ),
    );
  }

  // 构建侧边商品卡片
  Widget _buildSideProductCard(BuildContext context) {
    return Container(
      margin: EdgeInsets.only(bottom: 16),
      padding: EdgeInsets.all(12),
      decoration: BoxDecoration(
        color: Colors.white,
        borderRadius: BorderRadius.circular(8),
        border: Border.all(color: Colors.grey[100]!),
      ),
      child: Row(
        children: [
          Container(
            width: 60,
            height: 60,
            decoration: BoxDecoration(
              borderRadius: BorderRadius.circular(4),
              image: DecorationImage(
                image: AssetImage('lib/assets/220c3184-fec6-4c46-8606-67015ed201cc.png'),
                fit: BoxFit.cover,
              ),
            ),
          ),
          SizedBox(width: 12),
          Expanded(
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text('海南芒果', style: TextStyle(fontSize: 14, fontWeight: FontWeight.w500)),
                SizedBox(height: 4),
                Text('¥19.9', style: TextStyle(fontSize: 14, fontWeight: FontWeight.bold, color: Colors.red)),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

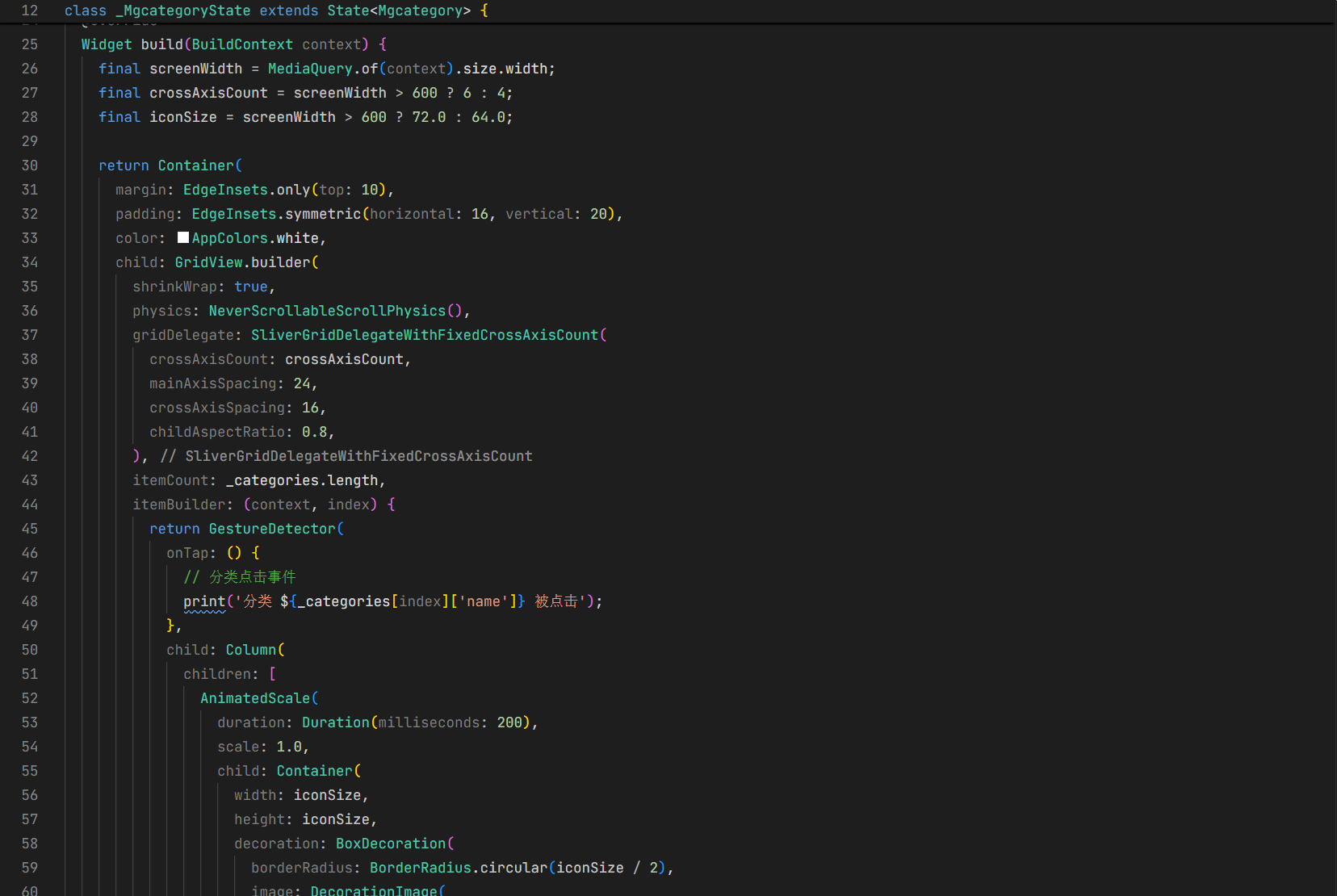

3.2 分类导航适配

// lib/components/Home/MgCategory/MgCategory.dart
import 'package:flutter/material.dart';
import 'package:mango_shop/utils/colors.dart';
import 'package:mango_shop/utils/responsive/responsive.dart';

class Mgcategory extends StatelessWidget {
  const Mgcategory({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    final screenWidth = MediaQuery.of(context).size.width;
    final crossAxisCount = Responsive.isSmallScreen(context) ? 3 :
                          Responsive.isMediumScreen(context) ? 4 :
                          Responsive.isLargeScreen(context) ? 5 : 6;
    final iconSize = Responsive.getResponsiveValue(context,
      smallScreenValue: 48,
      mediumScreenValue: 64,
      largeScreenValue: 72,
      extraLargeScreenValue: 80,
    );

    final categories = [
      {'name': '芒果', 'icon': 'lib/assets/220c3184-fec6-4c46-8606-67015ed201cc.png'},
      {'name': '水果', 'icon': 'lib/assets/苹果.png'},
      {'name': '蔬菜', 'icon': 'lib/assets/白菜.png'},
      {'name': '零食', 'icon': 'lib/assets/薯片.png'},
      {'name': '饮料', 'icon': 'lib/assets/可乐.png'},
      {'name': '肉禽', 'icon': 'lib/assets/猪肉.png'},
      {'name': '水产', 'icon': 'lib/assets/鱼.png'},
      {'name': '更多', 'icon': 'lib/assets/调味品.png'},
    ];

    return Container(
      margin: EdgeInsets.only(top: 10),
      padding: EdgeInsets.symmetric(horizontal: 16, vertical: 20),
      color: AppColors.white,
      child: GridView.builder(
        shrinkWrap: true,
        physics: NeverScrollableScrollPhysics(),
        gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
          crossAxisCount: crossAxisCount,
          mainAxisSpacing: 24,
          crossAxisSpacing: 16,
          childAspectRatio: 0.8,
        ),
        itemCount: categories.length,
        itemBuilder: (context, index) {
          return GestureDetector(
            onTap: () {
              // 分类点击事件
              print('分类 ${categories[index]['name']} 被点击');
            },
            child: Column(
              children: [
                AnimatedScale(
                  duration: Duration(milliseconds: 200),
                  scale: 1.0,
                  child: Container(
                    width: iconSize,
                    height: iconSize,
                    decoration: BoxDecoration(
                      borderRadius: BorderRadius.circular(iconSize / 2),
                      image: DecorationImage(
                        image: AssetImage(categories[index]['icon']!),
                        fit: BoxFit.cover,
                      ),
                      boxShadow: [
                        BoxShadow(
                          color: AppColors.black.withOpacity(0.1),
                          spreadRadius: 2,
                          blurRadius: 8,
                          offset: Offset(0, 4),
                        ),
                      ],
                    ),
                  ),
                ),
                SizedBox(height: 12),
                Text(
                  categories[index]['name']!,
                  style: TextStyle(
                    fontSize: Responsive.getResponsiveFontSize(context, 12),
                    color: AppColors.textPrimary,
                  ),
                  textAlign: TextAlign.center,
                ),
              ],
            ),
          );
        },
      ),
    );
  }
}

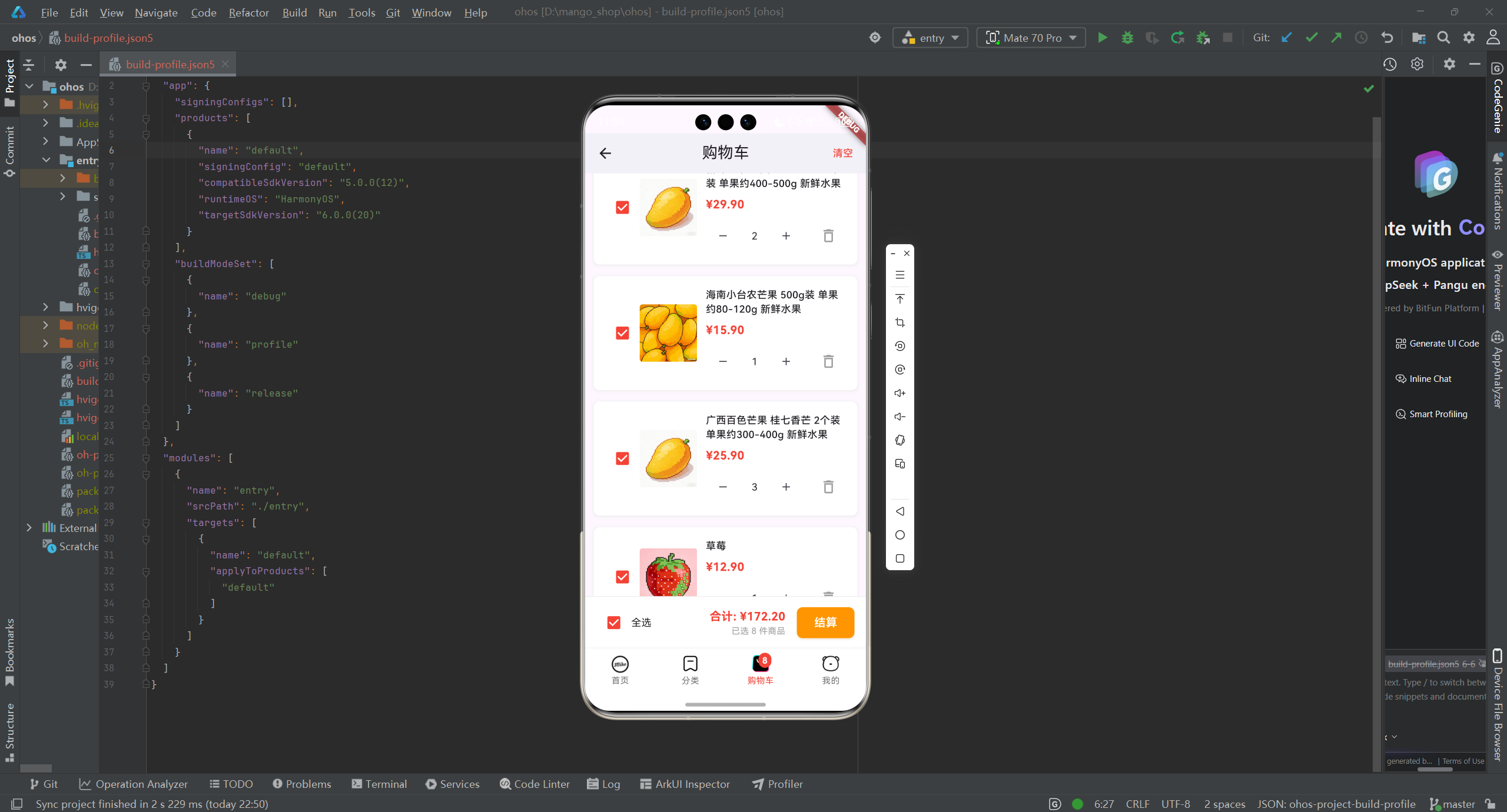

3.3 购物车页面适配

// lib/pages/Cart/index.dart
import 'package:flutter/material.dart';
import 'package:flutter_riverpod/flutter_riverpod.dart';
import 'package:mango_shop/providers/cart_provider.dart';
import 'package:mango_shop/components/responsive/responsive_layout.dart';
import 'package:mango_shop/utils/colors.dart';
import 'package:mango_shop/utils/responsive/responsive.dart';

class CartView extends ConsumerWidget {
  const CartView({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context, WidgetRef ref) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('购物车'),
        centerTitle: true,
        backgroundColor: Colors.white,
        elevation: 1,
      ),
      body: ResponsiveLayout(
        smallScreen: _buildSmallScreenLayout(context, ref),
        mediumScreen: _buildMediumScreenLayout(context, ref),
        largeScreen: _buildLargeScreenLayout(context, ref),
        extraLargeScreen: _buildExtraLargeScreenLayout(context, ref),
      ),
    );
  }

  // 小屏幕布局（智能穿戴）
  Widget _buildSmallScreenLayout(BuildContext context, WidgetRef ref) {
    return Center(
      child: Text('购物车功能在小屏幕设备上暂不可用'),
    );
  }

  // 中等屏幕布局（手机）
  Widget _buildMediumScreenLayout(BuildContext context, WidgetRef ref) {
    final cartState = ref.watch(cartProvider);
    final cartNotifier = ref.read(cartProvider.notifier);

    return cartState.items.isEmpty
        ? _buildEmptyCart(context)
        : Column(
            children: [
              Expanded(
                child: ListView.builder(
                  itemCount: cartState.items.length,
                  itemBuilder: (context, index) {
                    final item = cartState.items[index];
                    return _buildCartItem(context, item, cartNotifier);
                  },
                ),
              ),
              _buildCheckoutBar(context, ref, cartNotifier),
            ],
          );
  }

  // 大屏幕布局（平板）
  Widget _buildLargeScreenLayout(BuildContext context, WidgetRef ref) {
    final cartState = ref.watch(cartProvider);
    final cartNotifier = ref.read(cartProvider.notifier);

    if (cartState.items.isEmpty) {
      return _buildEmptyCart(context);
    }

    return Row(
      children: [
        // 购物车商品列表（占 70% 宽度）
        Expanded(
          flex: 7,
          child: ListView.builder(
            itemCount: cartState.items.length,
            itemBuilder: (context, index) {
              final item = cartState.items[index];
              return Container(
                margin: EdgeInsets.symmetric(horizontal: 24, vertical: 12),
                child: _buildCartItem(context, item, cartNotifier),
              );
            },
          ),
        ),
        // 结算栏（固定宽度 300px）
        Container(
          width: 300,
          decoration: BoxDecoration(
            borderLeft: BorderSide(color: Colors.grey[200]!),
            color: Colors.white,
          ),
          padding: EdgeInsets.all(24),
          child: _buildLargeScreenCheckout(context, ref, cartNotifier),
        ),
      ],
    );
  }

  // 超大屏幕布局（智慧屏）
  Widget _buildExtraLargeScreenLayout(BuildContext context, WidgetRef ref) {
    final cartState = ref.watch(cartProvider);
    final cartNotifier = ref.read(cartProvider.notifier);

    if (cartState.items.isEmpty) {
      return _buildEmptyCart(context);
    }

    return Row(
      children: [
        // 购物车商品列表（占 80% 宽度）
        Expanded(
          flex: 8,
          child: GridView.builder(
            padding: EdgeInsets.all(24),
            gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
              crossAxisCount: 2,
              mainAxisSpacing: 24,
              crossAxisSpacing: 24,
              childAspectRatio: 1.2,
            ),
            itemCount: cartState.items.length,
            itemBuilder: (context, index) {
              final item = cartState.items[index];
              return _buildGridCartItem(context, item, cartNotifier);
            },
          ),
        ),
        // 结算栏（固定宽度 350px）
        Container(
          width: 350,
          decoration: BoxDecoration(
            borderLeft: BorderSide(color: Colors.grey[200]!),
            color: Colors.white,
          ),
          padding: EdgeInsets.all(32),
          child: _buildLargeScreenCheckout(context, ref, cartNotifier),
        ),
      ],
    );
  }

  // 构建空购物车
  Widget _buildEmptyCart(BuildContext context) {
    return Center(
      child: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Image.asset(
            'lib/assets/ic_public_cart_normal.png',
            width: 100,
            height: 100,
            color: Colors.grey[300],
          ),
          const SizedBox(height: 20),
          const Text('购物车是空的', style: TextStyle(color: Colors.grey, fontSize: 16)),
          const SizedBox(height: 20),
          ElevatedButton(
            onPressed: () {
              // 跳转到首页
              Navigator.pushNamed(context, '/');
            },
            child: const Text('去购物'),
            style: ElevatedButton.styleFrom(
              backgroundColor: AppColors.primary,
              foregroundColor: AppColors.white,
              padding: const EdgeInsets.symmetric(horizontal: 40, vertical: 12),
              elevation: 2,
              shadowColor: AppColors.primary.withOpacity(0.3),
              shape: RoundedRectangleBorder(
                borderRadius: BorderRadius.circular(8),
              ),
            ),
          ),
        ],
      ),
    );
  }

  // 构建购物车商品项
  Widget _buildCartItem(BuildContext context, dynamic item, dynamic cartNotifier) {
    return Container(
      padding: EdgeInsets.all(16),
      margin: EdgeInsets.symmetric(horizontal: 12, vertical: 8),
      decoration: BoxDecoration(
        color: Colors.white,
        borderRadius: BorderRadius.circular(8),
        boxShadow: [
          BoxShadow(
            color: Colors.grey[200]!,
            spreadRadius: 1,
            blurRadius: 3,
            offset: Offset(0, 1),
          ),
        ],
      ),
      child: Row(
        children: [
          // 选择框
          Checkbox(
            value: item.isSelected,
            onChanged: (value) => cartNotifier.toggleItemSelection(item.id),
            activeColor: Colors.red,
          ),
          // 商品图片
          Container(
            width: 80,
            height: 80,
            decoration: BoxDecoration(
              borderRadius: BorderRadius.circular(4),
              image: DecorationImage(
                image: AssetImage(item.image),
                fit: BoxFit.cover,
              ),
            ),
          ),
          SizedBox(width: 12),
          // 商品信息
          Expanded(
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text(
                  item.name,
                  maxLines: 2,
                  overflow: TextOverflow.ellipsis,
                  style: TextStyle(fontSize: 14, fontWeight: FontWeight.w500),
                ),
                SizedBox(height: 8),
                Text(
                  '¥${item.price.toStringAsFixed(2)}',
                  style: TextStyle(
                    fontSize: 16,
                    fontWeight: FontWeight.bold,
                    color: Colors.red,
                  ),
                ),
                SizedBox(height: 8),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceBetween,
                  children: [
                    // 数量控制
                    Row(
                      children: [
                        IconButton(
                          onPressed: () => cartNotifier.updateQuantity(item.id, item.quantity - 1),
                          icon: Icon(Icons.remove, size: 18),
                          constraints: BoxConstraints(minWidth: 30),
                        ),
                        Container(
                          width: 40,
                          alignment: Alignment.center,
                          child: Text(item.quantity.toString()),
                        ),
                        IconButton(
                          onPressed: () => cartNotifier.updateQuantity(item.id, item.quantity + 1),
                          icon: Icon(Icons.add, size: 18),
                          constraints: BoxConstraints(minWidth: 30),
                        ),
                      ],
                    ),
                    // 删除按钮
                    IconButton(
                      onPressed: () => cartNotifier.removeItem(item.id),
                      icon: Icon(Icons.delete_outline, color: Colors.grey),
                    ),
                  ],
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }

  // 构建网格布局的购物车商品项
  Widget _buildGridCartItem(BuildContext context, dynamic item, dynamic cartNotifier) {
    return Container(
      padding: EdgeInsets.all(20),
      decoration: BoxDecoration(
        color: Colors.white,
        borderRadius: BorderRadius.circular(8),
        boxShadow: [
          BoxShadow(
            color: Colors.grey[200]!,
            spreadRadius: 1,
            blurRadius: 3,
            offset: Offset(0, 1),
          ),
        ],
      ),
      child: Column(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          // 商品图片
          Container(
            height: 150,
            decoration: BoxDecoration(
              borderRadius: BorderRadius.circular(4),
              image: DecorationImage(
                image: AssetImage(item.image),
                fit: BoxFit.cover,
              ),
            ),
          ),
          SizedBox(height: 16),
          // 商品信息
          Text(
            item.name,
            maxLines: 2,
            overflow: TextOverflow.ellipsis,
            style: TextStyle(fontSize: 16, fontWeight: FontWeight.w500),
          ),
          SizedBox(height: 12),
          Text(
            '¥${item.price.toStringAsFixed(2)}',
            style: TextStyle(
              fontSize: 18,
              fontWeight: FontWeight.bold,
              color: Colors.red,
            ),
          ),
          SizedBox(height: 16),
          // 底部操作栏
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceBetween,
            children: [
              // 数量控制
              Row(
                children: [
                  IconButton(
                    onPressed: () => cartNotifier.updateQuantity(item.id, item.quantity - 1),
                    icon: Icon(Icons.remove),
                  ),
                  Container(
                    width: 40,
                    alignment: Alignment.center,
                    child: Text(item.quantity.toString(), style: TextStyle(fontSize: 16)),
                  ),
                  IconButton(
                    onPressed: () => cartNotifier.updateQuantity(item.id, item.quantity + 1),
                    icon: Icon(Icons.add),
                  ),
                ],
              ),
              // 删除按钮
              IconButton(
                onPressed: () => cartNotifier.removeItem(item.id),
                icon: Icon(Icons.delete_outline, color: Colors.grey),
              ),
            ],
          ),
        ],
      ),
    );
  }

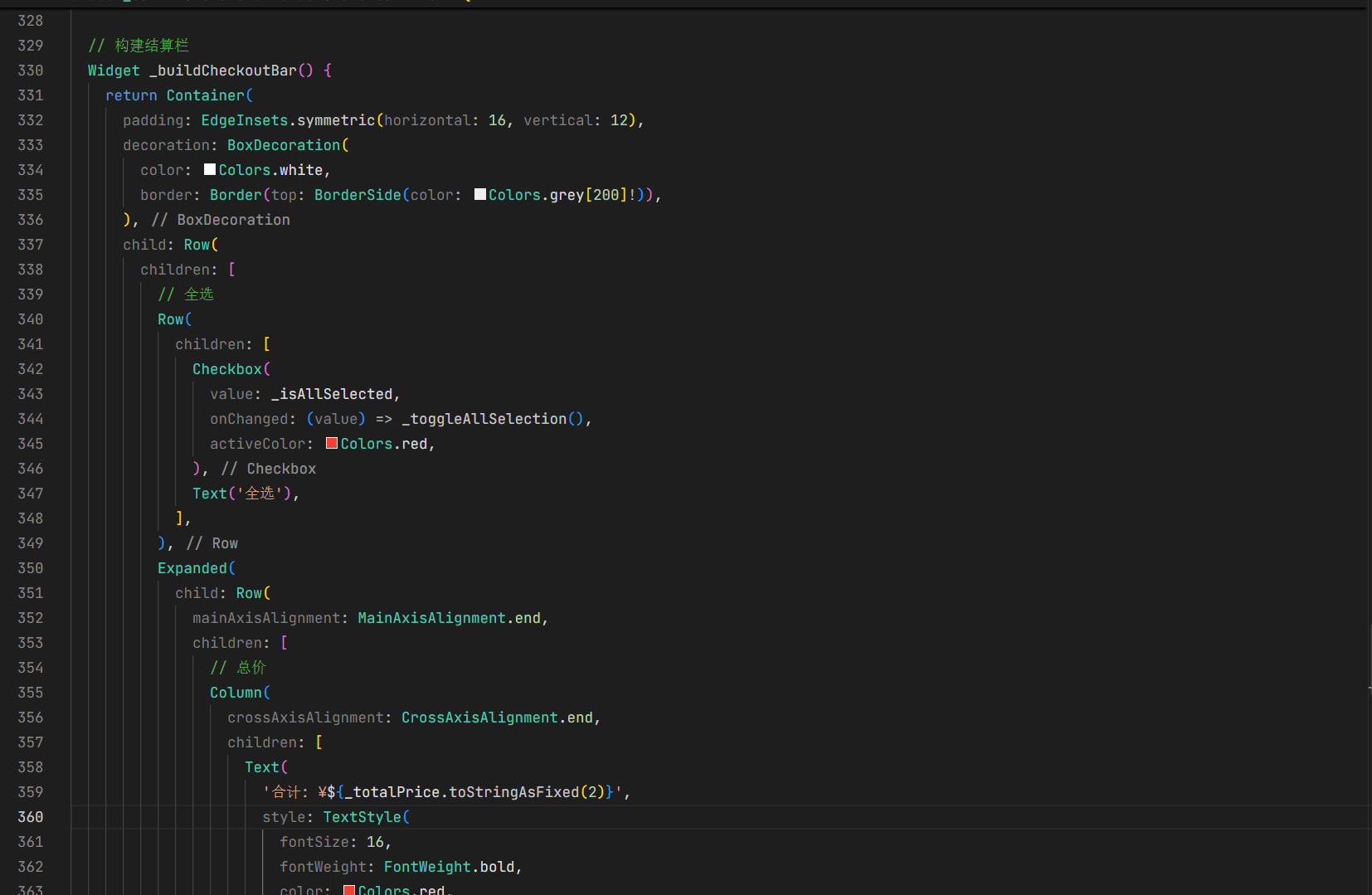

  // 构建结算栏
  Widget _buildCheckoutBar(BuildContext context, WidgetRef ref, dynamic cartNotifier) {
    final totalPrice = ref.watch(cartTotalPriceProvider);
    final selectedCount = ref.watch(cartSelectedCountProvider);
    final isAllSelected = ref.watch(cartIsAllSelectedProvider);

    return Container(
      padding: EdgeInsets.symmetric(horizontal: 16, vertical: 12),
      decoration: BoxDecoration(
        color: Colors.white,
        border: Border(top: BorderSide(color: Colors.grey[200]!)),
      ),
      child: Row(
        children: [
          // 全选
          Row(
            children: [
              Checkbox(
                value: isAllSelected,
                onChanged: (value) => cartNotifier.toggleAllSelection(),
                activeColor: Colors.red,
              ),
              const Text('全选'),
            ],
          ),
          Expanded(
            child: Row(
              mainAxisAlignment: MainAxisAlignment.end,
              children: [
                // 总价
                Column(
                  crossAxisAlignment: CrossAxisAlignment.end,
                  children: [
                    Text(
                      '合计: ¥${totalPrice.toStringAsFixed(2)}',
                      style: TextStyle(
                        fontSize: 16,
                        fontWeight: FontWeight.bold,
                        color: Colors.red,
                      ),
                    ),
                    Text(
                      '已选 ${selectedCount} 件商品',
                      style: TextStyle(fontSize: 12, color: Colors.grey),
                    ),
                  ],
                ),
                SizedBox(width: 16),
                // 结算按钮
                ElevatedButton(
                  onPressed: selectedCount > 0
                      ? () {
                          // 结算逻辑
                        }
                      : null,
                  child: const Text('结算'),
                  style: ElevatedButton.styleFrom(
                    backgroundColor: AppColors.primary,
                    foregroundColor: AppColors.white,
                    padding: EdgeInsets.symmetric(horizontal: 24, vertical: 10),
                    elevation: 2,
                    shadowColor: AppColors.primary.withOpacity(0.3),
                    shape: RoundedRectangleBorder(
                      borderRadius: BorderRadius.circular(8),
                    ),
                  ),
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }

  // 构建大屏幕结算栏
  Widget _buildLargeScreenCheckout(BuildContext context, WidgetRef ref, dynamic cartNotifier) {
    final cartState = ref.watch(cartProvider);
    final totalPrice = ref.watch(cartTotalPriceProvider);
    final selectedCount = ref.watch(cartSelectedCountProvider);
    final isAllSelected = ref.watch(cartIsAllSelectedProvider);

    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text('购物车总计', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
        SizedBox(height: 24),
        // 商品数量
        Row(
          mainAxisAlignment: MainAxisAlignment.spaceBetween,
          children: [
            Text('商品数量'),
            Text('${cartState.items.length} 件'),
          ],
        ),
        SizedBox(height: 12),
        // 已选数量
        Row(
          mainAxisAlignment: MainAxisAlignment.spaceBetween,
          children: [
            Text('已选数量'),
            Text('${selectedCount} 件'),
          ],
        ),
        SizedBox(height: 12),
        // 总计
        Row(
          mainAxisAlignment: MainAxisAlignment.spaceBetween,
          children: [
            Text('总计', style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
            Text('¥${totalPrice.toStringAsFixed(2)}', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold, color: Colors.red)),
          ],
        ),
        SizedBox(height: 32),
        // 全选
        Row(
          children: [
            Checkbox(
              value: isAllSelected,
              onChanged: (value) => cartNotifier.toggleAllSelection(),
              activeColor: Colors.red,
            ),
            const Text('全选'),
          ],
        ),
        SizedBox(height: 32),
        // 结算按钮
        SizedBox(
          width: double.infinity,
          child: ElevatedButton(
            onPressed: selectedCount > 0
                ? () {
                    // 结算逻辑
                  }
                : null,
            child: Text('结算 ${selectedCount} 件商品'),
            style: ElevatedButton.styleFrom(
              backgroundColor: AppColors.primary,
              foregroundColor: AppColors.white,
              padding: EdgeInsets.symmetric(vertical: 16),
              elevation: 2,
              shadowColor: AppColors.primary.withOpacity(0.3),
              shape: RoundedRectangleBorder(
                borderRadius: BorderRadius.circular(8),
              ),
            ),
          ),
        ),
      ],
    );
  }
}

4. OpenHarmony 特定适配

4.1 平台感知布局

// lib/utils/platform/adapter.dart
import 'dart:io';

class PlatformAdapter {
  // 判断当前平台
  static bool get isOpenHarmony {
    return Platform.environment.containsKey('OHOS') ||
           Platform.operatingSystem.toLowerCase() == 'openharmony';
  }

  // 获取平台特定的布局策略
  static bool useAdaptiveLayout {
    return isOpenHarmony;
  }

  // 获取平台特定的字体缩放因子
  static double get fontSizeScaleFactor {
    return isOpenHarmony ? 1.0 : 1.0;
  }

  // 获取平台特定的边距缩放因子
  static double get marginScaleFactor {
    return isOpenHarmony ? 1.0 : 1.0;
  }

  // 获取平台特定的最大宽度限制
  static double get maxWidthLimit {
    return isOpenHarmony ? double.infinity : double.infinity;
  }
}

4.2 OpenHarmony 布局组件

// lib/components/platform/ohos_layout.dart
import 'package:flutter/material.dart';
import 'package:mango_shop/utils/platform/adapter.dart';

class OhosLayout extends StatelessWidget {
  final Widget child;
  final bool useAdaptiveLayout;

  const OhosLayout({
    Key? key,
    required this.child,
    this.useAdaptiveLayout = true,
  }) : super(key: key);

  @override
  Widget build(BuildContext context) {
    if (PlatformAdapter.isOpenHarmony && useAdaptiveLayout) {
      // OpenHarmony 特定的布局适配
      return Container(
        constraints: BoxConstraints(
          maxWidth: PlatformAdapter.maxWidthLimit,
        ),
        child: child,
      );
    }
    return child;
  }
}

5. 性能优化

5.1 布局性能优化

1. 使用 const 构造器：

   • 对不变的 widget 使用 const 构造器
   • 避免在 build 方法中创建新的对象

2. 使用 RepaintBoundary：

   • 对频繁重绘的 widget 使用 RepaintBoundary 隔离
   • 减少不必要的重绘

3. 使用 SizedBox 代替 Container：

   • 对于简单的尺寸控制，使用 SizedBox 代替 Container
   • 减少布局计算开销

4. 使用ListView.builder：

   • 对于长列表，使用 ListView.builder 而不是 ListView
   • 实现懒加载，减少内存使用

5.2 响应式布局性能优化

1. 缓存响应式值：

   • 缓存计算出的响应式值，避免重复计算
   • 使用 const 或 final 变量存储计算结果

2. 避免在 build 方法中进行复杂计算：

   • 将复杂的计算移到 initState 或 didChangeDependencies 中
   • 使用 Provider 或 Riverpod 管理计算状态

3. 使用 LayoutBuilder 优化：

   • 对于需要根据父容器尺寸调整的布局，使用 LayoutBuilder
   • 避免使用 MediaQuery 进行频繁的尺寸查询

测试与调试

1. 布局适配测试

1. 不同屏幕尺寸测试：

   • 使用不同尺寸的模拟器或真机测试布局适配
   • 测试从手机到平板的布局过渡

2. 屏幕旋转测试：

   • 测试横屏和竖屏模式下的布局适配
   • 确保旋转时布局能够正确调整

3. OpenHarmony 平台测试：

   • 在 OpenHarmony 设备上测试布局适配
   • 确保与其他平台的布局表现一致

2. 调试工具

1. Flutter DevTools：

   • 使用 Flutter DevTools 分析布局性能
   • 监控重建次数和布局计算时间

2. 可视化调试：

   • 使用 Flutter 的可视化调试工具查看布局边界
   • 识别布局问题和优化空间

3. 性能分析：

   • 使用性能分析工具监控布局性能
   • 识别性能瓶颈并进行优化

总结与展望

通过本文介绍的页面布局适配方案，我们可以：

1. 提高用户体验：为不同尺寸的设备提供最佳的布局体验
2. 增强跨平台兼容性：确保应用在 OpenHarmony 平台上表现出色
3. 提高代码可维护性：使用统一的适配方案，减少平台特定代码
4. 提升应用性能：通过性能优化，确保布局在各种设备上都能流畅运行

未来，可以考虑：

1. 更智能的布局适配：使用机器学习算法，根据用户使用习惯自动调整布局
2. 更多设备类型的适配：支持更多 OpenHarmony 生态设备，如折叠屏、卷轴屏等
3. 布局动画优化：在布局切换时添加平滑的动画效果
4. 可访问性优化：确保布局适配满足可访问性要求，支持不同需求的用户

Flutter for OpenHarmony 为跨平台应用开发提供了新的可能性，通过合理的布局适配方案，可以构建出在所有设备上都表现出色的应用。

---

欢迎加入开源鸿蒙跨平台社区：开源鸿蒙跨平台开发者社区
