Flutter 框架跨平台鸿蒙开发 - 手账便签纸收藏应用开发教程
数据模型设计:便签纸信息、使用记录、统计数据的合理建模UI界面开发:Material Design 3风格的现代化界面功能实现交互设计:网格/列表切换、搜索筛选、详情展示性能优化:虚拟滚动、状态管理、内存优化扩展功能:数据持久化、图片管理、数据导出这款应用不仅功能完整,而且代码结构清晰,易于维护和扩展。欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.c
Flutter手账便签纸收藏应用开发教程
项目概述
本教程将带你开发一个功能完整的Flutter手账便签纸收藏应用。这款应用专为手账爱好者设计,提供便签纸收藏管理、分类整理、使用记录和个性化展示功能,让用户能够系统地管理自己的便签纸收藏品。
运行效果图



应用特色
- 便签纸档案管理:详细记录便签纸的品牌、系列、尺寸、材质等信息
- 智能分类系统:按品牌、系列、颜色、用途等多维度分类管理
- 使用记录追踪:记录每张便签纸的使用情况和剩余数量
- 收藏展示功能:精美的网格布局展示收藏的便签纸
- 搜索筛选功能:支持按名称、品牌、标签等多条件搜索
- 统计分析功能:收藏数量、使用统计、价值评估等数据分析
- 个性化设置:主题颜色、显示方式、排序规则等可自定义
技术栈
- 框架:Flutter 3.x
- 语言:Dart
- UI组件:Material Design 3
- 状态管理:StatefulWidget
- 动画:AnimationController + Tween
- 数据存储:内存存储(可扩展为本地数据库)
项目结构设计
核心数据模型
1. 便签纸模型(StickyNote)
class StickyNote {
final String id; // 唯一标识
final String name; // 便签纸名称
final String brand; // 品牌
final String series; // 系列
final String size; // 尺寸
final String color; // 颜色
final String material; // 材质
final String pattern; // 图案/花纹
final double price; // 价格
final DateTime purchaseDate; // 购买日期
final String purchasePlace; // 购买地点
final int totalSheets; // 总张数
final int usedSheets; // 已使用张数
final List<String> tags; // 标签
final String notes; // 备注
final List<String> photos; // 照片
final String condition; // 保存状态
bool isFavorite; // 是否收藏
double rating; // 评分
}
2. 使用记录模型(UsageRecord)
class UsageRecord {
final String id;
final String stickyNoteId;
final DateTime usageDate;
final int sheetsUsed;
final String purpose;
final String project;
final String notes;
final List<String> photos;
}
3. 分类枚举
enum NoteCategory {
memo, // 便签
decoration, // 装饰
index, // 索引
bookmark, // 书签
label, // 标签
special, // 特殊用途
}
enum NoteBrand {
postit, // 3M便利贴
midori, // Midori
hobonichi, // Hobonichi
muji, // 无印良品
pilot, // 百乐
zebra, // 斑马
other, // 其他
}
enum NoteCondition {
mint, // 全新
excellent, // 极佳
good, // 良好
fair, // 一般
poor, // 较差
}
页面架构
应用采用底部导航栏设计,包含四个主要页面:
- 收藏页面:展示所有便签纸收藏,支持网格和列表视图
- 分类页面:按不同维度分类展示便签纸
- 统计页面:收藏统计、使用分析、价值评估等

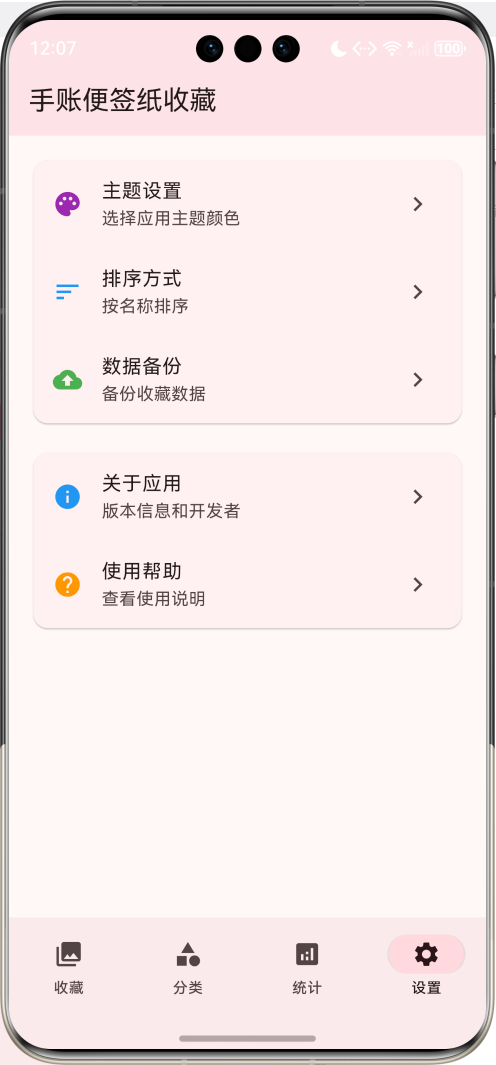

- 设置页面:个性化设置和应用配置
详细实现步骤
第一步:项目初始化
创建新的Flutter项目:
flutter create sticky_note_collection
cd sticky_note_collection
第二步:主应用结构
class MyApp extends StatelessWidget {
const MyApp({super.key});
Widget build(BuildContext context) {
return MaterialApp(
title: '手账便签纸收藏',
theme: ThemeData(
colorScheme: ColorScheme.fromSeed(seedColor: Colors.pink),
useMaterial3: true,
),
home: const StickyNoteHomePage(),
);
}
}
第三步:数据初始化
创建示例便签纸数据:
void _initializeStickyNotes() {
_stickyNotes = [
StickyNote(
id: '1',
name: '樱花系列便签纸',
brand: 'Midori',
series: '樱花季限定',
size: '76×76mm',
color: '粉色',
material: '和纸',
pattern: '樱花花瓣',
price: 28.0,
purchaseDate: DateTime.now().subtract(const Duration(days: 30)),
purchasePlace: '日本东京',
totalSheets: 100,
usedSheets: 25,
tags: ['樱花', '限定', '和纸', '装饰'],
notes: '2024年春季限定款,图案精美',
photos: [],
condition: '极佳',
isFavorite: true,
rating: 4.8,
),
// 更多便签纸数据...
];
}

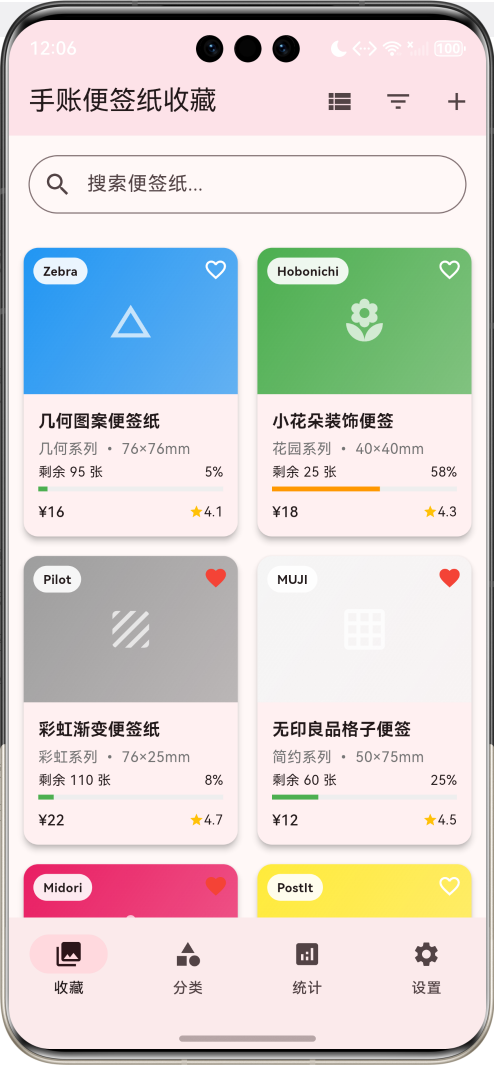

第四步:收藏展示页面
便签纸卡片组件
Widget _buildStickyNoteCard(StickyNote note) {
final remainingSheets = note.totalSheets - note.usedSheets;
final usagePercentage = note.totalSheets > 0
? note.usedSheets / note.totalSheets
: 0.0;
return Card(
elevation: 4,
margin: const EdgeInsets.all(8),
child: InkWell(
onTap: () => _showNoteDetail(note),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 便签纸图片区域
Container(
height: 120,
width: double.infinity,
decoration: BoxDecoration(
gradient: LinearGradient(
colors: [
_getColorFromName(note.color),
_getColorFromName(note.color).withOpacity(0.7),
],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
borderRadius: const BorderRadius.vertical(top: Radius.circular(12)),
),
child: Stack(
children: [
// 品牌标识
Positioned(
top: 8,
left: 8,
child: Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: Colors.white.withOpacity(0.9),
borderRadius: BorderRadius.circular(12),
),
child: Text(
note.brand,
style: const TextStyle(fontSize: 10, fontWeight: FontWeight.bold),
),
),
),
// 收藏标识
Positioned(
top: 8,
right: 8,
child: Icon(
note.isFavorite ? Icons.favorite : Icons.favorite_border,
color: note.isFavorite ? Colors.red : Colors.white,
size: 20,
),
),
// 图案装饰
Center(
child: Icon(
_getPatternIcon(note.pattern),
size: 40,
color: Colors.white.withOpacity(0.7),
),
),
],
),
),
// 便签纸信息
Padding(
padding: const EdgeInsets.all(12),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
note.name,
style: const TextStyle(fontSize: 14, fontWeight: FontWeight.bold),
maxLines: 2,
overflow: TextOverflow.ellipsis,
),
const SizedBox(height: 4),
Text(
'${note.series} • ${note.size}',
style: TextStyle(fontSize: 12, color: Colors.grey.shade600),
),
const SizedBox(height: 8),
// 使用进度条
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text('剩余 $remainingSheets 张', style: const TextStyle(fontSize: 11)),
Text('${(usagePercentage * 100).toInt()}%', style: const TextStyle(fontSize: 11)),
],
),
const SizedBox(height: 4),
LinearProgressIndicator(
value: usagePercentage,
backgroundColor: Colors.grey.shade200,
valueColor: AlwaysStoppedAnimation<Color>(
usagePercentage > 0.8 ? Colors.red :
usagePercentage > 0.5 ? Colors.orange : Colors.green,
),
),
],
),
const SizedBox(height: 8),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text('¥${note.price.toStringAsFixed(0)}',
style: const TextStyle(fontSize: 12, fontWeight: FontWeight.w500)),
Row(
children: [
Icon(Icons.star, size: 12, color: Colors.amber),
Text('${note.rating.toStringAsFixed(1)}',
style: const TextStyle(fontSize: 11)),
],
),
],
),
],
),
),
],
),
),
);
}
网格和列表视图切换
Widget _buildCollectionPage() {
return Column(
children: [
// 顶部工具栏
Container(
padding: const EdgeInsets.all(16),
child: Row(
children: [
Expanded(
child: TextField(
decoration: InputDecoration(
hintText: '搜索便签纸...',
prefixIcon: const Icon(Icons.search),
border: OutlineInputBorder(borderRadius: BorderRadius.circular(25)),
contentPadding: const EdgeInsets.symmetric(horizontal: 16),
),
onChanged: (value) {
setState(() {
_searchQuery = value;
});
_filterNotes();
},
),
),
const SizedBox(width: 12),
IconButton(
icon: Icon(_isGridView ? Icons.view_list : Icons.grid_view),
onPressed: () {
setState(() {
_isGridView = !_isGridView;
});
},
),
IconButton(
icon: const Icon(Icons.filter_list),
onPressed: _showFilterDialog,
),
],
),
),
// 便签纸展示区域
Expanded(
child: _filteredNotes.isEmpty
? _buildEmptyState()
: _isGridView
? GridView.builder(
padding: const EdgeInsets.all(8),
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
childAspectRatio: 0.75,
crossAxisSpacing: 8,
mainAxisSpacing: 8,
),
itemCount: _filteredNotes.length,
itemBuilder: (context, index) => _buildStickyNoteCard(_filteredNotes[index]),
)
: ListView.builder(
padding: const EdgeInsets.all(16),
itemCount: _filteredNotes.length,
itemBuilder: (context, index) => _buildStickyNoteListItem(_filteredNotes[index]),
),
),
],
);
}

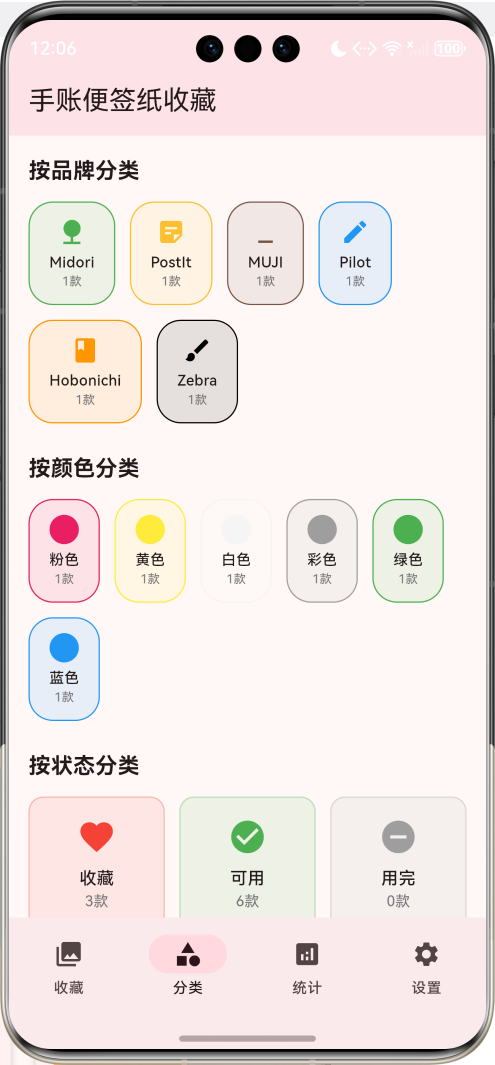

第五步:分类管理功能
分类页面实现
Widget _buildCategoryPage() {
return SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text('按品牌分类', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
const SizedBox(height: 12),
_buildBrandCategories(),
const SizedBox(height: 24),
const Text('按颜色分类', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
const SizedBox(height: 12),
_buildColorCategories(),
const SizedBox(height: 24),
const Text('按用途分类', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
const SizedBox(height: 12),
_buildPurposeCategories(),
],
),
);
}
Widget _buildBrandCategories() {
final brandStats = <String, int>{};
for (final note in _stickyNotes) {
brandStats[note.brand] = (brandStats[note.brand] ?? 0) + 1;
}
return Wrap(
spacing: 12,
runSpacing: 12,
children: brandStats.entries.map((entry) {
return InkWell(
onTap: () => _filterByBrand(entry.key),
child: Container(
padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 12),
decoration: BoxDecoration(
color: _getBrandColor(entry.key).withOpacity(0.1),
borderRadius: BorderRadius.circular(20),
border: Border.all(color: _getBrandColor(entry.key)),
),
child: Column(
children: [
Icon(_getBrandIcon(entry.key), color: _getBrandColor(entry.key), size: 24),
const SizedBox(height: 4),
Text(entry.key, style: const TextStyle(fontSize: 12, fontWeight: FontWeight.w500)),
Text('${entry.value}款', style: TextStyle(fontSize: 10, color: Colors.grey.shade600)),
],
),
),
);
}).toList(),
);
}
第六步:使用记录功能
使用记录管理
void _addUsageRecord(StickyNote note, int sheetsUsed, String purpose) {
final record = UsageRecord(
id: DateTime.now().millisecondsSinceEpoch.toString(),
stickyNoteId: note.id,
usageDate: DateTime.now(),
sheetsUsed: sheetsUsed,
purpose: purpose,
project: '',
notes: '',
photos: [],
);
setState(() {
_usageRecords.add(record);
// 更新便签纸的使用数量
final index = _stickyNotes.indexWhere((n) => n.id == note.id);
if (index != -1) {
_stickyNotes[index] = StickyNote(
id: note.id,
name: note.name,
brand: note.brand,
series: note.series,
size: note.size,
color: note.color,
material: note.material,
pattern: note.pattern,
price: note.price,
purchaseDate: note.purchaseDate,
purchasePlace: note.purchasePlace,
totalSheets: note.totalSheets,
usedSheets: note.usedSheets + sheetsUsed,
tags: note.tags,
notes: note.notes,
photos: note.photos,
condition: note.condition,
isFavorite: note.isFavorite,
rating: note.rating,
);
}
});
_filterNotes();
_calculateStats();
}
void _showUsageDialog(StickyNote note) {
final sheetsController = TextEditingController();
final purposeController = TextEditingController();
showDialog(
context: context,
builder: (context) => AlertDialog(
title: Text('记录使用 - ${note.name}'),
content: Column(
mainAxisSize: MainAxisSize.min,
children: [
TextField(
controller: sheetsController,
keyboardType: TextInputType.number,
decoration: const InputDecoration(
labelText: '使用张数',
hintText: '请输入使用的张数',
),
),
const SizedBox(height: 16),
TextField(
controller: purposeController,
decoration: const InputDecoration(
labelText: '使用用途',
hintText: '如:手账装饰、便签记录等',
),
),
],
),
actions: [
TextButton(
onPressed: () => Navigator.pop(context),
child: const Text('取消'),
),
ElevatedButton(
onPressed: () {
final sheets = int.tryParse(sheetsController.text) ?? 0;
if (sheets > 0 && sheets <= (note.totalSheets - note.usedSheets)) {
_addUsageRecord(note, sheets, purposeController.text);
Navigator.pop(context);
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('使用记录已添加')),
);
} else {
ScaffoldMessenger.of(context).showSnackBar(
const SnackBar(content: Text('请输入有效的使用张数')),
);
}
},
child: const Text('确认'),
),
],
),
);
}

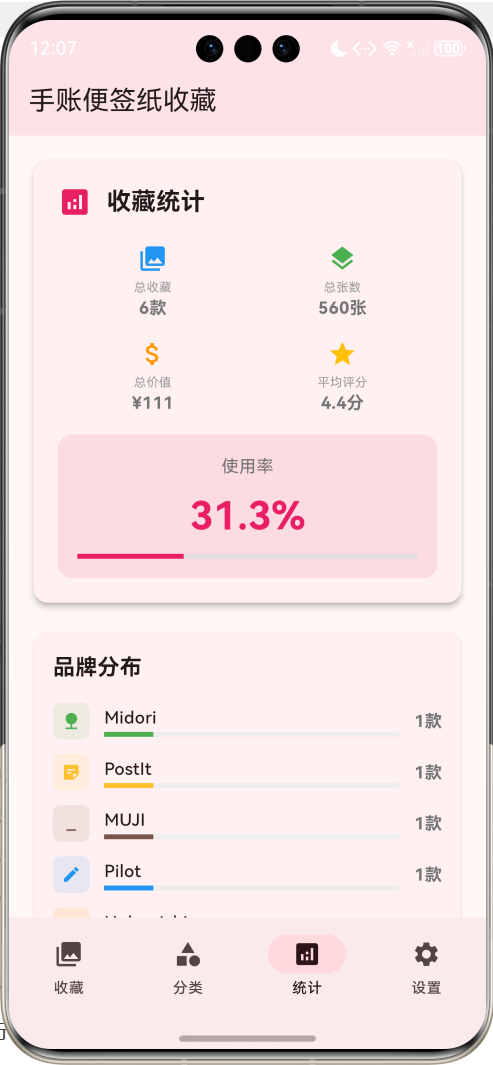

第七步:统计分析功能
统计数据计算
class CollectionStats {
final int totalNotes;
final int totalSheets;
final int usedSheets;
final double totalValue;
final double averageRating;
final Map<String, int> brandDistribution;
final Map<String, int> colorDistribution;
final List<StickyNote> favoriteNotes;
final List<StickyNote> recentlyUsed;
final double usageRate;
CollectionStats({
required this.totalNotes,
required this.totalSheets,
required this.usedSheets,
required this.totalValue,
required this.averageRating,
required this.brandDistribution,
required this.colorDistribution,
required this.favoriteNotes,
required this.recentlyUsed,
required this.usageRate,
});
}
void _calculateStats() {
final totalNotes = _stickyNotes.length;
final totalSheets = _stickyNotes.fold<int>(0, (sum, note) => sum + note.totalSheets);
final usedSheets = _stickyNotes.fold<int>(0, (sum, note) => sum + note.usedSheets);
final totalValue = _stickyNotes.fold<double>(0, (sum, note) => sum + note.price);
final ratingsWithValue = _stickyNotes.where((note) => note.rating > 0).toList();
final averageRating = ratingsWithValue.isNotEmpty
? ratingsWithValue.fold<double>(0, (sum, note) => sum + note.rating) / ratingsWithValue.length
: 0.0;
final brandDistribution = <String, int>{};
final colorDistribution = <String, int>{};
for (final note in _stickyNotes) {
brandDistribution[note.brand] = (brandDistribution[note.brand] ?? 0) + 1;
colorDistribution[note.color] = (colorDistribution[note.color] ?? 0) + 1;
}
final favoriteNotes = _stickyNotes.where((note) => note.isFavorite).toList();
// 根据最近使用记录排序
final recentlyUsed = _stickyNotes.where((note) => note.usedSheets > 0).toList()
..sort((a, b) => b.usedSheets.compareTo(a.usedSheets));
final usageRate = totalSheets > 0 ? usedSheets / totalSheets : 0.0;
_stats = CollectionStats(
totalNotes: totalNotes,
totalSheets: totalSheets,
usedSheets: usedSheets,
totalValue: totalValue,
averageRating: averageRating,
brandDistribution: brandDistribution,
colorDistribution: colorDistribution,
favoriteNotes: favoriteNotes,
recentlyUsed: recentlyUsed.take(5).toList(),
usageRate: usageRate,
);
}
统计页面展示
Widget _buildStatsPage() {
if (_stats == null) return const Center(child: CircularProgressIndicator());
return SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
children: [
// 总体统计卡片
Card(
elevation: 4,
child: Padding(
padding: const EdgeInsets.all(20),
child: Column(
children: [
const Row(
children: [
Icon(Icons.analytics, color: Colors.pink, size: 28),
SizedBox(width: 12),
Text('收藏统计', style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold)),
],
),
const SizedBox(height: 20),
Row(
children: [
Expanded(child: _buildStatItem('总收藏', '${_stats!.totalNotes}款', Icons.collections, Colors.blue)),
Expanded(child: _buildStatItem('总张数', '${_stats!.totalSheets}张', Icons.layers, Colors.green)),
],
),
const SizedBox(height: 16),
Row(
children: [
Expanded(child: _buildStatItem('总价值', '¥${_stats!.totalValue.toStringAsFixed(0)}', Icons.attach_money, Colors.orange)),
Expanded(child: _buildStatItem('平均评分', '${_stats!.averageRating.toStringAsFixed(1)}分', Icons.star, Colors.amber)),
],
),
const SizedBox(height: 16),
Container(
width: double.infinity,
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.pink.withOpacity(0.1),
borderRadius: BorderRadius.circular(12),
),
child: Column(
children: [
Text('使用率', style: TextStyle(fontSize: 14, color: Colors.grey.shade600)),
const SizedBox(height: 8),
Text('${(_stats!.usageRate * 100).toStringAsFixed(1)}%',
style: const TextStyle(fontSize: 32, fontWeight: FontWeight.bold, color: Colors.pink)),
const SizedBox(height: 8),
LinearProgressIndicator(
value: _stats!.usageRate,
backgroundColor: Colors.grey.shade300,
valueColor: const AlwaysStoppedAnimation<Color>(Colors.pink),
),
],
),
),
],
),
),
),
const SizedBox(height: 16),
// 品牌分布图表
Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text('品牌分布', style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold)),
const SizedBox(height: 16),
..._stats!.brandDistribution.entries.map((entry) => Padding(
padding: const EdgeInsets.only(bottom: 12),
child: Row(
children: [
Container(
width: 30,
height: 30,
decoration: BoxDecoration(
color: _getBrandColor(entry.key).withOpacity(0.1),
borderRadius: BorderRadius.circular(6),
),
child: Icon(_getBrandIcon(entry.key), size: 16, color: _getBrandColor(entry.key)),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(entry.key, style: const TextStyle(fontWeight: FontWeight.w500)),
const SizedBox(height: 2),
LinearProgressIndicator(
value: _stats!.totalNotes > 0 ? entry.value / _stats!.totalNotes : 0,
backgroundColor: Colors.grey.shade200,
valueColor: AlwaysStoppedAnimation<Color>(_getBrandColor(entry.key)),
),
],
),
),
const SizedBox(width: 12),
Text('${entry.value}款', style: TextStyle(fontSize: 14, fontWeight: FontWeight.bold, color: Colors.grey.shade600)),
],
),
)),
],
),
),
),
],
),
);
}
Widget _buildStatItem(String label, String value, IconData icon, Color color) {
return Column(
children: [
Icon(icon, color: color, size: 24),
const SizedBox(height: 4),
Text(label, style: const TextStyle(fontSize: 10, color: Colors.grey)),
Text(value, style: TextStyle(fontSize: 14, fontWeight: FontWeight.bold, color: Colors.grey.shade600)),
],
);
}
第八步:便签纸详情页面
class StickyNoteDetailPage extends StatefulWidget {
final StickyNote note;
final Function(StickyNote) onUpdate;
const StickyNoteDetailPage({
super.key,
required this.note,
required this.onUpdate,
});
State<StickyNoteDetailPage> createState() => _StickyNoteDetailPageState();
}
class _StickyNoteDetailPageState extends State<StickyNoteDetailPage> {
late StickyNote _note;
void initState() {
super.initState();
_note = widget.note;
}
Widget build(BuildContext context) {
final remainingSheets = _note.totalSheets - _note.usedSheets;
final usagePercentage = _note.totalSheets > 0 ? _note.usedSheets / _note.totalSheets : 0.0;
return Scaffold(
appBar: AppBar(
title: Text(_note.name),
actions: [
IconButton(
icon: Icon(_note.isFavorite ? Icons.favorite : Icons.favorite_border),
onPressed: _toggleFavorite,
),
IconButton(
icon: const Icon(Icons.edit),
onPressed: _editNote,
),
],
),
body: SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 便签纸展示区域
Container(
width: double.infinity,
height: 200,
decoration: BoxDecoration(
gradient: LinearGradient(
colors: [
_getColorFromName(_note.color),
_getColorFromName(_note.color).withOpacity(0.7),
],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.1),
blurRadius: 10,
spreadRadius: 2,
),
],
),
child: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Icon(_getPatternIcon(_note.pattern), size: 60, color: Colors.white.withOpacity(0.8)),
const SizedBox(height: 8),
Text(_note.pattern, style: const TextStyle(color: Colors.white, fontSize: 16, fontWeight: FontWeight.bold)),
],
),
),
),
const SizedBox(height: 24),
// 基本信息
_buildInfoSection('基本信息', [
_buildInfoRow('品牌', _note.brand, Icons.business),
_buildInfoRow('系列', _note.series, Icons.category),
_buildInfoRow('尺寸', _note.size, Icons.straighten),
_buildInfoRow('材质', _note.material, Icons.texture),
_buildInfoRow('颜色', _note.color, Icons.palette),
]),
const SizedBox(height: 16),
// 购买信息
_buildInfoSection('购买信息', [
_buildInfoRow('价格', '¥${_note.price.toStringAsFixed(2)}', Icons.attach_money),
_buildInfoRow('购买日期', _formatDate(_note.purchaseDate), Icons.calendar_today),
_buildInfoRow('购买地点', _note.purchasePlace, Icons.location_on),
]),
const SizedBox(height: 16),
// 使用情况
_buildInfoSection('使用情况', [
_buildUsageInfo(),
]),
const SizedBox(height: 16),
// 标签
if (_note.tags.isNotEmpty) ...[
_buildInfoSection('标签', [
Wrap(
spacing: 8,
runSpacing: 8,
children: _note.tags.map((tag) => Chip(
label: Text(tag, style: const TextStyle(fontSize: 12)),
backgroundColor: Colors.pink.withOpacity(0.1),
)).toList(),
),
]),
const SizedBox(height: 16),
],
// 备注
if (_note.notes.isNotEmpty) ...[
_buildInfoSection('备注', [
Text(_note.notes, style: TextStyle(color: Colors.grey.shade700)),
]),
const SizedBox(height: 16),
],
// 操作按钮
Row(
children: [
Expanded(
child: ElevatedButton.icon(
onPressed: remainingSheets > 0 ? _recordUsage : null,
icon: const Icon(Icons.remove),
label: const Text('记录使用'),
),
),
const SizedBox(width: 12),
Expanded(
child: OutlinedButton.icon(
onPressed: _viewUsageHistory,
icon: const Icon(Icons.history),
label: const Text('使用历史'),
),
),
],
),
],
),
),
);
}
Widget _buildInfoSection(String title, List<Widget> children) {
return Card(
child: Padding(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(title, style: const TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
const SizedBox(height: 12),
...children,
],
),
),
);
}
Widget _buildInfoRow(String label, String value, IconData icon) {
return Padding(
padding: const EdgeInsets.only(bottom: 8),
child: Row(
children: [
Icon(icon, size: 16, color: Colors.grey.shade600),
const SizedBox(width: 8),
Text('$label: ', style: TextStyle(color: Colors.grey.shade600)),
Expanded(child: Text(value, style: const TextStyle(fontWeight: FontWeight.w500))),
],
),
);
}
Widget _buildUsageInfo() {
final remainingSheets = _note.totalSheets - _note.usedSheets;
final usagePercentage = _note.totalSheets > 0 ? _note.usedSheets / _note.totalSheets : 0.0;
return Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text('总张数: ${_note.totalSheets}张'),
Text('已使用: ${_note.usedSheets}张'),
],
),
const SizedBox(height: 8),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text('剩余: $remainingSheets张', style: TextStyle(
color: remainingSheets == 0 ? Colors.red : Colors.green,
fontWeight: FontWeight.w500,
)),
Text('${(usagePercentage * 100).toInt()}%', style: const TextStyle(fontWeight: FontWeight.w500)),
],
),
const SizedBox(height: 8),
LinearProgressIndicator(
value: usagePercentage,
backgroundColor: Colors.grey.shade200,
valueColor: AlwaysStoppedAnimation<Color>(
usagePercentage > 0.8 ? Colors.red :
usagePercentage > 0.5 ? Colors.orange : Colors.green,
),
),
],
);
}
void _toggleFavorite() {
setState(() {
_note = StickyNote(
id: _note.id,
name: _note.name,
brand: _note.brand,
series: _note.series,
size: _note.size,
color: _note.color,
material: _note.material,
pattern: _note.pattern,
price: _note.price,
purchaseDate: _note.purchaseDate,
purchasePlace: _note.purchasePlace,
totalSheets: _note.totalSheets,
usedSheets: _note.usedSheets,
tags: _note.tags,
notes: _note.notes,
photos: _note.photos,
condition: _note.condition,
isFavorite: !_note.isFavorite,
rating: _note.rating,
);
});
widget.onUpdate(_note);
}
void _editNote() {
// 编辑便签纸信息
Navigator.push(
context,
MaterialApp.route(
builder: (context) => EditStickyNotePage(
note: _note,
onSave: (updatedNote) {
setState(() {
_note = updatedNote;
});
widget.onUpdate(updatedNote);
},
),
),
);
}
void _recordUsage() {
// 记录使用
}
void _viewUsageHistory() {
// 查看使用历史
}
String _formatDate(DateTime date) {
return '${date.year}-${date.month.toString().padLeft(2, '0')}-${date.day.toString().padLeft(2, '0')}';
}
}
核心功能详解
1. 颜色系统
根据便签纸颜色名称返回对应的Color对象:
Color _getColorFromName(String colorName) {
switch (colorName.toLowerCase()) {
case '粉色': return Colors.pink;
case '蓝色': return Colors.blue;
case '绿色': return Colors.green;
case '黄色': return Colors.yellow;
case '紫色': return Colors.purple;
case '橙色': return Colors.orange;
case '红色': return Colors.red;
case '白色': return Colors.grey.shade100;
case '黑色': return Colors.grey.shade800;
default: return Colors.grey;
}
}
2. 品牌图标系统
为不同品牌设置专属图标和颜色:
IconData _getBrandIcon(String brand) {
switch (brand.toLowerCase()) {
case 'midori': return Icons.nature;
case 'hobonichi': return Icons.book;
case 'muji': return Icons.minimize;
case 'postit': return Icons.sticky_note_2;
case 'pilot': return Icons.edit;
case 'zebra': return Icons.brush;
default: return Icons.note;
}
}
Color _getBrandColor(String brand) {
switch (brand.toLowerCase()) {
case 'midori': return Colors.green;
case 'hobonichi': return Colors.orange;
case 'muji': return Colors.brown;
case 'postit': return Colors.yellow.shade700;
case 'pilot': return Colors.blue;
case 'zebra': return Colors.black;
default: return Colors.grey;
}
}
3. 图案图标系统
根据便签纸图案显示相应图标:
IconData _getPatternIcon(String pattern) {
switch (pattern.toLowerCase()) {
case '樱花花瓣': return Icons.local_florist;
case '格子': return Icons.grid_on;
case '条纹': return Icons.horizontal_rule;
case '圆点': return Icons.fiber_manual_record;
case '星星': return Icons.star;
case '爱心': return Icons.favorite;
case '纯色': return Icons.crop_square;
default: return Icons.texture;
}
}
4. 搜索和筛选算法
实现多维度搜索功能:
void _filterNotes() {
setState(() {
_filteredNotes = _stickyNotes.where((note) {
bool matchesSearch = _searchQuery.isEmpty ||
note.name.toLowerCase().contains(_searchQuery.toLowerCase()) ||
note.brand.toLowerCase().contains(_searchQuery.toLowerCase()) ||
note.series.toLowerCase().contains(_searchQuery.toLowerCase()) ||
note.tags.any((tag) => tag.toLowerCase().contains(_searchQuery.toLowerCase()));
bool matchesBrand = _selectedBrand == null || note.brand == _selectedBrand;
bool matchesColor = _selectedColor == null || note.color == _selectedColor;
bool matchesFavorite = !_showFavoritesOnly || note.isFavorite;
bool matchesAvailable = !_showAvailableOnly || (note.totalSheets - note.usedSheets) > 0;
return matchesSearch && matchesBrand && matchesColor && matchesFavorite && matchesAvailable;
}).toList();
// 排序
switch (_sortBy) {
case SortBy.name:
_filteredNotes.sort((a, b) => a.name.compareTo(b.name));
break;
case SortBy.brand:
_filteredNotes.sort((a, b) => a.brand.compareTo(b.brand));
break;
case SortBy.price:
_filteredNotes.sort((a, b) => b.price.compareTo(a.price));
break;
case SortBy.purchaseDate:
_filteredNotes.sort((a, b) => b.purchaseDate.compareTo(a.purchaseDate));
break;
case SortBy.usage:
_filteredNotes.sort((a, b) => b.usedSheets.compareTo(a.usedSheets));
break;
}
});
}
性能优化
1. 列表优化
使用ListView.builder和GridView.builder实现虚拟滚动:
GridView.builder(
padding: const EdgeInsets.all(8),
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
childAspectRatio: 0.75,
crossAxisSpacing: 8,
mainAxisSpacing: 8,
),
itemCount: _filteredNotes.length,
itemBuilder: (context, index) => _buildStickyNoteCard(_filteredNotes[index]),
)
2. 状态管理优化
合理使用setState,避免不必要的重建:
void _updateNote(StickyNote updatedNote) {
setState(() {
final index = _stickyNotes.indexWhere((note) => note.id == updatedNote.id);
if (index != -1) {
_stickyNotes[index] = updatedNote;
}
});
_filterNotes();
_calculateStats();
}
3. 内存管理
及时释放资源:
void dispose() {
_searchController.dispose();
super.dispose();
}
扩展功能
1. 数据持久化
可以集成sqflite插件实现本地数据库存储:
dependencies:
flutter:
sdk: flutter
sqflite: ^2.3.0
path: ^1.8.3
2. 图片管理
使用image_picker插件实现照片拍摄和选择:
dependencies:
image_picker: ^1.0.4
3. 数据导出
集成csv插件实现数据导出功能:
dependencies:
csv: ^5.0.2
path_provider: ^2.1.1
总结
本教程详细介绍了Flutter手账便签纸收藏应用的完整开发过程,涵盖了:
- 数据模型设计:便签纸信息、使用记录、统计数据的合理建模
- UI界面开发:Material Design 3风格的现代化界面
- 功能实现:收藏管理、分类展示、使用记录、统计分析
- 交互设计:网格/列表切换、搜索筛选、详情展示
- 性能优化:虚拟滚动、状态管理、内存优化
- 扩展功能:数据持久化、图片管理、数据导出
这款应用不仅功能完整,而且代码结构清晰,易于维护和扩展。通过本教程的学习,你可以掌握Flutter应用开发的核心技能,为后续开发更复杂的收藏管理类应用打下坚实基础。
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
更多推荐



所有评论(0)
