Flutter电台播放器应用开发教程

项目简介

电台播放器是一款在线电台收听应用，支持多种电台分类浏览、收藏管理和播放历史记录。应用提供简洁的界面和流畅的播放体验，让用户随时随地收听喜爱的电台节目。

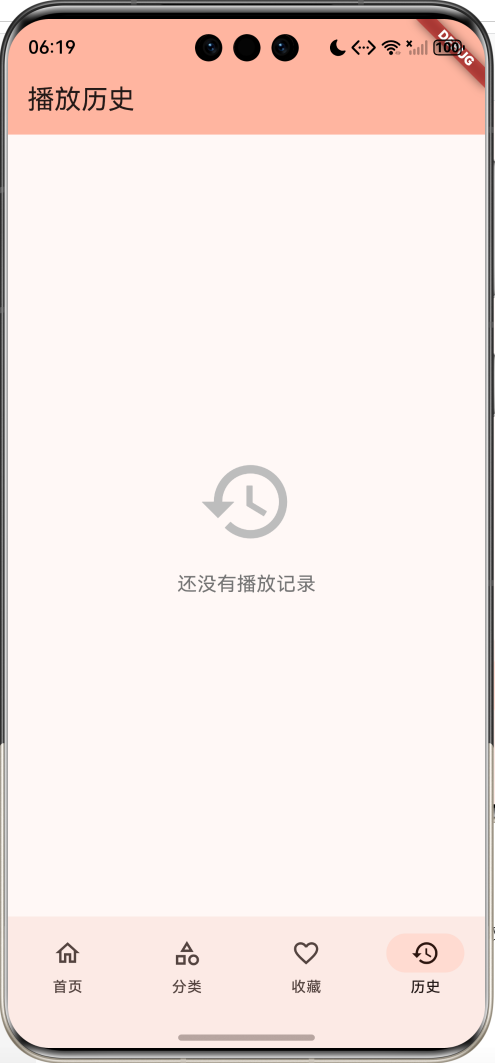

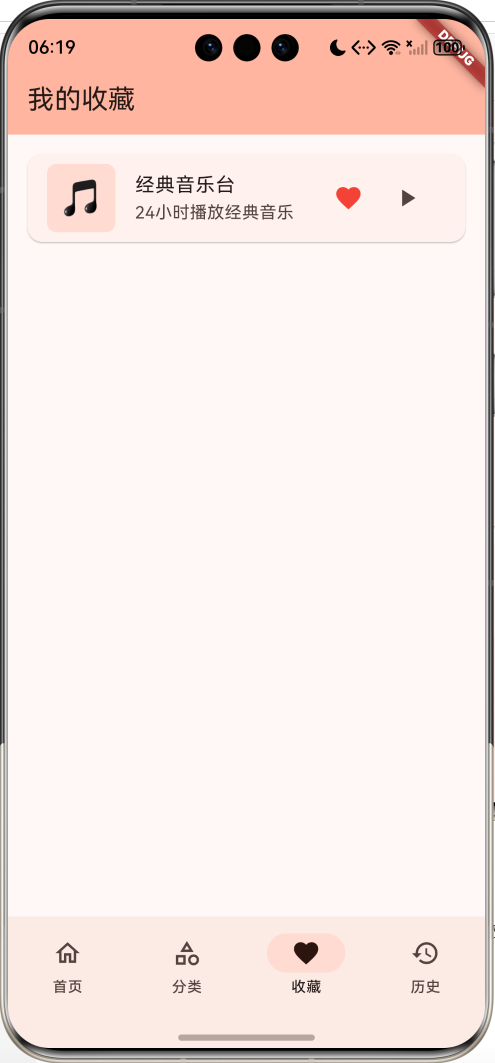

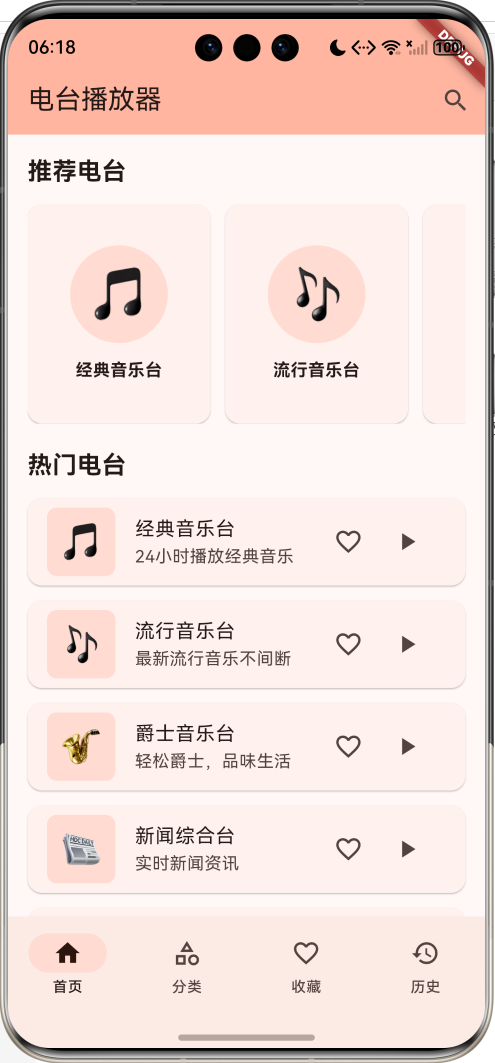

运行效果图

核心特性

• 多种分类：音乐、新闻、脱口秀、体育、文化、教育
• 在线播放：支持在线电台流媒体播放
• 收藏管理：收藏喜爱的电台
• 播放历史：记录播放历史
• 分类浏览：按分类筛选电台
• 搜索功能：快速查找电台
• 迷你播放器：底部常驻播放控制
• 数据持久化：本地保存收藏和历史

技术栈

• Flutter 3.x
• Material Design 3
• audioplayers（音频播放）
• SharedPreferences（数据持久化）

数据模型设计

电台分类枚举

enum RadioCategory {
  music,      // 音乐
  news,       // 新闻
  talk,       // 脱口秀
  sports,     // 体育
  culture,    // 文化
  education,  // 教育
}

电台模型

class RadioStation {
  final String id;              // 唯一标识
  final String name;            // 电台名称
  final String description;     // 描述
  final String streamUrl;       // 流媒体URL
  final RadioCategory category; // 分类
  final String? imageUrl;       // 图标
  final String? website;        // 官网
  bool isFavorite;              // 是否收藏
}

播放历史模型

class PlayHistory {
  final String stationId;       // 电台ID
  final DateTime playTime;      // 播放时间
}

核心功能实现

1. 音频播放

使用audioplayers包实现电台播放：

final AudioPlayer _audioPlayer = AudioPlayer();

Future<void> _playStation(RadioStation station) async {
  setState(() {
    isLoading = true;
  });

  try {
    if (currentStation?.id == station.id && isPlaying) {
      await _audioPlayer.pause();
    } else {
      await _audioPlayer.stop();
      await _audioPlayer.play(UrlSource(station.streamUrl));

      setState(() {
        currentStation = station;
        isPlaying = true;
      });

      _addToHistory(station.id);
    }
  } catch (e) {
    ScaffoldMessenger.of(context).showSnackBar(
      SnackBar(content: Text('播放失败: $e')),
    );
  } finally {
    setState(() {
      isLoading = false;
    });
  }
}

2. 播放状态监听

监听播放器状态变化：

void _setupAudioPlayer() {
  _audioPlayer.onPlayerStateChanged.listen((state) {
    setState(() {
      isPlaying = state == PlayerState.playing;
      isLoading = state == PlayerState.playing;
    });
  });
}

3. 收藏管理

void _toggleFavorite(String stationId) {
  setState(() {
    final station = stations.firstWhere((s) => s.id == stationId);
    station.isFavorite = !station.isFavorite;
  });
  _saveData();
}

Future<void> _saveData() async {
  final prefs = await SharedPreferences.getInstance();

  // 保存收藏
  final favoriteIds = stations
      .where((s) => s.isFavorite)
      .map((s) => s.id)
      .toList();
  await prefs.setStringList('favorite_stations', favoriteIds);
}

4. 播放历史

void _addToHistory(String stationId) {
  final history = PlayHistory(
    stationId: stationId,
    playTime: DateTime.now(),
  );

  setState(() {
    playHistory.insert(0, history);
    if (playHistory.length > 50) {
      playHistory.removeLast();
    }
  });

  _saveData();
}

5. 数据持久化

Future<void> _loadData() async {
  final prefs = await SharedPreferences.getInstance();

  // 加载收藏状态
  final favoritesData = prefs.getStringList('favorite_stations') ?? [];
  final favoriteIds = favoritesData.toSet();

  setState(() {
    for (var station in stations) {
      station.isFavorite = favoriteIds.contains(station.id);
    }
  });

  // 加载播放历史
  final historyData = prefs.getStringList('play_history') ?? [];
  setState(() {
    playHistory = historyData
        .map((json) => PlayHistory.fromJson(jsonDecode(json)))
        .toList();
  });
}

UI组件设计

1. 迷你播放器

底部常驻的播放控制器：

Widget _buildMiniPlayer() {
  return Container(
    decoration: BoxDecoration(
      color: Theme.of(context).colorScheme.surfaceVariant,
      boxShadow: [
        BoxShadow(
          color: Colors.black.withOpacity(0.1),
          blurRadius: 4,
          offset: const Offset(0, -2),
        ),
      ],
    ),
    child: ListTile(
      leading: Container(
        width: 48,
        height: 48,
        decoration: BoxDecoration(
          color: Theme.of(context).colorScheme.primary,
          borderRadius: BorderRadius.circular(8),
        ),
        child: Center(
          child: Text(currentStation!.imageUrl ?? '📻'),
        ),
      ),
      title: Text(currentStation!.name),
      subtitle: Text(currentStation!.description),
      trailing: Row(
        mainAxisSize: MainAxisSize.min,
        children: [
          IconButton(
            icon: Icon(isPlaying ? Icons.pause : Icons.play_arrow),
            onPressed: () => _playStation(currentStation!),
          ),
          IconButton(
            icon: const Icon(Icons.stop),
            onPressed: _stopPlaying,
          ),
        ],
      ),
    ),
  );
}

2. 电台卡片

Widget _buildStationCard(RadioStation station) {
  final isCurrentPlaying = currentStation?.id == station.id && isPlaying;

  return Card(
    child: ListTile(
      leading: Container(
        width: 56,
        height: 56,
        decoration: BoxDecoration(
          color: isCurrentPlaying
              ? Theme.of(context).colorScheme.primary
              : Theme.of(context).colorScheme.primaryContainer,
          borderRadius: BorderRadius.circular(8),
        ),
        child: Center(child: Text(station.imageUrl ?? '📻')),
      ),
      title: Text(
        station.name,
        style: TextStyle(
          fontWeight: isCurrentPlaying ? FontWeight.bold : FontWeight.normal,
        ),
      ),
      subtitle: Text(station.description),
      trailing: Row(
        mainAxisSize: MainAxisSize.min,
        children: [
          IconButton(
            icon: Icon(
              station.isFavorite ? Icons.favorite : Icons.favorite_outline,
              color: station.isFavorite ? Colors.red : null,
            ),
            onPressed: () => _toggleFavorite(station.id),
          ),
          IconButton(
            icon: Icon(isCurrentPlaying ? Icons.pause : Icons.play_arrow),
            onPressed: () => _playStation(station),
          ),
        ],
      ),
    ),
  );
}

3. 推荐卡片

横向滚动的推荐电台：

Widget _buildRecommendCard(RadioStation station) {
  return Card(
    child: InkWell(
      onTap: () => _playStation(station),
      child: Container(
        width: 150,
        padding: const EdgeInsets.all(12),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Container(
              width: 80,
              height: 80,
              decoration: BoxDecoration(
                color: Theme.of(context).colorScheme.primaryContainer,
                borderRadius: BorderRadius.circular(40),
              ),
              child: Center(child: Text(station.imageUrl ?? '📻')),
            ),
            const SizedBox(height: 12),
            Text(
              station.name,
              style: const TextStyle(fontWeight: FontWeight.bold),
              textAlign: TextAlign.center,
              maxLines: 2,
              overflow: TextOverflow.ellipsis,
            ),
          ],
        ),
      ),
    ),
  );
}

4. 分类筛选

Widget _buildCategoryFilter() {
  return SizedBox(
    height: 60,
    child: ListView.builder(
      scrollDirection: Axis.horizontal,
      itemCount: RadioCategory.values.length + 1,
      itemBuilder: (context, index) {
        if (index == 0) {
          return FilterChip(
            label: const Text('全部'),
            selected: selectedCategory == null,
            onSelected: (selected) {
              setState(() {
                selectedCategory = null;
              });
            },
          );
        }

        final category = RadioCategory.values[index - 1];
        return FilterChip(
          avatar: Icon(categoryIcons[category]),
          label: Text(categoryNames[category]!),
          selected: selectedCategory == category,
          onSelected: (selected) {
            setState(() {
              selectedCategory = selected ? category : null;
            });
          },
        );
      },
    ),
  );
}

应用架构

页面结构

数据流

功能扩展建议

1. 定时关闭

添加睡眠定时器：

class SleepTimer {
  Timer? _timer;
  int remainingMinutes = 0;

  void start(int minutes, VoidCallback onComplete) {
    remainingMinutes = minutes;
    _timer = Timer.periodic(const Duration(minutes: 1), (timer) {
      remainingMinutes--;
      if (remainingMinutes <= 0) {
        timer.cancel();
        onComplete();
      }
    });
  }

  void cancel() {
    _timer?.cancel();
    remainingMinutes = 0;
  }
}

// 使用
Future<void> _showSleepTimerDialog() async {
  await showDialog(
    context: context,
    builder: (context) => AlertDialog(
      title: const Text('定时关闭'),
      content: Column(
        mainAxisSize: MainAxisSize.min,
        children: [
          ListTile(
            title: const Text('15分钟'),
            onTap: () {
              _sleepTimer.start(15, _stopPlaying);
              Navigator.pop(context);
            },
          ),
          ListTile(
            title: const Text('30分钟'),
            onTap: () {
              _sleepTimer.start(30, _stopPlaying);
              Navigator.pop(context);
            },
          ),
          ListTile(
            title: const Text('60分钟'),
            onTap: () {
              _sleepTimer.start(60, _stopPlaying);
              Navigator.pop(context);
            },
          ),
        ],
      ),
    ),
  );
}

2. 录音功能

录制电台节目：

// 使用 record 包
import 'package:record/record.dart';

class RadioRecorder {
  final Record _recorder = Record();
  bool isRecording = false;

  Future<void> startRecording(String stationName) async {
    if (await _recorder.hasPermission()) {
      final path = await _getRecordingPath(stationName);
      await _recorder.start(
        path: path,
        encoder: AudioEncoder.aacLc,
      );
      isRecording = true;
    }
  }

  Future<void> stopRecording() async {
    final path = await _recorder.stop();
    isRecording = false;
    return path;
  }

  Future<String> _getRecordingPath(String stationName) async {
    final directory = await getApplicationDocumentsDirectory();
    final timestamp = DateTime.now().millisecondsSinceEpoch;
    return '${directory.path}/${stationName}_$timestamp.aac';
  }
}

3. 均衡器

添加音频均衡器：

class AudioEqualizer extends StatefulWidget {
  final AudioPlayer player;

  @override
  State<AudioEqualizer> createState() => _AudioEqualizerState();
}

class _AudioEqualizerState extends State<AudioEqualizer> {
  Map<String, double> bands = {
    '60Hz': 0,
    '230Hz': 0,
    '910Hz': 0,
    '4kHz': 0,
    '14kHz': 0,
  };

  @override
  Widget build(BuildContext context) {
    return Column(
      children: bands.entries.map((entry) {
        return Column(
          children: [
            Text(entry.key),
            Slider(
              value: entry.value,
              min: -12,
              max: 12,
              divisions: 24,
              label: '${entry.value.toStringAsFixed(1)} dB',
              onChanged: (value) {
                setState(() {
                  bands[entry.key] = value;
                });
                _applyEqualizer();
              },
            ),
          ],
        );
      }).toList(),
    );
  }

  void _applyEqualizer() {
    // 应用均衡器设置到播放器
  }
}

4. 电台推荐

基于收听历史推荐电台：

class RadioRecommender {
  List<RadioStation> getRecommendations(
    List<RadioStation> allStations,
    List<PlayHistory> history,
  ) {
    // 统计各分类收听次数
    final categoryCount = <RadioCategory, int>{};

    for (var h in history) {
      final station = allStations.firstWhere((s) => s.id == h.stationId);
      categoryCount[station.category] =
          (categoryCount[station.category] ?? 0) + 1;
    }

    // 找出最常听的分类
    final topCategory = categoryCount.entries
        .reduce((a, b) => a.value > b.value ? a : b)
        .key;

    // 推荐同分类的未收听电台
    return allStations
        .where((s) =>
          s.category == topCategory &&
          !history.any((h) => h.stationId == s.id)
        )
        .take(5)
        .toList();
  }
}

5. 电台节目表

显示电台节目时间表：

class ProgramSchedule {
  final String time;
  final String title;
  final String description;

  ProgramSchedule({
    required this.time,
    required this.title,
    required this.description,
  });
}

Widget _buildSchedulePage(RadioStation station) {
  final schedule = [
    ProgramSchedule(
      time: '06:00 - 08:00',
      title: '早间新闻',
      description: '最新新闻资讯',
    ),
    ProgramSchedule(
      time: '08:00 - 10:00',
      title: '音乐时光',
      description: '轻松音乐陪伴',
    ),
    // ... 更多节目
  ];

  return ListView.builder(
    itemCount: schedule.length,
    itemBuilder: (context, index) {
      final program = schedule[index];
      return ListTile(
        leading: const Icon(Icons.schedule),
        title: Text(program.title),
        subtitle: Text('${program.time}\n${program.description}'),
        isThreeLine: true,
      );
    },
  );
}

6. 社交分享

分享正在收听的电台：

// 使用 share_plus 包
import 'package:share_plus/share_plus.dart';

Future<void> _shareStation(RadioStation station) async {
  final text = '''
我正在收听：${station.name}
${station.description}
${station.website ?? ''}
''';

  await Share.share(text, subject: station.name);
}

7. 播客支持

添加播客节目支持：

class PodcastEpisode {
  final String id;
  final String title;
  final String description;
  final String audioUrl;
  final Duration duration;
  final DateTime publishDate;

  PodcastEpisode({
    required this.id,
    required this.title,
    required this.description,
    required this.audioUrl,
    required this.duration,
    required this.publishDate,
  });
}

class PodcastPlayer extends StatefulWidget {
  final PodcastEpisode episode;

  @override
  State<PodcastPlayer> createState() => _PodcastPlayerState();
}

class _PodcastPlayerState extends State<PodcastPlayer> {
  final AudioPlayer _player = AudioPlayer();
  Duration position = Duration.zero;
  Duration duration = Duration.zero;

  @override
  void initState() {
    super.initState();
    _player.onPositionChanged.listen((p) {
      setState(() {
        position = p;
      });
    });

    _player.onDurationChanged.listen((d) {
      setState(() {
        duration = d;
      });
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        Slider(
          value: position.inSeconds.toDouble(),
          max: duration.inSeconds.toDouble(),
          onChanged: (value) {
            _player.seek(Duration(seconds: value.toInt()));
          },
        ),
        Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            IconButton(
              icon: const Icon(Icons.replay_10),
              onPressed: () {
                final newPosition = position - const Duration(seconds: 10);
                _player.seek(newPosition);
              },
            ),
            IconButton(
              icon: const Icon(Icons.play_arrow),
              onPressed: () => _player.play(UrlSource(widget.episode.audioUrl)),
            ),
            IconButton(
              icon: const Icon(Icons.forward_10),
              onPressed: () {
                final newPosition = position + const Duration(seconds: 10);
                _player.seek(newPosition);
              },
            ),
          ],
        ),
      ],
    );
  }
}

8. 离线下载

下载电台节目离线收听：

// 使用 dio 包
import 'package:dio/dio.dart';

class RadioDownloader {
  final Dio _dio = Dio();

  Future<void> downloadEpisode(
    PodcastEpisode episode,
    Function(double) onProgress,
  ) async {
    final directory = await getApplicationDocumentsDirectory();
    final savePath = '${directory.path}/${episode.id}.mp3';

    await _dio.download(
      episode.audioUrl,
      savePath,
      onReceiveProgress: (received, total) {
        if (total != -1) {
          onProgress(received / total);
        }
      },
    );
  }

  Future<List<String>> getDownloadedEpisodes() async {
    final directory = await getApplicationDocumentsDirectory();
    final files = directory.listSync();
    return files
        .where((f) => f.path.endsWith('.mp3'))
        .map((f) => f.path)
        .toList();
  }
}

9. 车载模式

简化界面适配车载使用：

class CarMode extends StatelessWidget {
  final RadioStation? currentStation;
  final bool isPlaying;
  final VoidCallback onPlayPause;
  final VoidCallback onNext;
  final VoidCallback onPrevious;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: Colors.black,
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Text(
              currentStation?.name ?? '未播放',
              style: const TextStyle(
                color: Colors.white,
                fontSize: 48,
                fontWeight: FontWeight.bold,
              ),
            ),
            const SizedBox(height: 60),
            Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                IconButton(
                  icon: const Icon(Icons.skip_previous, color: Colors.white),
                  iconSize: 80,
                  onPressed: onPrevious,
                ),
                const SizedBox(width: 40),
                IconButton(
                  icon: Icon(
                    isPlaying ? Icons.pause_circle : Icons.play_circle,
                    color: Colors.white,
                  ),
                  iconSize: 120,
                  onPressed: onPlayPause,
                ),
                const SizedBox(width: 40),
                IconButton(
                  icon: const Icon(Icons.skip_next, color: Colors.white),
                  iconSize: 80,
                  onPressed: onNext,
                ),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

10. 语音控制

添加语音命令控制：

// 使用 speech_to_text 包
import 'package:speech_to_text/speech_to_text.dart';

class VoiceController {
  final SpeechToText _speech = SpeechToText();

  Future<void> startListening(Function(String) onCommand) async {
    bool available = await _speech.initialize();

    if (available) {
      _speech.listen(
        onResult: (result) {
          final command = result.recognizedWords.toLowerCase();

          if (command.contains('播放')) {
            onCommand('play');
          } else if (command.contains('暂停')) {
            onCommand('pause');
          } else if (command.contains('停止')) {
            onCommand('stop');
          } else if (command.contains('下一个')) {
            onCommand('next');
          } else if (command.contains('上一个')) {
            onCommand('previous');
          }
        },
      );
    }
  }

  void stopListening() {
    _speech.stop();
  }
}

性能优化建议

1. 音频缓冲

优化音频流缓冲：

await _audioPlayer.setReleaseMode(ReleaseMode.stop);
await _audioPlayer.setPlayerMode(PlayerMode.mediaPlayer);

// 设置缓冲大小
await _audioPlayer.setSourceUrl(
  station.streamUrl,
  isLocal: false,
);

2. 图片缓存

使用cached_network_image缓存电台图标：

// 使用 cached_network_image 包
import 'package:cached_network_image/cached_network_image.dart';

Widget _buildStationImage(String? imageUrl) {
  if (imageUrl == null || imageUrl.startsWith('http')) {
    return CachedNetworkImage(
      imageUrl: imageUrl ?? '',
      placeholder: (context, url) => const CircularProgressIndicator(),
      errorWidget: (context, url, error) => const Icon(Icons.radio),
    );
  }
  return Text(imageUrl);  // Emoji
}

3. 列表优化

使用ListView.builder优化长列表：

ListView.builder(
  itemCount: stations.length,
  itemBuilder: (context, index) {
    return _buildStationCard(stations[index]);
  },
  // 添加缓存范围
  cacheExtent: 500,
)

测试建议

1. 单元测试

测试播放逻辑：

import 'package:flutter_test/flutter_test.dart';

void main() {
  group('Radio Player Tests', () {
    test('Toggle favorite', () {
      final station = RadioStation(
        id: '1',
        name: 'Test',
        description: 'Test',
        streamUrl: 'test',
        category: RadioCategory.music,
        isFavorite: false,
      );

      station.isFavorite = !station.isFavorite;
      expect(station.isFavorite, true);
    });
  });
}

2. Widget测试

测试UI组件：

testWidgets('Station card displays correctly', (WidgetTester tester) async {
  final station = RadioStation(
    id: '1',
    name: 'Test Station',
    description: 'Test Description',
    streamUrl: 'test',
    category: RadioCategory.music,
  );

  await tester.pumpWidget(
    MaterialApp(
      home: Scaffold(
        body: StationCard(station: station),
      ),
    ),
  );

  expect(find.text('Test Station'), findsOneWidget);
  expect(find.text('Test Description'), findsOneWidget);
});

部署发布

1. 依赖配置

在pubspec.yaml中添加：

dependencies:
  audioplayers: ^6.0.0
  shared_preferences: ^2.2.2

2. 权限配置

Android (android/app/src/main/AndroidManifest.xml):

<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WAKE_LOCK"/>

iOS (ios/Runner/Info.plist):

<key>NSAppTransportSecurity</key>
<dict>
    <key>NSAllowsArbitraryLoads</key>
    <true/>
</dict>

3. 打包

# Android
flutter build apk --release

# iOS
flutter build ios --release

项目总结

通过开发这个电台播放器应用，你将掌握：

• Flutter音频播放技术
• 流媒体处理
• 状态管理和数据持久化
• 复杂UI布局设计
• 用户交互优化

这个应用展示了Flutter在多媒体应用开发中的强大能力，可以继续扩展更多功能，打造专业的电台播放平台！
欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net
