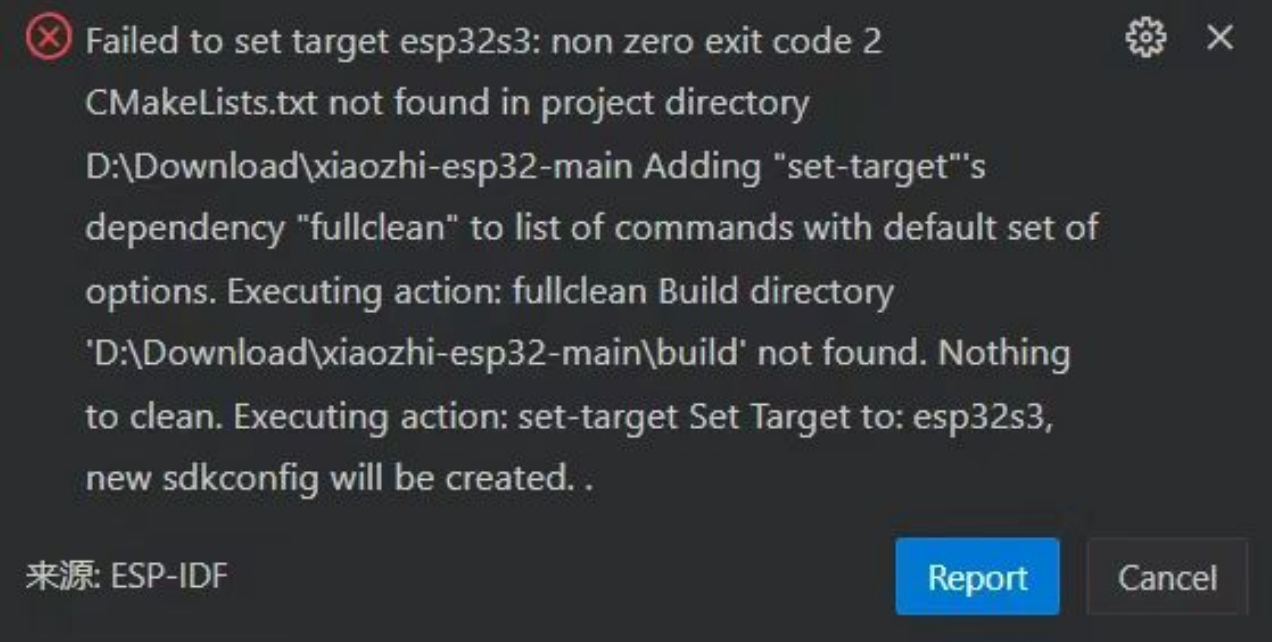

这一篇解决这个报错，这是在烧录esp32s3等系列芯片常发生的问题，具体表现是报以上的错，或者删除build后成功切换到esp32s3了，但是此时又打不开齿轮的config界面了。

配置

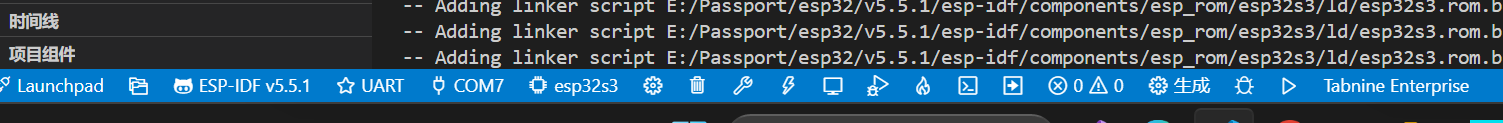

原码版本是1.8.3，不建议用最新的原码，然后ESP-IDF的版本是5.5.1，串口选UART，自行选择端口COMX，初始时目标板是型号是esp32，上图是解决后的截图。

下载ESP-IDF5.5.1（完成可跳过）

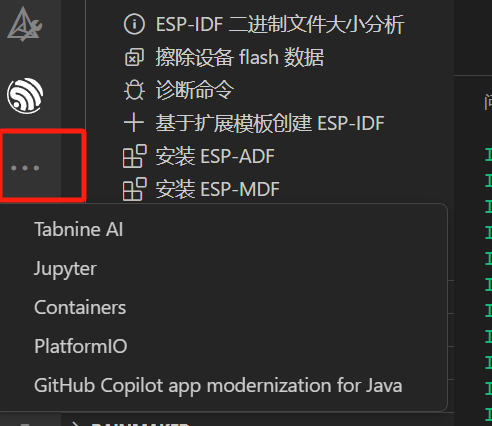

先打开ESP-IDF，如果在左侧栏没找到就点击三个点。

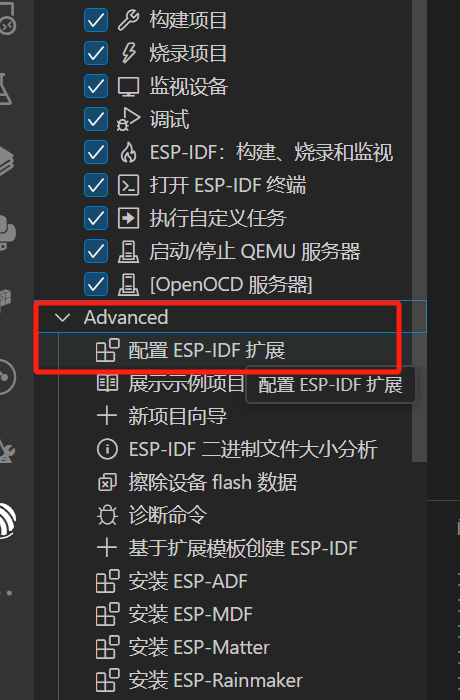

然后点开“Advanced”，点击配置扩展

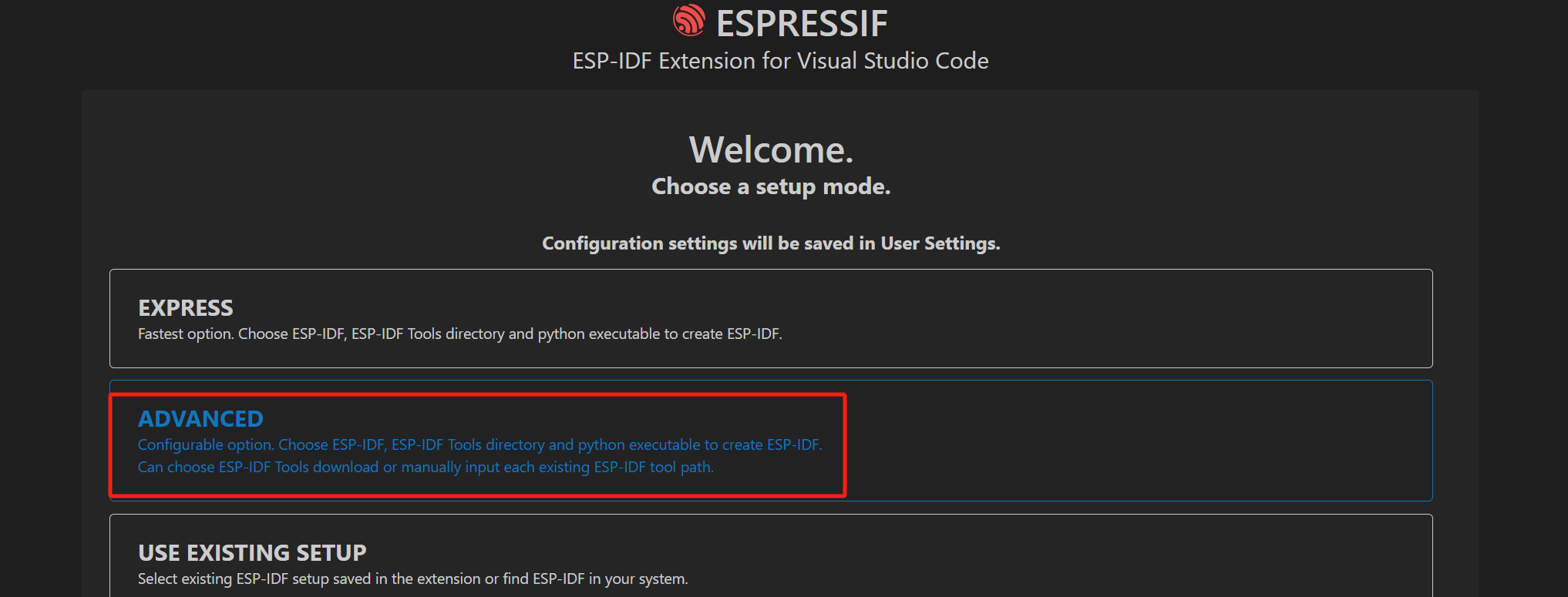

等待一会，出现这个页面选择ADVANCED

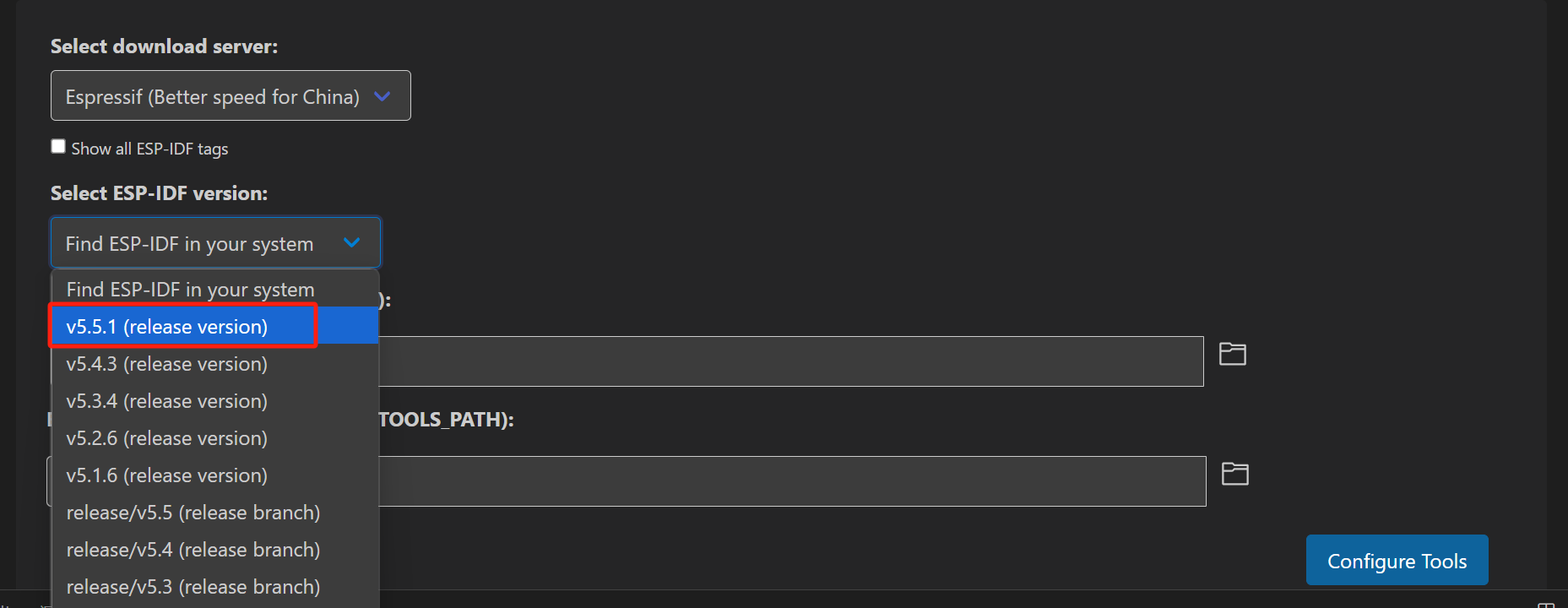

在version项选择5.5.1

然后选择安装路径（大约1.8G），点击configureTools即可，要等待很久，然后会有一个下载tools的界面，正常下载即可。

注意，在下载期间不要切换网络，断了就白下了，需要删除文件夹重新下。

解决

# 1. 打开 ESP-IDF PowerShell（不是普通PowerShell！）

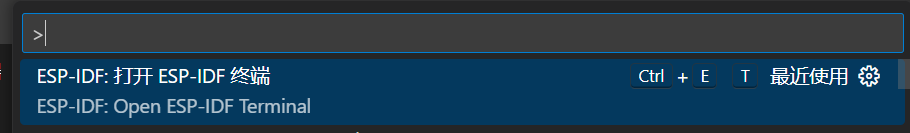

ctrl+shift+P，输入ESP-IDF:Open ESP-IDF Terminal打开终端

conda deactivate 直到完全退出虚拟环境（PS前面不带括号为止，每个人的初始配置可能不一样）

(mindspore_env) PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> conda deactivate
(base) PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> conda deactivate
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3>

echo $env:IDF_TARGET   会输出esp32，此时不是s3

PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> echo $env:IDF_TARGET
esp32

 $env:IDF_TARGET = "esp32s3"   切换为s3

echo $env:IDF_TARGET     检查环境变量是否切换成功

PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> $env:IDF_TARGET = "esp32s3"
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> echo $env:IDF_TARGET
esp32s3

'c:\Users\HP\.vscode\extensions\espressif.esp-idf-extension-1.10.2\export.ps1'

(在下一步前一定要删除 build sdkconfig sdkconfig.old components/ 文件)

idf.py fullclean

这是没删除时的报错：

PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> idf.py fullclean
Executing action: fullclean
Directory 'E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3\build' doesn't seem to be a CMake build directory. Refusing to automatically delete files in this directory. Delete the directory manually to 'clean' it.

删除后输出如下：

PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> idf.py fullclean
Executing action: fullclean
Build directory 'E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3\build' not found. Nothing to clean.
Executing action: remove_managed_components
Done

idf.py set-target esp32s3

等待执行完毕即可，此时切换到配置页面也正常了

结束。

后续操作

后续就可以更改配置文件，选择flash、psram等配置，然后点击扳手或小火苗进行编译和构建和监视了。

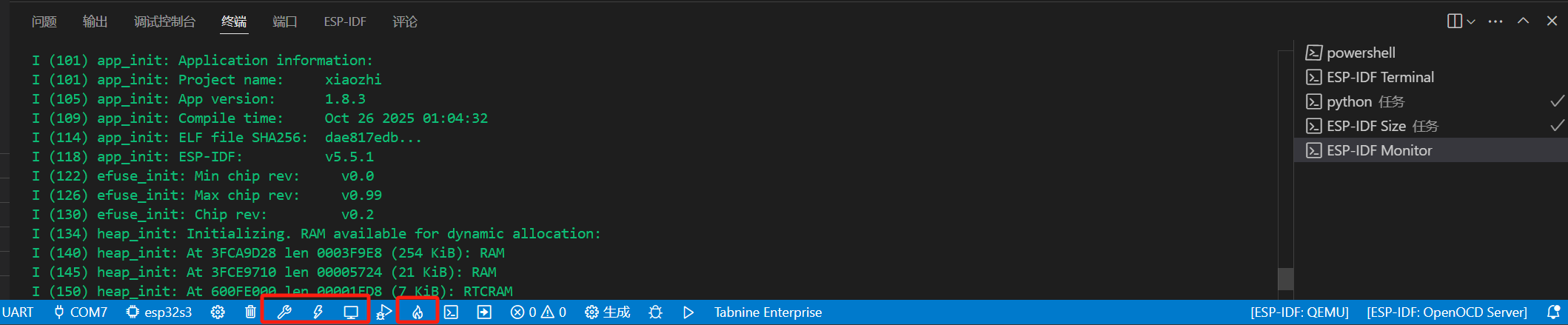

如图成功。

临时记录（不用看了）

(mindspore_env) PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> conda deactivate
(base) PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> conda deactivate
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> echo $env:IDF_TARGET
esp32
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> $env:IDF_TARGET = "esp32s3"
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> echo $env:IDF_TARGET
esp32s3
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> 'c:\Users\HP\.vscode\extensions\espressif.esp-idf-extension-1.10.2\export.ps1'
c:\Users\HP\.vscode\extensions\espressif.esp-idf-extension-1.10.2\export.ps1
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> idf.py fullclean
Executing action: fullclean
Directory 'E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3\build' doesn't seem to be a CMake build directory. Refusing to automatically delete files in this directory. Delete the directory manually to 'clean' it.
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> idf.py fullclean
Executing action: fullclean
Build directory 'E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3\build' not found. Nothing to clean.
Executing action: remove_managed_components
Done
PS E:\Passport\xiaozhi-esp32-1.8.3\xiaozhi-esp32-1.8.3> idf.py set-target esp32s3
